FFB3946 / FMB3946
FFB3946
E2
B2
C1
TRANSISTOR TYPE
C1 B1 E1
C2 B2 E2
NPN
PNP
FMB3946
C2
E1
C1
SC70-6
Mark: .AB
Dot denotes pin #1
pin #1
C2
B1
E1
B2
SuperSOT
-6
Mark: .002
Dot denotes pin #1
E2
pin #1
B1
NPN & PNP General Purpose Amplifier
This complementary device is designed for use as a general purpose
amplifier and switch The useful dynamic range extends to 100 mA as a
switch and 100 MHz as an amplifier. Sourced from Process 23 and 66.
See FFB3904 (NPN) and FFB3906 (PNP) for characteristics.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
Collector-Emitter Voltage
T
A
= 25°C unless otherwise noted
Parameter
Value
40
40
5.0
200
-55 to +150
Units
V
V
V
mA
°C
4
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
3)
All voltages (V) and currents (A) are negative polarity for PNP transistors.
Thermal Characteristics
Symbol
P
D
R
θJA
T
A
= 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Ambient
FFB3946
300
2.4
415
Max
FMB3946
700
5.6
180
Units
mW
mW/°C
°C/W
1999 Fairchild Semiconductor Corporation
FFB3946 / FMB3946
NPN & PNP General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
T
A
= 25°C unless otherwise noted
Test Conditions
Min
Typ
Max Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
I
EBO
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
I
C
= 10 mA, I
B
= 0
I
C
= 10
µA,
I
E
= 0
I
E
= 10
µA,
I
C
= 0
V
CB
= 30 V, I
E
= 0
V
EB
= 4.0 V, I
C
= 0
40
40
5.0
50
50
V
V
V
nA
nA
ON CHARACTERISTICS
h
FE
DC Current Gain
I
C
= 100
µA,
V
CE
= 1.0 V
I
C
= 1.0 mA, V
CE
= 1.0 V
I
C
= 10 mA, V
CE
= 1.0 V
I
C
= 50 mA, V
CE
= 1.0 V
I
C
= 100mA, V
CE
= 1.0 V
I
C
= 10 mA, I
B
= 1.0 mA
I
C
= 10 mA, I
B
= 1.0 mA
40
70
100
60
30
300
V
CE(
sat
)
V
BE(
sat
)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
0.25
0.9
V
V
SMALL SIGNAL CHARACTERISTICS
f
T
C
obo
C
ibo
Current Gain - Bandwidth Product
Output Capacitance
Input Capacitance
I
C
= 10 mA, V
CE
= 20 V,
f = 100 MHz
V
CB
= 5.0 V, f = 100 kHz
V
CB
= 5.0 V, f = 100 kHz
200
4.5
10
MHz
pF
pF
NOTE:
All voltages (V) and currents (A) are negative polarity for PNP transistors.

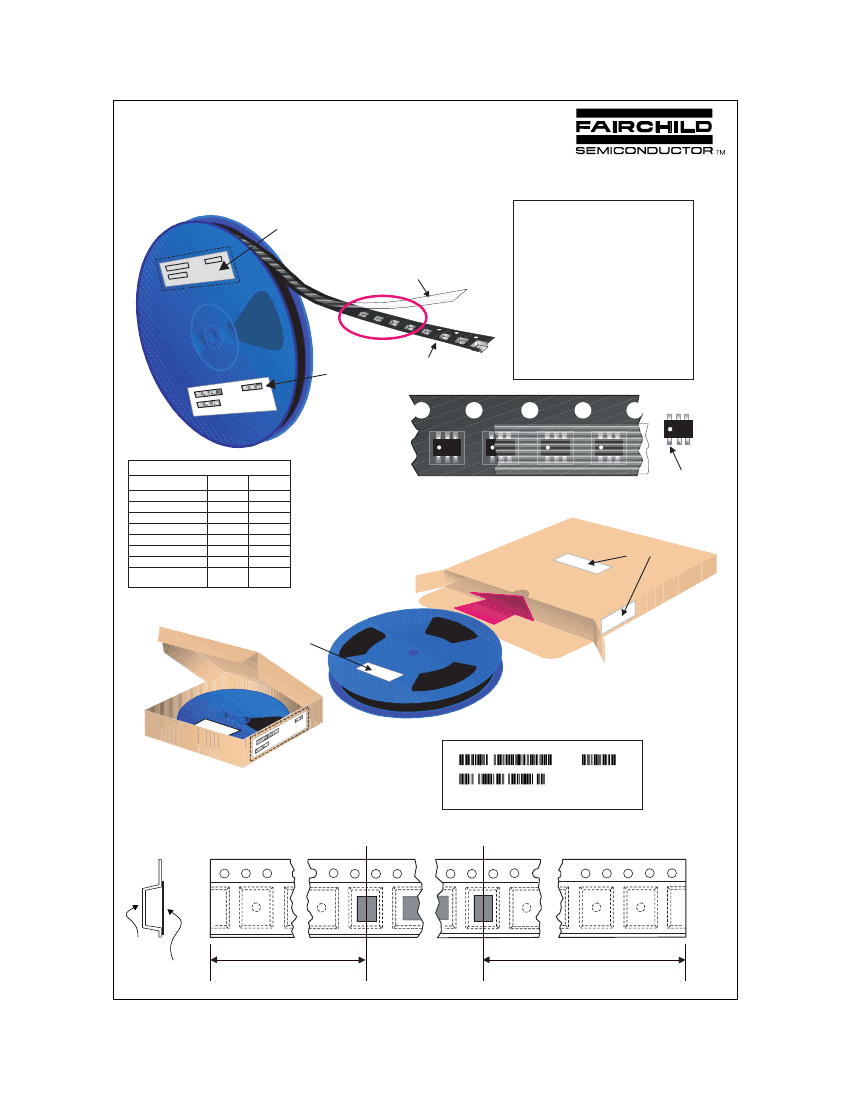

SC70-6 Tape and Reel Data
SC70-6 Packaging
Configuration:
Figure 1.0
Customized Label
Packaging Description:
SC70-6 parts are shipped in tape. The carrier tape is
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
3,000 units per 7" or 177cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 10,000 units per 13"
or 330cm diameter reel. This and some other options are
described in the Packaging Information table.
These full reels are individually barcode labeled and
placed inside a pizza box (illustrated in figure 1.0) made of
recyclable corrugated brown paper with a Fairchild logo
printing. One pizza box contains three reels maximum.
And these pizza boxes are placed inside a barcode
labeled shipping box which comes in different sizes
depending on the number of parts shipped.
Antistatic Cover Tape
F63TNR
Static Dissipative
Label
Embossed Carrier Tape
21
21
SC70-6 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size
Box Dimension (mm)
Max qty per Box
Weight per unit (gm)
Weight per Reel (kg)
Note/Comments
Standard
(no flow code)
TNR
3,000
7" Dia
184x187x47
9,000
0.0055
0.1140
D87Z
TNR
10,000
13"
343x343x64
30,000
0.0055
0.3960
21
21
21
Pin 1
SC70-6 Unit Orientation
343mm x 342mm x 64mm
Intermediate box for D87Z Option
F63TNR Barcode Label
F63TNR
Label
F63TNR Label sample
184mm x 187mm x 47mm
Pizza Box for Standard Option
F63TNR
Label
LOT: CBVK741B019
FSID: FDG6302P
QTY: 3000
SPEC:
D/C1: D9842
D/C2:
QTY1:
QTY2:
SPEC REV:
CPN:
N/F: F
(F63TNR)3
SC70-6 Tape Leader and Trailer
Configuration:
Figure 2.0
Carrier Tape
Cover Tape
Components
Trailer Tape
300mm minimum or
75 empty pockets
Leader Tape
500mm minimum or
125 empty pockets
©2000 Fairchild Semiconductor International
August 1999, Rev. C
SC70-6 Tape and Reel Data, continued

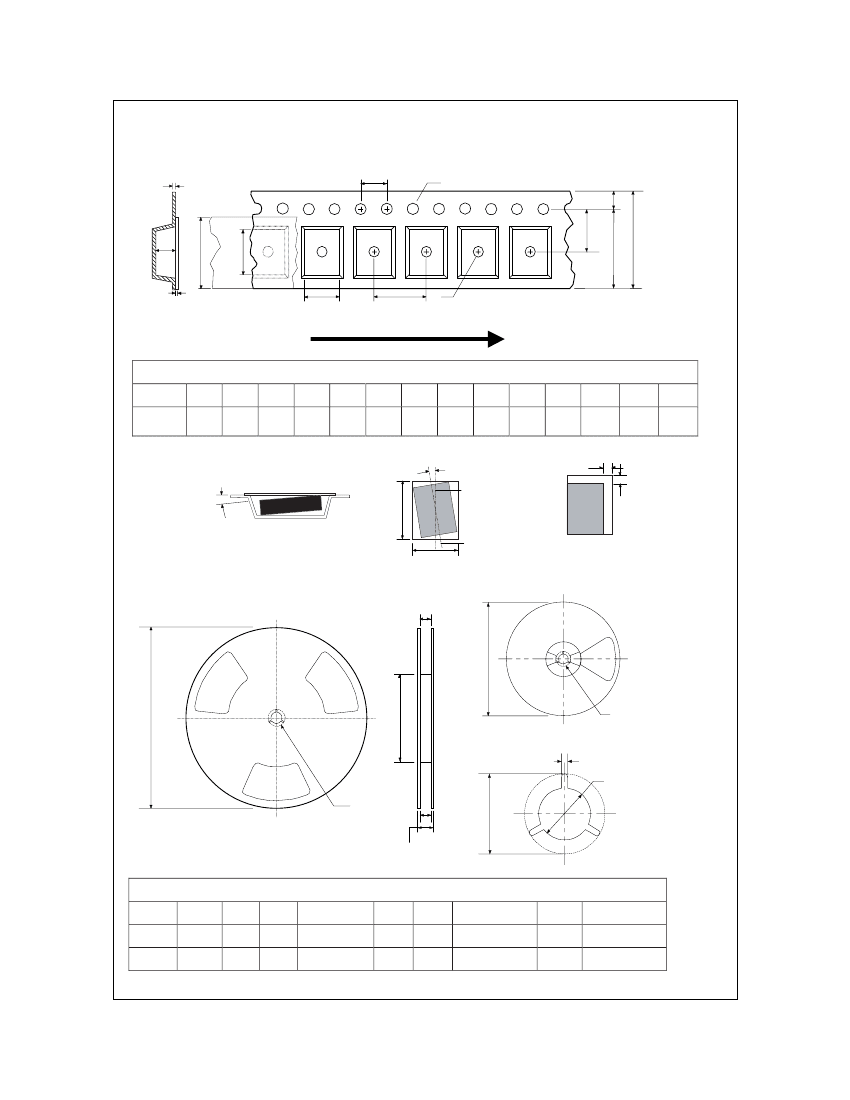

SC70-6 Embossed Carrier Tape
Configuration:
Figure 3.0
T
E1
P0
D0
F
K0
Wc
B0
E2
W
Tc
A0
P1
D1
User Direction of Feed
Dimensions are in millimeter
Pkg type
SC70-6
(8mm)
A0
2.24
+/-0.10
B0
2.34
+/-0.10
W
8.0
+/-0.3
D0
1.55
+/-0.05
D1
1.125
+/-0.125
E1
1.75
+/-0.10
E2
6.25
min
F
3.50
+/-0.05
P1
4.0
+/-0.1
P0
4.0
+/-0.1
K0
1.20
+/-0.10
T
0.255
+/-0.150
Wc
5.2
+/-0.3
Tc
0.06
+/-0.02
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
20 deg maximum
Typical
component
cavity
center line
0.5mm
maximum
B0
20 deg maximum component rotation
0.5mm
maximum
Sketch A (Side or Front Sectional View)
Component Rotation
A0
Sketch B (Top View)
Typical
component
center line
Sketch C (Top View)
Component lateral movement
SC70-6 Reel Configuration:
Figure 4.0
Component Rotation
W1 Measured at Hub
Dim A
Max
Dim A
max
Dim N
See detail AA
7" Diameter Option
B Min
Dim C
See detail AA
W3
Dim D
min
13" Diameter Option
W2 max Measured at Hub
DETAIL AA
Dimensions are in inches and millimeters
Tape Size
8mm
Reel
Option
7" Dia
Dim A
7.00
177.8
13.00
330
Dim B
0.059
1.5
0.059
1.5
Dim C
0.512 +0.020/-0.008
13 +0.5/-0.2
0.512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
0.795
20.2
Dim N
2.165
55
4.00
100
Dim W1
0.331 +0.059/-0.000
8.4 +1.5/0
0.331 +0.059/-0.000
8.4 +1.5/0
Dim W2
0.567
14.4
0.567
14.4
Dim W3 (LSL-USL)
0.311 – 0.429
7.9 – 10.9
0.311 – 0.429
7.9 – 10.9
8mm
13" Dia
July 1999, Rev. C

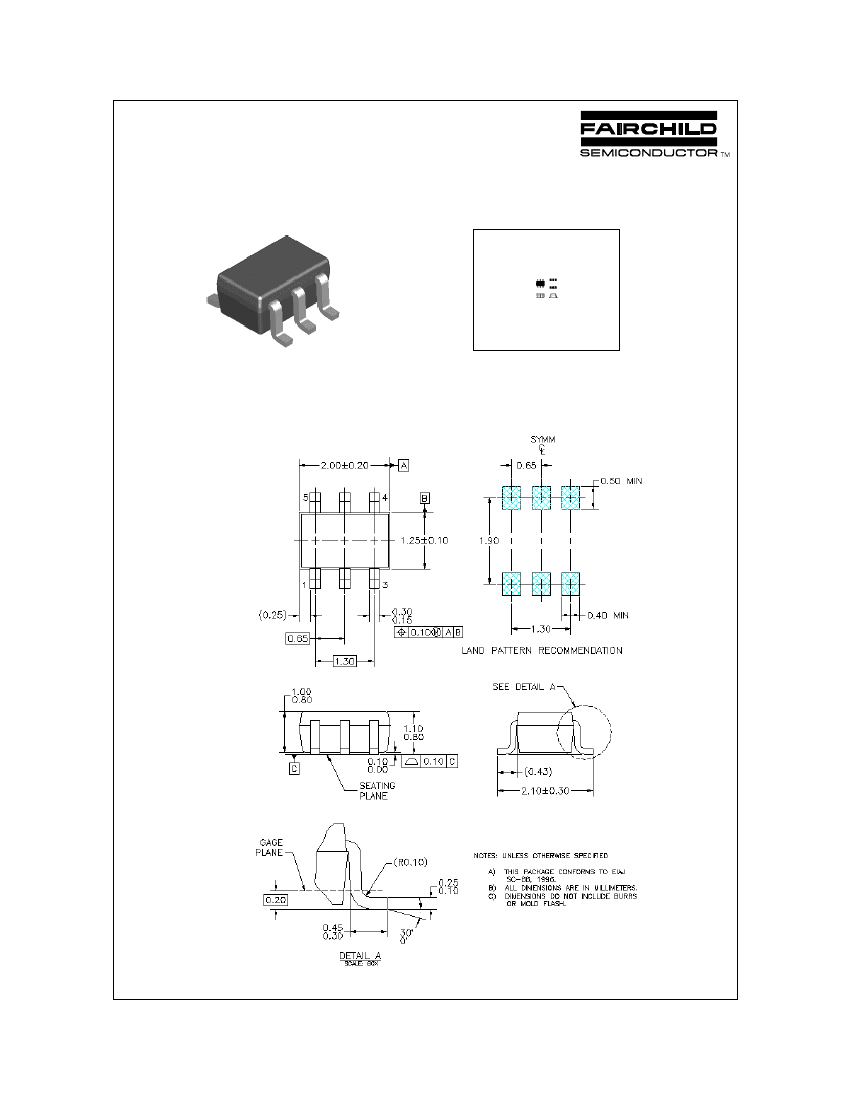

SC70-6 Package Dimensions
SC70-6 (FS PKG Code 76)
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.0055
©2000 Fairchild Semiconductor International
March 2000, Rev. B
