EURO

QUARTZ

Tight Temperature Stability

Tight Stability; Low profile SMT package

Frequency Range: 10MHz - 300MHz

Output Signal: CMOS (ZT600) Sine (ZT601)

Package outline 25.40 x 29.21 x 5.08 mm

ZT600/601 TCXO

10MHz to 300MHz

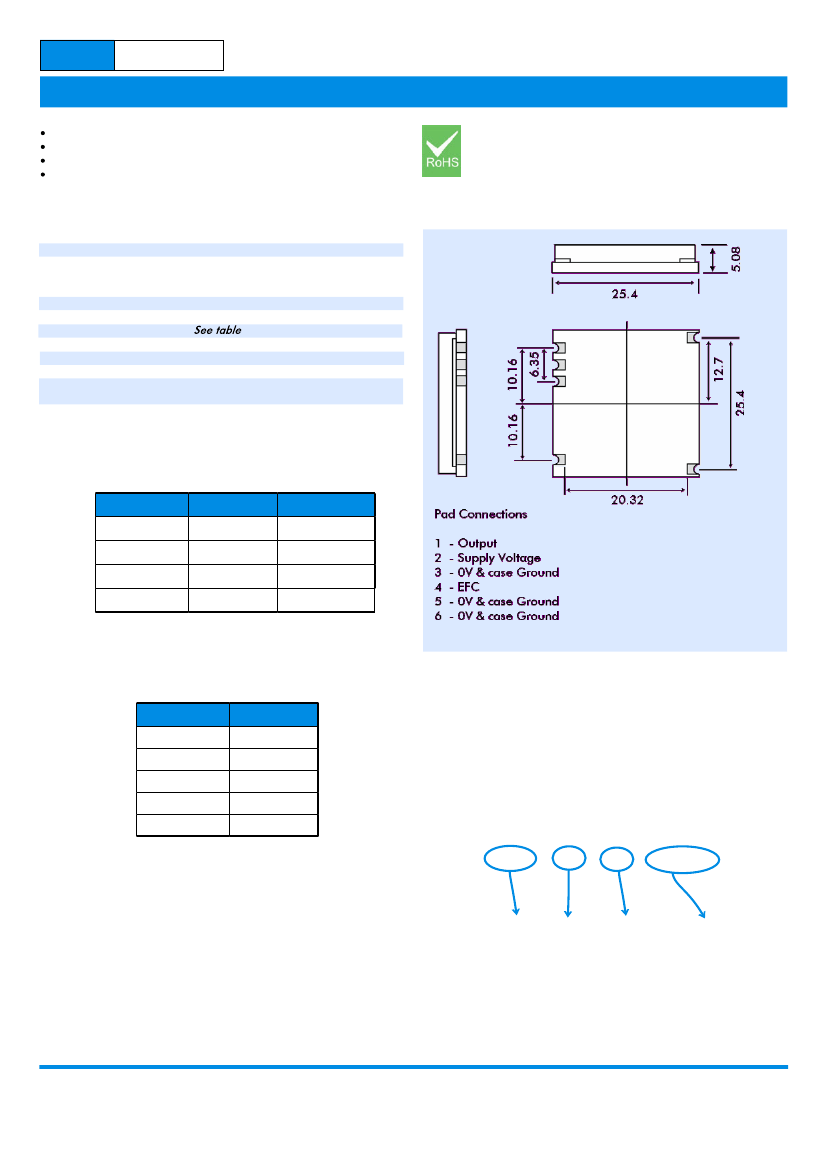

ZT600 - OUTLINES AND DIMENSIONS

SPECIFICATIONS

Frequency Range:

Output

Series ZT600:

Series ZT601:

Harmonics:

Symmetry:

Temperature Stability:

Frequency vs. Supply:

Ageing:

Input Voltage:

Frequency Adjust:

10.0MHz to 300.0MHz

CMOS (ACMOS available 10 to 125MHz)

Sine Wave, 0dBm into 50Ω

-20dBc (Sine Wave version)

50%±10%

±1x10

-7

per % change

<1ppm/year

+5.0 V or +3.3VDC

±5.0ppm typical, positive slope

0 to Vdd EFC

STABILITY OVER TEMPERATURE

Temp. Range

-10~+60°C

-20~+70°C

-40~+85°C

Stability

±2x10

-7

±3x10

-7

±5x10

-7

±1x10

-6

Part No. Code

G27

N37

T57

T16

PHASE NOISE

(At 10MHz +5V, Typical)

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

dBc/Hz

-95

-125

-140

-150

-155

Example:

PART NUMBERING

ZT601-T57-3.3-20.0MHz

ZT601 - T57 - 3.3 - 20.0MHz

Model number - Stability - Supply Voltage - Frequency

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
