SA6.5CARL

Description
500W, BIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CASE 59-09, 2 PIN
CategoryDiscrete semiconductor    diode
File Size50KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric View All

SA6.5CARL Overview

500W, BIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CASE 59-09, 2 PIN

SA6.5CARL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerON Semiconductor
package instructionPLASTIC, CASE 59-09, 2 PIN
Contacts2
Manufacturer packaging codeCASE 59-09
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
Maximum breakdown voltage7.98 V
Minimum breakdown voltage7.22 V
Shell connectionISOLATED
Maximum clamping voltage11.2 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 codeO-PALF-W2
JESD-609 codee3
Maximum non-repetitive peak reverse power dissipation500 W
Number of components1
Number of terminals2
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityBIDIRECTIONAL
Maximum power dissipation3 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage6.5 V
surface mountNO
technologyZENER
Terminal surfaceTin (Sn)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED

SA6.5CARL Preview

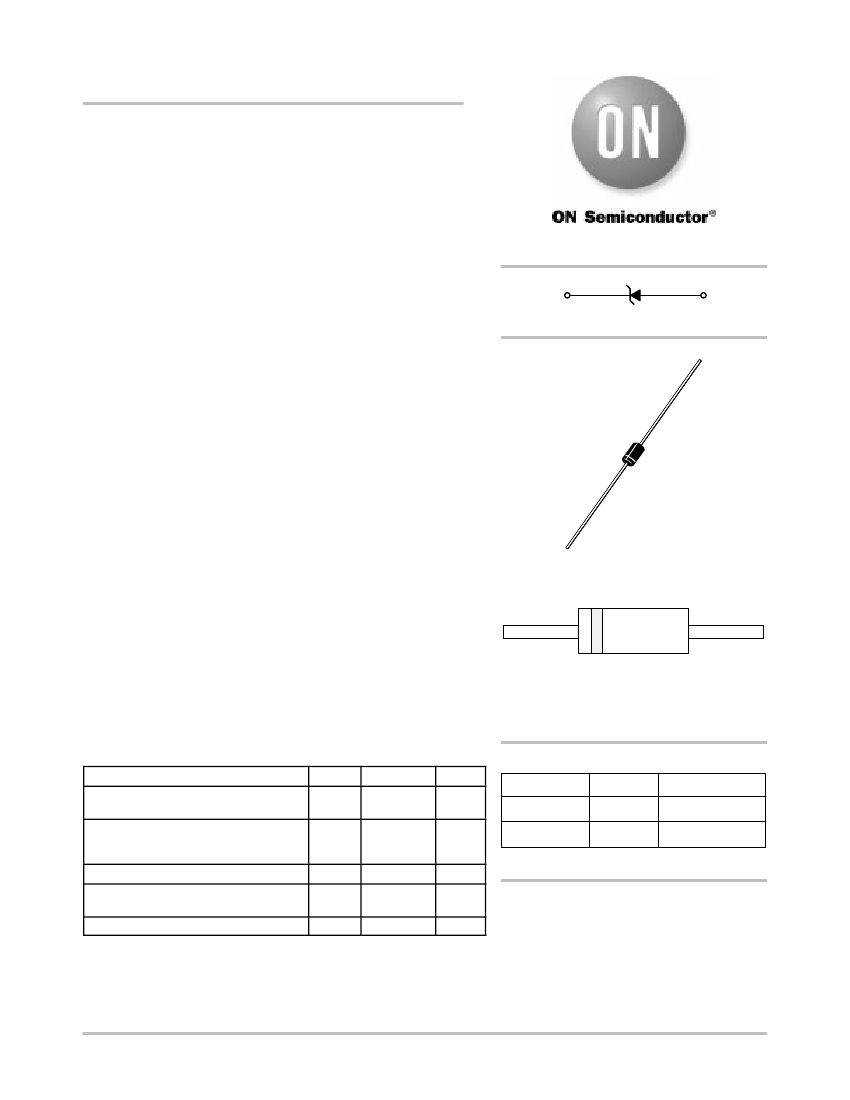

SA5.0A Series
500 Watt Peak Power
MiniMOSORBE Zener
Transient Voltage
Suppressors
Unidirectional*
The SA5.0A series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SA5.0A series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetict axial leaded package and is ideally-suited for use in
communication systems, numerical controls, process controls,
medical equipment, business machines, power supplies and many
other industrial/consumer applications.
Specification Features:
http://onsemi.com
Cathode
Anode
Working Peak Reverse Voltage Range – 5 to 170 V
Peak Power – 500 Watts @ 1 ms
ESD Rating of Class 3 (>16 KV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 1
mA
above 8.5 V
UL 497B for Isolated Loop Circuit Protection
Maximum Temperature Coefficient Specified
Response Time is typically < 1 ns
AXIAL LEAD
CASE 59
PLASTIC
Mechanical Characteristics:
CASE:
Void-free, Transfer-molded, Thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING:
230°C,
L
SA
xxxA
YYWW
L = Assembly Location
SAxxxA = ON Device Code
YY = Year
WW = Work Week
1/16″ from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band.
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1)
@ T
L
25°C
Steady State Power Dissipation
@ T
L
75°C, Lead Length = 3/8″
Derated above T
L
= 75°C
Thermal Resistance, Junction–to–Lead
Forward Surge Current (Note 2)
@ T
A
= 25°C
Operating and Storage Temperature Range
Symbol
P
PK
P
D
Value
500
3.0
30
R
qJL
I
FSM
T
J
, T
stg
33.3
70
– 55 to +175
Unit
Watts
Watts
mW/°C
°C/W
Amps
°C
ORDERING INFORMATION
Device
SAxxxA
SAxxxARL*
Package
Axial Lead
Axial Lead
Shipping
1000 Units/Box
5000/Tape & Reel
*SA8.0A, SA130A, and SA160A Not Available in
5000/Tape & Reel.
Devices listed in
bold, italic
are ON Semiconductor
Preferred
devices.
Preferred
devices are recommended
choices for future use and best overall value.
1. Nonrepetitive current pulse per Figure 4 and derated above T
A
= 25°C per Fig-
ure 2.
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses
per minute
*Please see SA5.0CA – SA170CA for Bidirectional devices.
©
Semiconductor Components Industries, LLC, 2002
1
June, 2002 – Rev. 7
Publication Order Number:
SA5.0A/D
SA5.0A Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 6) = 35 A)
Symbol
I
PP
V
C
V
RWM
I
R
V
BR
I
T
QV
BR
I
F
V
F
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ V
RWM
Breakdown Voltage @ I
T
Test Current
Maximum Temperature Variation of V
BR
Forward Current
Forward Voltage @ I
F
I
PP
V
C
V
BR
V
RWM
I
R
V
F
I
T
V
I
F
I
Uni–Directional TVS
http://onsemi.com
2
SA5.0A Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 6) = 35 A)
V
RWM
(Note 3)
Volts
5
6
7
7.5
8
8.5
9
10
Breakdown Voltage
I
R
@ V
RWM
mA
600
600
150
50
25
5
1
1
V
BR
(Note 4)
(Volts)
Min
6.4
6.67
7.78
8.33
8.89
9.44
10
11.1
Nom
6.7
7.02
8.19
8.77
9.36
9.92
10.55
11.7
Max
7
7.37
8.6
9.21
9.83
10.4
11.1
12.3
@ I
T
mA
10
10
10
1
1
1
1
1
V
C
@ I
PP
(Note 5)
V
C
Volts
9.2
10.3
12
12.9
13.6
14.4
15.4
17
I
PP
A
54.3
48.5
41.7
38.8
36.7
34.7
32.5
29.4
QV
BR
mV/°C
5
5
6
7
7
8
9
10
Device
SA5.0A
SA6.0A
SA7.0A
SA7.5A
SA8.0A*
SA8.5A
SA9.0A
SA10A
Device
Marking
SA5.0A
SA6.0A
SA7.0A
SA7.5A
SA8.0A*
SA8.5A
SA9.0A
SA10A
SA11A
SA12A
SA13A
SA14A
SA15A
SA16A
SA17A
SA18A
SA20A
SA22A
SA24A
SA26A
SA28A
SA30A
SA33A
SA36A
SA40A
SA43A
SA45A
SA48A
SA51A
SA58A
SA60A
SA64A
SA70A
SA78A
SA90A
SA100A
SA110A
SA120A
SA130A*
SA150A
SA160A*
SA170A
SA11A
SA12A
SA13A
SA14A
SA15A
SA16A
SA17A
SA18A
SA20A
SA22A
SA24A
SA26A
SA28A
SA30A
SA33A
SA36A
SA40A
SA43A
SA45A
SA48A
SA51A
SA58A
SA60A
SA64A
SA70A
SA78A
SA90A
SA100A
SA110A
SA120A
SA130A*
SA150A
SA160A*
SA170A
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
58
60
64
70
78
90
100
110
120
130
150
160
170
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
64.4
66.7
71.1
77.8
86.7
100
111
122
133
144
167
178
189
12.85
14
15.15
16.4
17.6
18.75
19.9
21.05
23.35
25.65
28.1
30.4
32.75
35.05
38.65
42.1
46.55
50.3
52.65
56.1
59.7
67.8
70.2
74.85
81.9
91.25
105.5
117
128.5
140
151.5
176
187.5
199
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
71.2
73.7
78.6
86
95.8
111
123
135
147
159
185
197
209
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
93.6
96.8
103
113
126
146
162
177
193
209
243
259
275
27.4
25.1
23.2
21.5
20.6
19.2
18.1
17.2
15.4
14.1
12.8
11.9
11
10.3
9.4
8.6
7.8
7.2
6.9
6.5
6.1
5.3
5.2
4.9
4.4
4.0
3.4
3.1
2.8
2.5
2.4
2.1
1.9
1.8
11
12
13
14
16
17
19
20
23
25
28
30
31
36
39
41
46
50
52
56
61
70
71
76
85
95
110
123
133
146
158
184
196
208
NOTES:
3. MiniMOSORBt transients suppressor is normally selected according to the maximum working peak reverse voltage (V
RWM
), which
should be equal to or greater than the dc or continuous peak operating voltage level.
4. V
BR
measured at pulse test current I
T
at an ambient temperature of 25°C.
5. Surge current waveform per Figure 4 and derate per Figures 1 and 2.
6. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute
*Not Available in the 5000/Tape & Reel.
http://onsemi.com
3
SA5.0A Series
NONREPETITIVE PULSE
WAVEFORM SHOWN IN
FIGURE 4
10
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ TA = 25 C
°
100
P K , PEAK POWER (kW)
P
100
80
60
40
20
0
0
25
50 75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)
1
0.1
0.1
ms
1
ms
10
ms
100
ms
1 ms
10 ms
t
p
, PULSE WIDTH
Figure 1. Pulse Rating Curve
Figure 2. Pulse Derating Curve
t
r
10
ms
10,000
C, CAPACITANCE (pF)
MEASURED @
ZERO BIAS
100
VALUE (%)
PEAK VALUE – I
PP
PULSE WIDTH (t
p
) IS
DEFINED AS THAT POINT
WHERE THE PEAK
CURRENT DECAYS TO
50% OF I
PP
.
I
PP
2
1000
HALF VALUE –
50
t
P
0
100
MEASURED @
(V
RWM
)
1
10
100
1000
0
10
0.1
1
2
3
4
V
BR
, BREAKDOWN VOLTAGE (VOLTS)
t, TIME (ms)
Figure 3. Capacitance versus Breakdown Voltage
Figure 4. Pulse Waveform
PD, STEADY STATE POWER DISSIPATION (WATTS)
5
4
3/8″
3/8″
3
2
1
0
0 25 50 75 100 125 150 175 200
T
L
, LEAD TEMPERATURE (°C)
Figure 5. Steady State Power Derating
http://onsemi.com
4
SA5.0A Series
UL RECOGNITION*
The entire series including the bidirectional CA suffix has
Underwriters Laboratory Recognition
for the classification
of protectors (QVGV2) under the UL standard for safety
497B and File #E 116110. Many competitors only have one
or two devices recognized or have recognition in a
non-protective category. Some competitors have no
recognition at all. With the UL497B recognition, our parts
successfully passed several tests including Strike Voltage
Breakdown test, Endurance Conditioning, Temperature test,
Dielectric Voltage-Withstand test, Discharge test and
several more.
Whereas, some competitors have only passed a
flammability test for the package material, we have been
recognized for much more to be included in their protector
category.
*Applies to SA5.0A, CA – SA170A, CA.
http://onsemi.com
5
ICT is used to test component properties.
As the title says, I have finished drawing the circuit, and my boss asked me to output the circuit ICT and FCT specifications. How can I do this? I looked it up on Baidu and found that ICT is used to ...
nidalmahehe MCU
About WinCE explorer self-starting
Now, we can realize the self-start of a small program by modifying the WinCE registry online. Launch80 = "Myapp.exe" In fact, there is another way to replace Launch 50 = "explorer.exe" with myapp.exe....
SAI20052005 Embedded System
Design of custom LED drivers
Design of custom LED driversDeng Chengzhong (School of Mechanical Engineering and Automation, Xihua University, Chengdu 610039, Sichuan, China)  Abstract: By using some special functions of Philips LP...
fighting Analog electronics
A simple question about the driver
Hey guys, I'm a beginner in WDM and don't understand many things. I have a small question: int i; ULONG dwByteSize=I.ReadSize(CURRENT); PUCHAR buffer1=new (NoPagedPool)UCHAR[dwByteSize]; PUCHAR buffer...
hyhjjg Embedded System
AT89s51 Chinese documentation
AT89s51 Chinese documentation...
z1z1z1z1z1 51mcu
430 compilation problem
After downloading the program, the cursor is usually at the beginning of the main function. Click Run to run the program. However, after downloading a program I wrote, it is directly in the running st...
2011302467 Microcontroller MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2777  1510  2605  1764  1306  56  31  53  36  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
