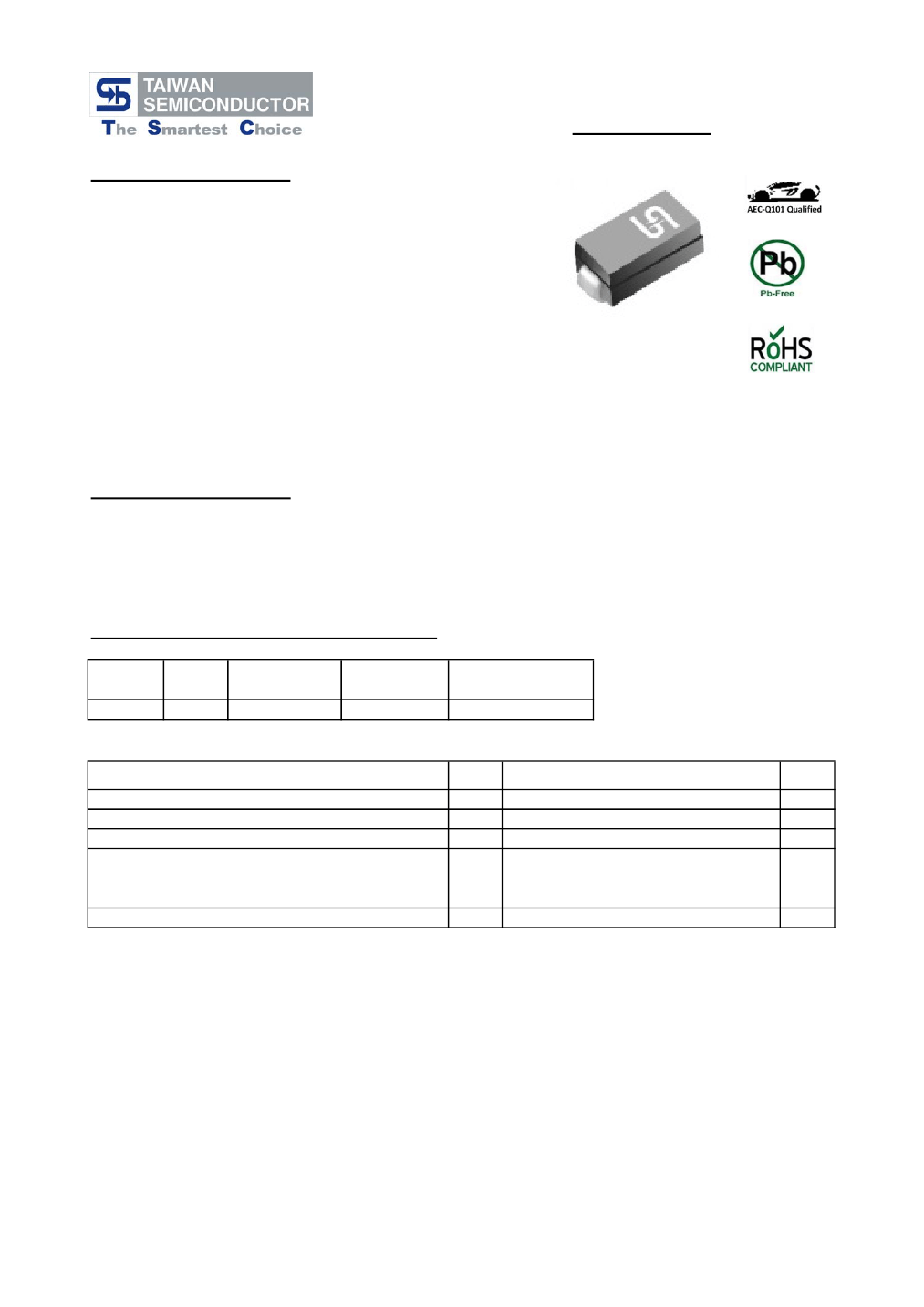

1.0 Watt Surface Mount Silicon Zener Diodes
DO-214AC(SMA)
Features
For surface mounted applications in order to
optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Typical I
R
less than 1uA above 11V
High temperature soldering guaranteed:
260℃ / 10 seconds at terminals
Meet MSL level 1, per J-STD-020,
LF maximum peak of 260℃
Plastic package has Underwriters
Laboratory Flammability Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode
1SMA4737 - 1SMA200Z
Mechanical Data
Case: Molded plastic over passivated junction
Terminals: Pure tin plated lead free,
solderable per MIL-STD-750, Method 2025
Polarity: Color Band denotes positive end (cathode)
Standard packaging: 12mm tape (EIA-481)
Weight: 0.064 gram
Ordering Information (example)
Part No.
1SMA4737
Package
SMA
Packing
1.8K / 7" REEL
Packing code
R3
Packing code
(Green)
R3G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Power Dissipation, R
THJA
<30K/W, T
A
=60℃
Power Dissipation, R
THJA
<100K/W, T
A
=25℃
Non Repetitive Peak Power Dissipation(Note 1)
Non Repetitive Peak Forward Surge Current, 8.3ms
Single Half Sine-wave Superimposed on Rated Load
(JEDEC method)
Operating and Storage Temperature Range
Symbol
P
D
P
D
P
ZSM
I
FSM
T
J
, T
STG
Value
3
1.25
60
10
-55 to +150
Unit
Watts
Watts
Watts
Amps
℃
Note 1: Non Repetitive Peak surge PD Test Condition: tp=100uS sq. pulse, TA=25℃ prior to surge
Version:J13
ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted)
Nominal
Zener Voltage
Device
(Note 1)
Device
Marking
code
Vz@Iz
T
V
(Note 2)
(Note 3)
1SMA4737
1SMA4738
1SMA4739
1SMA4740
1SMA4741
1SMA4742
1SMA4743
1SMA4744
1SMA4745
1SMA4746
1SMA4747
1SMA4748
1SMA4749
1SMA4750
1SMA4751
1SMA4752
1SMA4753
1SMA4754
1SMA4755
1SMA4756
1SMA4757
1SMA4758
1SMA4759
1SMA4760
1SMA4761
1SMA4762
1SMA4763
1SMA4764
1SMA110Z
1SMA120Z
1SMA130Z
1SMA150Z
1SMA160Z
1SMA180Z
1SMA200Z
Notes:
1. Tolerance and Type Number Designation. The type numbers losted have a standard tolerance on the nominal zener voltage of ±5%
2. Specials Available Include:
A. Nominal zener voltages between the voltages shown and tighter voltage tolerances
B. Matched sets
3. Zener Voltage (Vz) Measurement. Guarantees the zener voltage when messured at 90 seconds while maintaining the lead temperature(T
L
)
at 30℃±1℃, from the diode body
4. Zener Impedance (Zz) Derivation. The zener impedance is derives from the 60 cycle AC voltage, which results when an accurrent having and
rms value equal to 10% of the DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
5. Surge Current (I
R
) Non-Repetitive. The rating listd in the electrical chatacteristics table is maximum peak, non-repetitive, reverse surge current
of 1/2 square wave or equivalent sine wave pulse of 1/120 second duration superimposed on the test current, I
ZT
per JEDEC registration;
however, actual device capability is as described in Figure 10
Version:J13
737A
738A
739A
740A
741A
742A
743A
744A
745A
746A
747A
748A
749A
750A
751A
752A
753A
754A
755A
756A
757A
758A
759A
760A
761A
762A
763A
764A
110A
120A
130A
150A
160A
180A
200A
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
34
31
28
25
23
21
19
17
15.5
14.0
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
3.0
2.8
2.5
2.3
2.0
1.9
1.7
1.6
1.4
1.2
4
4.5
5
7
8
9
10
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
125
150
175
200
250
350
450
550
700
1000
1100
1200
1500
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
6000
6500
7000
8000
0.50
0.50
0.50
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Test
Current
I
ZT
mA
Z
ZT
@I
ZT
Ω
Ω
Zener Impedance
Z
ZK
@I
ZK
mA
uA
Max.
5
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
5.0
6.0
7.0
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
605
550
500
454
414
380
344
304
285
250
225
205
190
170
150
135
125
115
110
95
90
80
70
65
60
55
50
45
-
-
-
-
-
-
-
Leakage Current
I
R
@V
R
V
Surge current
T
A
=25℃
I
R
mA
RATINGS AND CHARACTERISTIC CURVES (1SMA4737 THRU 1SMA200Z)

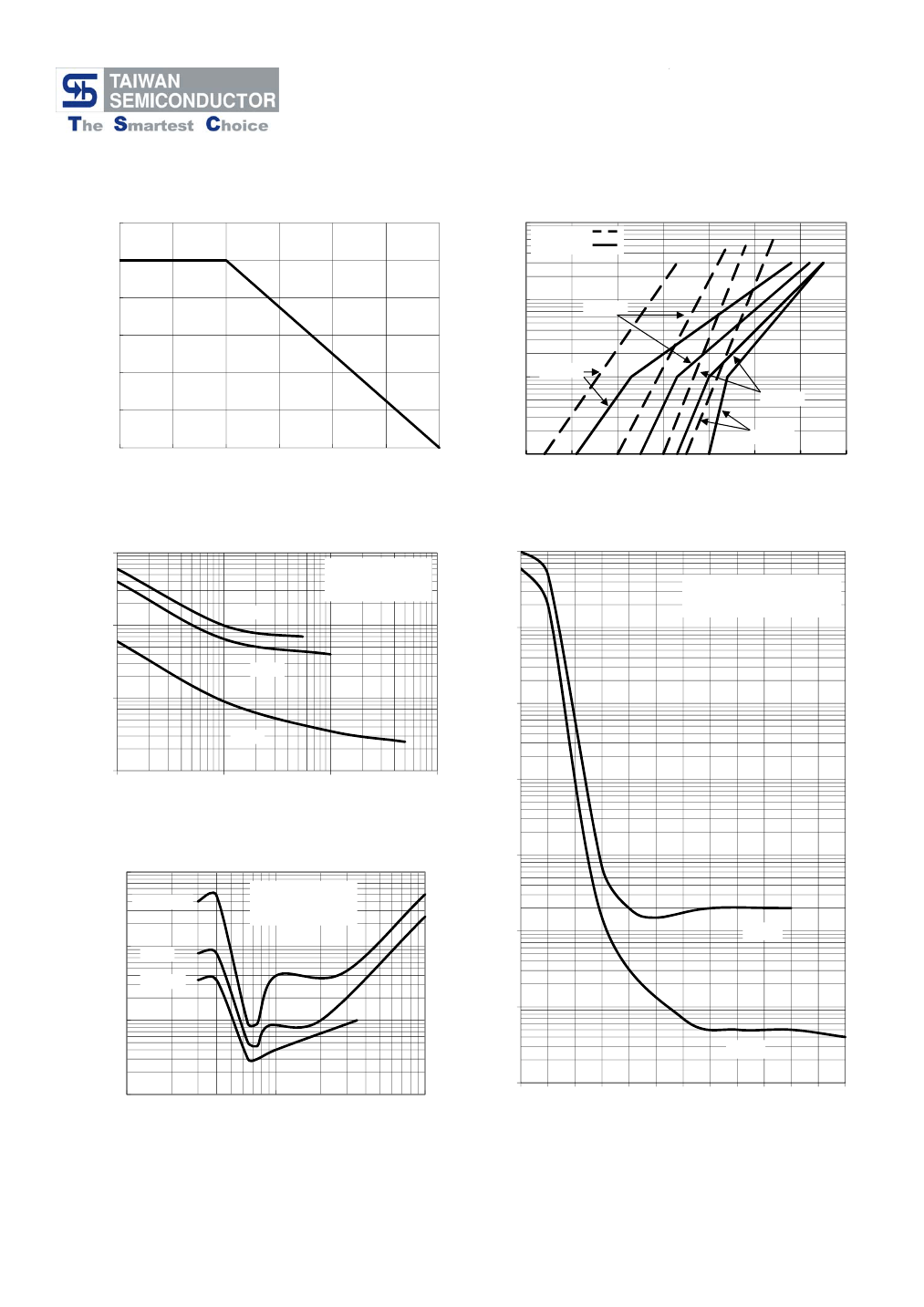

FIG. 1 POWER TEMPERATURE DERATING CURVE
1.5
1.25
1
0.75
0.5
0.25
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE(℃)
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
1000
MINIMUM
MAXIMUM
P
D
, MAXIMUM POWER DISSIPATION
(WATTS)
IF, FORWARD CURRENT (mA)
100
70℃
10
150℃
25℃
0℃
1
0.4
0.5
0.6
0.7
0.8
0.9
V
F
, FORWARD VOLTAGE (V)
1
1.1
1000
Zz, DYNAMIC IMPEDANCE (Ω)
FIG.3 EFFECT OF ZENER CURRENT
ON ZENER IMPEDANCE
TA=25℃
Iz(rms)=0.1 Iz(dc)
f=1KHz
FIG.5 TYPICAL LEAKAGE CURRENT
10000
TYPICAL LEAKAGE CURRENT
AT 80% OF NOMINAL
BREAKDOWN VOLTAGE
100
47V
1000
27V
10
100
0.8V
1
0
1
10
100
IR, LEAKAGE CURRENT(uA)
10
Iz, ZENER CURRENT (mA)
FIG.4 EFFECT OF ZENER VOLTAGE
ON ZENER IMPEDANCE
1
1000
Iz = 1mA
Zz, DYNAMIC IMPEDANCE (Ω)
TA=25℃
Iz(rms)=0.1 Iz(dc)
f=1KHz
0.1
125℃
100
5 mA
20mA
10
0.01
25℃
1
1
10
100
0.001
3
4
5
6
7
8
9
10
11
12
13
14
15
Iz, ZENER CURRENT(mA)
Vz, NOMINAL ZENER VOLTAGE(V)
Version:J13

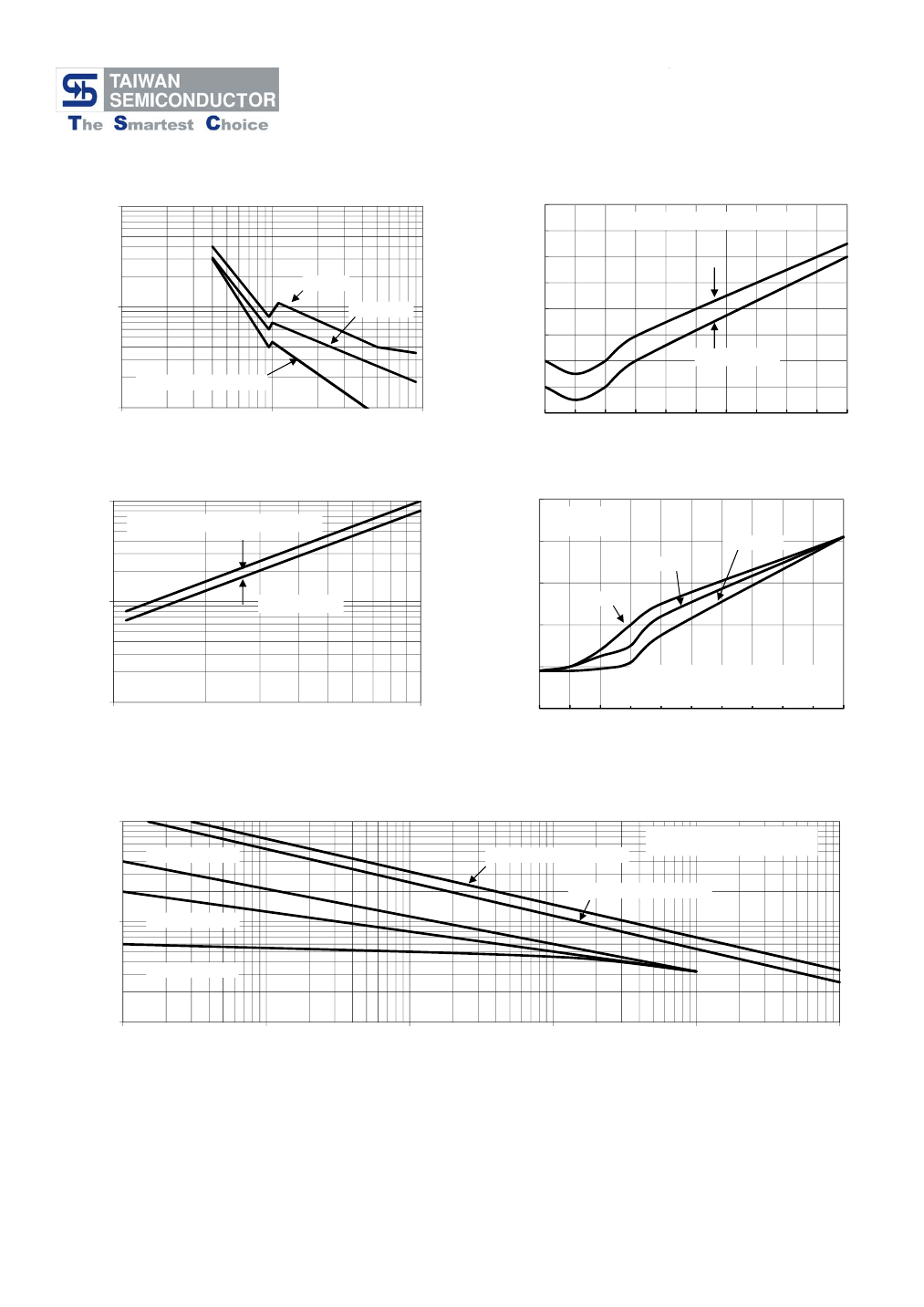

RATINGS AND CHARACTERISTIC CURVES (1SMA4737 THRU 1SMA200Z)
FIG.6 TYPICAL CAPACITANCE versus Vz
1000
12
10
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
C, CAPACITANCE(pF)
8
6
4
2
0
-2
-4
2
3
4
5
6
7
8
9
10
11
12
Vz, ZENER VOLTAGE(V)
RANGE Vz@ IZT
a-RANGE FOR UNITS TO 12 VOLTS
FIG. 7 TEMPERATURE COEFFICIENTS
0V BIAS
100
1.0V BIAS
50% OF BREAKDOWN
10
1
10
Vz, FORWARD VOLTAGE (V)
100
FIG.8 TEMPERATURE COEFFICIENTS
100
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
b-RANGE FOR UNITS 12 TO 100 VOLTS
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
4
6
Vz@ IZT
TA=25℃
FIG. 9 EFFECT OF ZENER CURRENT
0.01mA
1 mA
2
20mA
0
10
RANGE Vz@ IZT
-2
1
10
Vz, ZENER VOLTAGE(V)
100
-4
3
3.5
4
NOTE:BELOW 3 VOLTAGE ABOVE a
VOLTS CHANGES IN ZENER CURRENT
NOT AFFECT TEMPERATURE
4.5
5
5.5
6
6.5
7
7.5
8
Vz, ZENER VOLTAGE(V)
FIG.10 MAXIMUM SURGE POWER
100
P
PK
, PEAK SURGE POWER WATTS
5% DUTY CYCLE
11V-91V NON-REPETITIVE
RECTANGULAR WAVEFORM
TA=25℃ PRIOR TO INITIAL PULSE
0.8V-10V NON-REPETITIVE
10
10% DUTY CYCLE
20% DUTY CYCLE
1
0.01
0.1
1
PW, PULSE WIDTH (ms)
10
100
1000
Version:J13
Ordering information
Part No.
Package
SMA
SMA
SMA
1SMA"xxxx"
(Note)
Folded SMA
Folded SMA
Folded SMA
C SMA
Packing
1.8K / 7" REEL
7.5K / 13" REEL
7.5K / 13" Plastic REEL
1.8K / 7" REEL
7.5K / 13" REEL
7.5K / 13" Plastic REEL
1.8K / 7" REEL
Packing code
R3
R2
M2
F3
F2
F4
E3
E2
Packing code
(Green)
R3G
R2G
M2G
F3G
F2G
F4G
E3G
E2G
7.5K / 13" REEL
C SMA
Note: "x" is Device Code from "4737" thru "200Z".

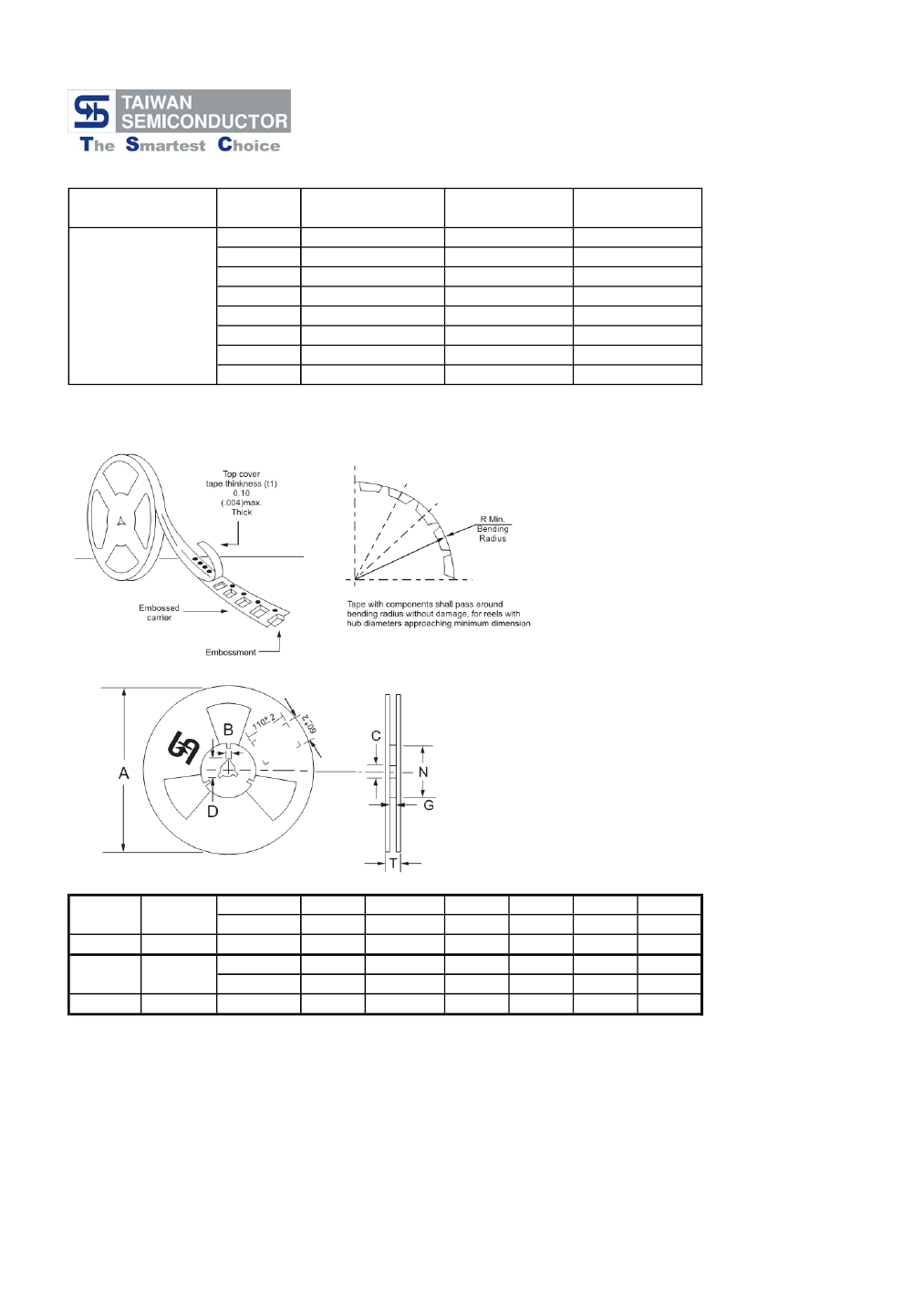

Tape & Reel specification
Reel Size Tape Size
7"
12mm
Reel Size Tape Size
13"
12mm
A
±2.0
178
A
max
330
B
±0.4
1.9
B
±0.5
2
C
+0.5;-0.2
13
C
±0.5
13
D
min
21
D
min
20.2
N
±1.0
62
N
±0.5
75
G
+0.8;-0
12.2
G
+2.0;-0
12.4
T
max
14.6
T
max
18.4
Unit (mm)
Version:J13
