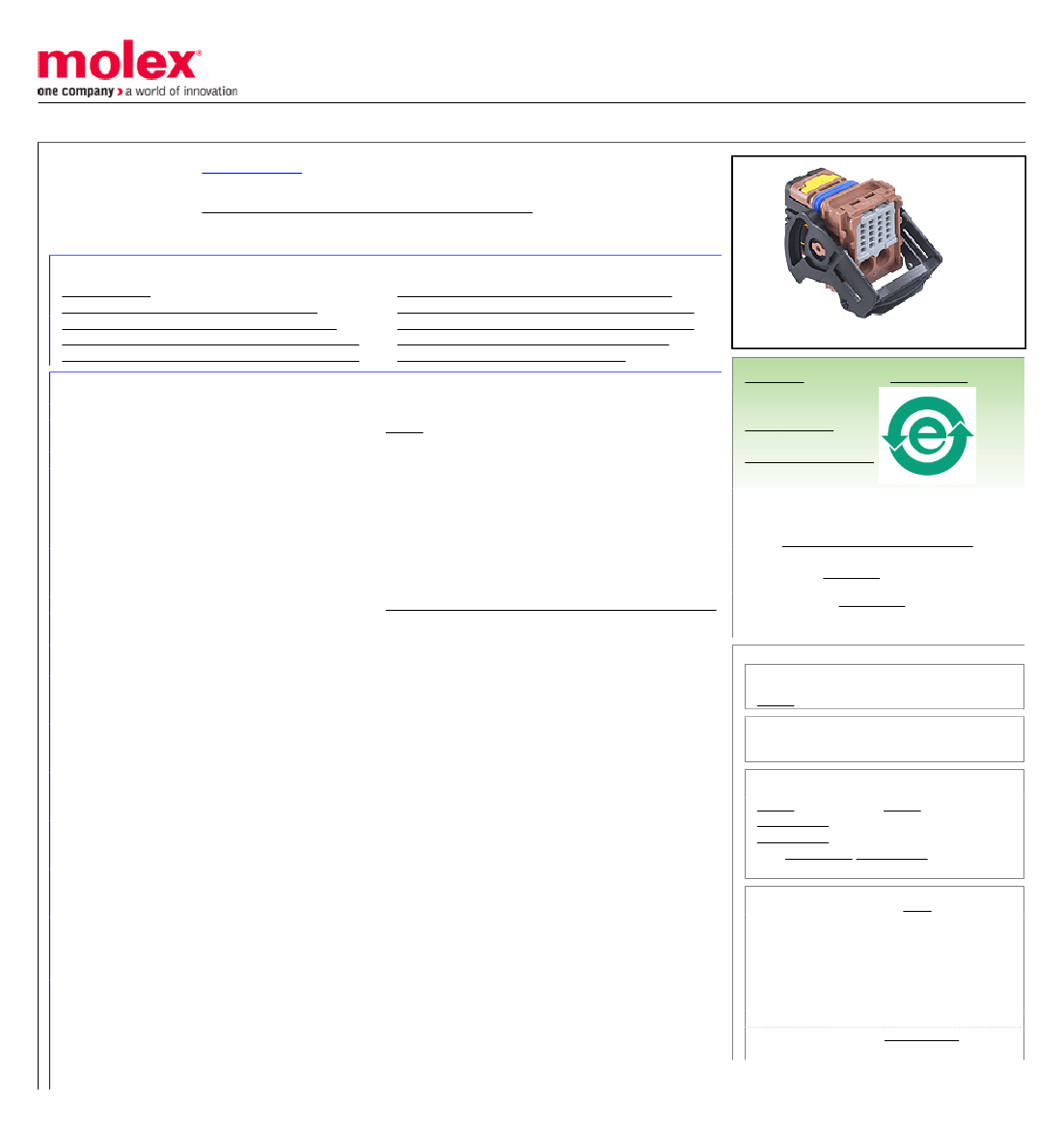

This document was generated on 01/10/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
64326-1009
Active
CMC Sealed, Hybrid, Modular Connectors and Headers
2.50 mm, 4.20mm and 8.40mm, Power CMC Receptacles, 22 Circuits, Right Wire
Output, Black Coding with Rear Seal Cover
Documents:
Drawing (PDF)
Product Specification PS-64326-001 (PDF)
Application Specification AS-64318-002 (PDF)
Application Specification AS-64318-002-FR (PDF)
Application Specification AS-64318-002-SP (PDF)
Application Specification AS-98420-001 (PDF)
Application Specification AS-98420-001-FR (PDF)
Application Specification AS-98420-001-SP (PDF)
Packaging Specification PK-98835-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Application
Application Tooling Part Link
Application Tooling Part Link
Comments
Crimp Housings
64326
Power, Wire-to-Board
63812-1100
63824-1200
* Current tested on a fully loaded connector, current
for temperature increase of 40°C. Current max = 26.0A
for 2.80mm Terminal (5.0mm² wire), 4.5A for 0.635mm
Terminal (0.75mm² wire)
Sealed, high-density, power, modular connecting
system for Power Train and Body Electronics
applications in cars, trucks, busses
CMC Sealed, Hybrid, Modular Connectors and Headers
CMC
884982167865
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
More Detailed Tech Information
Overview
Product Name
UPC
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
22
2 x 2.80mm terminals high current, 20 x 0.635mm
terminals signal pin
Blue
Female
No
Yes
Yes
Polyester
30.100/g
4
Carton
No
2.50mm, 4.20mm, 8.40mm
Yes
No
-40°C to +125°C
Search Parts in this Series
64326Series
Mates With
Please Contact Molex for Details
Use With
64322 CP 0.635mm, 64324 CP 2.80mm,
64325-1010 Blind Plugs CP 0.635mm
64325-1091 Seal Plug CP 2.80mm, Wire
Cap 643191201 64325-1162 64325-1175
64325-1188 64325-1196
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Continuity Test Pen 0638121100
Assembly
Electrical
Current - Maximum per Contact
26A, 4.5A
Material Info
Reference - Drawing Numbers
Application Specification
AS-64318-002, AS-64318-002-FR, AS-64318-002-SP,
AS-98420-001, AS-98420-001-FR, AS-98420-001-SP
