NRZJ181M50V8X20F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRZJ181M50V8X20F

NRZJ181M50V8X20F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size89KB，4 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NRZJ181M50V8X20F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

NRZJ181M50V8X20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	180 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
ESR	58 mΩ
leakage current	0.09 mA
length	20 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	790 mA
surface mount	NO
Delta tangent	0.1
Terminal pitch	3.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

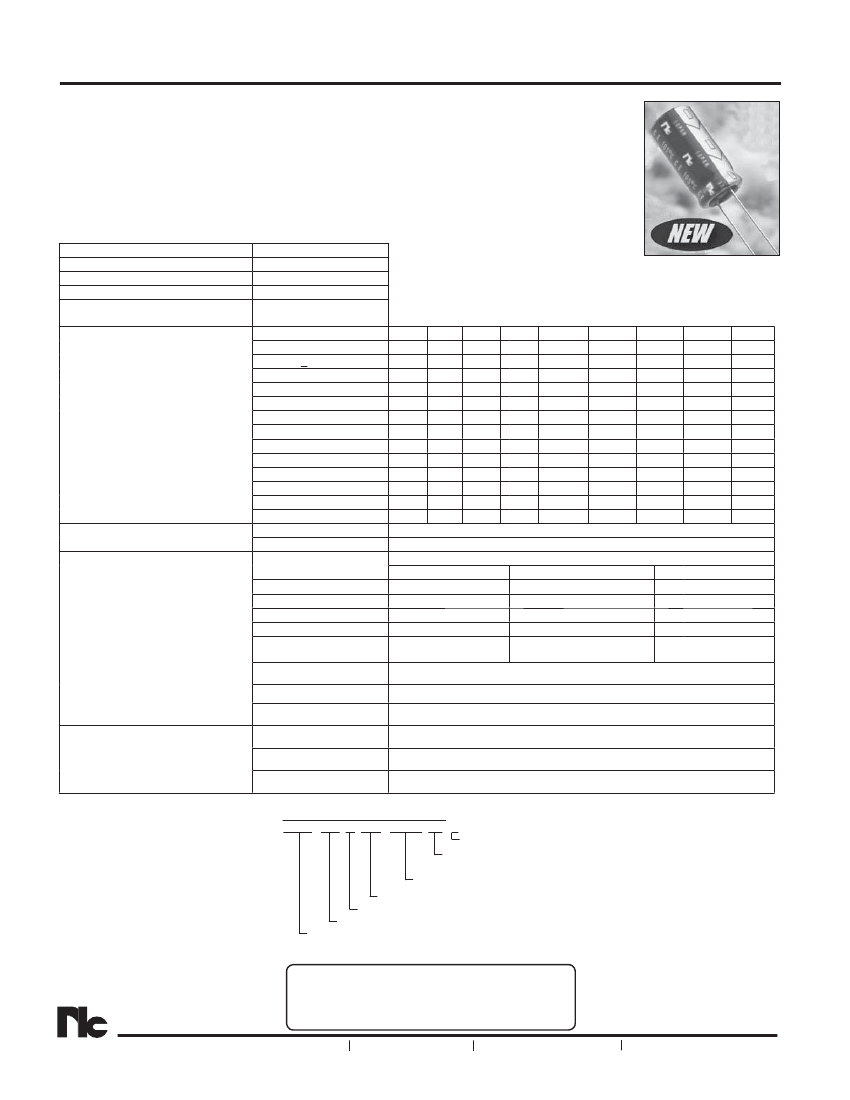

Miniature Aluminum Electrolytic Capacitors

ULTRA LOW IMPEDANCE, RADIAL LEADS, POLARIZED, ALUMINUM ELECTROLYTIC

FEATURES

• VERY LOW IMPEDANCE & HIGH RIPPLE CURRENT

• LONG LIFE AT 105°C (6000 ~ 10,000 hrs.)

• HIGH STABILITY AT LOW TEMPERATURE

• IDEALLY FOR SWITCHING POWER SUPPLIES & CONVERTERS

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Maximum Leakage Current

After 2 Minutes at 20°C

6.3 ~ 100Vdc

8.2 ~ 8,200μF

-40°C ~ +105°C

±20% (M)

0.01CV or 3μA

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

C < 1,000μF

C = 1,200μF

C = 1,500μF

C = 1,800μF

C = 2,200μF

C = 2,700μF

C = 3,300μF

C = 3,900μF

C = 4,700μF

C = 5,600μF

C = 6,800μF

C = 8,200μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Case Size

5x11, 6.3x11

8x11.5

10x12.5

8x16, 8x20

10x16 ~ 10x25

φ16

φ18

Diameter

Capacitance Change

Tan

Leakage Current

Shelf Life Test

105°C 1,000 Hours

No Load

Capacitance Change

Tan

Leakage Current

NRZJ Series

Max. Tan

at 120Hz/20°C

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.36

0.19

0.21

0.23

0.25

0.27

0.16

0.18

0.20

0.22

0.14

0.16

0.18

0.12

0.10

0.09

100

0.08

100

125

0.08

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Hours

Load Life Test at Rated W.V. & 105°C

6.3V

6,000

8,000

9,000

Life Hours

10V ~ 50V

7,000

9,000

10,000

63V ~ 100V

6,000

8,000

9,000

Within ±25% (6.3V, 10V ±30%) of initial measured value

Less than 200% of speciﬁed value

Less than speciﬁed value

Within ±25% of initial measured value

Less than 200% of speciﬁed value

Less than speciﬁed value

PART NUMBER SYSTEM

NRZJ 102 M 25V 10X20 TB F

RoHS Compliant

TB = Tape & Box*

Case Size (mm)

Working Voltage

Tolerance Code M=20%

Capacitance Code in

μF

Series

*see tape speciﬁcation for details

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process

details with NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
