Z1SMA200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> Z1SMA200

Z1SMA200: DescriptionZener Diode, 200V V(Z), 6%, 3.25W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size59KB，3 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

Z1SMA200 Overview

Zener Diode, 200V V(Z), 6%, 3.25W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN

Z1SMA200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-214AC
package instruction	PLASTIC, SMA, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	500 Ω
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	3.25 W
Certification status	Not Qualified
Nominal reference voltage	200 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max	190 mV/°C
Maximum voltage tolerance	6%
Working test current	5 mA

Preview

Download Datasheet

View All

Z1SMA6V2 ........ Z1SMA200

1.0 W Surface Mounted Glass Passivated Zener Diode

Dimensions in mm.

5.1

± 0.3

CASE:

SMA/DO-214AC

Voltage

6.2 to 200 V

Power

1.0 W

1.25

± 0.25

1.25

± 0.25

Week code

•

Glass passivated junction

•

The plastic material carries U/L 94 V-0

•

Low profile package

•

Easy pick and place

•

High temperature soldering 260 ºC 10 sec

2.0

Year code

Type No. Closs

4.2

Standard soldering pad

MECHANICAL DATA

Terminals: Solder plated, solderable per IEC 68-2-20.

Standard Packaging: 4 mm. tape (EIA-RS-481).

Weight: 0.064 g.

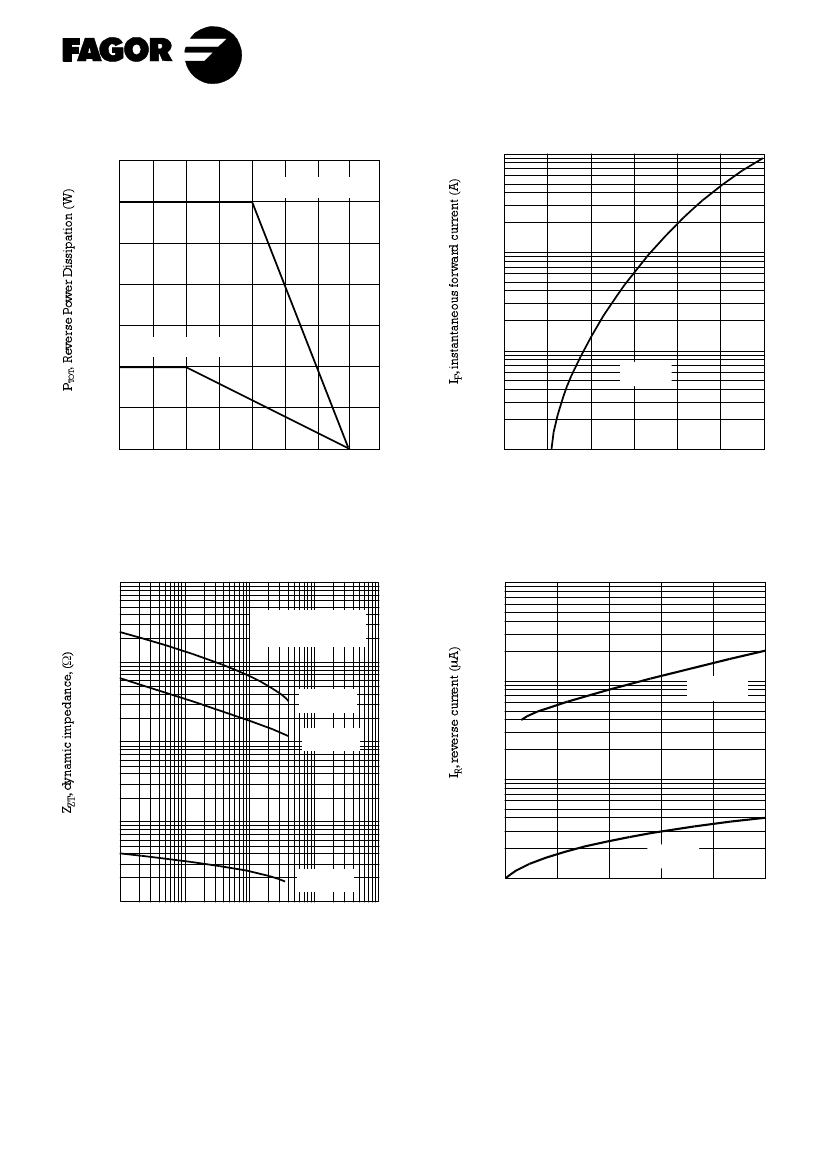

Maximum Ratings and Electrical Characteristics at 25 ºC

tot

stg

th j-c

th j-a

PCB epoxy-glass path 1.5 mm

PCB epoxy-glass path 5 x 10 mm

Ceramic Plate (Al

) path 5 x 10 mm

Other voltages upon request

Power dissipation at Tamb = 50 ºC

th j-a

= 125 ºC/W

Power dissipation at Tamb = 100 ºC

th j-a

= 25 ºC/W

Operating temperature range

Storage temperature range

Max. forward voltage drop at I

= 0.5 A

1.0 W

3.0 W

- 65 to + 175 ºC

1.0 V

25 ºC/W

150 ºC/W

125 ºC/W

100 ºC/W

Mar - 01
