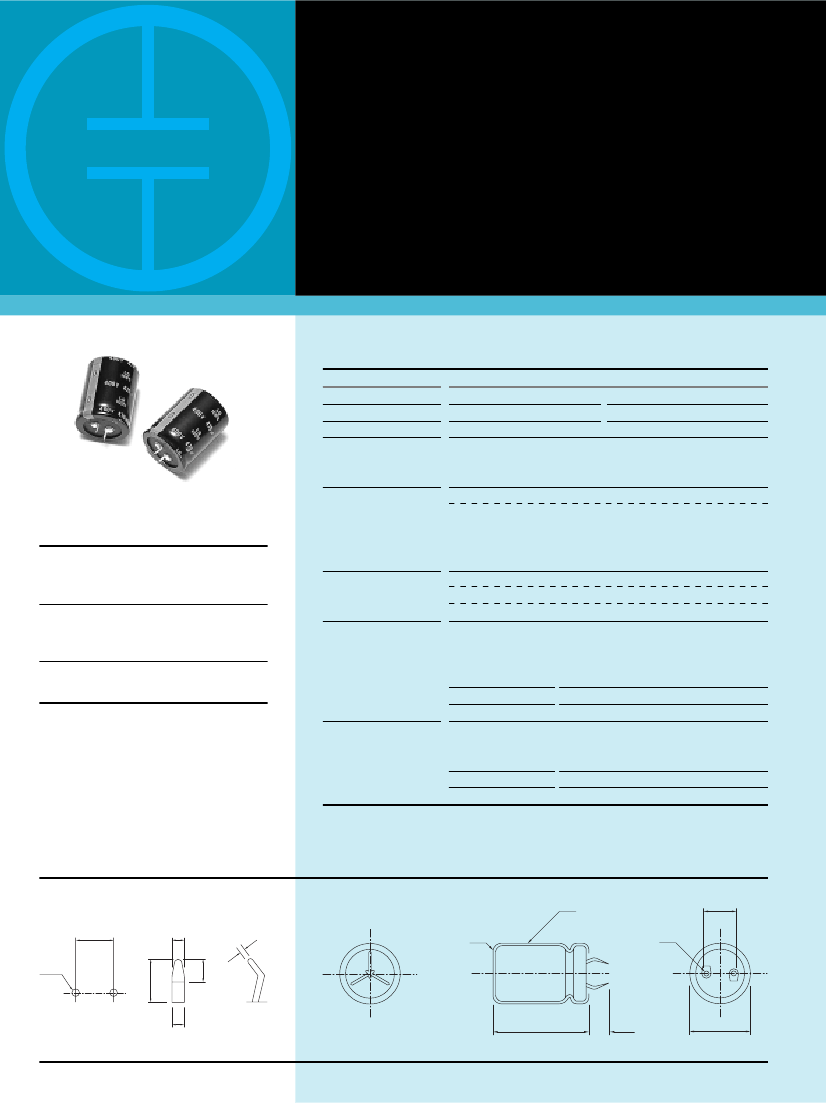

YAGEO CORPORATION
ALUMINUM ELECTROLYTIC CAPACITORS
Miniature Size Aluminum
Electrolytic Capacitors
LG
[ For 105ºC, 2000 Hours General ]
For Printed Circuit Board High-Performance Aluminum Electrolytic Power
Supply Input and Output Filter Capacitors
SPECIFICATIONS
ITEMS
Rated Voltage Range
Operating Temperature Range
Capacitance Tolerance
Leakage Current
SPECIFICATIONS
6.3 to 100VDC
-40 to +105ºC
±
20% (At 25ºC,120Hz)
I = 0.02CV, L = 20m/m, I = 0.03CV or 3mA Whichever is smaller.
(At 25ºC, After 5 Minutes)
Where, I; Leakage Current (µA) C: Nominal Capacitance (µF) V; Rated Voltage (V)
160 to 450VDC
-25 to+105ºC
Dissipation Factor (tan∂)
Rate Voltage (V) 6.3
D.F (%)
60
10
50
16
40
25
25
35
25
50~80 100 160~250 315~450
20
15
10 *
15
DESCRIPTION
(LG Series 105ºC 2000 Hours Assured)
LG type capacitors are combined with
snaplock terminals for easy to mount on P.C.
Board.
They are ideally suitable to be used in
switching power supplies and other industrial
or commercial applications.
For Detail Specifications, Please Refer to
Engineering Bulletin No. 2062
Shelf Life
* Note : 15% For D = 35m/m or L = 20m/m (At 25ºC, 120Hz)
(W V = 6.3 ~ 100V For Capacitor Whose Capacitance Exceeds 1000µF
The value of D.F (%) is increased by 2% for every addition of 1000µF.)
Low Temperature
Characteristics
(120Hz)
Load Life
Rated Voltage (V)
Z(-25ºC) / Z(20ºC)
Z(-40ºC) / Z(20ºC)
6.3~16
4
15
25
3
10
35
3
8
50~63
2
6
80~100
2
5
160~400
4
–
450
8
–
The following specifications shall be satisfied when the capacitors are restored to
25ºC after the rated voltage with maximum ripple current is applied for 2000 hours
at 105ºC.
Capacitance Change
D.F
Leakage Current
≤
±
20% of the Inital Value
≤
200% of the Initial Specified Value
≤
the Initial Specified Value
The following specifications shall be satisfied when the capacitor are restored to 25ºC
after exposing them for 1000 hours at 105ºC without voltage applied.
Capacitance Change
D.F
Leakage Current
≤
±
20% of the Inital Value
≤
150% of the Intial Specitied Value
≤
150% of Initial Speciffied Value
DIAGRAM OF DIMENSIONS
Unit : mm
Location of P.C.B. Holes
Vinyl Sleeve
0.8
10±0.5
10±0.5
0.9
Botton Plate
Negative
3.0
2m/m x 2
5.8±1.0
1.5
Safety Device
L+2 Max.
5.8±1
D±1
56
CASE SIZE OF STANDARD PRODUCTS AND PERMISSIBLE RIPPLE CURRENT
CAP. (µF)
RATED VOLTAGE WV (SV)
6.3 (8)
ø22
4700
ø25
ø30
ø35
10 (13)
ø22
ø25
ø30
ø35
16 (20)
ø22
ø25
ø30
ø35
25 (32)
ø22
22 x 25
1.50
5600
22 x 30 25 x 25
1.65
6800
22 x 25
1.55
8200
22 x 30 25 x 25
1.70
10000
25 x 25
1.55
12000
22 x 25
1.55
15000
22 x 30 25 x 25
1.70
18000
1.70
22 x 30
1.75
22 x 30 25 x 25
1.90
1.90
1.70
1.65
ø25
ø30
ø35
22 x 30 25 x 25
1.85
1.85
22 x 35 25 x 30 30 x 25
2.10
2.10
2.15
22 x 30 25 x 25
1.95
1.95
22 x 40 25 x 35 30 x 30 35 x 25
2.40
2.40
2.40
2.40
22 x 35 25 x 30 30 x 25
2.20
2.25
2.30
22 x 45 25 x 40 30 x 30 35 x 25
2.70
2.75
2.70
2.75
22 x 40 25 x 35 30 x 30 30 x 25
2.55
2.60
2.60
2.65
25 x 45 30 x 35 35 x 30
3.15
3.15
3.25
22 x 30 25 x 25
1.95
1.95
22 x 35 25 x 30
2.20
2.25
22 x 45 25 x 40 30 x 30 35 x 25
2.90
2.90
2.90
2.95
25 x 50 30 x 40 35 x 35
3.55
3.55
3.55
22000
22 x 35 25 x 30 30 x 25
2.25
2.25
2.25
22 x 40 25 x 35 30 x 25
2.50
2.55
2.45
25 x 45 30 x 35 35 x 30
3.30
3.30
3.30
30 x 45 35 x 35
4.05
3.80
35 x 45
4.70
35 x 50
5.40
27000
22 x 40 25 x 35 30 x 30 35 x 25 22 x 50 25 x 40 30 x 30 35 x 25
2.55
2.55
2.55
2.55
2.95
2.90
2.85
2.80
25 x 50 30 x 40 35 x 30
3.80
3.75
3.75
33000
22 x 45 25 x 40 30 x 30 35 x 25
2.90
2.95
2.90
2.95
25 x 45 30 x 35 35 x 30
3.30
3.30
3.30
30 x 45 35 x 35
4.30
4.25
39000
25 x 50 30 x 35 35 x 30
3.25
3.25
3.30
25 x 50 30 x 40 35 x 30
3.70
3.70
3.65
30 x 50 35 x 40
4.80
4.80
35 x 45
5.45
47000
25 x 50 30 x 40
3.70
3.70
30 x 45 35 x 35
4.15
4.10
30 x 45 35 x 35
4.20
3.80
56000
30 x 50 35 x 40
4.65
4.65
35 x 50
5.50
68000
30 x 50 35 x 40
4.70
4.70
35 x 45 Case Size : øD x L (mm)
5.30
82000
Ripple Current (A rms / 105ºC, 120Hz)
57
