LM2940G-15-TN3-T datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> LM2940G-15-TN3-T

LM2940G-15-TN3-T: DescriptionFixed Positive LDO Regulator, 15V, 0.8V Dropout, PSSO2, HALOGEN FREE, TO-252, 3 PIN; CategoryPower/power management The power supply circuit; File Size363KB，12 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric View All

LM2940G-15-TN3-T Overview

Fixed Positive LDO Regulator, 15V, 0.8V Dropout, PSSO2, HALOGEN FREE, TO-252, 3 PIN

LM2940G-15-TN3-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	TO-252
package instruction	HALOGEN FREE, TO-252, 3 PIN
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.8 V
Maximum input voltage	26 V
Minimum input voltage	17 V
JESD-30 code	R-PSSO-G2
length	6.6 mm
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	150 °C
Maximum output current 1	1 A
Maximum output voltage 1	15.45 V
Minimum output voltage 1	14.55 V
Nominal output voltage 1	15 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.38 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.28 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.7 mm

Preview

Download Datasheet

View All

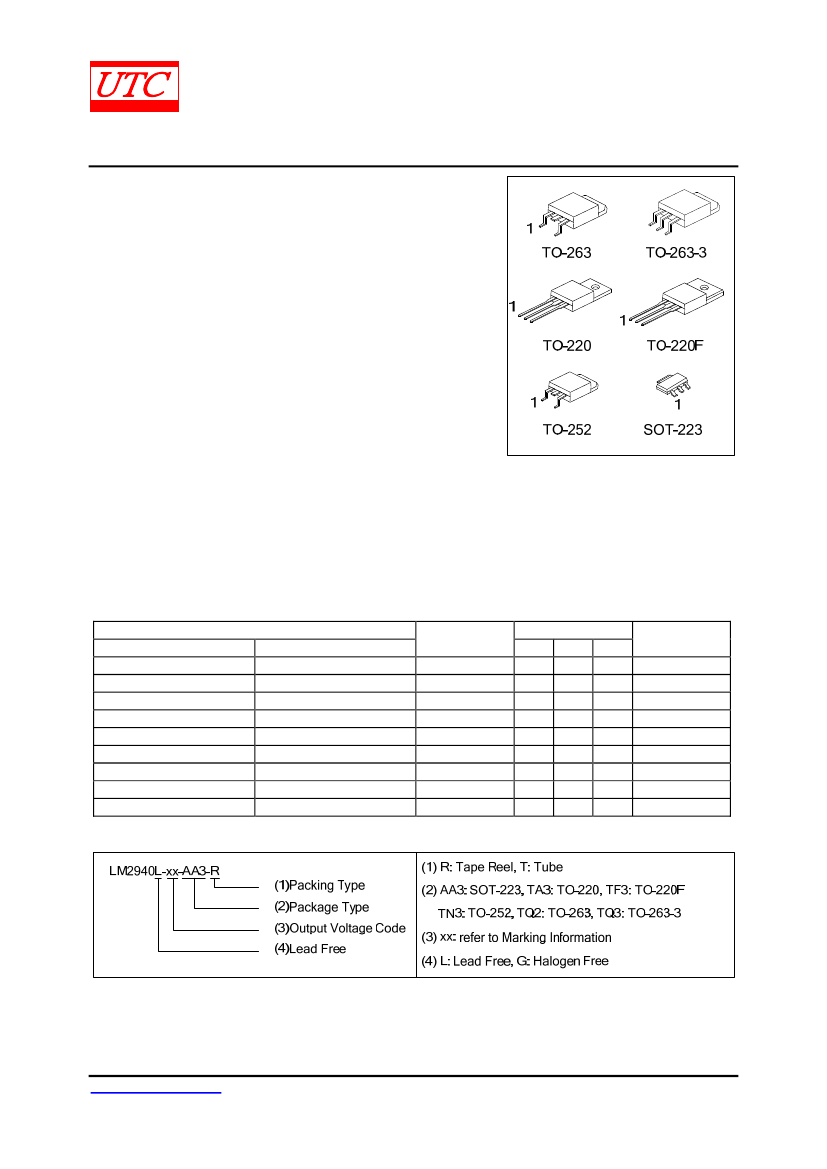

UNISONIC TECHNOLOGIES CO., LTD

LM2940

1A LOW-DROPOUT POSITIVE

VOLTAGE REGULATOR



DESCRIPTION

LINEAR INTEGRATED CIRCUIT

The UTC

LM2940

is a low dropout regulator designed to

provide output current up to 1A with a typically 500mV dropout

Voltage and a maximum of 1V. It is capable of reducing the

ground current when the differential between the input voltage

and the output voltage outrun 3V.

UTC

LM2940

offers low quiescent current (typically 30mA at 1A

and an input-output differential of 5V). Higher quiescent currents

only exist when the regulator is in the dropout mode

-V

OUT

≤3V).



FEATURES

* 500mV Typically Dropout at 1A

* Output Current in Excess of 1A

* Low Quiescent Current

* Reversed-Battery Protection

* Current Limit and Thermal Shutdown.

* Mirror Image Insertion Protection



ORDERING INFORMATION

Package

SOT-223

TO-220

TO-220F

TO-252

TO-263

TO-263-3

Pin Assignment

Packing

Tape Reel

Tube

Tape Reel

Tube

Tape Reel

Tube

Tape Reel

Tube

Ordering Number

Lead Free

Halogen Free

LM2940L-xx-AA3-R

LM2940G-xx-AA3-R

LM2940L-xx-TA3-T

LM2940G-xx-TA3-T

LM2940L-xx-TF3-T

LM2940G-xx-TF3-T

LM2940L-xx-TN3-R

LM2940G-xx-TN3-R

LM2940L-xx-TN3-T

LM2940G-xx-TN3-T

LM2940L-xx-TQ2-R

LM2940G-xx-TQ2-R

LM2940L-xx-TQ2-T

LM2940G-xx-TQ2-T

LM2940L-xx-TQ3-R

LM2940G-xx-TQ3-R

LM2940L-xx-TQ3-T

LM2940G-xx-TQ3-T

Note: 1. xx: Output Voltage, refer to Marking Information.

2. Pin Assignment: I: V

G: GND O:V

OUT

www.unisonic.com.tw

1 of 12

QW-R102-016.M
