BT138F-800G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BT138F-800G

BT138F-800G: Description800V, 12A, TRIAC, PLASTIC, FULL PACK-3; CategoryAnalog mixed-signal IC Trigger device; File Size151KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BT138F-800G Overview

800V, 12A, TRIAC, PLASTIC, FULL PACK-3

BT138F-800G Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	60 mA
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	12 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC

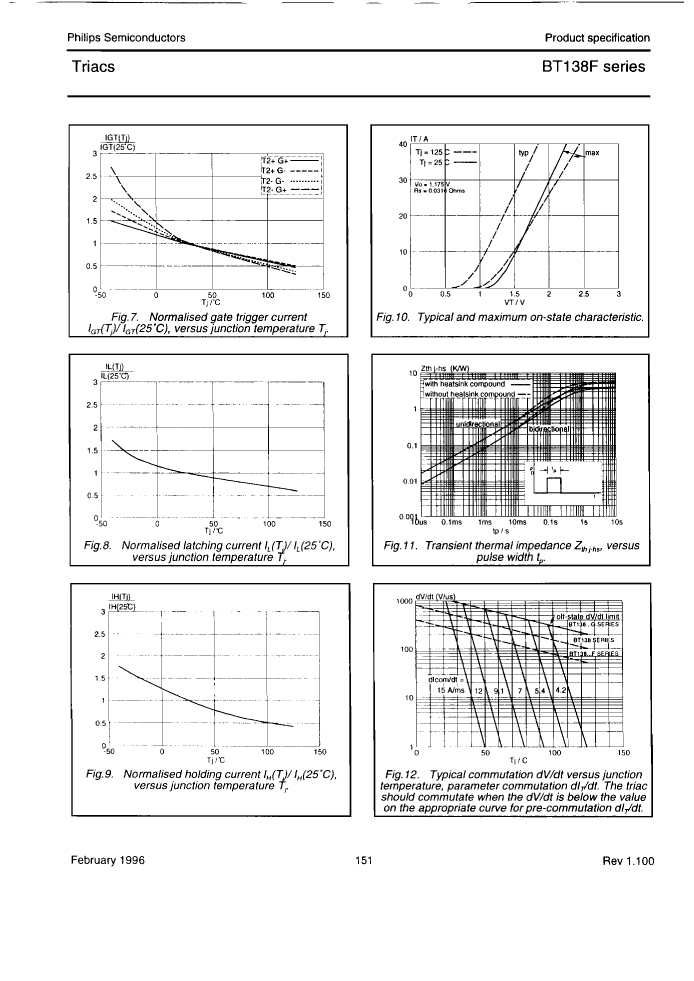

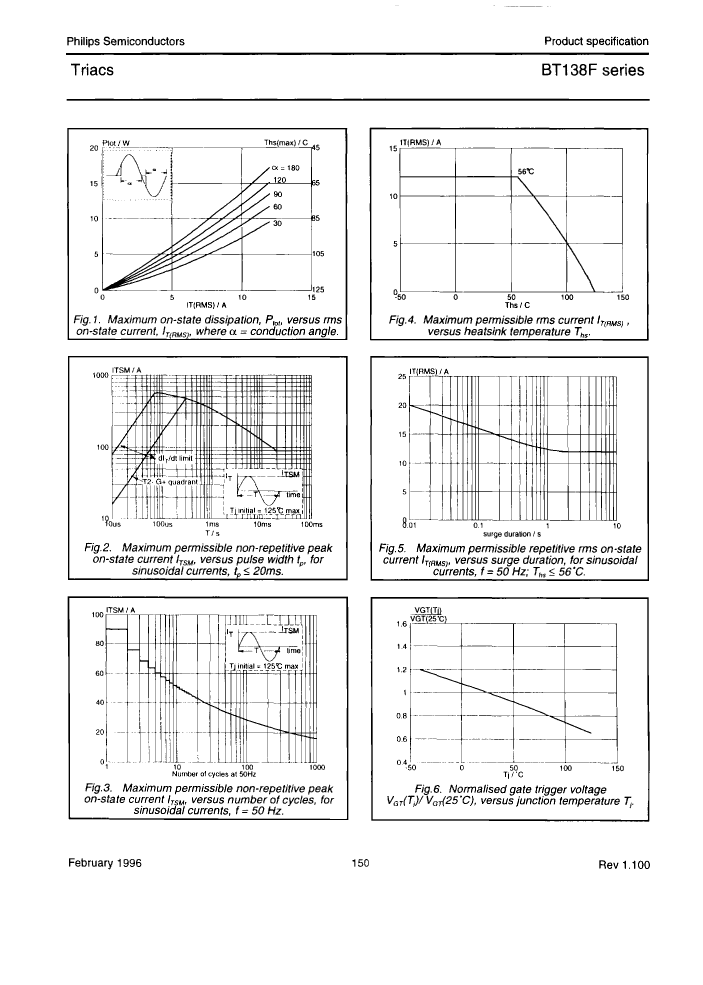

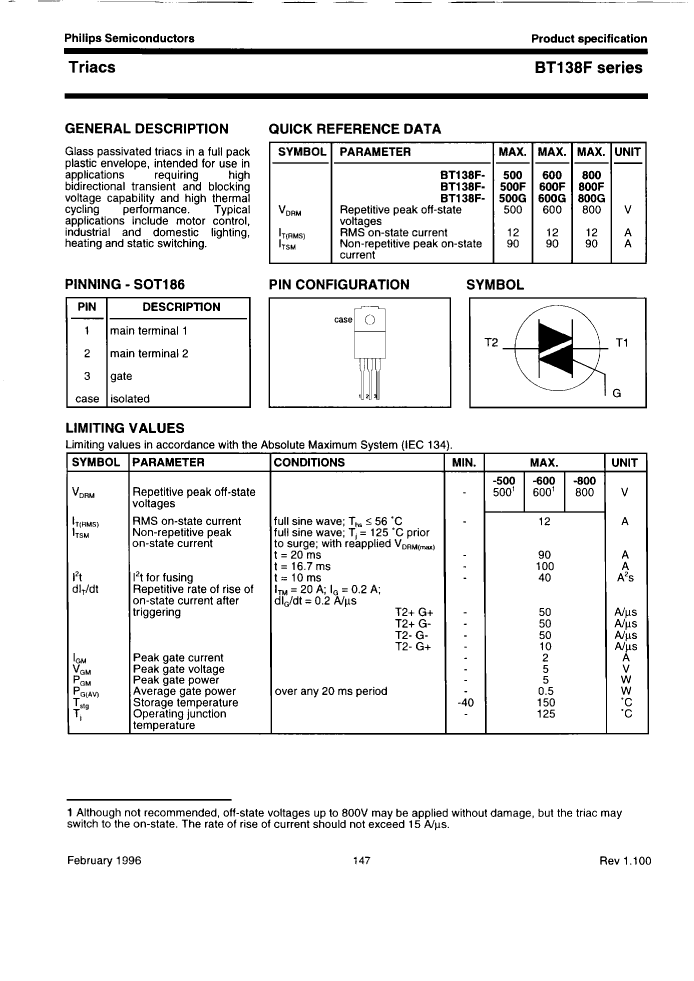

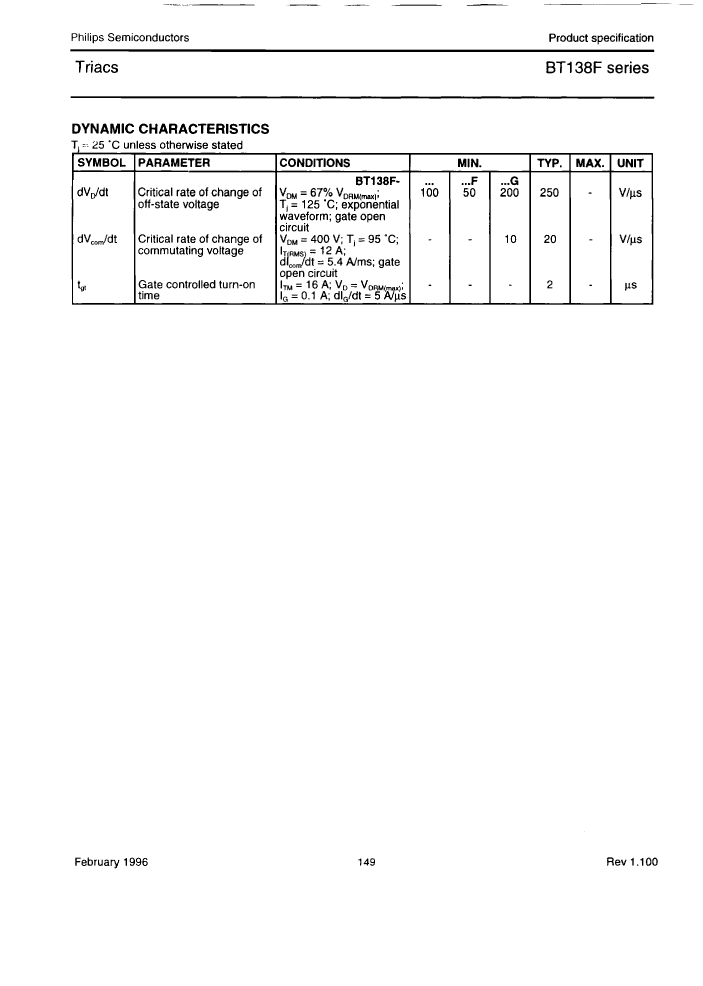

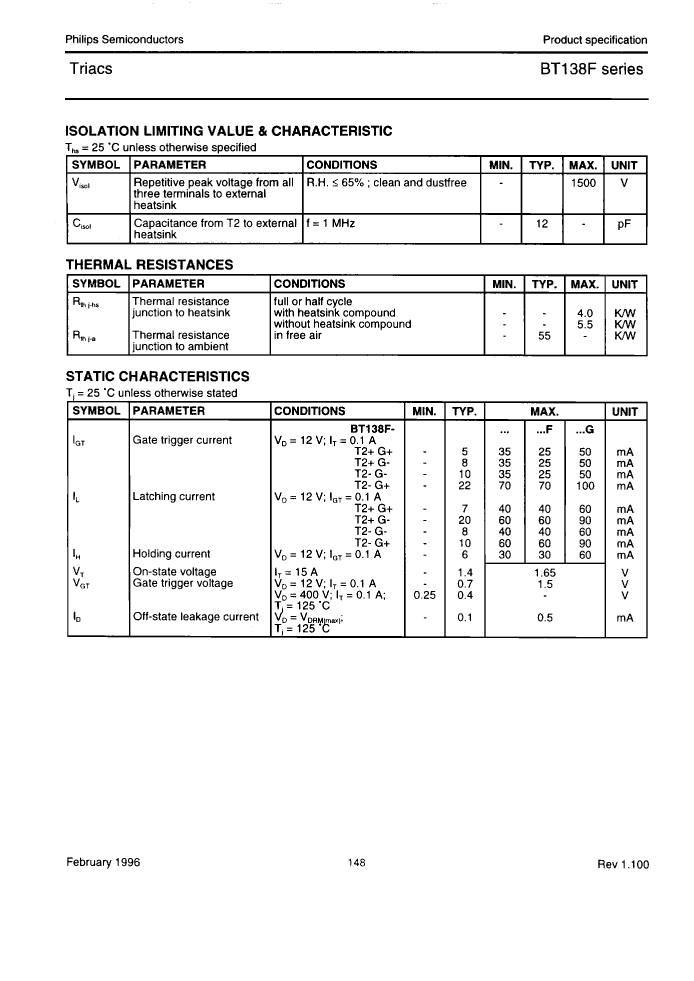

BT138F-800G Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BT138F-800G Related Products

	BT138F-800G	BT138F-500	BT138F-500G	BT138F-500F	BT138F-600F	BT138F-600G	BT138F-800	BT138F-800F
Description	800V, 12A, TRIAC, PLASTIC, FULL PACK-3	500V, 12A, TRIAC, PLASTIC, FULL PACK-3	500V, 12A, TRIAC, PLASTIC, FULL PACK-3	500V, 12A, TRIAC, PLASTIC, FULL PACK-3	600V, 12A, TRIAC, PLASTIC, FULL PACK-3	600V, 12A, TRIAC, PLASTIC, FULL PACK-3	800V, 12A, TRIAC, PLASTIC, FULL PACK-3	800V, 12A, TRIAC, PLASTIC, FULL PACK-3
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	100 V/us	200 V/us	50 V/us	50 V/us	200 V/us	100 V/us	50 V/us
Maximum DC gate trigger current	50 mA	35 mA	50 mA	25 mA	25 mA	50 mA	35 mA	25 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	60 mA	30 mA	60 mA	30 mA	30 mA	60 mA	30 mA	30 mA
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA	500 µA	500 µA	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	800 V	500 V	500 V	500 V	600 V	600 V	800 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
