87831-5442 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

87831-5442 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87831
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

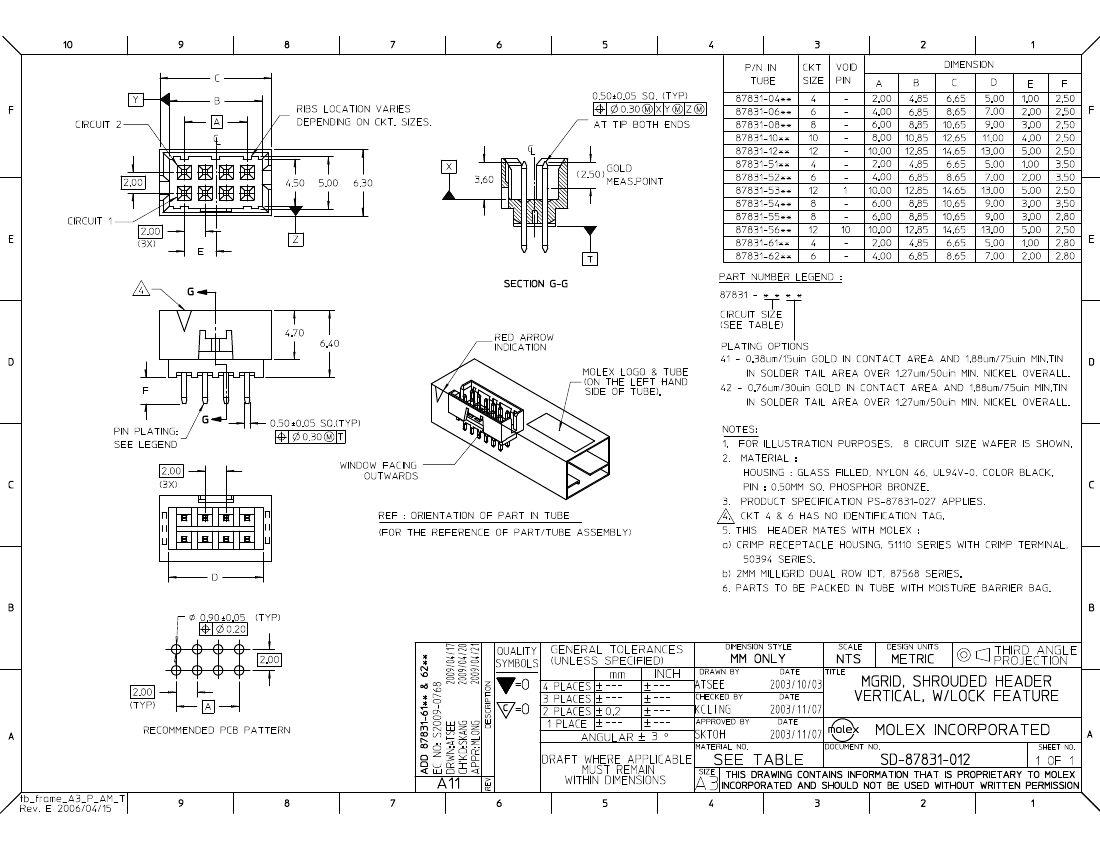

Preview

Download Datasheet

View All

87831-5442 Related Products

	87831-5442	87831-5341	87831-5342	87831-5542	87831-5642	87831-6141	87831-6142	87831-6241	87831-6242	87831-5242
Description	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 11 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 11 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 11 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown	unknown	unknown	unknown	unknown	compliant
Other features	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED	SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	11	11	8	11	4	4	6	6	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	-	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3	e3	e3	-	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	87831	87831	87831	87831	87831	87831	87831	87831	87831	-
