BUK9515-60E: Description54A, 60V, 0.015ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, SC-46, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size73KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

BUK9515-60E Overview

54A, 60V, 0.015ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, SC-46, 3 PIN

BUK9515-60E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	39 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	54 A
Maximum drain-source on-resistance	0.015 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	216 A
Guideline	AEC-Q101; IEC-60134
surface mount	NO
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

BUK9515-60E Preview

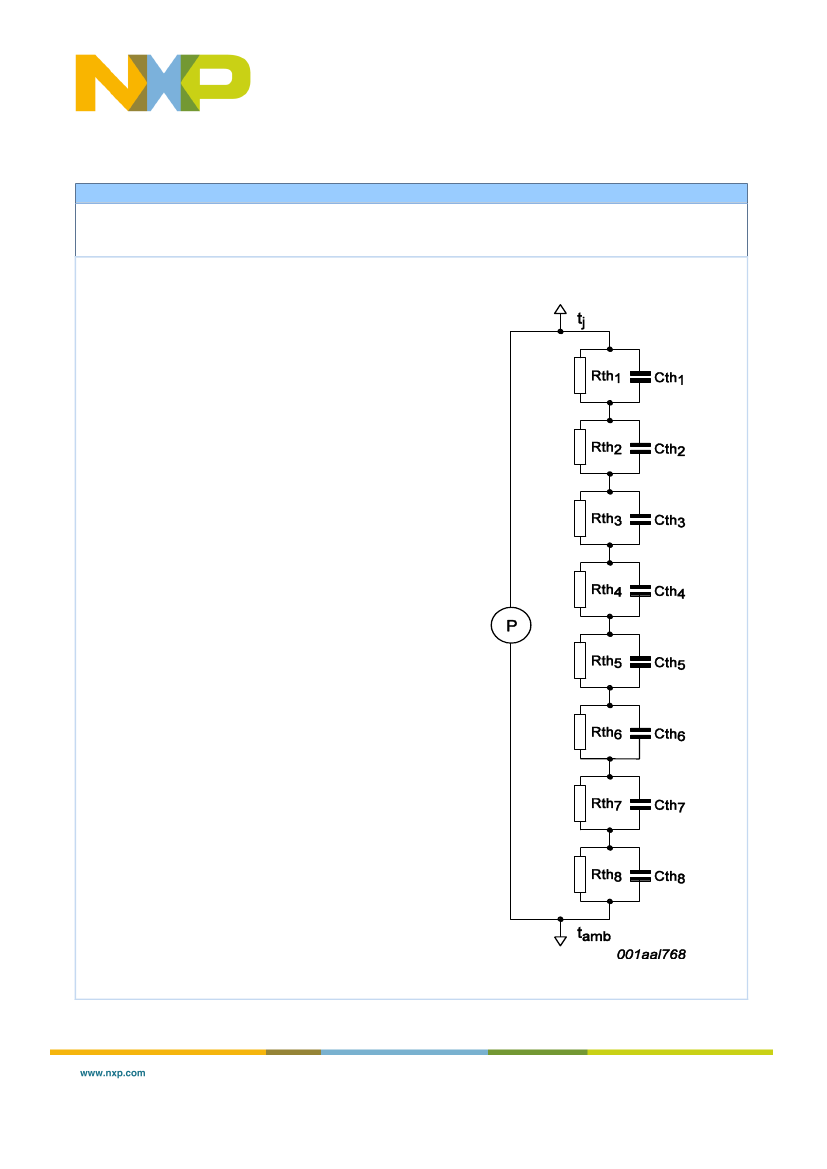

Thermal RC network (Foster)

SPICE thermal model

Symbol

R

th(j-mb)

Parameter

thermal resistance

from junction to

mounting base

Conditions

Min

-

Typ

-

Max

1.56

BUK9515-60E

Unit

K/W

Cth

1

Cth

2

Cth

3

Cth

4

Cth

5

Cth

6

Cth

7

Cth

8

4.740E-05 F

3.573E-04 F

2.573E-04 F

9.872E-04 F

2.798E-03 F

7.463E-03 F

2.715E-01 F

3.781E+01 F

Rth

1

Rth

2

Rth

3

Rth

4

Rth

5

Rth

6

Rth

7

Rth

8

1.715E-03 Ω

3.454E-03 Ω

3.886E-02 Ω

1.014E-01 Ω

3.814E-01 Ω

8.981E-01 Ω

1.681E-01 Ω

5.350E-03 Ω

Part:

BUK9515-60E

Date:

Model Rth

17/4/2013

1.60

K/W

or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of it’s use. Publication thereof does

not convey or imply any license under patent- or other industrial or intellectual property rights.

Printed in the Netherlands
