EURO
QUARTZ
CX CRYSTAL TAPE & REEL

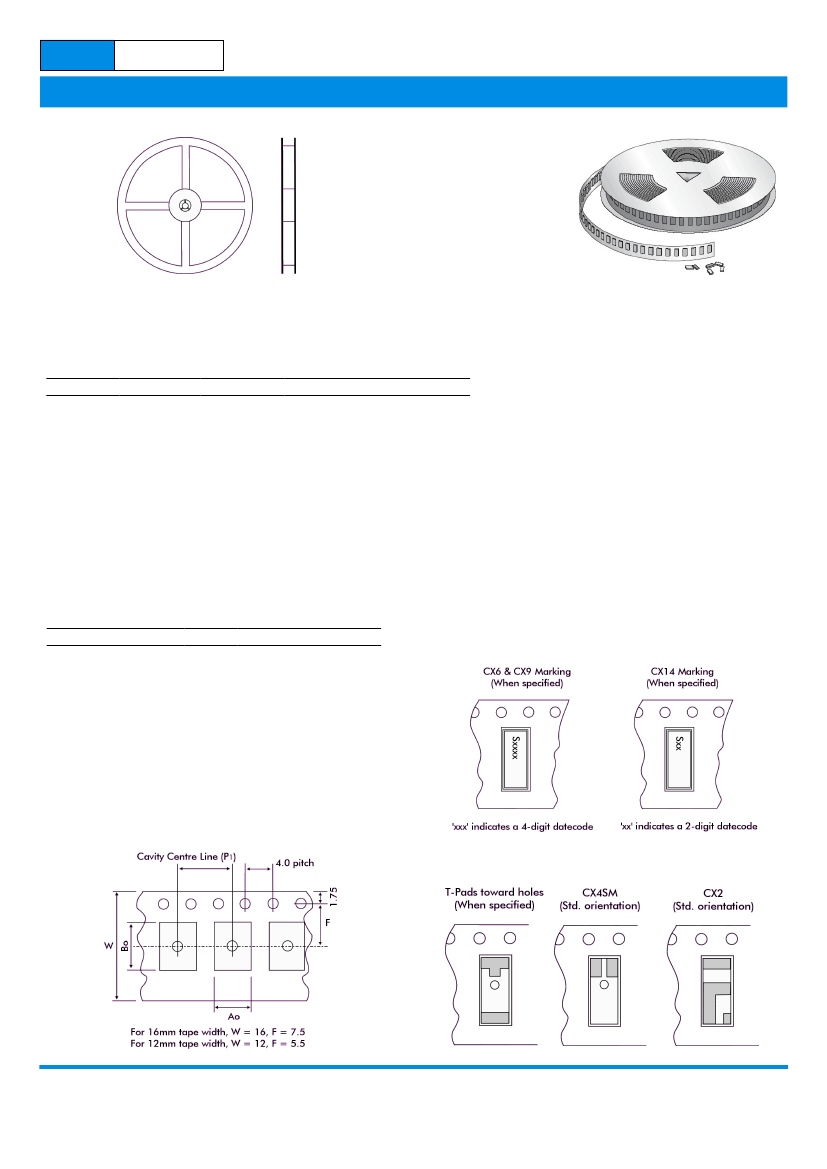

Tape and Reel Dimensions for CX Crystals
Notes:
1. Reel drawing is for reference only
2. The centre hole (hub hole) is per EIA-481 standard 13mm size.
Carrier tape material: 3000 Black Conductive Polycarbonate
REEL SELECTION
CRYSTAL
Type
CX1 SM
CX2 SM
CX3 SM
CX4 SM
CX4 SM (VP)
CX6 SM
CX7 SM
CX8 SM
CX9 SM
CX11 SM
CX14 SM
CX18 SM
MAX. QUANTITIES PER REEL
180mm
1000
2000
2000
3000
3000
2000
3000
2000
3000
3000
3000
4000
330mm
4000
8000
8000
12000
12000
12000
8000
12000
8000
12000
12000
12000
Orientation
Random
Single pad towards sprocket holes
Random
Random
Dual pads towards sprocket holes
Random
Random
Random
Random
Random
Random
Random
PART TO PART INDEXING P , A
0
& B
0
DIMENSIONS
1
Dim. = mm
CX1
CX2
CX3
CX4
CX4 (VP)
CX6
CX7
CX8
CX9
CX11
CX14
CX18
P1
8.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
Ao
4.0
2.8
2.8
2.1
2.1
2.8
2.3
2.8
1.8
1.8
2.9
1.8
Bo
8.4
7.1
7.1
5.5
5.5
7.1
4.4
7.1
4.5
3.6
3.6
3.6
Tape Width
16
16
16
16
16
16
16
16
16
12
12
12
CRYSTAL ORIENTATION IN TAPE CAVITY
Top View
Bottom View
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
