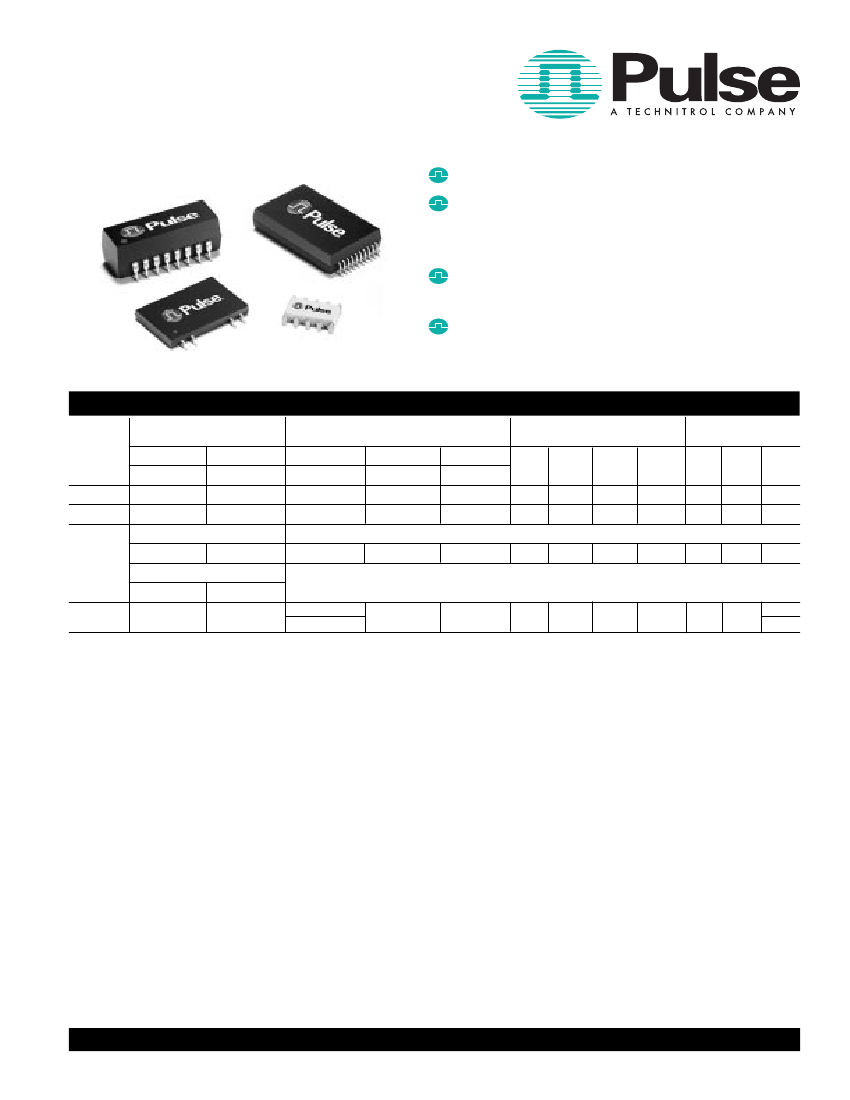

SURFACE MOUNT FILTER
MAGNETIC MODULES
For Token Ring Applications
Supports TI380C30/C60 transceivers
Designed to meet Token Ring IEEE
802.5 specifications including low
cutoff frequency
Supports STP 150
Ω
or UTP 100
Ω
transmission cable
Low cost solution
Electrical Specifications @ 25°C
Part
Number
Return Loss
(dB MIN)
1 to 17 MHz
150
Ω
PE-67566
PE-67567
-14
-20
100
Ω
-14
-15
17 to 25 MHz
150
Ω
100
Ω
-8
-15
-8
-12
8 MHz
150
Ω
-0.5
-0.5
100
Ω
-0.8
-0.5
Insertion Loss
(dB MAX)
16 MHz
150
Ω
-0.8
-.05
24 MHz
100
Ω
150
Ω
100
Ω
-1.1
-0.5
-1.8
-0.8
-1.9
-0.8
Comm-Comm Mode Rejection
(dB MIN)
5 MHz 20 MHz 70 MHz
-40
-34
-40
-34
-30
-30
Crosstalk
(dB MIN)
200 MHz 8 MHz 16 MHz 32 MHz
-20
-20
—
—
—
—
—
—
Transmit
PE-67585
—
-12
Receive
—
PE-67595
-16
-15
-16
—
-9.0
-10
-9.0
4 MHz
-0.6
-0.6
-1.0
1.0
-1.8
-1.8
-30
-30
-20
-20
-50
-50
24 MHz
46
—
-8
-0.5
-0.8
-0.8
-1.1
-1.8
-1.9
-40
-40
-30
-20
-55
-50
-45
Description
PE-67566
The PE-67566, PCMCIA compatible filter magnetics module has
been designed to interface with the transmit side of Texas
Instruments’ TI380C60 transceiver chip or TI380C30 integrated
commprocessor/transceiver chip. This module provides impedance
matching, signal isolation, and signal conditioning. It is fully compliant
with the IEEE 802.5 requirements.
PE-67567
The PE-67567 transformer and choke module has been designed to
interface with the receive side of Texas Instruments’ TI380C60 trans-
ceiver chip or TI380C30 integrated commprocessor/transceiver chip.
This PCMCIA compatible module provides impedance matching,
signal isolation and EMI suppression. The PE-67567 is fully compliant
with the IEEE 802.5 requirements.
PE-67585, PE-67595
The PE-67585 and PE-67595 are complete transmit and receive
interface modules for the Texas Instrument TI380C60 transceiver chip
and TI380C30 integrated commprocessor/transceiver chip. Fully
compliant with the IEEE 802.5 standard, these modules provide sig-
nal isolation, impedance matching and EMI filtering for both transmit
and receive channels. The PE-67585 has separate outputs for UTP
and STP. The PE-67595 has a 120
Ω
output for either UTP or STP.
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
1
E205.A (3/97)
SURFACE MOUNT FILTER
MAGNETIC MODULES
For Token Ring Applications

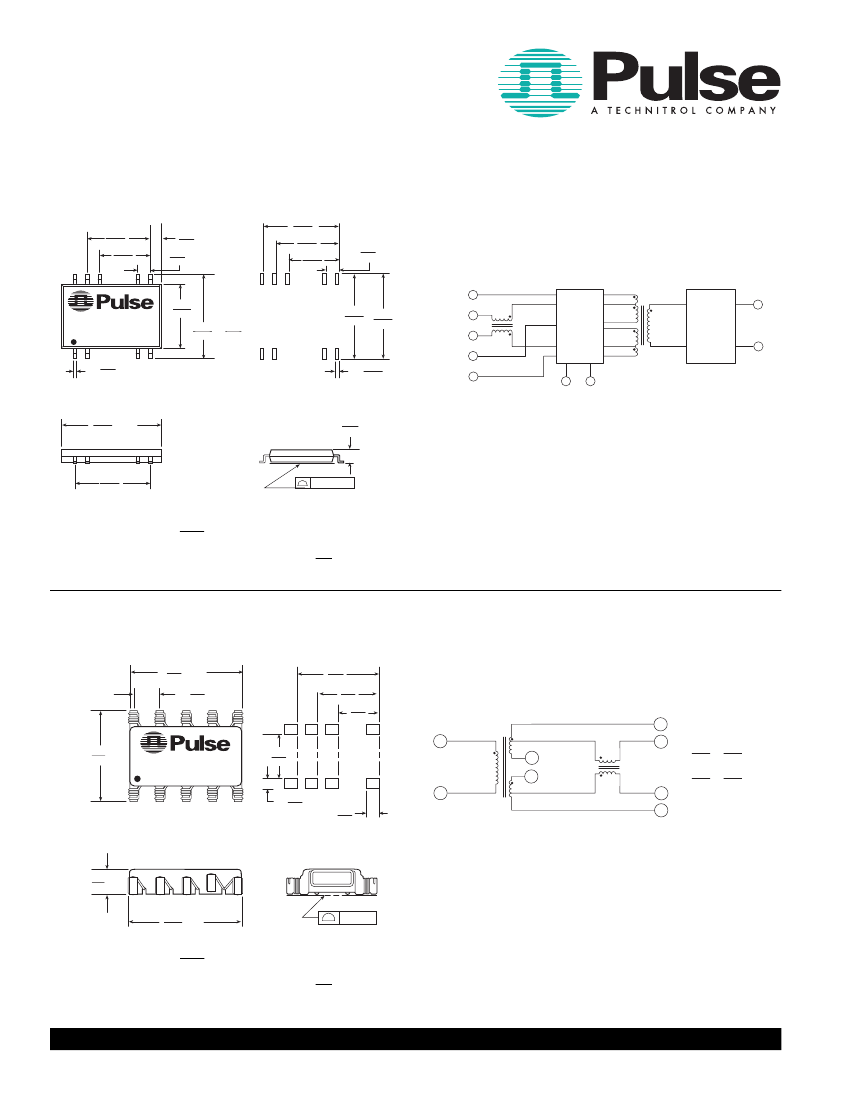

Mechanical
PE-67566
.500
12,70
.400
10,16
.100
2,54
.100
2,54
.600
15,24
.500
12,70
.400
10,16
.100
2,54
Schematic
TS+ 14
PE-67566
DATE CODE
CTRY OF ORIGIN
.525
13,34
.675 ± .010
17,15
0,25
.540
13,72
7 TX+
.700
17,78
TU+ 9
TU- 8
CHSGND 12
EMI
SUPPRESSION
FILTER
WAVE-SHAPING
SIGNAL
CONDITIONING
6 TX-
.020
9X 0,51
.030
9X 0,77
TS- 13
1
PH+
2
PH-
Note:
Pins not shown in diagram
should not be connected.
.800
MAX
20,32
.094 MAX
2,39
.600
15,24
.004/0,100
9 SURFACES
Dimensions:
Inches
mm
Unless otherwise specified,all tolerances are ± .010
0,25
Weight
. . . . . . . . . . . . .1.5 grams
Tape & Reel
. . . . . . . . . . .600/reel
Tube
. . . . . . . . . . . . . . . . .25/tube
Mechanical
PE-67567
.430 MAX
10,92
8X
.100
2,54
.400
10,16
.300
7,62
.200
5,08
Schematic
2
1
5
3
8
Turns Ratio
1—10
1—10
=
= 2:1
2—3
9—8
1—10
1—10
=
= 2:0.813
5—3
6—8
.340
8,63 MAX
1
PE-67567
DATE CODE
.225
5,72
8X .050
1,27
8X
10
.060
1,52
6
9
Note:
Pins not shown in diagram
should not be connected.
.094 MAX
2,39
.460
MAX
11,68
.004/0,10
Dimensions:
Inches
mm
Unless otherwise specified,all tolerances are ± .010
0,25
Weight
. . . . . . . . . . . . .0.3 grams
Tape & Reel
. . . . . . . . . .1500/reel
Tube
. . . . . . . . . . . . . . . . .25/tube
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
2
E205.A (3/97)
SURFACE MOUNT FILTER
MAGNETIC MODULES
For Token Ring Applications

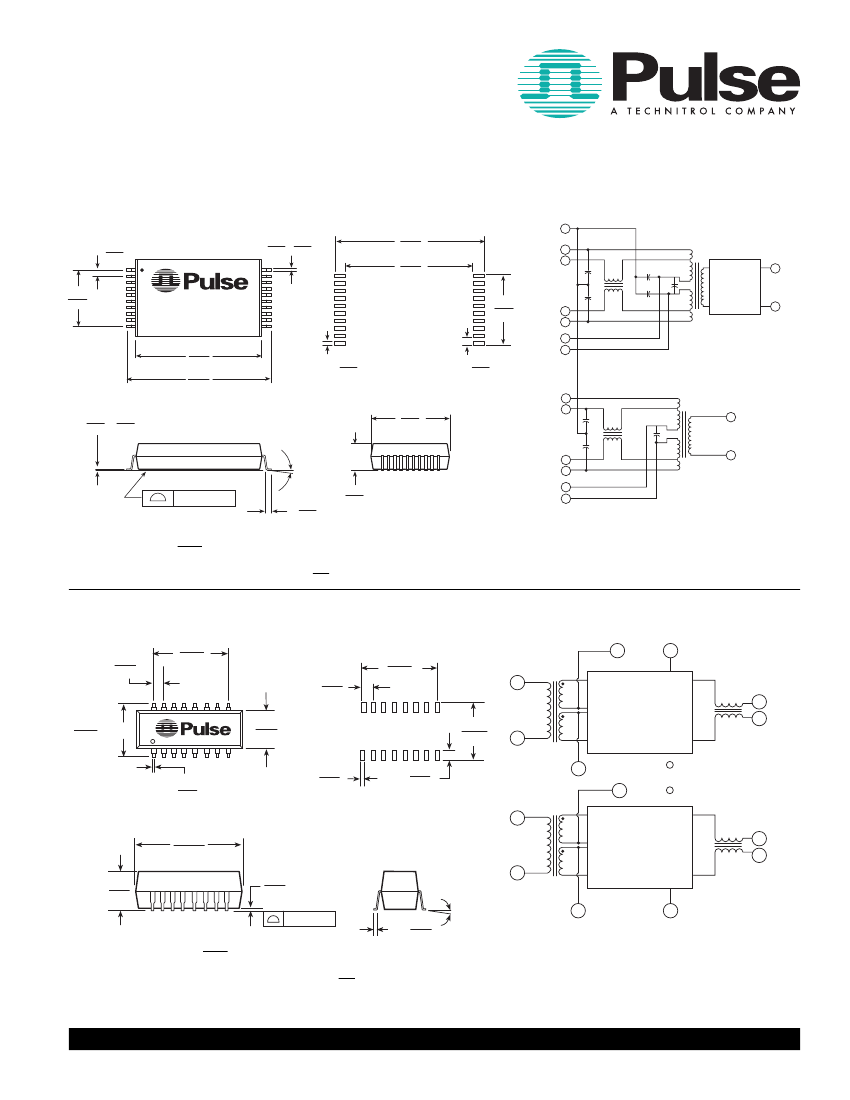

Mechanical
PE-67585
18X .050
1,27
20X .018 .002
±
0,46 0,05
1.185
30,10
1.015
25,78
CHSGND
16
TS+
14
TU+
15
7 TX+
FILTER
TRANSMIT CHANNEL
Schematic
.450
11,43
PE-67585
DATE CODE COUNTRY OF ORIGIN
.475
12,07
TU-
11
TS-
12
PH+
9
8
TX-
1.005
25,52
1.145
29,08
PH-
10
20X .025
0,63
18X .050
1,27
RS+
20
RU+
19
RECEIVE CHANNEL
SUGGESTED PAD LAYOUT
.625
15,87
0° – 8°
.010 .002
±
0,25 0,05
1
RCV+
RU-
18
RS-
17
2
RCV-
.004/0,10 MAX
20X .045
1,14
.215
5,46
PRET+
PRET-
3
4
NOTE:
Pins 5, 6, and 13 are not
internally connected.
Dimensions:
Inches
mm
Unless otherwise specified,all tolerances are ± .005
0,13
Weight
. . . . . . . . . . . . .4.3 grams
Tape & Reel
. . . . . . . . . . .160/reel
Tube
. . . . . . . . . . . . . . . . .20/tube
Mechanical
.100
2,54
.700
17,78
.100
2,54
.350
8,89
.040
1,02
.100
2,54
SUGGESTED PAD LAYOUT
1.000
25,40
.370
0,94
.015
0,38
.004/0,10
16 Surfaces
Dimensions:
Inches
mm
Unless otherwise specified,all tolerances are ± .010
0,25
Schematic
PE-67595
.700
17,78
1
LPF
7
8
3
5
.510 MAX
12,95
.540
13,72
2
4
13
15
LPF
16
14
12
9
10
6
11
N/C
N/C
16X ±.020
0,51
0°–8°
16X .045
1,14
Weight
. . . . . . . . . . . . .4.0 grams
Tape & Reel
. . . . . . . . . . .160/reel
Tube
. . . . . . . . . . . . . . . . .20/tube
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
3
E205.A (3/97)
SURFACE MOUNT FILTER
MAGNETIC MODULES
For Token Ring Applications
Surface Mount Filter/Magnetics Modules for TI 380C30/C60 Token Ring Chip Set
Pin Descriptions
Pin Number
PE-67566
—
—
—
PE-67567
1
10
3
PE-67585
1
2
3
PE-67595
1
2
3
Symbol
RX+
RX-
PHR+
Function/Description
Differential Manchester receive data to the I.C.
Differential Manchester receive data to the I.C.
Return path for phantom drive on the "A" receive channel. Can be used
for fault determination and to allow sensing the presence of phantom
drive.
Return path for phantom drive on the "B" receive channel. Can be used
for fault determination and to allow sensing the presence of phantom
drive.
Phantom drive input port, provided for transmitting an activated ring
insertion command to the concentrator from the front end I.C.
Phantom drive input port, provided for transmitting an activated ring
insertion command to the concentrator from the front end I.C.
Differential Manchester transmit data to the I.C.
Differential Manchester transmit data to the I.C.
Filtered, shaped differential Manchester transmit data, including phan
tom drive, to UTP ring. Connect directly to the RJ-45 pin 6.
Filtered, shaped differential Manchester transmit data, including phan
tom drive, to STP ring. Connect directly to the DB-9 pin 9, or the MICs
orange wire.
Filtered, shaped differential Manchester transmit data, including phan
tom drive, to STP ring. Connect directly to the DB-9 pin 5, or the MICs
black wire.
Filtered, shaped differential Manchester transmit data, including phan
tom drive, to UTP ring. Connect directly to the RJ-45 pin 3.
Common mode filter return. Connect to chassis ground.
Raw differential Manchester receive data, including phantom drive, from
UTP ring. Connect directly to the RJ-45 pin 5.
Raw differential Manchester receive data, including phantom drive, from
STP ring. Connect directly to the DB-9 pin 6 or the MIC's green wire.
Raw differential Manchester receive data, including phantom drive,
from STP ring. Connect directly to the DB-9 pin 1 or the MIC's red wire.
Raw differential Manchester receive data, including phantom drive, from
UTP ring. Connect directly to the RJ-45 pin 4.
—
8
4
4
PHR-
1
2
7
6
9
14
—
—
—
—
—
—
9
10
7
8
15
14
13
14
15
16
7
7
PH+
PH-
TX+
TX-
TU+
TS+
13
—
12
8
TS-
8
12
—
—
—
—
—
—
6
9
2
5
11
16
18
17
20
19
8
5, 12
10
10
9
9
TU-
CHSGND
RU-
RS-
RS+
RU+
Note:
Pins not shown in the above table are not connected.
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
4
E205.A (3/97)
SURFACE MOUNT FILTER
MAGNETIC MODULES
For Token Ring Applications
Application Notes
Pulse’s filter magnetic modules have been designed for use
with Texas Instruments’ IEEE-802.5 compliant transceiver
chips, TI380C60 and TI380C30. The referenced application
circuits should serve as a starting point for design. To reduce
induced noise, attention should be given to the layout of the
Token Ring interface circuitry, especially to the selection of
components and their placement.
The Token Ring transceiver provides a 150
Ω
impedance to
the transceiver IC’s output driver. The 1:1 isolation trans-
former interfaces the IC driver to a 150
Ω
low pass filter. The
line isolation transformer also provides taps for 100
Ω
media
connections. The cut-off frequency and phase characteristics
of this filter are precisely controlled to maximize the attenua-
tion of signal harmonics above 30 MHz, while minimizing sig-
nal delay distortion.
The receive channel consists of a line isolation transformer
with turns ratio of 1:1 for 150
Ω
media. The line isolation
transformer also provides taps for 100Ω media connections.
The common mode choke prevents impulse noise, picked up
from the media, from entering the IC receiver input. Common
mode filter circuitry is included in both transmit and receive
channels for improved EMI suppression.
Do not connect to both the UTP (100
Ω)
and STP (150
Ω)
simultaneously The modules have been optimized to support
only one media connection at a time. All pins that are unspec-
ified or not in use should be left unconnected.
Depending on the EMI characteristics of the board layout,
addtional common mode suppression may be necessary.
Please contact Pulse for information on Token Ring Filter
Magnetic Modules.
Typical Application Circuit
PE-67566, PE-67567
RCVINA
1
150
Ω
9 RS-
MAGNETICS
MODULE
10
2 RS+
1
5 RU+
6 RU-
5
6
PE-67567
RCVINB
DB-9
Connector
9
TI380C60
or
TI380C30
8
3
TU+
9
8
12
13
14
100
Ω
DROUTA
7
442
Ω
FILTER
MAGNETIC
MODULE
PE-67566
PH+
PH-
TU-
3
4
5
6
XMT+
RCV+
RCV-
XMT-
CHSGND
100
Ω
DROUTB
6
TS-
TS+
NOTE 1
RJ-45
Connector
1
+5V
PHOUTA
2
50
Ω
8.2µF
+
+
Note 1:
Pulse recommends incorporating a common
mode choke for optimum performance.
+5V
50
Ω
PHOUTB
8.2µF
1N4004
(4X)
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
5
E205.A (3/97)
京公网安备 11010802033920号
EEWORLD
