24-21SURC/S530-A4/TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 24-21SURC/S530-A4/TR8

24-21SURC/S530-A4/TR8: DescriptionSingle Color LED, Brilliant Red, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size153KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

24-21SURC/S530-A4/TR8 Overview

Single Color LED, Brilliant Red, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN

24-21SURC/S530-A4/TR8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
color	BRILLIANT RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	77.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL 7"
peak wavelength	632 nm
shape	ROUND
size	1.6 mm
surface mount	YES
Terminal pitch	3.4 mm
perspective	130 deg
Base Number Matches	1

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

Reverse Package Chip LED

24-21SURC/S530-XX/TR8

Features

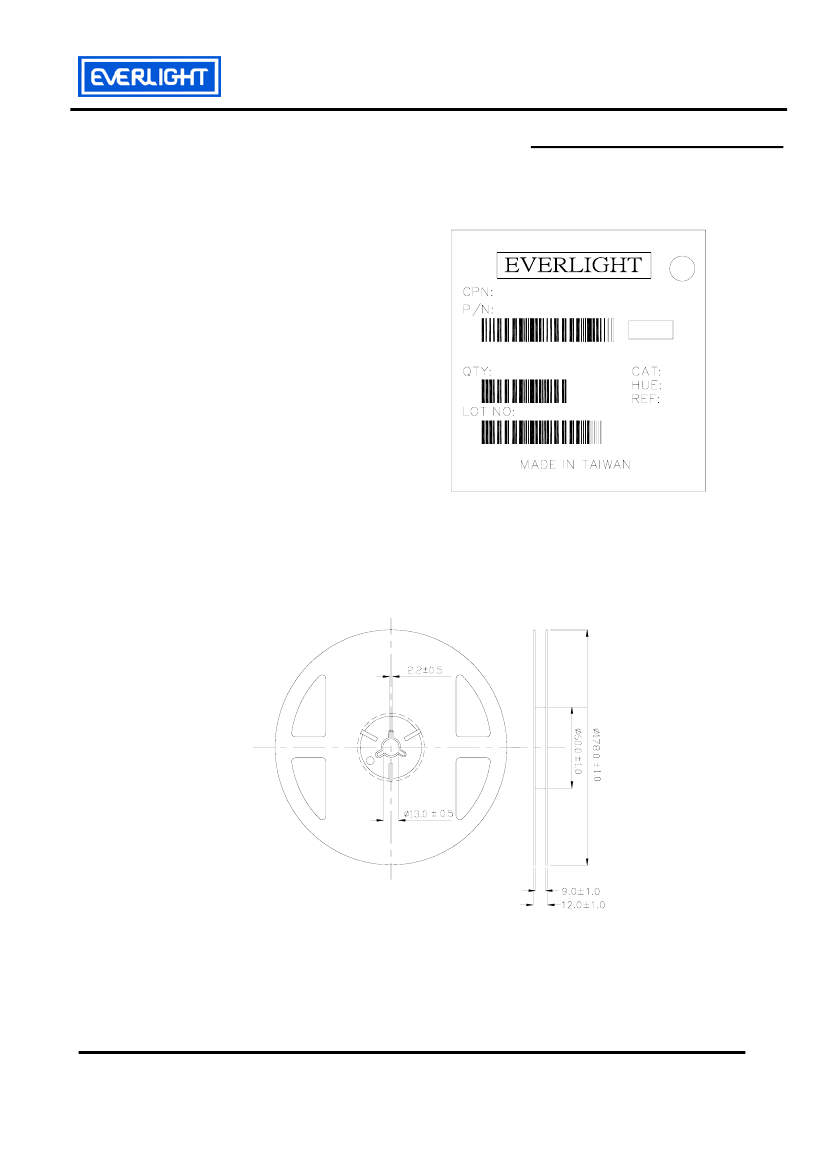

․Package

in 8mm tape on 7〞diameter reel.

․Compatible

with automatic placement equipment.

․Compatible

with infrared and vapor phase reflow

solder process.

․Mono-color

type.

․Pb-free.

․The

product itself will remain within RoHS complaint version.

Descriptions

․The

24-21 SMD LED is much smaller than lead

frame type components, thus enable smaller board

size, higher packing density, reduced storage space

and finally smaller equipment to be obtained.

․

Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive:

backlighting in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․General

use.

Device Selection Guide

Chip

Material

AlGaInP

Emitted Color

Brilliant Red

Part No.

24-21SURC/S530-XX/TR8

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No:SZDSE-241-005

http://www.everlight.com

Prepared date:22-Aug-2005

Rev.2

Page: 1 of 9

Prepared by:Wang Zhiyong

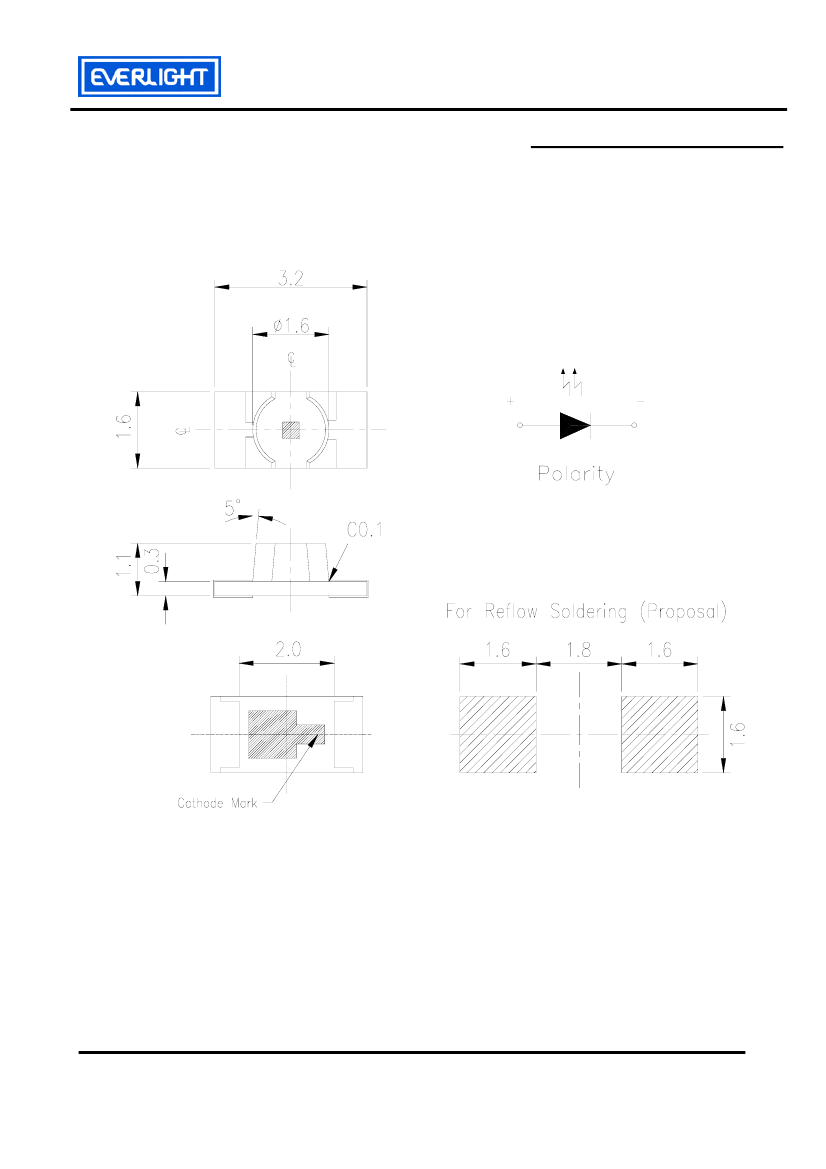

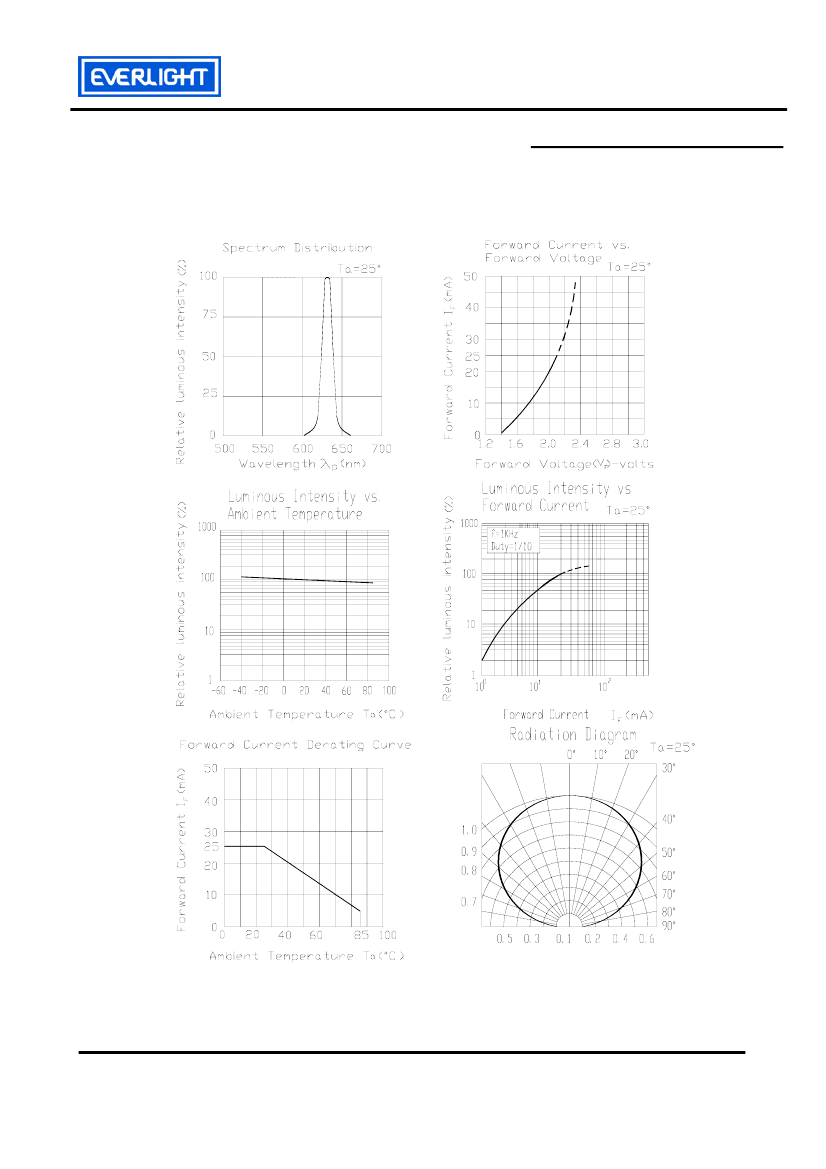

24-21SURC/S530-A4/TR8 Related Products

	24-21SURC/S530-A4/TR8	24-21SURC/S530-A5/TR8	24-21SURC/S530-A6/TR8	24-21SURC/S530-A2/TR8
Description	Single Color LED, Brilliant Red, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Brilliant Red, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Brilliant Red, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN	Illumination color: red Main wavelength/color coordinate: 624nm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli	compli	compli	compliant
color	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	77.0 mcd	96.0 mcd	116.0 mcd	39.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm
method of packing	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"
peak wavelength	632 nm	632 nm	632 nm	632 nm
shape	ROUND	ROUND	ROUND	ROUND
size	1.6 mm	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES
Terminal pitch	3.4 mm	3.4 mm	3.4 mm	3.4 mm
perspective	130 deg	130 deg	130 deg	130 deg
Base Number Matches	1	1	1	1
