Type VPR
–55 to 105 ºC Radial Leaded Aluminum Electorlytic
Low ESR, Optional 3
rd
Lead Case Styles, Aluminum Electrolytic Capacitors
Type VPR is a radial leaded aluminum electrolytic
capacitor with a 105 ºC, 2000 hours long life ratings.
The VPR has 3 optional case styles with a third lead.
The low ESR rating makes it ideal for output filtering
in switching power supplies.
Highlights
•
•
•
•
105 ºC
Long life
Low ESR
High reliability
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
34 to 12,000 µF
6.3 to 100 Vdc (250 Vdc on special request)
–10% +75% (others on special request)
–55 ºC to +105 ºC
I = .002 CV after 2 minutes @ 25 ºC
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
Temperature (ºC)
Multiplier
45
1.66
55
1.52
65
1.37
75
1.2
85
1
95
0.75
Ripple Multipliers for Temperature:
QA Stability Test:
Apply WVDC for 2000 h at 105 ºC
Capacitance change within 15% of initial limits
DC leakage current meets initial limits
ESR ≤ 150% of initial measured value
Part Numbering System
VPR
372
U
Capacitance
Type
Capacitance Tolerance
(µF)
(%)
016
Rated
Voltage
(Vdc)
Case Code
L2C
3
Insulating
Sleeve
A
Lead
Configuration
VPR
100 = 10
101 = 100
372 = 3700
U = –10 +75
T = –10 +50
6R3 = 6.3
016 = 16
100 = 100
See Case
Code Chart
0 = No sleeve
3 = PVC
4 = Plastic sleeve
5 = Plastic sleeve with end seal
A = Standard
B, J or T – see
outline dimensions
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type VPR
–55 to 105 ºC Radial Leaded Aluminum Electorlytic
Case Codes
Case Code Chart
Uninsulated Case Size
Case Code
E1A
E1E
E1L
L1C
L1L
L2C
L2L
L3C
L3L
N1C
N1L
N2C
Inches
D
0.512
0.512
0.512
0.875
0.875
0.875
0.875
0.875
0.875
1.000
1.000
1.000
L
1.024
1.300
1.654
1.125
1.625
2.125
2.625
3.125
3.625
1.125
1.625
2.125
S
0.20
0.20
0.20
0.30
0.30
0.30
0.30
0.30
0.30
0.40
0.40
0.40
D
13.0
13.0
13.0
22.2
22.2
22.2
22.2
22.2
22.2
25.4
25.4
25.4
Millimeters
L
26.0
33.0
42.0
28.6
41.3
53.9
66.7
79.4
92.1
28.6
41.3
53.9
S
5.08
5.08
5.08
7.62
7.62
7.62
7.62
7.62
7.62
10.16
10.16
10.16
Lead Wire Size
Inches
0.023
0.023
0.023
0.04
0.04
0.04
0.04
0.04
0.04
0.04
0.04
0.04
AWG
#20
#20
#20
#18
#18
#18
#18
#18
#18
#18
#18
#18

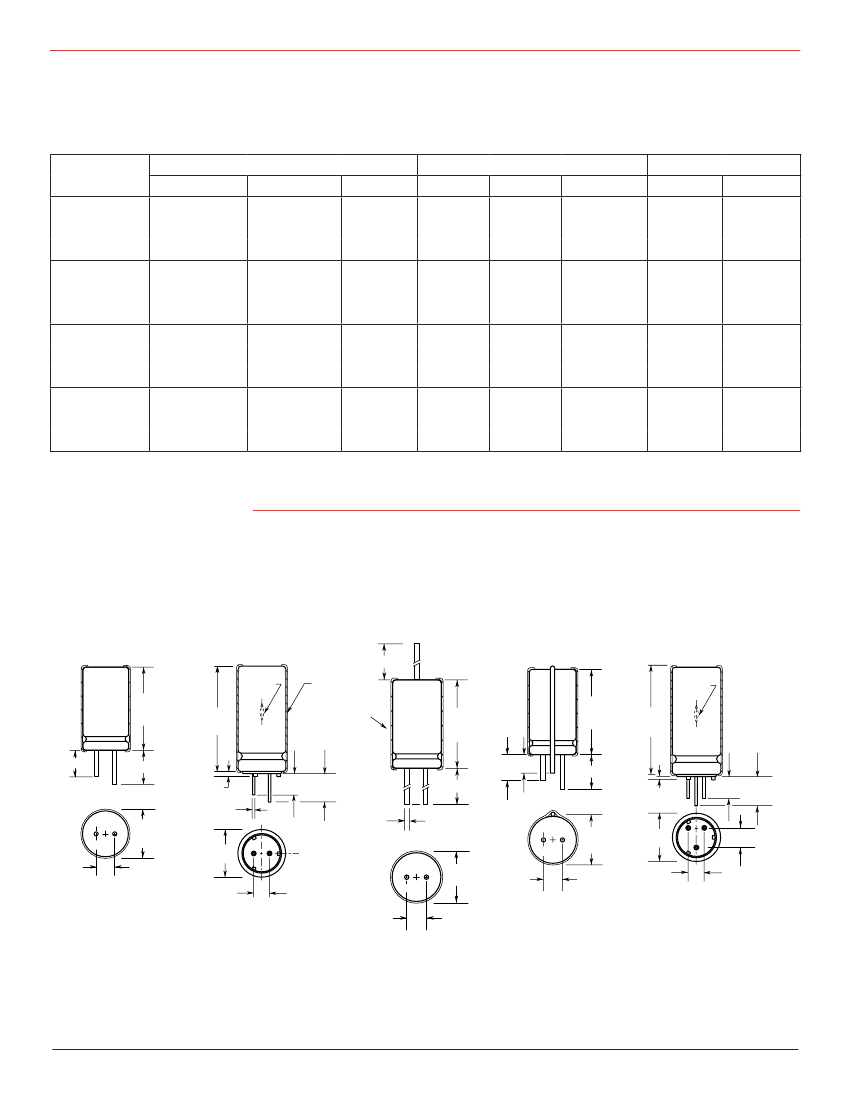

Outline Drawings
Figure A
.512 Diameter
Figure A
.750 Diameter & Greater
Figure J
(Optional)
Figure T
(Optional)
Figure B
(Optional)
1" min.
Vent
PVC
Sleeve
Vent
L
+.040
Max
L
.062
PVC
Sleeve
L
.031
H
.031
H
.031
.281
.375
.100
Nom.
d
0.75 Nom.
1.00 Nom.
.281
.200
.375
.100
Nominal
.281
.375
1" min.
+
D
+.020
Max
d
D
.015
+
_
+
D
.015
D
.015
X
+
.S
S
S
.015
_
+
S
D
.015
S
PVC sleeve adds .015 to diameter and length.
(Inches)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type VPR
–55 to 105 ºC Radial Leaded Aluminum Electorlytic
Ratings
Max ESR Max Ripple
Catalog
Cap
(µF)
880
5,600
8,800
12,000
780
1,700
4,900
660
990
4,200
1,200
5,600
500
2,300
3,200
3,700
5,000
6,900
10,000
640
1,300
1,800
2,800
2,800
3,900
5,900
VPR881U6R3E1A
VPR562U6R3N1L
VPR882U6R3N2C
VPR123U6R3N2L
VPR781U7R5E1A
VPR172U7R5E1A
VPR492U7R5N1L
VPR661U010E1A
VPR991U010E1E
VPR422U010N1L
VPR122U012E1L
VPR562U012N2C
VPR501U016E1A
VPR232U016L1L
VPR322U016N1L
VPR372U016L2C
VPR502U016N2C
VPR692U016N2L
VPR103U016N3L
VPR641U025E1L
VPR132U025L1L
VPR182U025N1L
VPR282U025L2L
VPR282U025N2C
VPR392U025N2L
VPR592U025N3L
Part Number
10 kHz
25 ºC
(Ω)
0.121
0.034
0.023
0.018
0.117
0.057
0.031
0.115
0.076
0.032
0.055
0.021
0.110
0.040
0.029
0.026
0.020
0.017
0.012
0.067
0.035
0.035
0.018
0.023
0.018
0.014
10 kHz
85 ºC
(A)
1.430
3.767
5.131
6.364
1.450
2.590
3.820
1.470
1.970
3.702
2.640
4.932
1.500
2.863
3.637
3.981
4.887
6.105
8.033
2.390
2.729
3.006
4.732
4.107
5.191
6.616
Diameter
(D)
0.512 (13.0)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
0.512 (13.0)
0.512 (13.0)
1.000 (25.4)
0.512 (13.0)
0.512 (13.0)
1.000 (25.4)
0.512 (13.0)
1.000 (25.4)
0.512 (13.0)
0.875 (22.2)
1.000 (25.4)
0.875 (22.2)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
0.512 (13.0)
0.875 (22.2)
1.000 (25.4)
0.875 (22.2)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
Size in. (mm)
Length
(L)
1.024 (26.0)
1.625 (41.3)
2.625 (66.7)
1.024 (26.0)
1.024 (26.0)
1.625 (41.3)
1.024 (26.0)
1.300 (33.0)
1.625 (41.3)
1.654 (42.0)
Lead Space
(S)
0.20 (5.1)
0.40 (10.2)
0.40 (10.2)
0.20 (5.1)
0.20 (5.1)
0.40 (10.2)
0.20 (5.1)
0.20 (5.1)
0.40 (10.2)
0.20 (5.1)
Lead Dia.
(d)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
0.023 (.58)
0.040 (1.0)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
6.3 Vdc (8 Volts Surge)
2.125 ((54.0) 0.40 (10.2)
7.5 Vdc (10 Volts Surge)
10 Vdc (13 Volts Surge)
12 Vdc (18 Volts Surge)
2.125 ((54.0) 0.40 (10.2)
1.024 (26.0)
1.625 (41.3)
1.625 (41.3)
0.20 (5.1)
0.30 (7.6)
0.40 (10.2)
16 Vdc (20 Volts Surge)
2.125 ((54.0) 0.30 (7.6)
2.125 ((54.0) 0.40 (10.2)
2.625 (66.7)
3.625 (92.1)
1.654 (42.0)
1.625 (41.3)
1.625 (41.3)
2.625 (66.7)
2.625 (66.7)
3.625 (92.1)
0.40 (10.2)
0.40 (10.2)
0.20 (5.1)
0.30 (7.6)
0.40 (10.2)
0.30 (7.6)
0.40 (10.2)
0.40 (10.2)
25 Vdc (30 Volts Surge)
2.125 ((54.0) 0.40 (10.2)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type VPR
–55 to 105 ºC Radial Leaded Aluminum Electorlytic
Ratings
Max ESR Max Ripple
Catalog
Cap
(µF)
160
240
360
760
1,600
2,200
2,800
3,300
110
160
250
600
1200
2,400
62
140
450
680
1,100
34
78
250
VPR161U040E1A
VPR241U040E1E
VPR361U040E1L
VPR761U040L1L
VPR162U040N2C
VPR222U040N2L
VPR282U040N3C
VPR332U040N3L
VPR111U050E1A
VPR161U050E1E
VPR251U050E1L
VPR601U050L1L
VPR122U050N2C
VPR242U050N3L
VPR620U075E1A
VPR141U075E1L
VPR451U075N1L
VPR681U075N2C
VPR112U075N3C
VPR340U100E1A
VPR780U100E1L
VPR251U100N1L
Part Number
10 kHz
25 ºC
(Ω)
0.171
0.114
0.091
0.040
0.021
0.017
0.014
0.014
0.317
0.218
0.139
0.049
0.028
0.015
0.489
0.216
0.102
0.069
0.044
0.691
0.301
0.111
10 kHz
85 ºC
(A)
1.200
1.610
2.050
2.194
3.755
4.732
5.651
6.437
0.880
1.160
1.660
1.964
3.297
5.639
0.710
1.330
1.779
2.420
3.577
0.530
1.010
1.818
Diameter
(D)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.875 (22.2)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.875 (22.2)
1.000 (25.4)
1.000 (25.4)
0.512 (13.0)
0.512 (13.0)
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
0.512 (13.0)
0.512 (13.0)
1.000 (25.4)
Size in. (mm)
Length
(L)
1.024 (26.0)
1.300 (33.0)
1.654 (42.0)
1.625 (41.3)
2.125 ((54.0)
2.625 (66.7)
3.125 (79.4)
3.625 (92.1)
1.024 (26.0)
1.300 (33.0)
1.654 (42.0)
1.625 (41.3)
2.125 ((54.0)
3.625 (92.1)
1.024 (26.0)
1.654 (42.0)
1.625 (41.3)
3.125 (79.4)
1.024 (26.0)
1.654 (42.0)
1.625 (41.3)
Lead Space
(S)
0.20 (5.1)
0.20 (5.1)
0.20 (5.1)
0.30 (7.6)
0.40 (10.2)
0.40 (10.2)
0.40 (10.2)
0.40 (10.2)
0.20 (5.1)
0.20 (5.1)
0.20 (5.1)
0.30 (7.6)
0.40 (10.2)
0.40 (10.2)
0.20 (5.1)
0.20 (5.1)
0.40 (10.2)
0.40 (10.2)
0.20 (5.1)
0.20 (5.1)
0.40 (10.2)
Lead Dia.
(d)
0.023 (.58)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.023 (.58)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.023 (.58)
0.023 (.58)
0.040 (1.0)
40 Vdc (50 Volts Surge)
50 Vdc (65 Volts Surge)
75 Vdc (95 Volts Surge)
2.125 ((54.0) 0.40 (10.2)
100 Vdc (125 Volts Surge)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
