DM54ALS02J datasheet, PDF - EEWORLD Datasheet

DM54ALS02J: DescriptionNOR Gate, ALS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size133KB，2 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

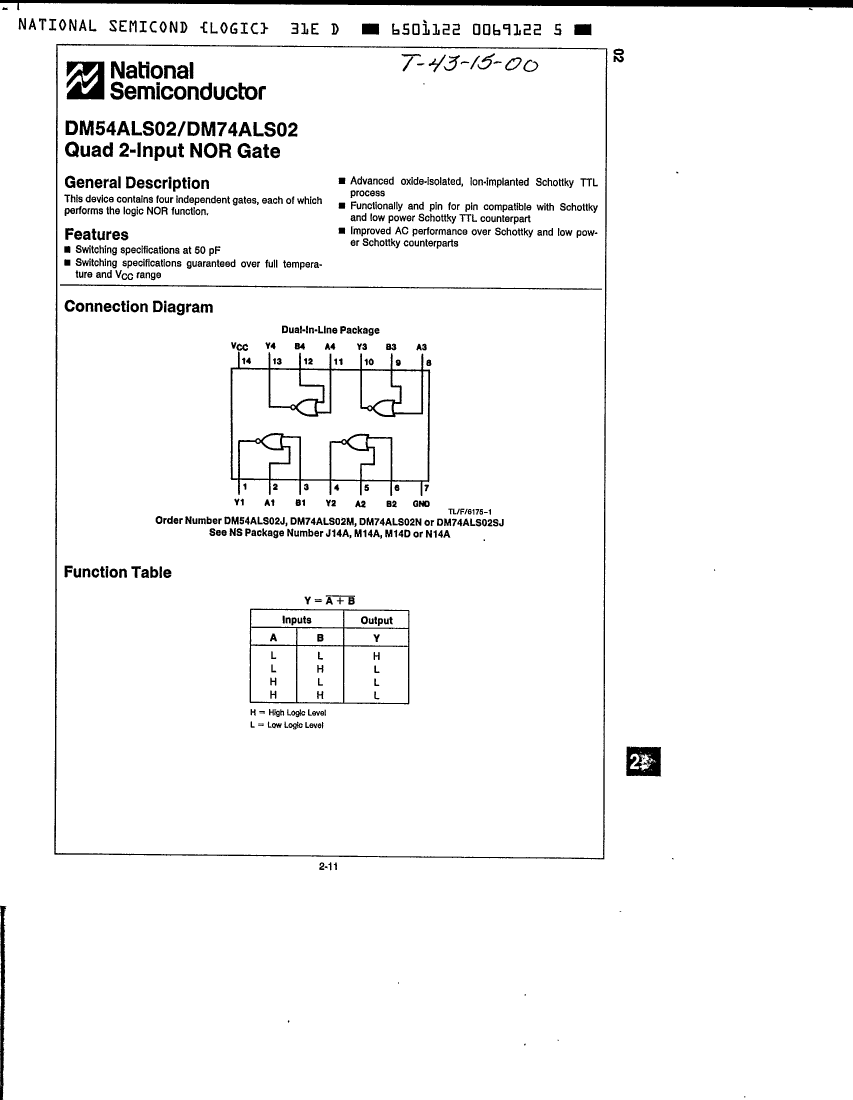

DM54ALS02J Overview

NOR Gate, ALS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14

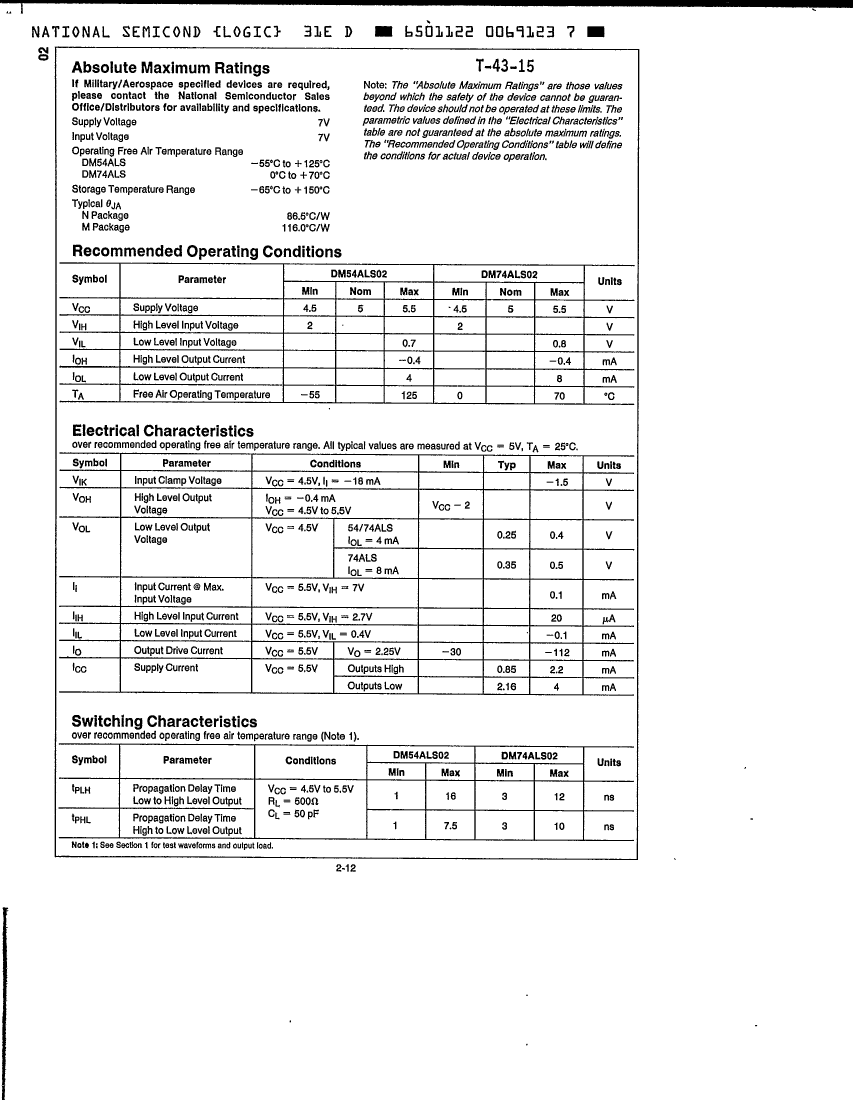

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-GDIP-T14
length	19.43 mm
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7.5 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	DM54ALS02J
Description	NOR Gate, ALS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-GDIP-T14
length	19.43 mm
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7.5 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
