LZGR1JM122J40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LZGR1JM122J40

LZGR1JM122J40: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 1200uF; CategoryPassive components capacitor; File Size456KB，9 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric View All

LZGR1JM122J40 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 1200uF

LZGR1JM122J40 Parametric

Parameter Name	Attribute value
Maker	Luminous Town Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
length	40 mm
Manufacturer's serial number	LZG(63V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
series	LZG(63V)
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

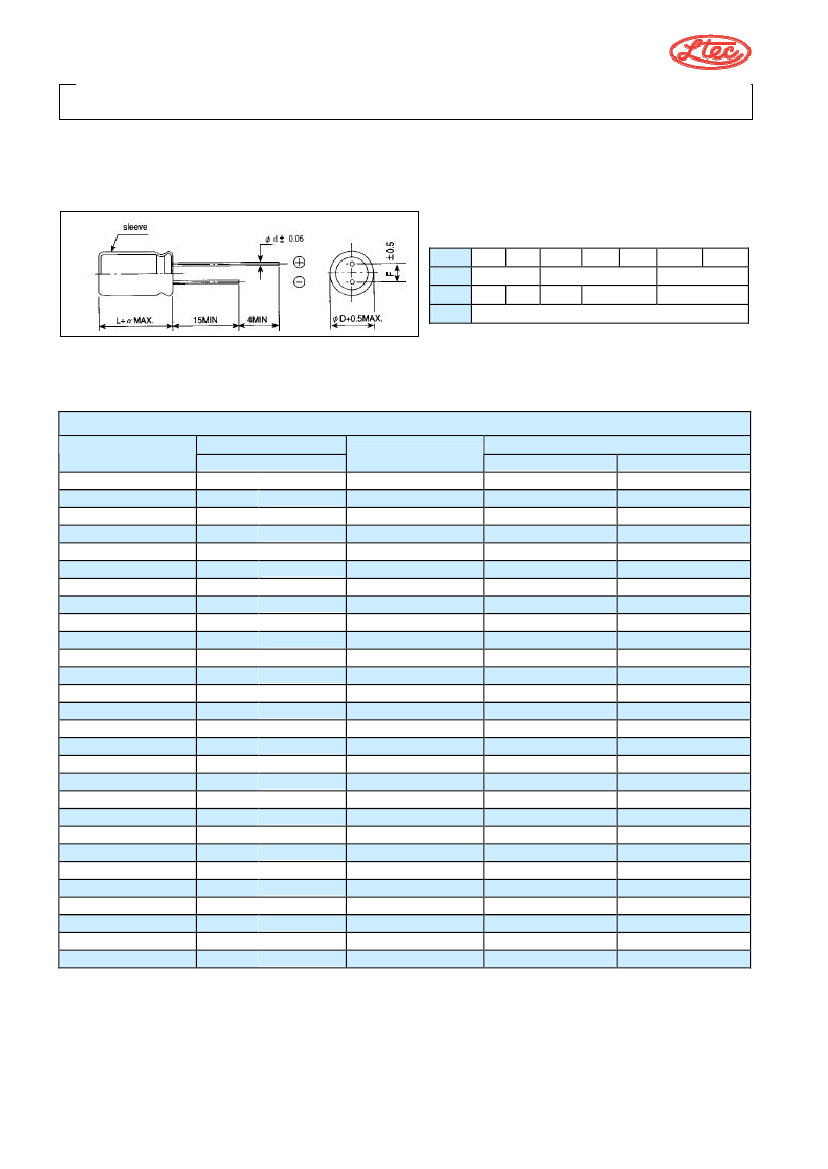

ALUMINUM ELECTROLYTIC CAPACITORS

LZG

Goback

series

ULTRAL LOW IMPEDANCE, HIGH RELIABILITY

ULTRA. Low impedance at 100kHz

Load life:105℃ 4000~7000 hours

HIGH QUALITY

■SPECIFICATIONS

Item

Operating Temperature Range

Performance Characteristics

-55℃~105℃

6.3~100W.V.

0.22~18000uF

±20%,

120Hz , 20℃

I=0.01CV or 3uA whichever is greater.(after 2 minutes)

I=Leakage Current(uA) , C=Nominal Capacitance(uF) , V=Rated Voltage(V)

When nominal capacitance is over 1000uF, tan ä shall be added 0.02 to the

listed value with increase of every 1000uF,

Rated voltage (V)

Tan

Rated Voltage(V)

Z(-25℃)/Z(+20℃)

Z(-55℃)/Z(+20℃)

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current(MAX)

Dissipation Factor

(tanδ)

0.22

6.3

0.19

0.16

0.14

0.12

0.10

0.09

0.08

100

MAX

20℃

120Hz

100

Low Temperature

Stability

Impedance

Ratio

MAX

120Hz

Load Life

After life test at conditions stated in the table below, the capacitors shall meet the

following requirement

Not more than the specified value

Case Dia

Life

Leakage Current

Time(hrs)

Capacitance

Within ±25% of initial value.

φD≦6.3

4000

Change

Not more than 200% of the

φD=8

5000

Dissipation Factor

specified value

φD=10

6000

φD≧12.5

7000

After leaving capacitors under no load at 105℃ for 1000 hours and applying voltage according to JIS

C-5102 4-3, they meet the specified value for load life characteristics listed above.

Shelf Life

Standard

According to JIS C 5141

■MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency(Hz)

60(50)

Cap(uF)

0.22-33

0.45

39-330

0.60

390-1000

0.65

1200-18000

0.75

120

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

10k

0.90

0.95

0.98

1.00

≧100k

1.00

Temperature coefficient

Temperature 40℃

Coefficient

2.41

55℃

2.41

65℃

2.12

75℃

2.00

85℃

1.70

105℃

1.00

LZG-0401

Recommended Resources

Platinum thermal resistance signal conditioner internal circuit block diagram and typical application circuit

Towel machine fault detection circuit

Modern home automation remote control systema

Strain counting acquisition circuit

Constant current overcurrent protection circuit diagram

Car oil pressure and oil level LED alarm

Wince changed to rom-only file system, and found that explorer.exe could not start: I changed wince to rom-only file system, but found that explorer.exe could not start, but everything else was normal. I hope you can give me some advice. Thank you...; evinsheng Embedded System

Question C. Dizzy!: FILE *pf,*f;char word[40]="luchaodong";char in[40]={0};pf=fopen("H:\\电子实践\\代码\\kk.txt","w ");f=fopen("H:\\电子实践\\代码\\aa.txt","w ");fwrite(word,sizeof(char),10,pf);rewind(pf);fread(in,sizeof(char),11,pf...; LUCHAODONG MCU

Questions and Answers - About UCOS: The purpose of creating this post here is to increase everyone's enthusiasm for learning UCOS. If you encounter any problems during the learning process, you can ask questions here. The experts in thi...; wstrom Real-time operating system RTOS

【2】Bluetooth basics of Bluetooth remote control balance car: [i=s]This post was last edited by lb8820265 on 2015-9-13 11:32[/i] [align=left][color=#000000] [/color][size=4] Continuing from the previous one, there are comments saying that a Bluetooth [color=#000...; lb8820265 DIY/Open Source Hardware

I heard that LPC11UXX has also been released!: With hardware USB2.0, great!...; richgood NXP MCU

[TI's first low-power design competition] + gesture remote control design based on mpu6050 (continued 2): Last week, I focused on understanding the data fusion of mpu6050. Since I have a poor math foundation, I spent more time to understand it, but I am still a long way from data fusion. There are a lot o...; bennik Microcontroller MCU
