SMAJ8-E3/5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ8-E3/5A

SMAJ8-E3/5A: DescriptionDIODE 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor; CategoryDiscrete semiconductor diode; File Size57KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SMAJ8-E3/5A Overview

DIODE 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor

SMAJ8-E3/5A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	104 V
Minimum breakdown voltage	94.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	300 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
surface mount	YES
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

SMAJ5.0 thru 188CA

Vishay Semiconductors

formerly General Semiconductor

Surface Mount T

RANS

ORB

Transient Voltage Suppressors

DO-214AC (SMA)

Cathode Band

Stand-off Voltage

5.0 to 188V

Peak Pulse Power

400W

0.065 (1.65)

0.049 (1.25)

0.110 (2.79)

0.100 (2.54)

0.177 (4.50)

0.157 (3.99)

ed e

nd ang

xte R

E e

tag

0.066 MIN.

(1.68 MIN.)

0.052 MIN.

(1.32 MIN.)

Mounting Pad Layout

0.094 MAX.

(2.38 MAX.)

Dimensions in inches

and (millimeters)

0.012 (0.305)

0.006 (0.152)

0.090 (2.29)

0.078 (1.98)

0.220

(5.58) REF

Features

0.060 (1.52)

0.030 (0.76)

0.008 (0.203) MAX.

0.208 (5.28)

0.194 (4.93)

Mechanical Data

Case:

JEDEC DO-214AC molded plastic over

passivated chip

Terminals:

Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity:

For uni-directional types the band denotes the

cathode, which is positive with respect to the anode

under normal TVS operation

Mounting Position:

Any

Weight:

0.002 oz., 0.064 g

Packaging Codes – Options (Antistatic):

51 – 1K per Bulk box, 20K/carton

61 – 1.8K per 7" plastic Reel (12mm tape), 36K/carton

5A – 7.5K per 13" plastic Reel (12mm tape), 75K/carton

• Plastic package has Underwriters Laboratory

Flammability Classification 94V-0

• Optimized for LAN protection applications

• Ideal for ESD protection of data lines in

accordance with IEC 1000-4-2 (IEC801-2)

• Ideal for EFT protection of data lines in

accordance with IEC 1000-4-4 (IEC801-4)

• Low profile package with built-in strain relief for

surface mounted applications

• Glass passivated junction

• Low incremental surge resistance, excellent clamping

capability

• 400W peak pulse power capability with a 10/1000µs

waveform, repetition rate (duty cycle): 0.01% (300W

above 78V)

• Very fast response time

• High temperature soldering guaranteed:

250°C/10 seconds at terminals

Devices for Bidirectional Applications

For bi-directional devices, use suffix C or CA (e.g. SMAJ10C, SMAJ10CA). Electrical characteristics apply in both directions.

Maximum Ratings & Thermal Characteristics

Ratings at 25°C ambient temperature unless otherwise specified.

Parameter

Peak pulse power dissipation with

a 10/1000µs waveform

(1,2)

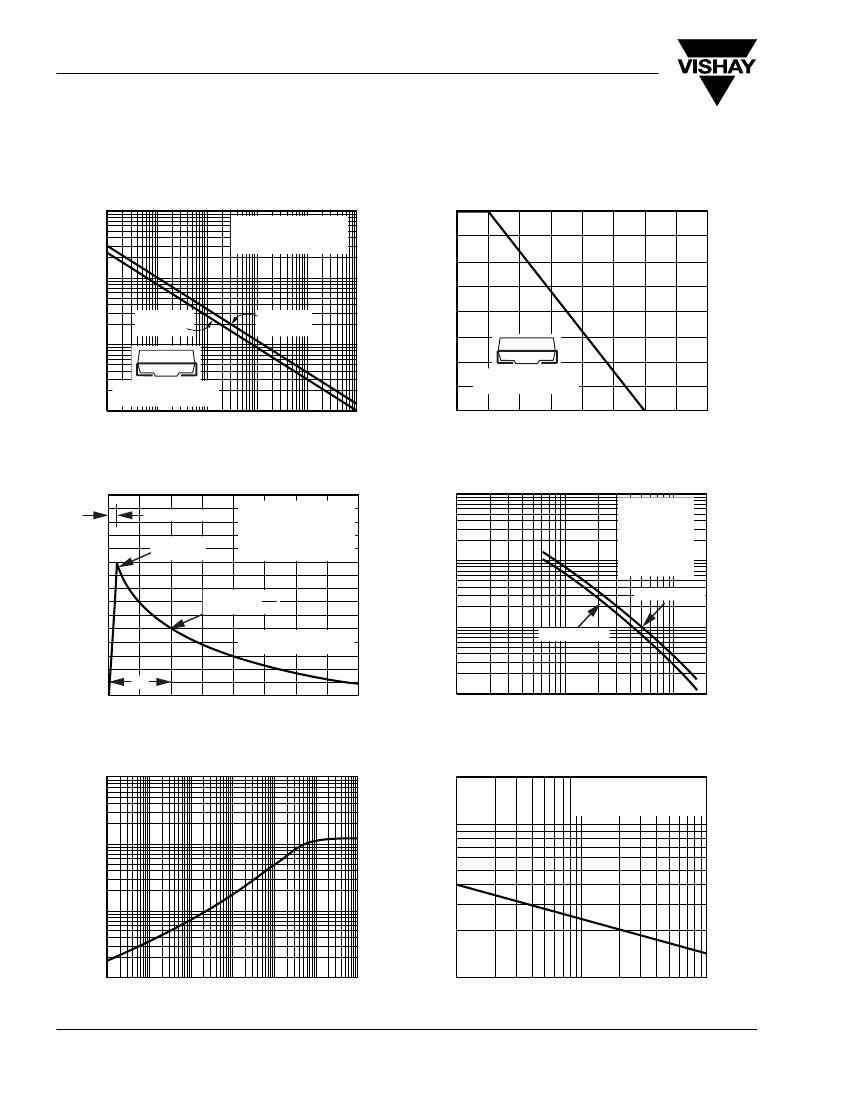

(see fig. 1)

Peak pulse current with a waveform

(1)

Peak forward surge current 8.3ms single half sine-wave

uni-directional only

(2)

Typical thermal resistance, junction to ambient

(3)

Typical thermal resistance, junction to lead

Operating junction and storage temperature range

Symbol

PPM

FSM

θJA

θJL

, T

STG

Value

400

See Next Table

120

–55 to +150

Unit

°C/W

°C

Notes:

(1) Non-repetitive current pulse, per Fig. 3 and derated above T

= 25°C per Fig. 2. Rating is 300W above 78V

(2) Mounted on 0.2 x 0.2" (5.0 x 5.0mm) copper pads to each terminal

(3) Mounted on minimum recommended pad layout

Document Number 88390

13-Oct-03

www.vishay.com

SMAJ8-E3/5A Related Products

	SMAJ8-E3/5A	SMAJ7/5A-E3	SMAJ8/5A-E3	SMAJ7-E3/5A	SMAJ7/5A	SMAJ4-E3/5A	SMAJ8/5A	SMAJ4/5A-E3
Description	DIODE 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor	DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor	DIODE 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor	DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor	Trans Voltage Suppressor Diode, 400W, 7V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN	DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor	Trans Voltage Suppressor Diode, 400W, 8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN	DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, PLASTIC, SMA, 2 PIN, Transient Suppressor
Parts packaging code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	104 V	92.1 V	104 V	92.1 V	92.1 V	55.3 V	104 V	55.3 V
Minimum breakdown voltage	94.4 V	83.3 V	94.4 V	83.3 V	83.3 V	50 V	94.4 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	300 W	400 W	300 W	400 W	400 W	400 W	400 W	400 W
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	-	conform to
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
JESD-609 code	e3	e3	e3	e3	-	e3	-	e3
Humidity sensitivity level	1	1	1	1	-	1	-	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	150 °C	-	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-55 °C
Peak Reflow Temperature (Celsius)	260	260	260	260	-	260	-	260
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	-	MATTE TIN	-	MATTE TIN
Maximum time at peak reflow temperature	40	40	40	40	-	40	-	40
