MA4L
Series
Silicon PIN Limiter Diodes
Features
•
•
•
•
•
•
Low Insertion Loss and Noise Figure
High Peak and Average Operating Power
Various P1dB Compression Powers
Low Flat Leakage Power
Proven Reliable, Silicon Nitride Passivation
RoHS Compliant
V17
Chip Outline
A Square
Description
M/A-COM Technology Solutions manufactures a series of
silicon PIN limiter diodes with small and medium I-region
lengths which are specifically designed for high signal
applications. The devices are designed to provide low
insertion loss, at zero bias, as well as low flat leakage
power with fast signal response/recovery times. Parts are
available as discrete die or assembled into a variety of
surface mount or ceramic pill packages. See the
Available
Case Style
table on page 6 for the specific ceramic
package styles and their availability for individual part
numbers
.
Anode
B
Applications
The MA4L and MADL-0110 Series of PIN limiter diodes
are designed for use in passive limiter control circuits to
protect sensitive receiver components such as low noise
amplifiers (LNA), detectors, and mixers covering the
10 MHz to 18 GHz frequency range.
Full Area Cathode
Absolute Maximum Ratings T
AMB
= 25°C
(Unless otherwise specified)
Parameter
Forward Current
Operating Temperature
Storage Temperature
Junction Temperature
Mounting Temperature
Absolute Maximum
100mA
-55°C to +125°C
-55°C to +150°C
+175°C
+320°C for 10 sec.
1
ODS
134
Dimension
A
B
mils
15 ± 2
7 ±1*
mm
.381 ± .51
.178 ± .025
Note:
For the MADL-000301-01340W, MADL-000301-13880G,
MA4L401-134 and MADL-000401-13880G, “B” dimension,
is 10 ±1 mils
RF Peak & C.W. Incident Power Per Performance Table
Note:
1. Exceeding any of the above ratings may cause
permanent damage.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MA4L
Series
Silicon PIN Limiter Diodes
Un-Packaged Die Electrical Specifications at T
AMB
= 25°C
Nominal Characteristics
Carrier
I-Region Contact Thermal
Lifetime
Thickness Diameter Resistance
Minimum Maximum Maximum
Minimum Maximum
C
j0V
C
j0V
R
S 10mA
I
FOR
=10mA
V
REV
V
REV
1 MHz
1 MHz
10 µA
10 µA
500 MHz
I
REV
= -6mA
V
R
15
20
20
20
30
30
30
60
60
100
200
250
V
R
35
35
35
35
50
50
50
75
75
pF
0.08
0.10
0.09
0.16
0.14
0.13
0.17
0.07
0.05
pF
0.18
0.20
0.19
0.23
0.21
0.20
0.24
0.15
0.17
0.15
0.20
0.30
Ohms
1
2.10
2.10
2.00
1.50
2.00
2.50
1.50
2.50
2.30
2.00
1.50
1.20
nS
1
10
10
10
10
20
15
15
10
10
90
200
800
µm
2
2
2
2
3
3
3
4
4
13
20
25
mils
1.2
1.2
1.2
3.0
1.4
1.5
3.0
1.5
3.0
3.5
3.0
4.5
°C/W
1
175
175
175
175
150
150
150
150
150
30
30
25
V17
Part Number
MA4L011-134
MA4L021-134
MA4L022-134
MADL-011009-01340W
MA4L031-134
MA4L032-134
MADL-011010-01340W
MA4L062-134
MADL-011011-01340W
MA4L101-134
MADL-000301-01340W
MA4L401-134
Note:
1. Test performed with the chip bonded into a ceramic pill package,ODS-30, mounted to an infinite heatsink. Chip only thermal resistance is
approximately 2°C/W less
*
Nominal High Signal Performance at T
AMB
= 25°C
Incident Peak
Power for
15dB Limiting
Recovery Time
3 dB
Maximum
Incident
Maximum
CW
Incident Peak Incident Peak
Power for
Power for 10dB
1dB Limiting
Limiting
Part Number
Freq. = 9.4GHz Freq. = 9.4GHz Freq. = 9.4GHz Peak Power = 50W Peak Power
dBm
MA4L011-134
MA4L021-134
MA4L022-134
MADL-011009-01340W
MA4L031-134
MA4L032-134
MADL-011010-01340W
MA4L062-134
MADL-011011-01340W
MA4L101-134
MADL-000301-01340W
MA4L401-134
2
Input Power
Watts
2
3
3
3
4
4
4
5
5
6
7
10
dBm
30
31
31
31
33
34
34
38
38
45
46
52
dBm
40
41
41
41
43
44
44
50
50
53
59
60
nS
10
15
15
10
25
25
25
75
75
100
50
250
Watts
80
90
90
90
125
125
125
200
200
250
500
1000
7
8
8
8
10
11
11
15
15
20
23
30
*
See page 3 for high signal performance parameter notes.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MA4L
Series
Silicon PIN Limiter Diodes
V17

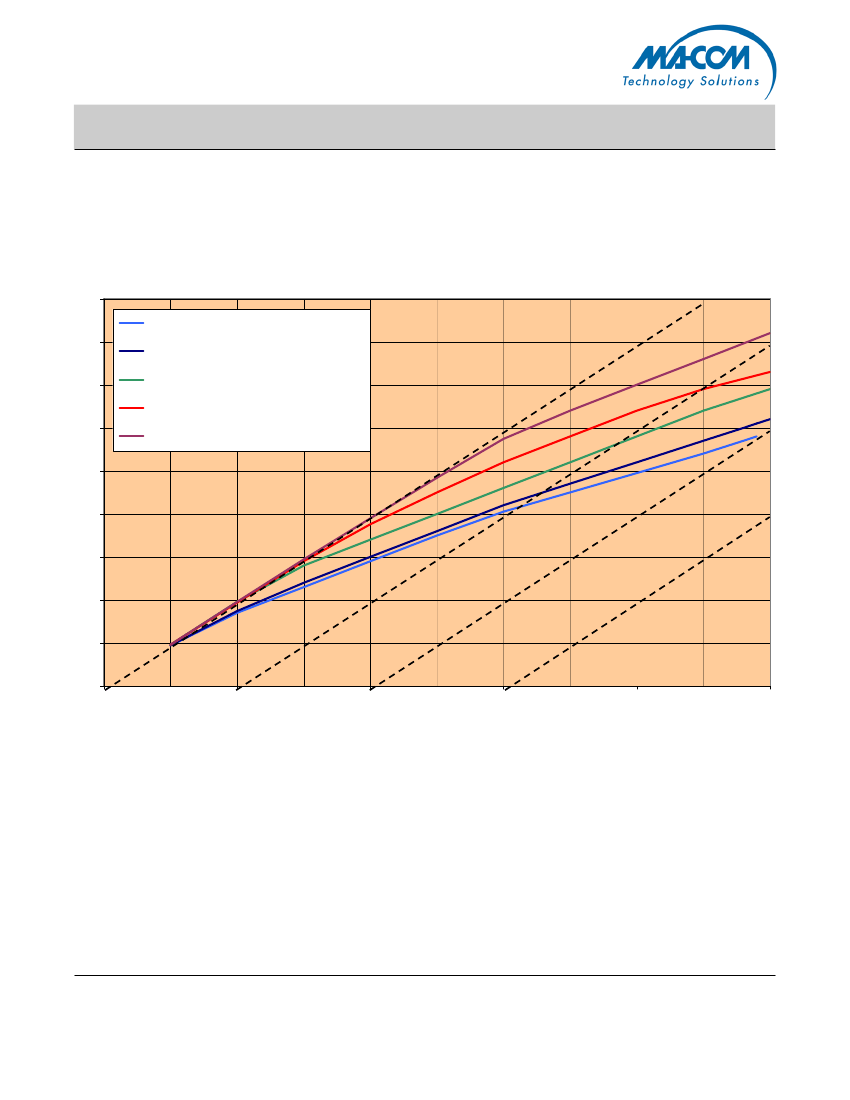

Typical High Signal Peak Power Performance in a Single Shunt 50Ω Circuit
