MAA6A: DescriptionSNAP ACTING/LIMIT SWITCH, SPST, ALTERNATE, 2.7mm, PANEL MOUNT; Categoryunclassified; File Size194KB，5 Pages; ManufacturerETC2

Download Datasheet Parametric View All

MAA6A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAA6A	-	-	View	Buy Now

MAA6A Overview

SNAP ACTING/LIMIT SWITCH, SPST, ALTERNATE, 2.7mm, PANEL MOUNT

MAA6A Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum AC contact current	16 A
Maximum AC contact voltage	250 V
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
switch function	single pole single throw
terminal coating	silver
Manufacturer Series	MA
Control valve	ROLLER LEVER
width	10.3 mm
high	16.5 mm
length or diameter	30 mm
Installation features	Panel mounting
maximum control	3.36 N
Maximum pre-conduction	1.2 mm
Switch action	interval
Switch type	SNAP ACTING/LIMIT switch
Terminal type	Quick connection
Maximum total conduction	2.7 mm

Preview

Download Datasheet

View All

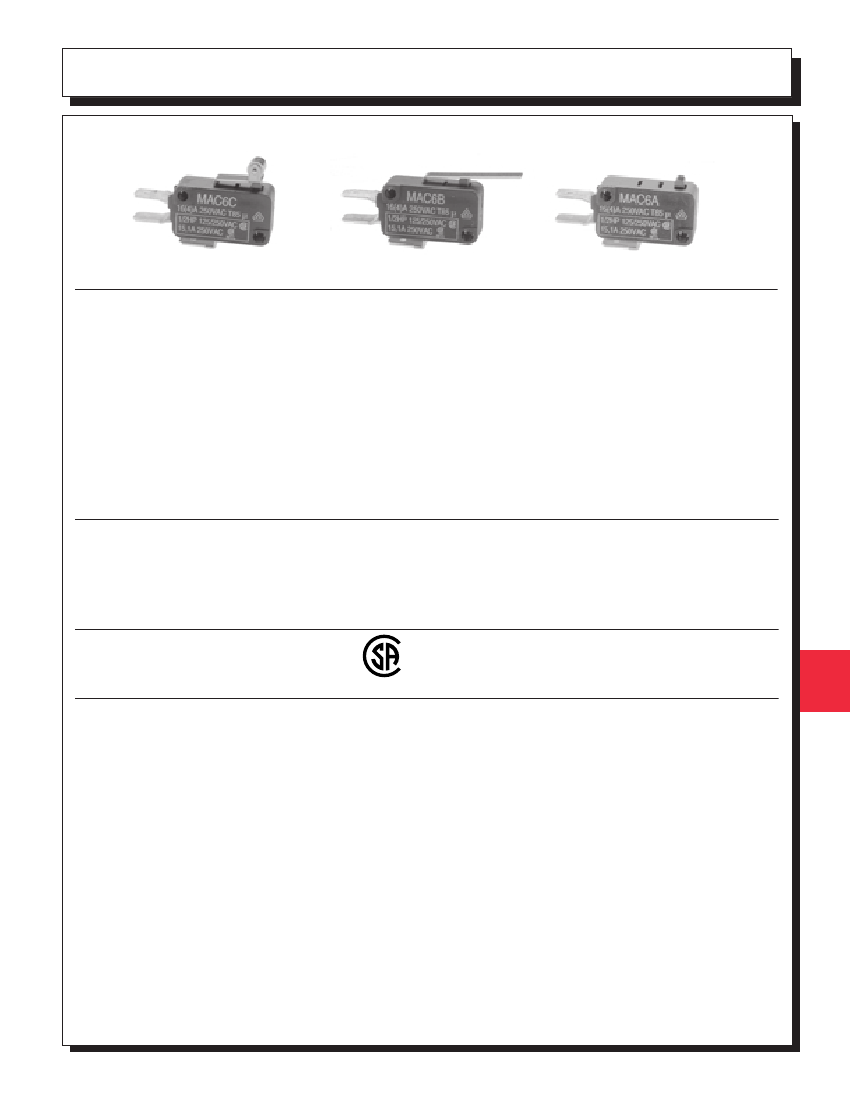

MA SERIES - MICRO-LIMIT SWITCHES

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

FEATURES

Ratings: 16 Amps 250 VAC (resistive load). 4 Amps 250 VAC (motor load) or

3 Amps 250 VAC (resistive load). 0.1 Amps 250 VAC (motor load).

Single pole CO (change-over or alternate action), NC (normally closed momentary) and

NO (normally open momentary) configurations.

Close tolerance switching action with long life (10,000,000 mechanical cycles min.).

Pin plunger, hinge lever or roller lever actuator options.

MATERIALS

Contacts:

Actuator:

Case & cover:

Terminals:

Stationary: Nicker silver Shorting: Beryllium copper

FS 161 (UL94V-O)

PBT (UL94V-O)

Silver plated copper/zinc

AGENCY RECOGNITION

NRTL

Approval pending.

SPECIFICATIONS

Operating force:

Pretravel:

Overtravel:

Movement differential:

Free position:

Operating position:

Operating temperature:

Contact gap:

Tracking resistance:

≤

12.59 oz. (343 grams) approx. for 16 Amp models

≤

0.72 oz. (20 grams) approx. for 3 Amp models

≤

.047" (1.2mm)

≥

.059" (1.5mm) min.

≤

.016" (0.4mm)

≤

.649" (16.5mm)

.578"

.020" (14.7mm

0.5mm)

-40°C to +85°C

less than .118" (3mm)

> PTI 175

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
