RLZ5234B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RLZ5234B

RLZ5234B: DescriptionZener Diode, 6.2V V(Z), 5%, 0.5W, Silicon, Unidirectional; CategoryDiscrete semiconductor diode; File Size203KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RLZ5234B Overview

Zener Diode, 6.2V V(Z), 5%, 0.5W, Silicon, Unidirectional

RLZ5234B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	O-LELF-R2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	7 Ω
JESD-30 code	O-LELF-R2
Maximum knee impedance	1000 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
Maximum reverse current	5 µA
surface mount	YES
technology	ZENER
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max	2.79 mV/°C
Maximum voltage tolerance	5%
Working test current	20 mA

Preview

Download Datasheet

View All

Diodes

Zener diode

RLZ5200B Series

TThis

product is marketed only in countries other than Japan.

Applications

Constant voltage control

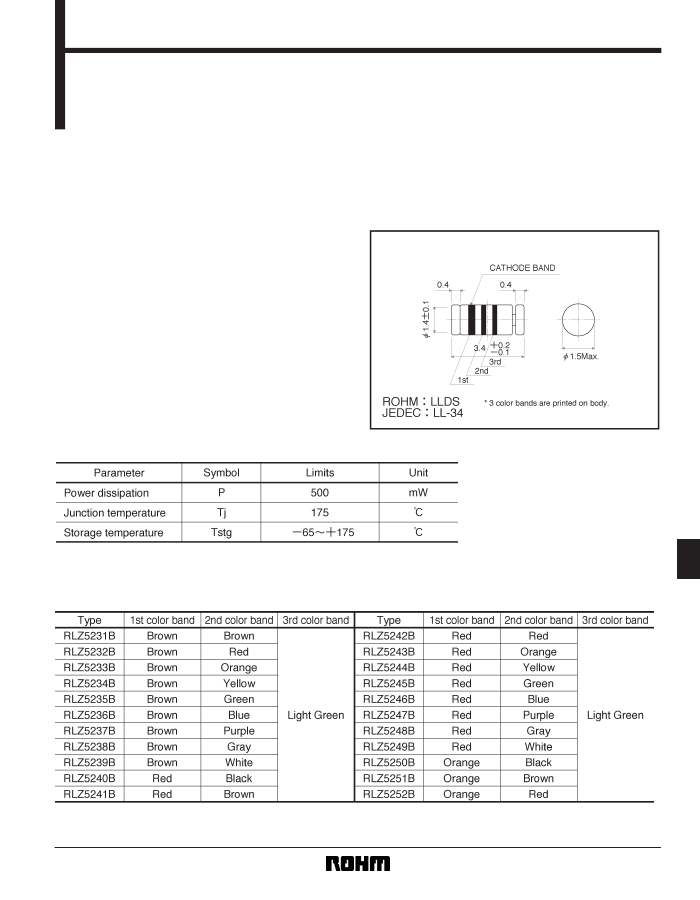

External dimensions (Units: mm)

Features

1) Small surface mounting type. (LL–34)

2) High reliability.

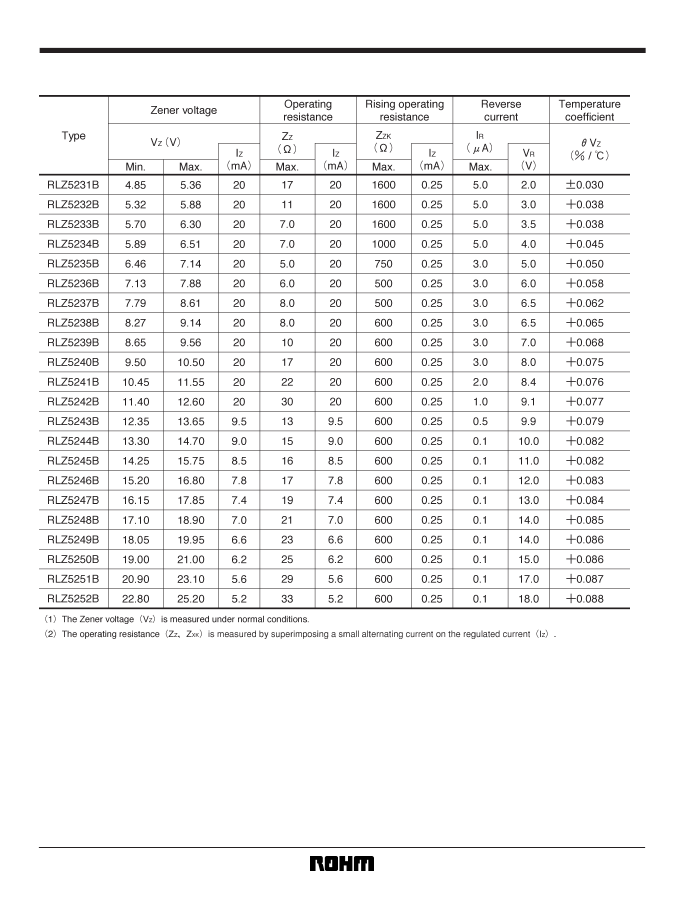

Absolute maximum ratings (Ta = 25°C)

Zener diodes

Cathode band colors

RLZ5234B Related Products

	RLZ5234B	RLZ5234BTE-11	RLZ5232B	RLZ5233B	RLZ5235B	RLZ5235BTE-11
Description	Zener Diode, 6.2V V(Z), 5%, 0.5W, Silicon, Unidirectional	Zener Diode, 0.5W, Silicon, Unidirectional	Zener Diode, 5.6V V(Z), 5%, 0.5W, Silicon, Unidirectional	Zener Diode, 6V V(Z), 5%, 0.5W, Silicon, Unidirectional	Zener Diode, 6.8V V(Z), 5%, 0.5W, Silicon, Unidirectional	Zener Diode, 0.5W, Silicon, Unidirectional
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Maximum knee impedance	1000 Ω	1000 Ω	1600 Ω	1600 Ω	750 Ω	750 Ω
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	3 µA	3 µA
surface mount	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END
Voltage temperatureCoeff-Max	2.79 mV/°C	2.79 mV/°C	2.128 mV/°C	2.28 mV/°C	3.4 mV/°C	3.4 mV/°C
Working test current	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-
Maker	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Other features	HIGH RELIABILITY	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-
Maximum dynamic impedance	7 Ω	-	11 Ω	7 Ω	5 Ω	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Nominal reference voltage	6.2 V	-	5.6 V	6 V	6.8 V	-
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum voltage tolerance	5%	-	5%	5%	5%	-
