ATT-0218-59-NNN-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0218-59-NNN-02

ATT-0218-59-NNN-02: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size80KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-0218-59-NNN-02 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, STAINLESS STEEL

ATT-0218-59-NNN-02 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	59 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.256

Preview

Download Datasheet

View All

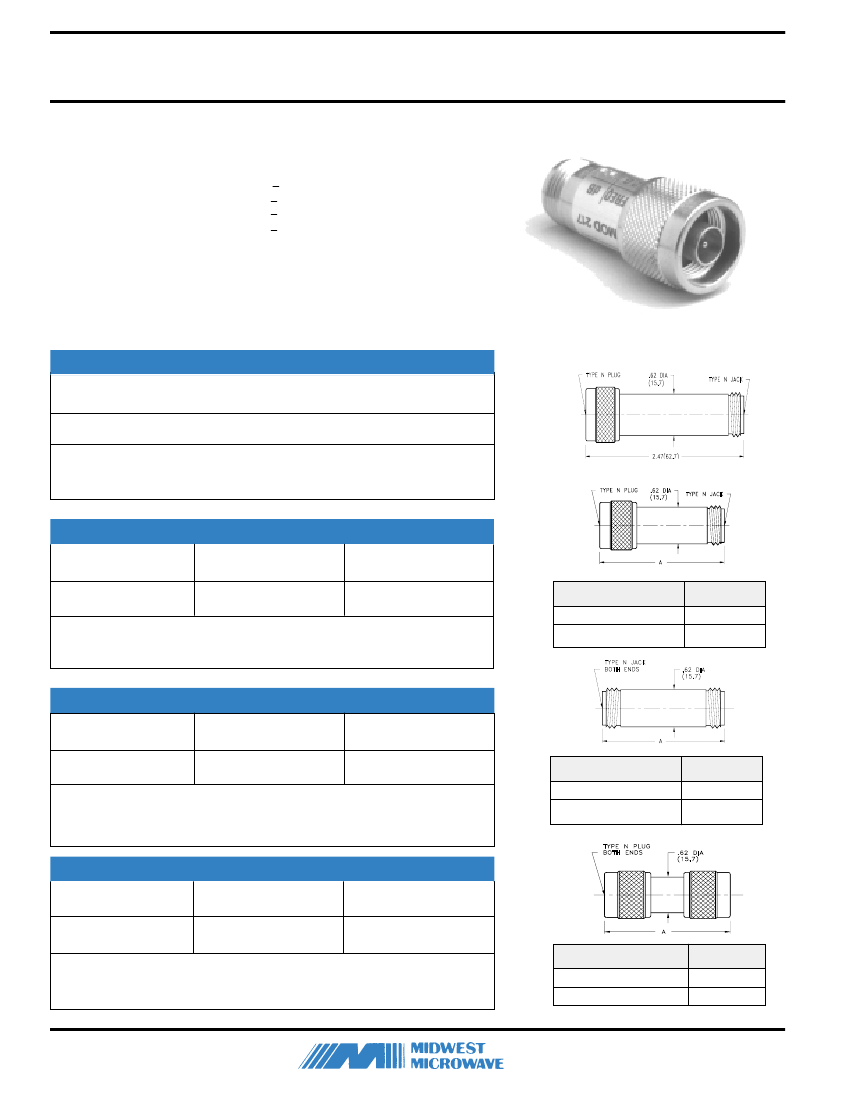

Attenuators

DC - 18 GHz Precision Performance

Frequency:

DC - 18.0 GHz, DC - 12.4, and DC - 8.0 units available

Attenuation Values:

1 - 60 dB as noted

Attenuation Accuracy:

1 - 6 dB + 0.3 dB

7 - 20 dB

21 - 40 dB

41 - 60 dB

+ 0.5 dB

+ 0.7 dB

+ 1.5 dB

Type N

Impedance:

50 Ohms

VSWR:

1.07 + 0.015 f (GHz) max

Power:

2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125

Peak Power:

200 Watts

Operating Temperature Range:

-54

C to +125

Finish:

Stainless Steel

DC - 18.0 GHz

389 Series

Model Number

Type N Precision - Low VSWR

ATT-0389-XX-NNN-02

Attenuation Value = XX, Select 3, 6, 10, or 20 dB

Calibration Data Supplied

VSWR: 1.12 @ DC-4 GHz

1.15 @ 4 - 8 GHz

1.20 @ 8 - 18 GHz

DC - 18.0 GHz

Male/Female

219 Series

Female / Female

Model Number

Male / Male

ATT-219M-XX-NNN-02

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.77 (45.0)

2.05 (52.1)

ATT-0219-XX-NNN-02 ATT-219F-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

DC - 12.4 GHz

Male/Female

218 Series

Female / Female

Model Number

Male / Male

ATT-218M-XX-NNN-02

1 - 20 dB

Attenuation Value

21 - 60 dB

1.74 (44.2)

Length A

2.02 (51.3)

ATT-0218-XX-NNN-02 ATT-218F-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

DC - 8.0 GHz

Male/Female

217 Series

Female / Female

Model Number

Male / Male

ATT-217M-XX-NNN-02

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.56 (39.6)

1.84 (47.0)

ATT-0217-XX-NNN-02 ATT-217F-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

Note: U.S. Patent No. 3,824,506 and 4,011,531 applies to 217, 218, and 219 series Attenuators.
