R-26.000000M-ZTA/MX-0.5-0.3-H-5/5

Description
Ceramic Resonator, 26MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-2
CategoryPassive components    Crystal/resonator
File Size345KB,1 Pages
ManufacturerAuris
Environmental Compliance
Download Datasheet Parametric View All

R-26.000000M-ZTA/MX-0.5-0.3-H-5/5 Overview

Ceramic Resonator, 26MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-2

R-26.000000M-ZTA/MX-0.5-0.3-H-5/5 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAuris
package instructionROHS COMPLIANT, CERAMIC PACKAGE-2
Reach Compliance Codeunknown
Crystal/Resonator TypeCERAMIC RESONATOR
frequency stability0.3%
frequency tolerance5000 ppm
Manufacturer's serial numberZTA/MX
Installation featuresSURFACE MOUNT
Nominal operating frequency26 MHz
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
physical sizeL10.0XB5.0XH7.5 (mm)/L0.394XB0.197XH0.295 (inch)
surface mountYES

R-26.000000M-ZTA/MX-0.5-0.3-H-5/5 Preview

Resonator THT Ceramic, 2 Pin
ZTA/MG
Features:
- Low cost
- Consumer electronics
- Microprocessor systems
- Excellent for automotive applications
Specifications
ZTA/MT
ZTA/MX
ZTA
Type
Frequency range (MHz)
Frequency accuracy (25°C)
Temp. stability (-20°C - +80°C)
Aging (over 10 years)
Load capacitance (pF)
Resonant Impedance (Ù) max.
ZTA/MG
1.79 ~ 2.99
±0.5%
±0.3%
±0.3%
30
30
80
ZTA/MG
3.00 ~ 3.49
±0.5%
±0.3%
±0.3%
30
30
50
ZTA/MG
3.50 ~ 8.00
±0.5%
±0.3%
±0.3%
30
30
30
ZTA/MT
8.00 ~ 13.00
±0.5%
±0.3%
±0.3%
30
30
25
ZTA/MX
13.01 ~ 20.0
±0.5%
±0.3%
±0.3%
30
30
30
ZTA/MX
ZTA/MX
C1
C2
20.01 ~ 25.99 26.00 ~ 50.00
±0.5%
±0.5%
±0.3%
±0.3%
±0.3%
±0.3%
15
5
15
5
30
30

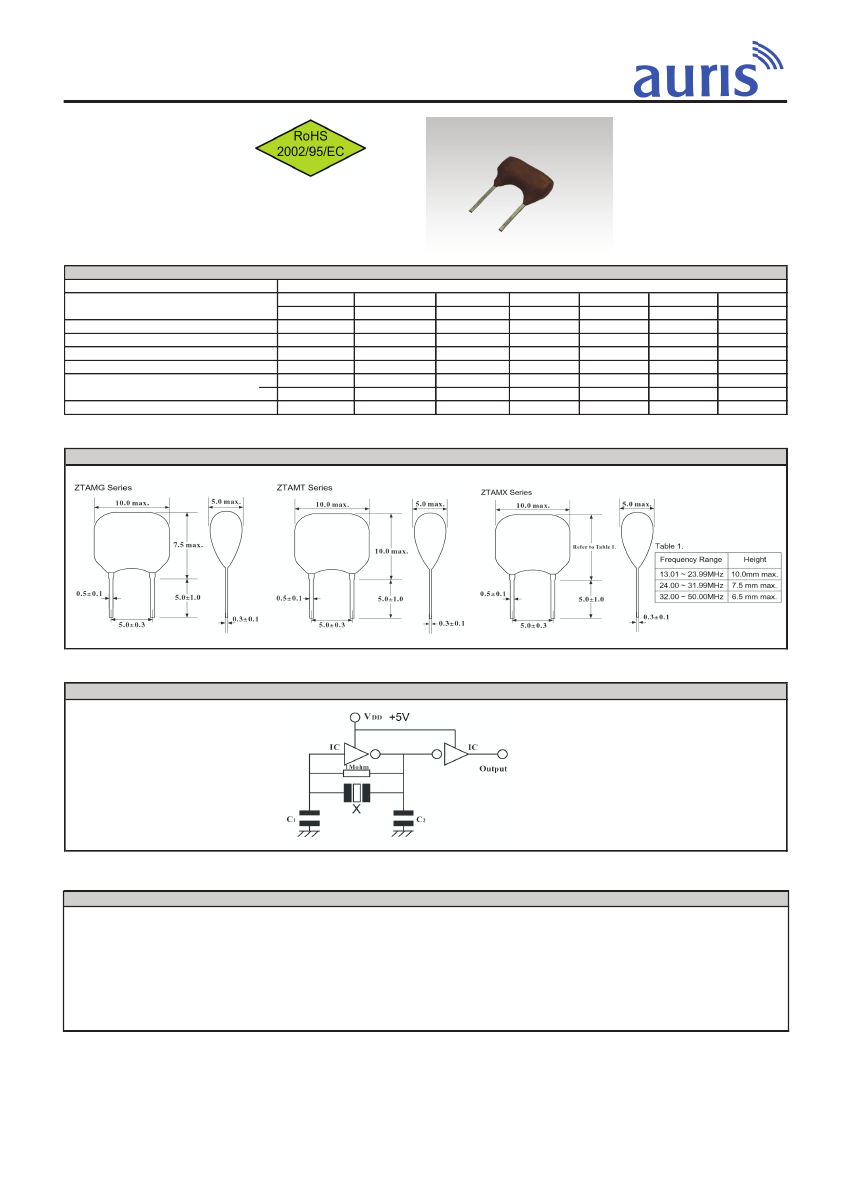

Drawing
Dimensions in mm
Test circuit
C1 C2 : as listed
IC:
1/6 74HCU04 x 2 (MG; MX))
1/6 4069UBP x 2 (MT)
X :
Ceramic Resonator
Order key
R
Part
- 20.000000M
Frequency
- ZTA/MX
Type/Package
- 0.5
Frequency
tolerance
- 0.3
Temperature
tolerance
±%
(Temp. range)
-H
Temperature
range
H=-20°C ~ +80°C
- 30/30
Load
capacitance
pF
C1/C2
R=Resonator
M=MHz
ZTA/MG
ZTA/MT
ZTA/MX
±%
(25°C)
auris-GmbH
office@auris-gmbh.de www.auris-gmbh.de
All specifications are subject to change without notice.
