TAK CHEONG
SEM ICONDUCTOR
500 mW DO-35 Hermetically
Sealed Glass Zener Voltage
Regulators
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
Lead Temperature (1/16” from case for 10 seconds)
T
A
= 25°C unless otherwise noted
Value
500
-65 to +200
+200
+230
Units
mW
°C
°C
°C
AXIAL LEAD
DO35
DEVICE MARKING DIAGRAM
L
xx
x
L
: Logo
Device Code : TCxxx
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 2.0 to 56 Volts
DO-35 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All external surfaces are corrosion resistant and leads are readily solderable
Cathode indicated by polarity band
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device Type
TC2V0
TC2V2
TC2V4
TC2V7
TC3V0
TC3V3
TC3V6
TC3V9
TC4V3
TC4V7
TC5V1
TC5V6
TC6V2
TC6V8
TC7V5
TC8V2
TC9V1
TC10V
TC11V
TC12V
TC13V
TC15V
V
Z
@ I
ZT
(Volts)
Nominal
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
110
120
120
100
100
100
80
80
60
60
20
20
20
25
30
30
30
35
40
I
R
@ V
R
(µA)
Max
120
120
120
100
50
20
10
5
5
5
5
5
5
2
0.5
0.5
0.5
0.2
0.2
0.2
0.2
0.2
V
R
(Volts)
0.5
0.7
1
1
1
1
1
1
1
1
1.5
2.5
3
3.5
4
5
6
7
8
9
10
11
March 2003 / B
Page 1
TC2V0 through TC56V Series
®
TAK CHEONG
SEM ICONDUCTOR
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
I
R
@ V
R
(µA)
Max
V
R
(Volts)
V
Z
@ I
ZT
(Volts)
Nominal
Electrical Characteristics
Device Type
TC16V
16
5
40
0.2
12
TC18V
18
5
45
0.2
13
TC20V
20
5
45
0.2
15
TC22V
22
5
30
0.2
17
TC24V
24
5
35
0.2
19
TC27V
27
5
45
0.2
21
TC30V
30
5
55
0.2
23
TC33V
33
5
65
0.2
25
TC36V
36
5
75
0.2
27
TC39V
39
5
85
0.2
30
TC43V
43
5
90
0.2
33
TC47V
47
5
90
0.2
36
TC51V
51
5
110
0.2
39
TC56V
56
5
110
0.2
43
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1. The type numbers listed have zener voltage as shown and have a standard tolerance on the nominal zener voltage of 5%.
2. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
3. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
Electrical Symbol Definition
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZK
Reverse Leakage Current @
V
R
Breakdown Voltage
Forward Current
Forward Voltage @
I
F
Typical Characteristics
I
(mA)
I
F
V
Z
V
R
(V)
I
R
I
ZT
V
F
(mV)
V
(nA)
(mA)
Ordering Information
Device
TCxxx
TCxxx.TB
TCxxx.TR
TCxxx
Package
Bulk
Tape and Ammo
Tape and Reel
Quantity
10,000
5,000
10,000
Others (…contact Tak Cheong sales representatives)

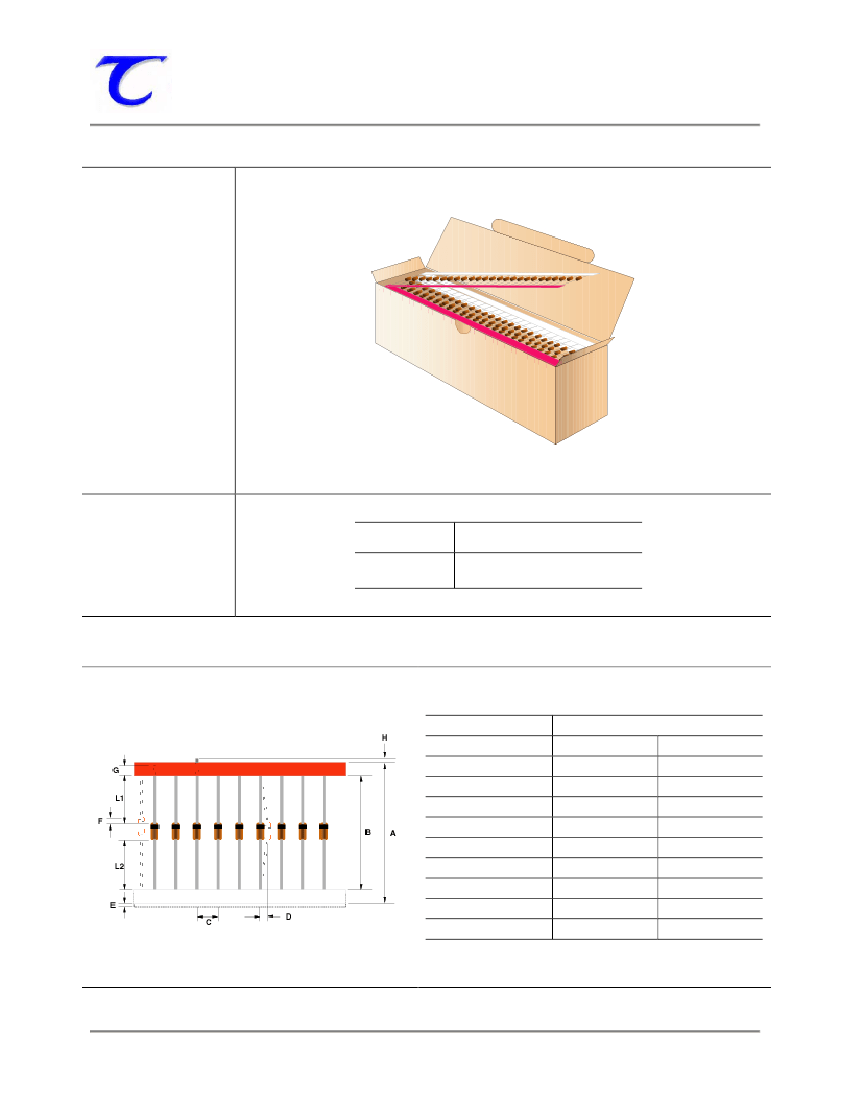

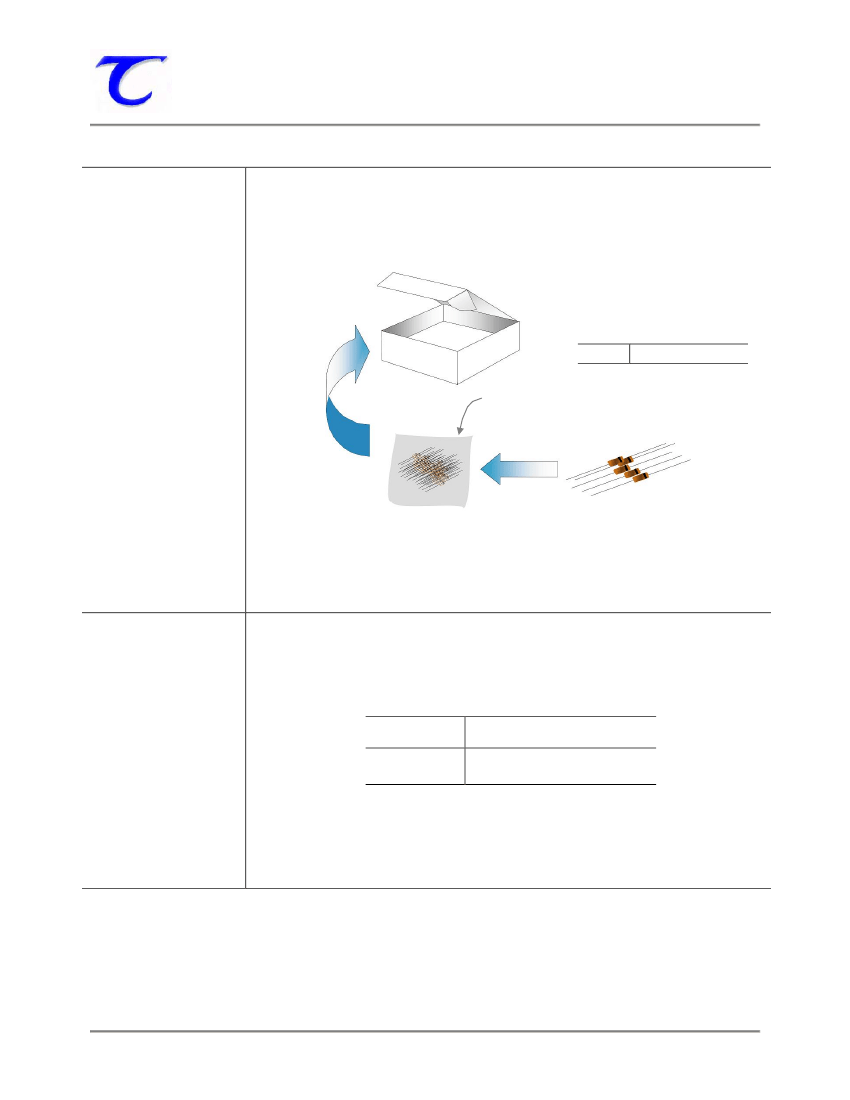

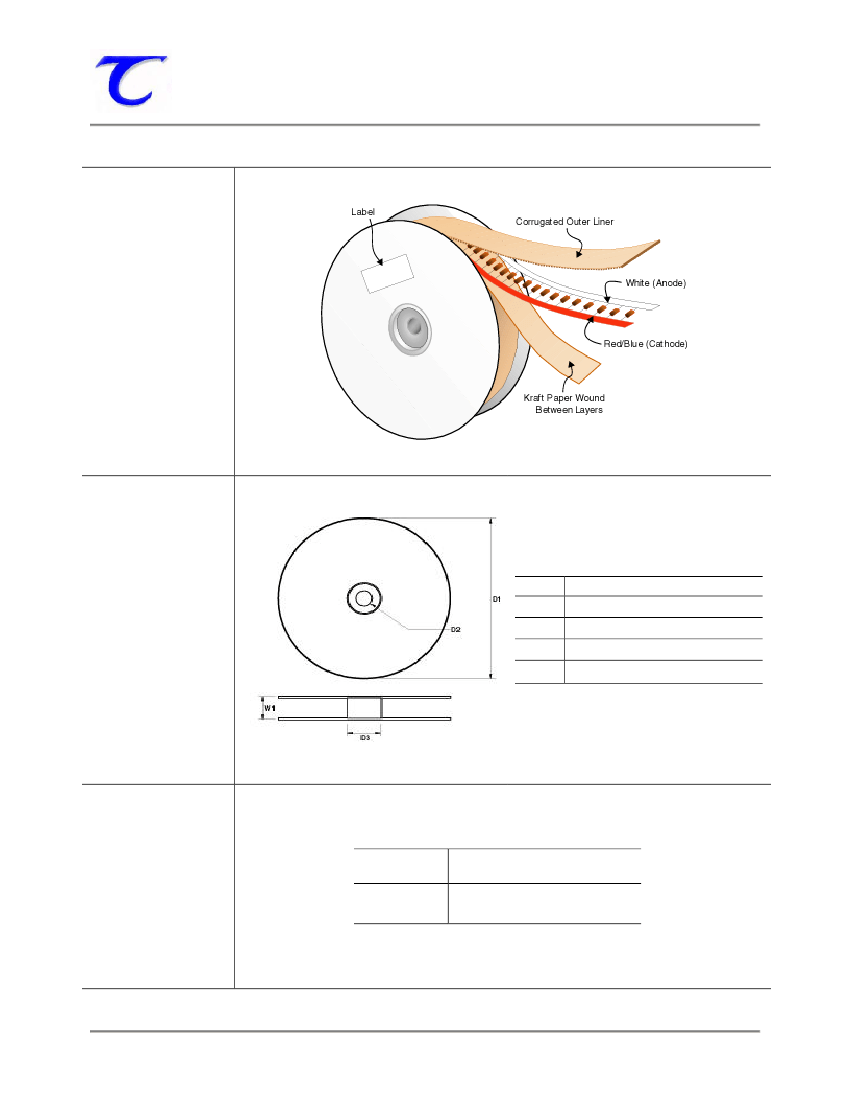

Axial-Lead Tape Packaging Standards
This axial-lead component’s packaging requirements use in automatic testing and assembly equipment. And this standard practices for
lead-tape packaging of axial-lead components meets the requirements of EIA Standard RS-296-D “Lead-taping of Components on Axial
Lead Configuration for Automatic Insertion”.
March 2003 / B
Page 2
