Radiation Tolerant
AAHH00
AAHH00
Radiation Tolerant Quad 2-Input NAND Gate
DESCRIPTION
The AAHH00 is part of ASIC Advantage’s family of
Radiation Tolerant products aimed at the military and
aerospace markets. The AAHH00 is a Radiation-
Tolerant Quad 2 input NAND gate. It utilizes Bi-
CMOS technology and is a replacement to the obsolete
part 5962R9563701VXC.
FEATURES
•
•
•
Tolerance to 200kRad(Si) Total Dose
Latch-Up Free Design
Input Compatible to LSTTL
VIL = 0.8V, VIH=VCC/2
Low Power ICs
Operating Temperature Range of -55°C to +125°C
Input Compatibility to CMOS
Ii<=5uA at VOL, VOH
SEP Effective LET no Upsets: >100MeV-cm
2
/mg
Immunity to SEU up to <5x10
-16
errors/Bit-Day
Available in Die or 14-pin Ceramic Dual-In-Line
FLATPACK package.
TRUTH TABLE
Inputs
An
L
L
H
H
PRELIMINARY DATA
Bn
L
H
L
H
Output
Yn
H
H
H
L
PIN CONFIGURATION:
14-pin CERAMIC DUAL–IN-LINE FLATPACK
A1
B1
Y1
A2
B2
Y2
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
•
•
•
•
•
•
VCC
B4
A4
Y4
B3
A3
Y3
FUNCTIONAL DIAGRAM
An
(1,4,9,12)
Yn
(3,6,8,11)
Bn
(2,5,10,13)
©
Copyright 2010 - ASIC Advantage, Inc. –
AADS00023 / R143
- Preliminary - rev.2 - May 2010
1/8
Radiation Tolerant
AAHH00
Absolute Maximum Ratings
Supply voltage: ……………………………. -0.5V to 7V
Input Voltage Range: …………………… -0.5V to VCC+0.5V
Dc Input Current: ………………………… ± 10mA
DC Drain Current: ………………………… ± 25mA
Storage Temperature Range: ………. -65°C to 150°C
Lead Temperature Range: …………… 265°C
Junction Temperature: ………………… 175°C
ESD Classification: ………………………. Class 1
Reliability Information
TBD
Operating Conditions:
Supply Voltage: …………………………… 4.5V to 5.5V
Input rise and Fall Times: …………… 100ns/Vmax
Input Low Voltage (VIL): ……………… 0.0 to 0.8V
Input High Voltage (VIH): ……………. VCC/2 to VCC
Operating Temperature Range: …… -55°C to +125°C
DC ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
CONDITION
VCC=5.5V
VIN=VCC or GND
VCC=4.5V, VIH =4.5V
VOUT=0.4V, VIL=0V
VCC=4.5V,VIH=4.5V,
VOUT=VCC-0.4V,
VIL=0V
VCC=4.5V, VIH=2.25V
IOL=50uA, VIL=0.8V
VCC=5.5V,VIH=2.75V
IOL=50uA,VIL=0.8V
VCC=4.5V,VIH=2.25V
IOH= -50uA,VIL=0.8V
VCC=5.5V,VIH=2.75V
IOH= -50uA,VIL=0.8V
VCC=5.5V,
VIN=VCC or GND
VCC=4.5V,VIH=2.25V
VIL=0.8V
GROUP
1
2, 3
1
2, 3
1
2, 3
1, 2, 3
1, 2, 3
1, 2, 3
1, 2, 3
1
2, 3
7, 8A, 8B
TEMPERATURE
25°C
-55°C, 125°C
25°C
-55°C, 125°C
25°C
-55°C, 125°C
25°C
-55°C, 125°C
25°C
-55°C, 125°C
25°C
-55°C, 125°C
25°C, -55°C,
125°C
VCC-0.1
VCC-0.1
± 0.5
± 5.0
4.8
4.0
-4.8
-4.0
0.1
0.1
LIMITS
MIN
MAX
10
200
UNIT
uA
uA
mA
mA
mA
mA
V
V
V
V
uA
uA
Quiescent Current
ICC
Output Current
(sink)
IOL
Output Current
(source)
IOH
Output Voltage Low
VOL
Output Voltage High
VOH
Input Leakage
Current
Noise Immunity
Functional Test
IIN
FN
©
Copyright 2010 - ASIC Advantage, Inc. –
AADS00023 / R143
- Preliminary - rev.2 - May 2010
2/8
Radiation Tolerant
AAHH00
AC ELECTRICAL PERFORMANCE CHARACTERISTICS
PARAMETER
SYMBOL
TPHL
TPLH
CONDITIONS
VCC=4.5V
VCC=4.5V
GROUP
9
10, 11
9
10, 11
TEMPERATURE
25°C
125°C, -55°C
25°C
125°C, -55°C
Input to YN
Input to YN
LIMITS
MIN
MAX
2
18
2
20
2
20
2
22
UNITS
ns
ns
ns
ns
Notes: RL=500ohms, CL=50pF, TR=TF=3ns
ELECTRICAL PERFORMANCE CHARACTERISTICS
PARAMETER
Capacitance Power
Dissipation
Input Capacitance
Output Transition Time
SYMBOL
CPD
CIN
TTHL
TTLH
CONDITIONS
VCC=5.0V, f=1Mhz
VCC=5.0V, f=1Mhz
VCC=4.5V
TEMPERATURE
25°C
125°C, -55°C
25°C
125°C
25°C
125°C
LIMITS
MIN
MAX
38
72
10
10
15
22
UNITS
pF
pF
pF
pF
ns
ns
DC POST RADIATION ELECTRICAL CHARACTERISTICS
PARAMETER
Quiescent Current
Output Current (sink)
Output Current
(source)
Output Voltage Low
Output Voltage High
Input Leakage Current
Noise Immunity
Functional Test
Input to Yn
SYMBOL
ICC
IOL
IOH
VOL
VOH
IIN
FN
TPHL
TPLH
CONDITION
VCC=5.5V,VIN=VCC or GND
VCC=4.5V, VIH =4.5V
VOUT=0.4V, VIL=0V
VCC=4.5V,VIH=4.5V,
VOUT=VCC-0.4V, VIL=0V
VCC=4.5V, VIH=2.25V
IOL=50uA, VIL=0.8V
VCC=4.5V,VIH=2.25V
IOH= -50uA,VIL=0.8V
VCC=5.5V,
VIN=VCC or GND
VCC=4.5V,VIH=2.25V
VIL=0.8V
VCC=4.5V
VCC=4.5V
TEMPERATURE
25°C
25°C
25°C
25°C
25°C
25°C
25°C
25°C
25°C
2
2
20
22
ns
ns
VCC-0.1
±5
4.0
-4.0
0.1
LIMITS
MIN
MAX
0.2
UNITS
mA
mA
mA
V
V
uA
Burn-in and Operating Life Test , Delta Parameters (+25°C)
PARAMETER
ICC
IOL/IOH
©
Copyright 2010 - ASIC Advantage, Inc. –
GROUP
5
5
DELTA LIMIT
3uA
-15% of 0 Hour
AADS00023 / R143
- Preliminary - rev.2 - May 2010
3/8
Radiation Tolerant
AAHH00

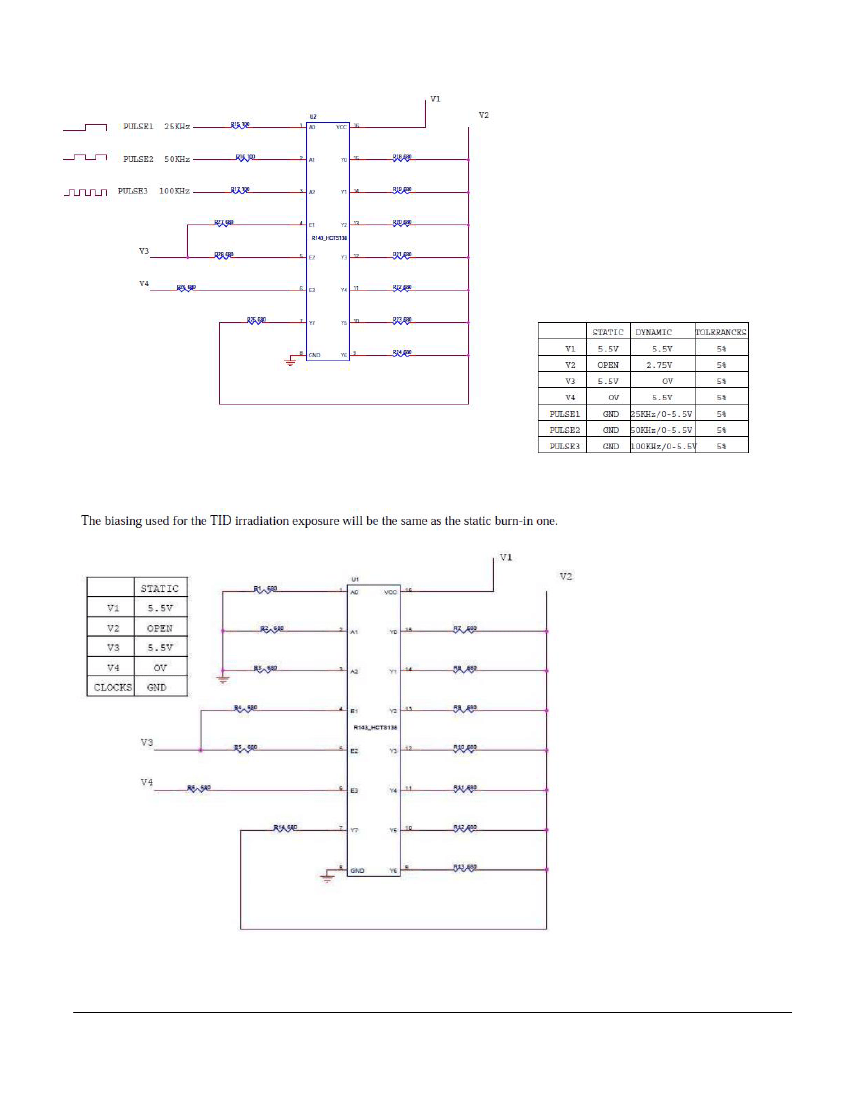

Dynamic Burn-In Schematic
Total Ionization Dose Schematic
©
Copyright 2010 - ASIC Advantage, Inc. –
AADS00023 / R143
- Preliminary - rev.2 - May 2010
4/8
Radiation Tolerant
AAHH00

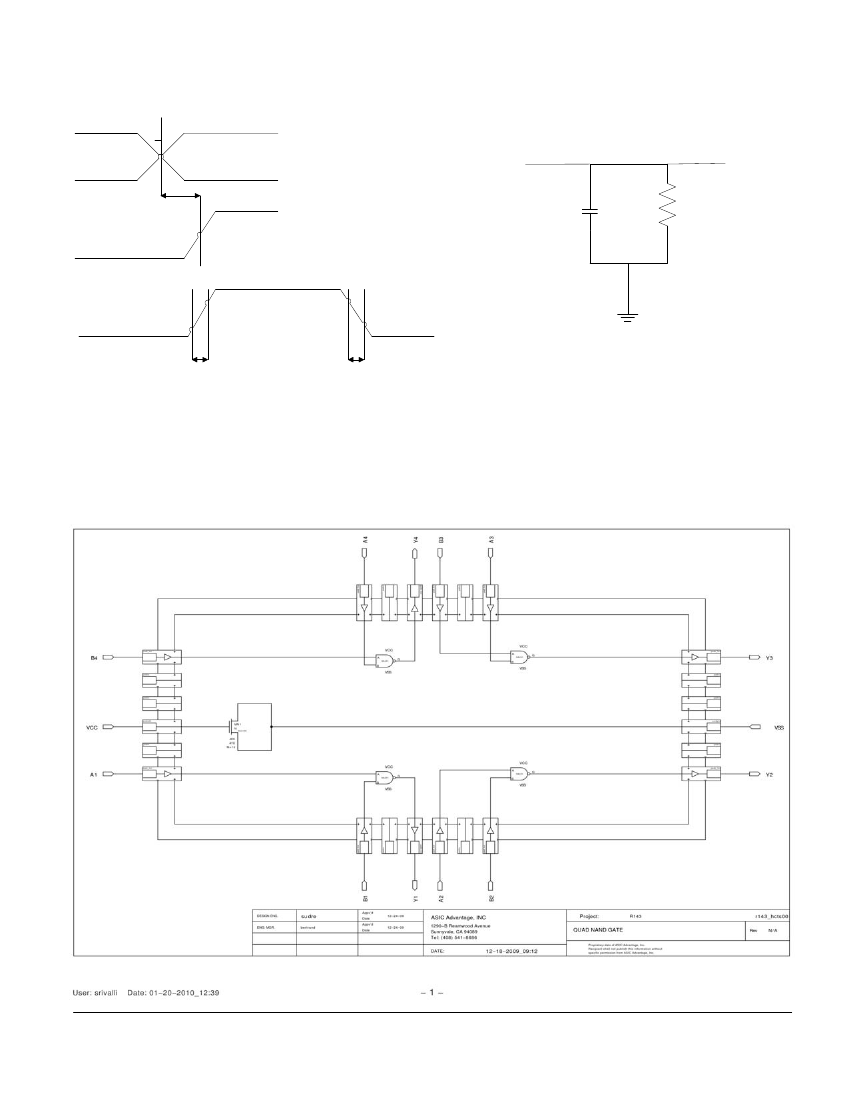

Timing Diagram
VS
DUT
Test Point
Prop time
VS
50pF
500 ohm
80%
20%
80%
20%
TTLH
TTHL
Note:
1. Rise/Fall time is 80% to 20%
2. The propagation time is measured at VS=1.3V
Schematic
©
Copyright 2010 - ASIC Advantage, Inc. –
AADS00023 / R143
- Preliminary - rev.2 - May 2010
5/8
