ATT-563F-45-SC0-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-563F-45-SC0-07

ATT-563F-45-SC0-07: DescriptionFixed Attenuator, 0MHz Min, 2000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-563F-45-SC0-07 Overview

Fixed Attenuator, 0MHz Min, 2000MHz Max

ATT-563F-45-SC0-07 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SC-F, I/P POWER-MAX(PEAK)=5000W
Nominal attenuation	45 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

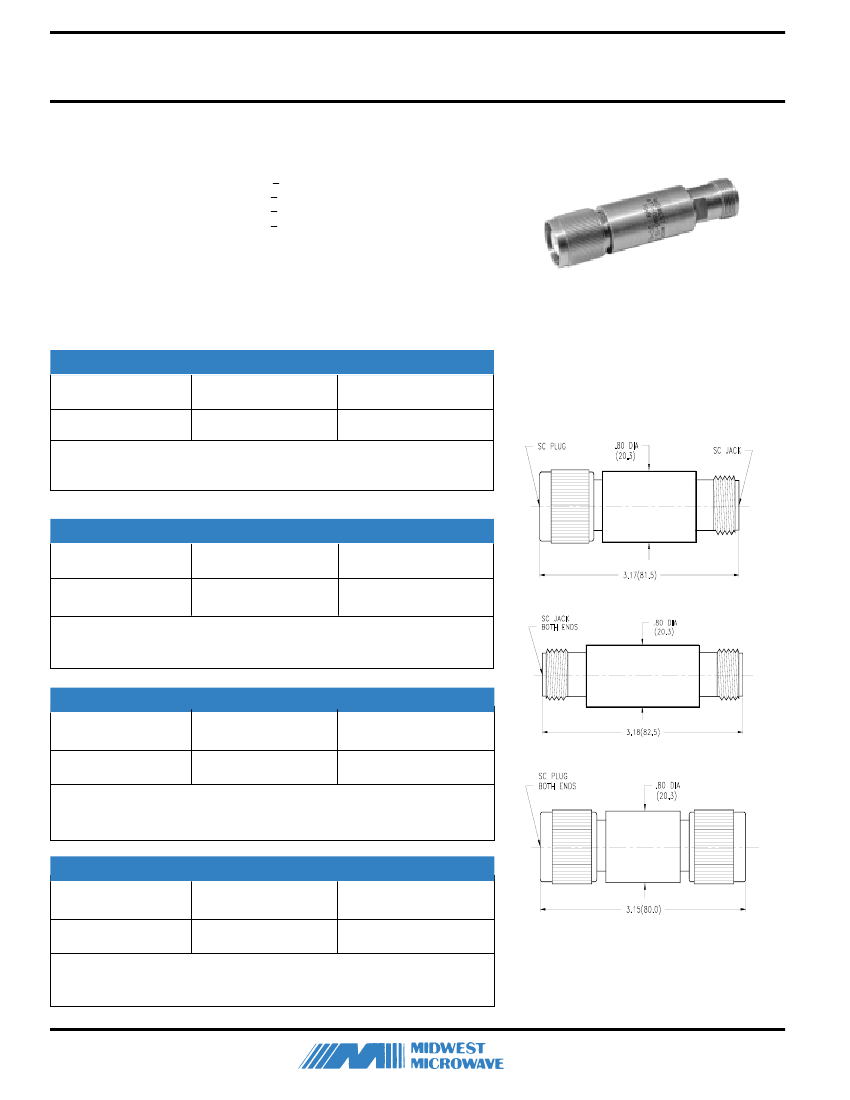

Attenuators

DC - 11GHz Performance

Frequency:

DC - 11.0 GHz and DC - 2.0 units available

Attenuation Values:

1 - 60 dB in 1 dB increments

Attenuation Accuracy:

1 - 6 dB + 0. 3 dB

7 - 20 dB

21 - 40 dB

41 - 60 dB

+ 0. 5 dB

+ 0.75 dB

+ 1.0 dB

SC Type

Impedance:

50 Ohms

VSWR:

1.25 max

Power:

2Watts average @ 25 C derated linearly to 0.5 Watts @ 125 C

Peak

Operating Temperature Range:

Finish:

Stainless Steel

DC - 11.0 GHz

Male / Female

ATT-0560-XX-SCO-02

10 Watts average @ 40C derated linearly to 0.5 watts @ 125 C

Power:

0.2 Kilowatts

-54C to +125C

560 Series

Female / Female

ATT-560F-XX-SCO-02

Model Number

Male / Male

ATT-560M-XX-SCO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 2.0 GHz

Male/Female

ATT-0561-SCO-02

561Series

Female/Female

ATT-561F-XX-SCO-02

Model Number

Male/Male

ATT-561M-XX-SCO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 11.0 GHz

Male/Female

562 Series

Female/Female

Model Number

Male/Male

ATT-562M-XX-SCO-07

ATT-0562-XX-SCO-07 ATT-562F-XX-SCO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts

DC - 2.0 GHz

Male/Female

ATT-0563-XX-SCO-07

563 Series

Female/Female

ATT-563F-XX-SCO-07

Model Number

Male/Male

ATT-563M-XX-SCO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts - 5 Kilowatts Peak
