30, 60, & 90
o
per GHz Phase Shift
DC - 18 GHz Frequency Range
Low Insertion Loss
50 Watts average power
Rugged Construction
Line Stretcher Type

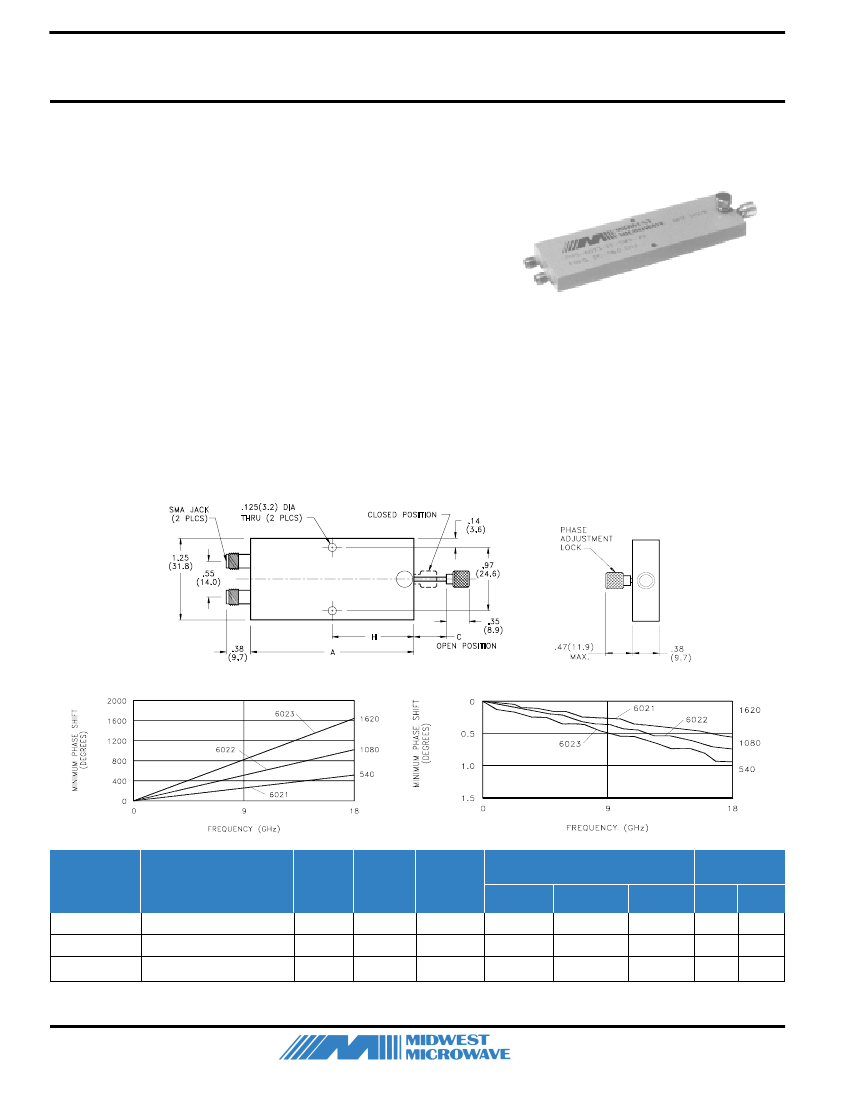

This series of broad band Line Stretcher type Phase Shifters were
designed to provide phase slope adjustment in a fixed system of
microwave components. They utilize precision internal airline design
techniques in small, lightweight, ruggedly constructed units that
consistently perform phase slope adjustment functions through the
use of a smooth, continuous, trombone type mechanism that allows
precise field adjustment and firm locking arrangement.
SPECIFICATIONS
Frequency Range:
DC - 18.0 GHz
Impedance:
50 Ohms
VSWR:
see chart
Insertion Loss:
see chart
Power:
50 Watts average, 1kW Peak
Operating Temperature:
-55
o
C - +125
o
C
Connectors:
Passivated Stainless Steel SMA Female*
Typical Performance
Frequency
(GHz)
DC - 18.0
DC - 18.0
DC - 18.0
Model Number
PHS-6021-FF-SMA-79
PHS-6022-FF-SMA-79
PHS-6023-FF-SMA-79
Phase
Shift
(deg/GHz)
VSWR
1.3,dc-10 GHz
1.5, 10-18 GHz
1.4, dc-10 GHz
1.6, 10-18 GHz
1.5, dc-10 GHz
1.7, 10-18
GHz
Insertion
Loss
0.3 + .025 f
0.3 + .035 f
0.3 + .045 f
Dimensions - in (mm)
A
2.50 (63.5)
3.50 (88.9)
4.50 (114.3)
C
0.50 (12.7)
1.00 (25.4)
1.50 (38.1)
H
1.25 (31.8)
1.75 (44.5)
2.25 (57.2)
Weight
oz
2.5
3.5
4.5
gm
71.4
100.0
128.6
30
60
90
Note: SMA male , TNC, or Type N output connectors, either male or female, are also available by substituting TNC or NNN for SMA in the Model Number.
If an interface gender change is desired, substitute MM or MF for FF in the Model Number. Please note that the housing thickness will increase
accordingly when larger connectors are selected.
