DCM2322T50T3160T60

Description
Power Supply Module,
CategoryPower/power management    The power supply circuit
File Size3MB，31 Pages
ManufacturerVICOR
Websitehttp://www.vicorpower.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DCM2322T50T3160T60 Online Shopping

Suppliers Part Number Price MOQ In stock
DCM2322T50T3160T60 - - View Buy Now

DCM2322T50T3160T60 Overview

Power Supply Module,

DCM2322T50T3160T60 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVICOR
package instructionPACKAGE-9
Reach Compliance Codecompliant

DCM2322T50T3160T60 Preview

DCM
™
DC-DC Converter
DCM2322x50T3160y6z
S
®
C
US
C
NRTL
US
Isolated, Regulated DC Converter
Features & Benefits
•
Isolated, regulated DC-DC converter
•
Up to 60 W, 2.20 A continuous
•
90.0% peak efficiency
•
266 W/in
3
Power density
•
Wide input range 9 – 50 Vdc
•
Safety Extra Low Voltage (SELV) 28.0 V Nominal Output
•
3000 Vdc isolation
•
ZVS high frequency switching
•
Dual modes of operation:
Product Ratings
V
IN
= 9 V to 50 V
V
OUT
= 28.0 V
(16.8 V to 30.8 V Trim)
P
OUT
= 60 W
I
OUT
= 2.20 A
Product Description
The DCM2322 is a lower power, isolated and regulated DC-DC
converter that operates from an unregulated, wide-range input
to generate an isolated 28.0 Vdc output. With its high-frequency
zero-voltage switching (ZVS) topology, the DCM2322 converter
consistently delivers high efficiency across the input line range.
Modular DCM converters and downstream DC-DC products
support efficient power distribution, providing superior power
system performance and connectivity from a variety of
unregulated power sources to the point-of-load.
Leveraging the thermal and density benefits of Vicor’s ChiP
packaging technology, the DCM2322 offers flexible thermal
management options with very low top and bottom side
thermal impedances. Thermally adept ChiP based power
components enable customers to quickly and predictably
achieve cost effective power system solutions.
n
Enables low-profile, high-density filtering
n
Array mode
– Up to 8 units – 480 W
– No power derating needed
– Sharing strategy permits dissimilar line voltages
across an array
n
Enhanced V
OUT
regulation mode
– Standalone: 60 W
•
Fully operational current limit
•
OV, OC, UV, short circuit and thermal protection
•
2322 through-hole ChiP™ package
n
0.978” x 0.898” x 0.284”
(24.84 mm x 22.8 mm x 7.21 mm)
Typical Applications
•
•
•
•
Rail Transportation
Defense / Aerospace
Industrial
Process Control
Part Ordering Information
Product
Function
DCM
23
Package
Size
22
Package
Type
x
Max
Input
Voltage
50
Range
Ratio
T
Max
Output
Voltage
31
Max
Output
Power
60
Temperature
Grade
y
Option
6z
60 = Array and
Enhanced V
OUT
Regultion
Modes / Analog Control
Interface Version
DCM =
DC-DC
Converter
mm
T=
Through hole
ChiPs
Internal Reference
T = -40°C to 125°C
M = -55°C to 125°C
DCM™ DC-DC Converter
Page 1 of 31
Rev 1.2
01/2020
DCM2322x50T3160y6z

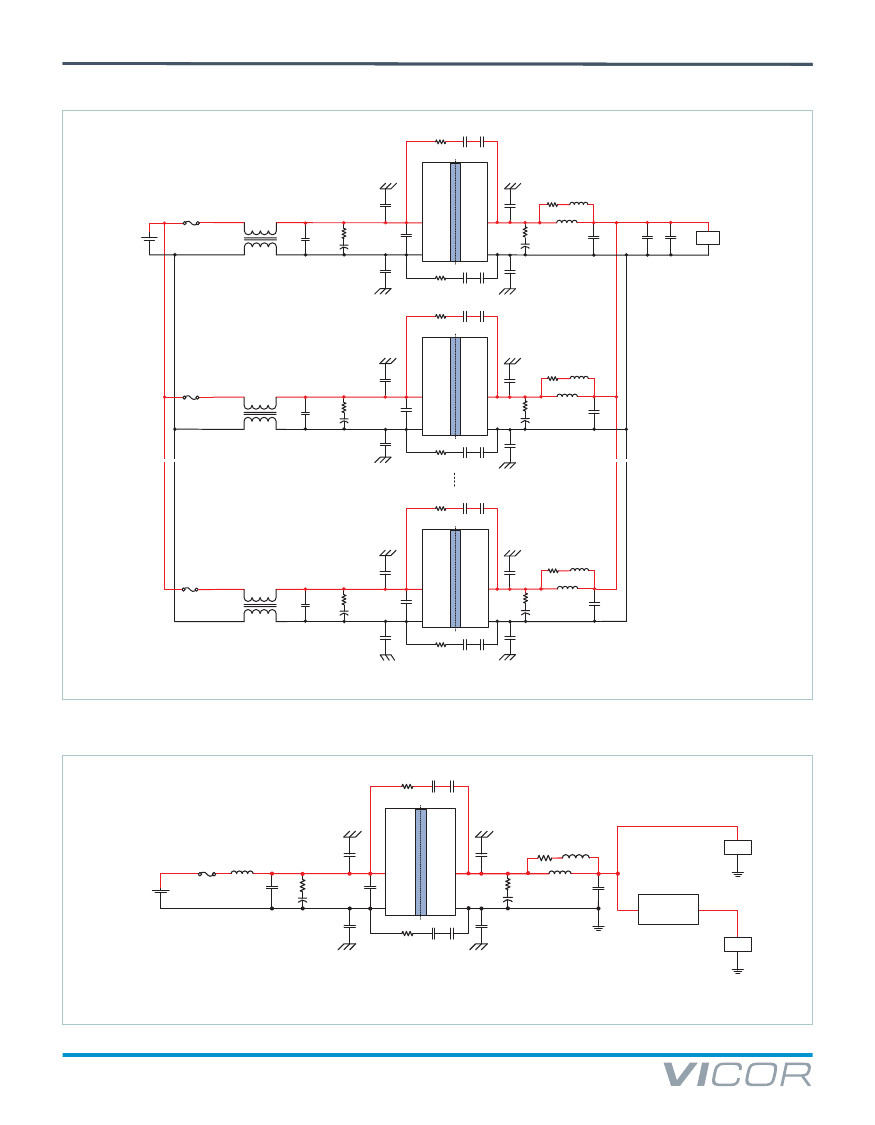

Typical Applications
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
EN
FT
R
dm_1
C
Y
L
2_1
R
COUT-EXT_1
L
b_1
F
1_1
V
IN
L
1_1
C
1_1
R
d_1
C
d_1
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
C
Y
R
b
R
b
C
b1
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
R
dm_2
C
Y
L
2_2
R
COUT-EXT_2
L
b_2
F
1_2
L
1_2
C
1_2
R
d_2
C
d_2
C
Y
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_2
C
Y
C
2_2
≈≈
C
Y
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM4
TR
EN
FT
R
dm_4
C
Y
L
b_4
L
2_4
F
1_4
L
1_4
C
1_4
R
d_4
C
d_4
C
Y
+IN
+OUT
C
IN
–IN
–OUT
R
COUT-EXT_4
C
OUT-EXT_4
C
Y
R
b
C
b1
C
b2
C
2_4
C
Y
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table below.
DCM2322x50T3160y6z in an array of four units; applicable when DCM is operating in Array Mode
Required Components
C
IN
R
b
C
b1
, C
b2
TDK
C5750X7T2E225M250KA, 2.2 µF, 250 V
Generic
1
Ω,
1/4 W
KEMET
C1812C103KGRACTU, 10,000 pF, 2000 V
DCM™ DC-DC Converter
Page 2 of 31
Rev 1.2
01/2020
DCM2322x50T3160y6z
Typical Applications (Cont.)
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
T
1_1
C
1_1
R
d_1
C
d_1
C
Y
C
IN
EN
FT
C
Y
+IN
+OUT
R
dm_1
L
b_1
L
2_1
F
1_1
V
IN
R
COUT-EXT_1
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
–IN
–OUT
R
b
R
b
C
b2
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
F
1_2
C
Y
T
1_2
C
1_2
R
d_2
C
d_2
C
Y
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_2
L
b_2
L
2_2
R
COUT-EXT_2
C
OUT-EXT_2
C
Y
C
2_2
≈≈
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM8
TR
EN
FT
F
1_8
C
Y
T
1_8
C
1_8
R
d_8
C
d_8
C
Y
R
b
C
b1
C
b2
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_8
L
b_8
L
2_8
R
COUT-EXT_8
C
OUT-EXT_8
C
Y
C
2_8
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Parallel operation of DCMs with common mode chokes installed on the input side to suppress common mode noise; applicable when DCM
is operating in Array Mode
R
b
C
b1
C
b2
DCM
TR
EMI_GND
C
Y
EN
FT
F
1
V
IN
L
1
C
1
R
d
C
d
C
Y
+IN
+OUT
R
dm
L
2
R
COUT-EXT
L
b
Load 1
C
IN
–IN
–OUT
C
2
C
OUT-EXT
C
Y
C
Y
R
b
C
b1
C
b2
Non-isolated
Point-of-Load
Regulator
Load 2
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Single DCM2322x50T3160y6z, to a non-isolated regulator, and direct to load
DCM™ DC-DC Converter
Page 3 of 31
Rev 1.2
01/2020
DCM2322x50T3160y6z
Pin Configuration
1
+IN
A
TOP VIEW
2
A’
+OUT
B’
–OUT
C’
+OUT
D’
–OUT
TR
B
EN
C
FT
D
–IN
E
DCM ChiP™
Pin Descriptions
Pin
Number
A1
B1
C1
D1
E1
A’2, C’2
B’2, D’2
Signal Name
+IN
TR
EN
FT
-IN
+OUT
-OUT
Type
INPUT POWER
INPUT
INPUT
OUTPUT
INPUT POWER
RETURN
OUTPUT POWER
OUTPUT POWER
RETURN
Positive input power terminal
Function
Enables and disables trim functionality. Adjusts output voltage when trim active.
Dual function:
1. Enables either Array or Enhanced V
OUT
Regulation mode
2. Enables and disables power supply
Fault monitoring
Negative input power terminal
Positive output power terminal
Negative output power terminal
DCM™ DC-DC Converter
Page 4 of 31
Rev 1.2
01/2020
DCM2322x50T3160y6z
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Electrical specifications do not apply when operating beyond rated operating conditions.
Parameter
Input Voltage (+IN to –IN)
Input Voltage Slew Rate
TR to –IN
EN to –IN
FT to –IN
5
Output Voltage (+OUT to –OUT)
Dielectric withstand (input to output)
Internal Operating Temperature
M-Grade
T-Grade
Storage Temperature
M-Grade
Average Output Current
-65
125
4.0
°C
A
-55
-40
125
125
°C
°C
Basic insulation
T-Grade
-0.5
3000
-40
125
37.0
mA
V
Vdc
°C
Comments
Min
-0.5
-1
-0.3
-0.3
-0.3
Max
65.0
1
3.5
3.5
3.5
Unit
V
V/µs
V
V
V

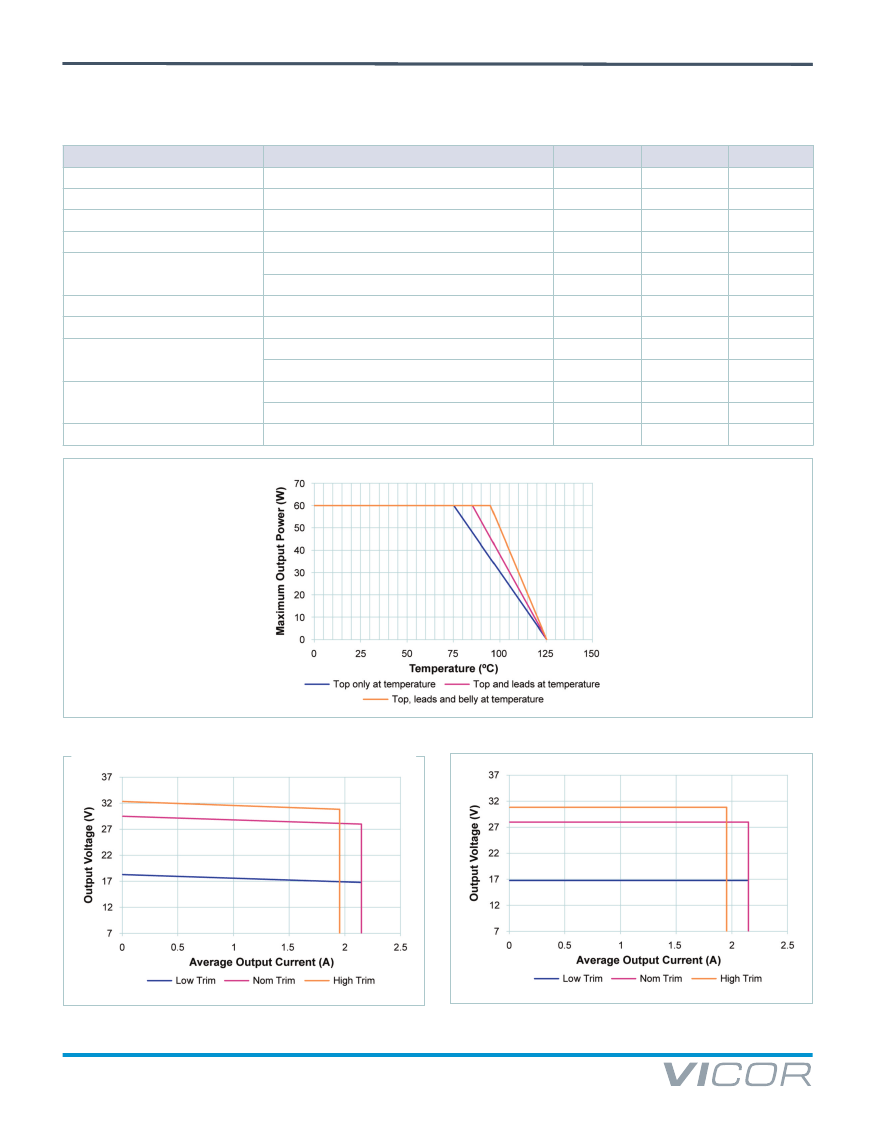

Figure 1
—
Thermal Specified Operating Area: Max Output Power vs. Case Temp, Single unit at minimum full load efficiency
Figure 2
—
Electrical Specified Operating Area: Array Mode
Figure 3
—
Electrical Specified Operating Area: Enhanced V
OUT
Regulation Mode
DCM™ DC-DC Converter
Page 5 of 31
Rev 1.2
01/2020
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DCM2322T50T3160T60 Related Products

DCM2322T50T3160T60 DCM2322T50T3160M60
Description Power Supply Module, Power Supply Module,
Is it Rohs certified? conform to conform to
Maker VICOR VICOR
package instruction PACKAGE-9 PACKAGE-9
Reach Compliance Code compliant compliant

Recommended Resources

Surround sound AD converter circuit a

Five-function refrigerator protector

Automatic Shutoff Battery Charger Circuit

555 simple remote control circuit for changing TV channels

Angel water dispenser circuit, Samsung 57C2304, with LCD display

555 power regulator circuit for heating control

About reissuing the certificate
[i=s]This post was last edited by paulhyde on 2014-9-15 09:42[/i] I lost the certificate I won in the 2005 competition. Can I get a replacement?...
hamiltoncai Electronics Design Contest
Part 2: BLDC Hardware Debugging
[font=宋体] [size=4]It has been almost 20 days since the last post. In fact, I really don’t have time to turn on the computer intermittently, and there are only one or two days on weekends. [/size][/fon...
RCSN Microcontroller MCU
I feel insulted, and I feel a little sad.
My boss dislikes me because I am a woman and I don’t have a graduate degree. Some of his words are particularly harsh, but I have to smile gently so as not to affect my image. Sometimes I regret choos...
wanghlady Talking
Software design is the key to the design of automotive radio application system
The modern automobile is a wonder of electronics. In fact, the development cycle from design to street level can take years, compared to the mere months of consumer electronics development cycles. Suc...
canglanghuang Automotive Electronics
Cheap LCD screen 240*128/192*64/128*64, TQ2440 has been released
[i=s]This post was last edited by lgwauthor on 2015-7-2 20:31[/i] 1. Idle TQ2440 development board - 2440 learning board - with 3.5 LCD display 1pcs [out of stock] 99 yuan [url=http://item.taobao.com/...
lgwauthor Buy&Sell
.NET resource problem, please help me
A software developed on pocket pc, the general structure is pocket pc, WEB server, database three-layer relationship. The pocket pc main form displays the Details form. The following is the loading of...
shen2089 Embedded System
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. MWDM2L-GS-8J
  2. M85049-115S21KN08-6D
  3. 4608H-701-473/472L
  4. SMBJ5368BP
  5. GMC21CG560K100NTM
  6. MC0402P-245-JT401
  7. RKL5BLTPA561J
  8. TD05H2743AT
  9. BZM5256B
  10. D2541L-32P
  11. 0603WAF7871T5E
  12. 0603WAF3404T5E

Popular Articles

  1. Luxexcel and Optiswiss collaborate to produce high-quality 3D printed smart glasses
  2. AMS OSRAM's first show in China: how to achieve the second century of acceleration
  3. Power Upgrade: Next Generation ANCA EDG Sets New Benchmark in PCD Manufacturing
  4. Design of intelligent wiper based on 51 single chip microcomputer
  5. When supply and demand are out of balance, how can local IC substrate manufacturers seize the opportunity to win?
  6. Microsoft Surface Phone tri-fold folding screen patent revealed
  7. Application of Puyuan Oscilloscope in Communication Principle Experiment
  8. Meizu PANDAER tide electric series new products officially announced, will be released on January 12
  9. Electromagnetic flowmeter self-diagnosis information and troubleshooting
  10. Holding the banner of customer experience high in the digital age

Technical ResourceMore

  1. ZTE Circuit Basic Training
  2. Japanese Industrial Standards--General Rules for Printed Circuit Boards
  3. Guangdong Tower 5G Network Construction Experience Sharing
  4. Embedded VxWorks system development and application
  5. Sine wave power signal source with phase shift and frequency conversion function
  6. 3D-LAYOUT video
  7. Detailed explanation of automotive electronic control systems
  8. Selection of coordinate transformation coefficients and their impact on motor control algorithms
  9. Mobile phone sound cavity design
  10. USB CDC Class Introductory Training

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2899  417  2084  2800  1750  59  9  42  57  36
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
