V300A48C500AS2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> V300A48C500AS2

V300A48C500AS2: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid; CategoryPower/power management The power supply circuit; File Size203KB，8 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric Compare View All

V300A48C500AS2 Overview

DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid

V300A48C500AS2 Parametric

Parameter Name	Attribute value
Maker	VICOR
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	375 V
Minimum input voltage	180 V
Nominal input voltage	300 V
JESD-30 code	R-XDMA-P9
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Maximum output voltage	52.8 V
Minimum output voltage	4.8 V
Nominal output voltage	48 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	500 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

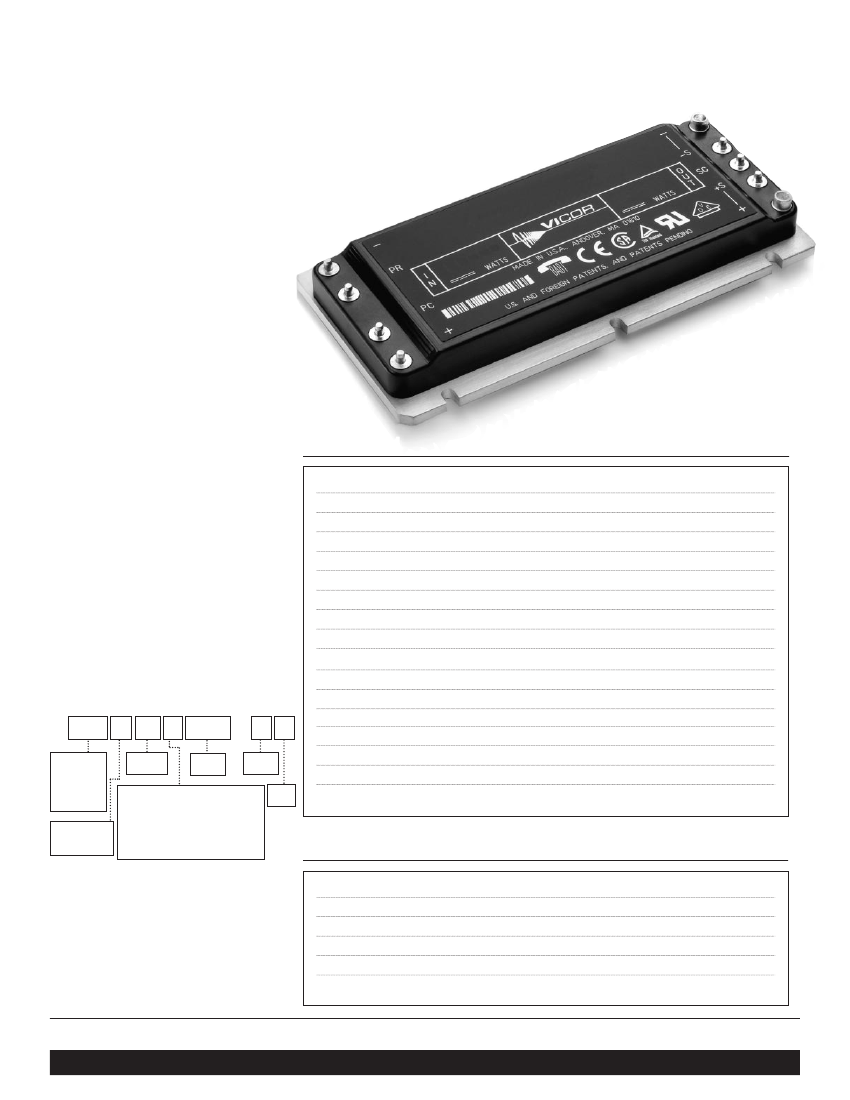

Features

•

300Vin / 48Vout / 500Watts

DC-DC Converter Module

Model Number V300A48C500A*

DC input range: 180 - 375V

Input surge withstand: 400V for 100ms

DC output: 48V

Programmable output: 10 to 110%

Regulation: ±0.2% no load to full load

Efficiency: 90%

Maximum operating temperature:

100°C at full load

Power density: 99W/cubic inch

Height above board: 0.43 in. (10,9 mm)

Parallelable, with N+M fault tolerance

Low noise ZCS/ZVS architecture

Typical Applications:

off-line systems,

distributed power and electric vehicles

Shown actual size:

4.6 x 2.2 x 0.5 in

117 x 56 x 12,7 mm

Product Overview

This DC-DC converter module uses

Absolute Maximum Ratings

2nd Generation power processing, control

and packaging technologies to provide the

performance, flexibility and cost effectiveness

Parameter

Rating

expected of a mature power component.

+In to –In voltage

-0.5 to +375.0

For example, a plated-cavity core transformer

+In to –In voltage

400

couples widely separated primary and

PC to –In voltage

-0.5 to +7.0

secondary windings, resulting in low in-to-

out parasitic capacitance and noise.

PR to –In voltage

-0.5 to +7.0

High frequency ZCS/ZVS switching,

+Out to –Out voltage

-0.5 to +62.9

advanced power semiconductor packaging

+Sense to –Out voltage

-0.5 to +62.9

and thermal management provide high

–Sense to –Out voltage

1.0

power density with low temperature

gradients. Extensive use of silicon

SC to –Out voltage

-0.5 to +1.5

integration results in 1/3 the part count

Isolation voltage (in to out)

3000

of a 1st Generation converter.

Isolation voltage (in to base)

1550

500

-40 to +125

-20 to +100

500 (260)

750 (390)

5 (0.57)

Unit

Vdc

Vrms

°C

°F (°C)

in-lbs (N-m)

Notes

<100ms

* Part Numbering

Isolation voltage (out to base)

Storage temperature (C–Grade)

Operating temperature (C–Grade)

Style

Base-

plate

V 300 A 12 C 500 A

Input Voltage

24 = 24Vin

48 = 48Vin

300 = 300Vin

375 = 375Vin

A = Maxi

B = Mini

C = Micro

Output

Voltage

Output

Power

See part numbering chart on this

page for other product grades.

Baseplate

<5 sec; wave solder

<7 sec; hand solder

6 each, # 4-40 or M3

Pin soldering temperature

Mounting torque

Product Grade Temperatures (°C)

Grade

Storage

Operating

C = - 40 to +125 - 20 to +100

T = - 40 to +125 - 40 to +100

H = - 55 to +125 - 40 to +100

M = - 65 to +125 - 55 to +100

Thermal Resistance and Capacity

Parameter

Baseplate to sink; flat, greased surface

Baseplate to sink; thermal pad (P/N 20263)

Baseplate to ambient

Baseplate to ambient; 1000 LFM

Thermal capacity

Min

Typ

0.08

0.07

4.9

1.1

165

Max

Unit

°C/Watt

Watt-sec/°C

For pin styles see page 6. Slotted baseplate

(style 1) requires no designator. For

threaded baseplate add a “2” to the end of

the part number. For thru-hole, add a “3”.

See page 7 for dimensions.

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

V300A48C500A DC-DC Converter

Rev. 5.2

Page 1 of 8

Set your site on VICOR at www.vicorpower.com

V300A48C500AS2 Related Products

	V300A48C500AS2	V300A48C500AN2	V300A48C500AN3	V300A48C500A2	V300A48C500AL
Description	DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 500W, Hybrid
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	375 V	375 V	375 V	375 V	375 V
Minimum input voltage	180 V	180 V	180 V	180 V	180 V
Nominal input voltage	300 V	300 V	300 V	300 V	300 V
JESD-30 code	R-XDMA-P9	R-XDMA-P9	R-XDMA-P9	R-XDMA-P9	R-XDMA-P9
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	9	9	9	9	9
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output voltage	52.8 V	52.8 V	52.8 V	52.8 V	52.8 V
Minimum output voltage	4.8 V	4.8 V	4.8 V	4.8 V	4.8 V
Nominal output voltage	48 V	48 V	48 V	48 V	48 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	500 W	500 W	500 W	500 W	500 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES
Maker	VICOR	-	-	VICOR	VICOR
