Vishay BCcomponents
30 to 60 V PTC Thermistors For
Overload Protection
FEATURES
•
Wide range of trip and non-trip currents: from 94 mA up to
2 A for the trip current
•
Wide range of resistance: from 0.3
Ω
up to 50
Ω
•
Small ratio between trip and non-trip currents
(I
t
/I
nt
= 1.5 at 25 °C)
•
High maximum inrush current
•
Excellent long term behaviour, also in humidity
•
Leaded parts withstand mechanical stresses and vibration
•
UL file E148885 according to XGPU standard UL1434
•
UL approved PTCs are guaranteed to withstande severe
test programmes
• Long-life cycle tests (over 5000 trip cycles)
• Long-life storage tests (3000 hours at 250°C)
• Electrical cycle tests at low ambient temperatures
(- 40°C or 0°C)
• Damp-heat and water immersion tests
• Overvoltage tests at up to 200% of rated voltage
APPLICATIONS
•
Telecommunications
•
Automotive systems
•
Industrial electronics
•
Consumer electronics
•
Electronic data processing.
DESCRIPTION

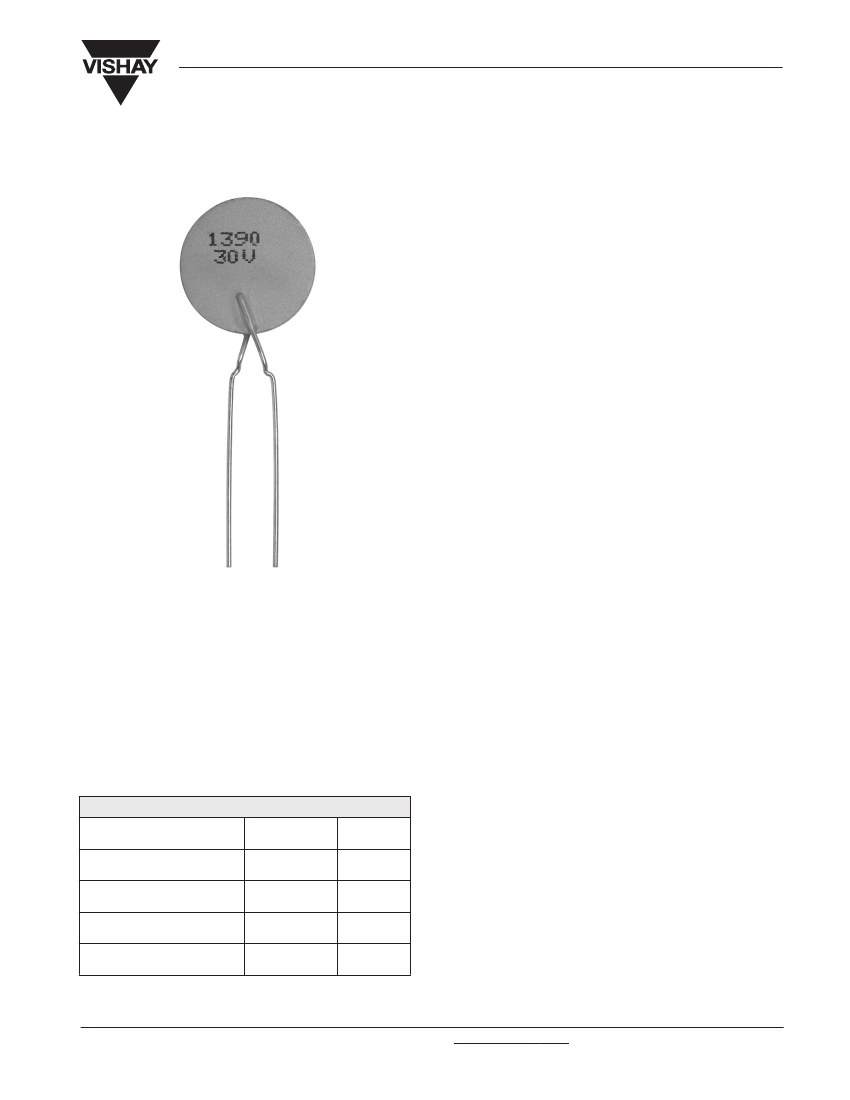

These directly heated thermistors have a positive
temperature coefficient and are primarily intended for
overload protection. They consist of a naked disc with two
tinned brass or copper clad steel leads and coated. Leadless
disks and leaded disks without coating are available on
request.
MOUNTING
QUICK REFERENCE DATA
PARAMETER
Switch temperature
Maximum voltage (DC)
Temperature range
Climatic category
VALUE
140
30 to 60
- 40 to + 85
40/125/56
UNIT
°C
V
°C
The PTC Thermistors are suitable for processing on
automatic insertion equipment.
Soldering
< 240 °C; duration < 5 s.
Resistamnce to heat
< 260 °C; duration < 5 s.
MARKING
Only the grey lacquered thermistors with a diameter of 8.5 to
20.5 mm are marked with BC, R25 value (example 1R9) on
one side and Int, V
max
on the other side.
Document Number: 29085
Revision: 03-Aug-04
For technical questions contact: nlr.europe@vishay.com
www.vishay.com
1
2322 66. 5...1
Vishay BCcomponents
30 to 60 V PTC Thermistors For
Overload Protection
ELECTRICAL DATA AND ORDERING INFORMATION
for 2322 66. 5...1; max. voltage = 30 V to 60 V (ac or dc)
(1)
I
nt
MAX.
at 25
°
C
(mA)
94
130
180
270
320
410
470
540
610
700
830
920
1170
1390
1770
2050
I
t
MIN.
at 25
°
C
(mA)
145
195
270
405
480
615
705
810
915
1050
1245
1380
1755
2085
2655
3075
R
25
±
20%
(
Ω
)
50
25
13
6
5
3
2.5
1.9
1.7
1.3
1.1
0.9
0.7
0.5
0.4
0.3
V
MAX.
(V)
60
60
30
30
30
30
30
30
30
30
30
30
30
30
30
30
I
(2)
MAX.
at 25
°
C
(mA)
800
1200
1700
2500
3500
4500
5000
6000
7000
8000
10000
11000
13500
16000
20000
23000
I
res
MAX.
at V
max
and 25
°
C
(mA)
22
25
45
60
62
65
70
75
80
90
100
105
140
170
200
220
CATALOG NUMBERS
DISSIP.
FACTOR
(mW/K)
6.9
6.9
6.9
6.9
7.8
7.8
8.8
8.8
9.9
9.9
11.5
11.5
14.5
14.5
18.7
18.7
∅
D
MAX.
(mm)
5
5
5
5
7
7
8.5
8.5
10.5
10.5
12.5
12.5
16.5
16.5
20.5
20.5
BULK
TAPE ON REEL
2322 660 59491 2322 660 69491
2322 660 51311 2322 660 61311
2322 660 51811 2322 660 61811
2322 660 52711 2322 660 62711
2322 661 53211 2322 661 63211
2322 661 54111 2322 661 64111
2322 661 54711 2322 661 64711
2322 661 55411 2322 661 65411
2322 662 56111 2322 662 66111
2322 662 57011 2322 662 67011
2322 662 58311 2322 662 68311
2322 662 59211 2322 662 69211
2322 663 51121
2322 663 51321
2322 664 52721
2322 664 52021
-
-
-
-
Notes
1. The thermistors are clamped at the seating plane.
2. I
max
is the maximum overload current that may flow through the PTC when it passes from the low ohmic to the high ohmic state.
UL approval: I
max
*0.85
ELECTRICAL CHARACTERISTICS
I
MAX
AS A FUNCTION OF VOLTAGE.
250
%
200
It
150
I nt
100
I max
50
0
50
25
0
25
50
75
T amb (
o
C)
100
www.vishay.com
2
For technical questions contact: nlr.europe@vishay.com
Document Number: 29085
Revision: 03-Aug-04
2322 66. 5...1
30 to 60 V PTC Thermistors For
Overload Protection
CURRENT DEVIATION AS A FUNCTION OF
THE AMBIENT TEMPERATURE.
Vishay BCcomponents
200
I
max
(%)
150
100
80
0
40
50
70
100
120
150
V
rated
(%)
I
max
as stated in the Electrical data and ordering information tables, is the maximum overload current that may flow through the
PTC when passing from the low ohmic to high ohmic state at rated voltage.
When other voltages are present after tripping, the I
max
value can be derived from the above I
max
as a function of voltage graph.
Voltages below V
rated
will allow higher overload currents to pass the PTC.
COMPONENTS OUTLINE, PACKAGING AND CATALOG NUMBERS
CODE NUMBER
2322
660
661
5...1
6...1
5...1
6...1
5...1
662
663
664
68311 - 69211
6...1
5...1
5...1
PACKAGING
S.P.Q
500
3000
250
3000
250
1500
3000
200
100
P.Q.
2000
6000
2000
6000
2000
6000
6000
800
400
OUTLINE
Fig. 1a, 1b
Fig. 1c, 1d
Fig. 1a, 1b
Fig. 1c, 1d
Fig. 1a, 1b
Fig. 1e, 1f
Fig. 1c, 1d
Fig. 1a
Fig. 1a
PTC THERMISTORS IN BULK
D
D
T
H3
H2
H3
H2
F
L1
d
Leaded8-1.vsd
L1
d
F
Fig. 1a
Document Number: 29085
Revision: 03-Aug-04
For technical questions contact: nlr.europe@vishay.com
Fig. 1b
Leaded8-2.vsd
www.vishay.com
3
2322 66. 5...1
Vishay BCcomponents
30 to 60 V PTC Thermistors For
Overload Protection

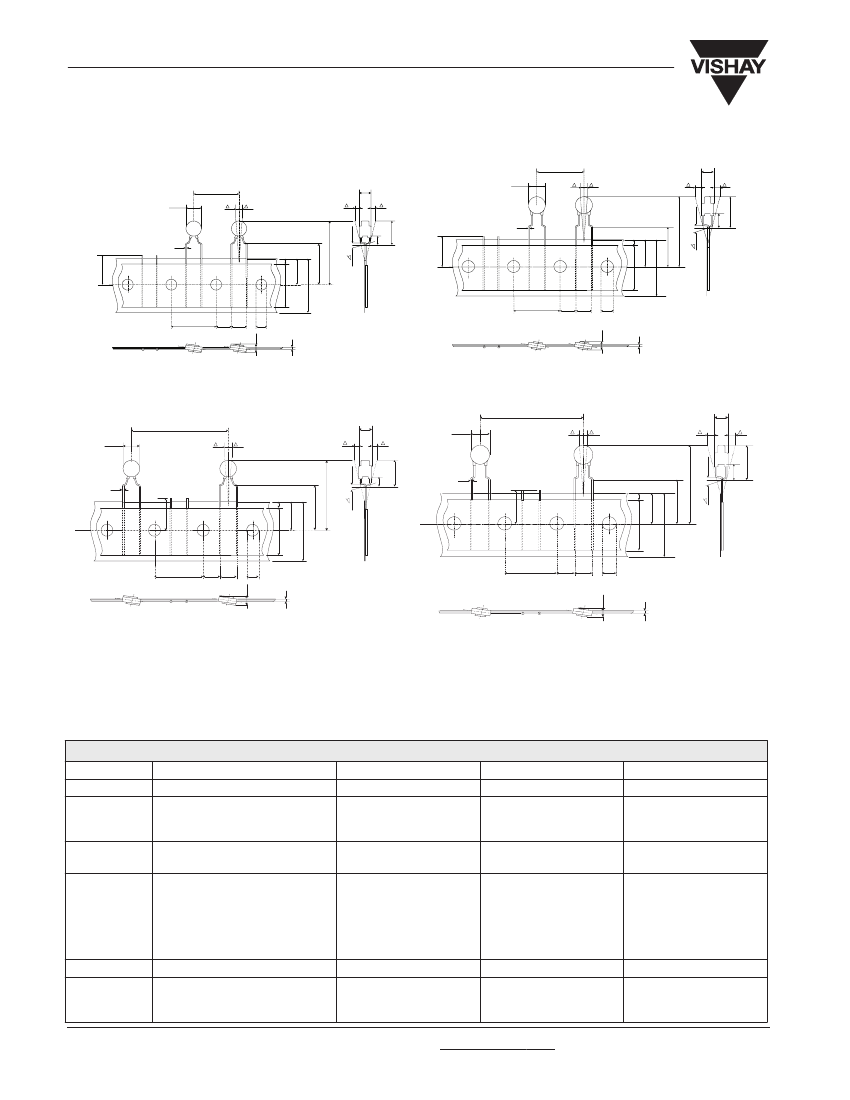

PTC THERMISTORS ON TAPE ON REEL
P
D
T
P
P
h
h
P
D
P
P
h
T
h
H4
H3
H2
H3
d
W2
W0 W1 W
H0 H1
H4
a
H2
L
d
W2
W0 W1 W
a
H0 H1
L
P0
P1
F
D0
P0
P1
F
T
D0
T
t
t
Taped1.vsd
Taped6.vsd
Fig. 1c
Fig. 1d
P'
T
P
P
h
h
P'
D
P
P
h
T
h
D
H3
H4
d
W2
L
W0 W1 W
H0 H1
H2
H4
d
W2
L
W0 W1 W H0 H1
H3
H2
P0
P1
F
T
D0
P0
P1
F
D0
T
t
Fig. 1e
Fig. 1f
TAPE AND REEL ACCORDING TO IEC60286-2
dimensions in millimeters
SYMBOL
<
α
D
d
D0
F
H0
H2
H3
H4
∆
h
L1
T
t
PARAMETER
seating plane angle
body diameter
lead diameter
feed hole diameter
lead to lead distance
lead wire clinch height
component bottom to seating plane
component top to seating plane
seating plane difference
(left-right lead)
component alignment
lead length
total thinkness
total tape thickness
DIMENSIONS
15°
see table
0.6
4.0
5.0
16.0
4.0
D+5
0
0
20
4.0
0.9
TOLERANCE
± 5.0°
max
± 10 %
± 0.2
+ 0.6
- 0.1
± 0.5
± 1.0
max.
± 0.2
± 2.0
min.
max.
max.
with cardboard tape
0.5 ± 0.1
Document Number: 29085
Revision: 03-Aug-04
guaranteed between
component and tape
REMARKS
www.vishay.com
4
For technical questions contact: nlr.europe@vishay.com
2322 66. 5...1
30 to 60 V PTC Thermistors For
Overload Protection
REEL SPECIFICATIONS
in millimeters
REEL DIMENSIONS
in millimeters
DIAMETER
∅
3
Vishay BCcomponents
W
1
42
±
1
46
±
1
W
2
MAX.
56
60
<12
18
12
30
+1
-0
77
85.6
92
356
max.
22.5
W
1
W
2
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
for 2322 660 .9491
1,0E+06
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
for 2322 660 .1311
1,0E+05
1,0E+05
1,0E+04
1,0E+04
R [Ohm]
R [Ohm]
1,0E+03
1,0E+03
1,0E+02
1,0E+02
1,0E+01
25
1,0E+01
25
50
75
100 125 150
TEMP. [°C]
175
200
225
50
75
100 125 150
TEMP. [°C]
175
200
225
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
for 2322 660 .1811
1,0E+05
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
for 2322 660 .2711
1,0E+03
1,0E+04
1,0E+02
R [Ohm]
1,0E+02
1,0E+01
1,0E+01
R [Ohm]
1,0E+00
25
1,0E+03
1,0E+00
25
5
7
10
12
15
17
20
22
50
75
100
125
150
175
200
225
TEMP. [°C]
TEMP. [°C]
Document Number: 29085
Revision: 03-Aug-04
For technical questions contact: nlr.europe@vishay.com
www.vishay.com
5
