LAKW6121MHLA50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LAKW6121MHLA50

LAKW6121MHLA50: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 120uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size40KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

LAKW6121MHLA50 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 120uF, THROUGH HOLE MOUNT, RADIAL LEADED

LAKW6121MHLA50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	120 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.673498 mA
Manufacturer's serial number	AK
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	420 V
ripple current	750 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	SNAP-IN

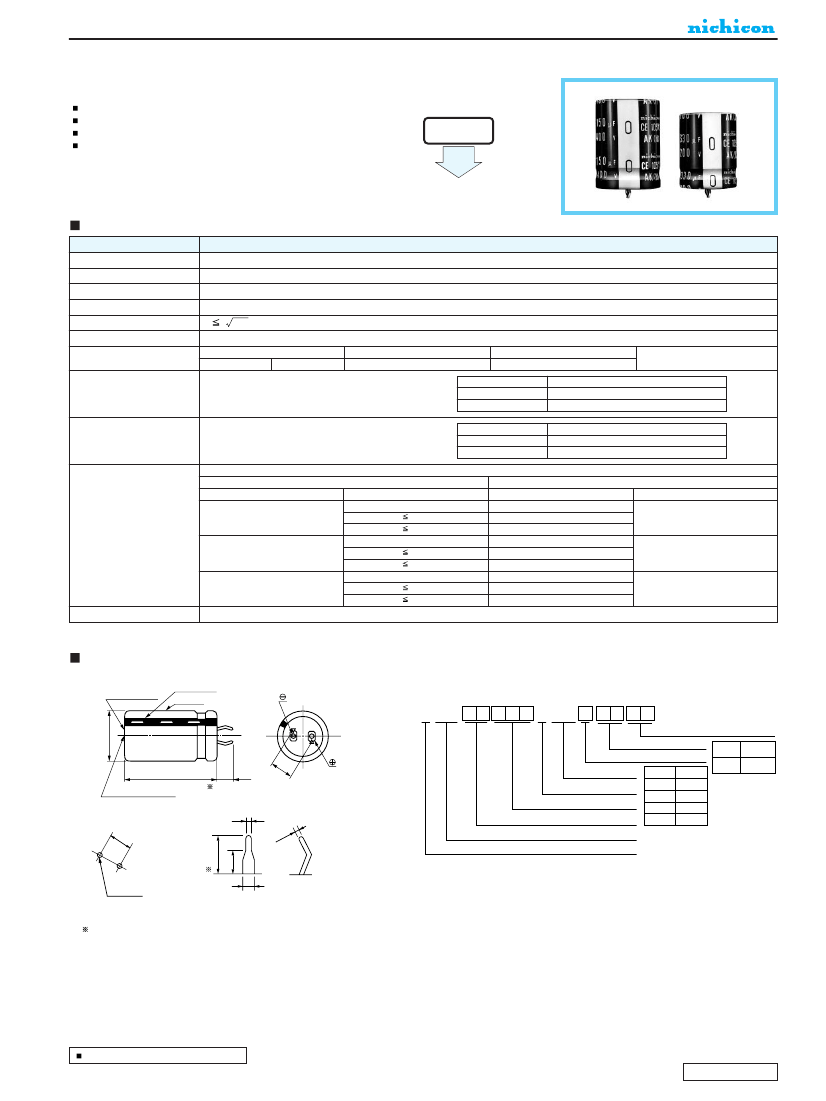

LAKW6121MHLA50 Preview

ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Permissible Abnormal Voltage,

Wide Temperature Range

series

Withstanding 2000 hours application of ripple current at 105°C.

Extended voltage range at 200V, 400V and 420V.

Improved safety features for abnormally excessive voltage.

Ideally suited for the equipment used at voltage fluctuating area.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Stability at Low Temperature

–

25 ~ +105°C

Performance Characteristics

200

•

400

•

420V

33 ~ 1200µF

± 20% at 120Hz, 20°C

3 CV

(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) ,V : Voltage(V)]

0.20MAX. 120Hz 20°C

Rated voltage (V)

Impedance ratio Z—25°C/Z+20°C

200

400

•

420

Measurement frequency : 120Hz

Endurance

After an application of DC voltage (in the range of rated

DC voltage even after over-lapping the specified ripple

current) for 2000 hours at 105°C, capacitors meet

the characteristic requirements listed at right.

After leaving capacitors under no load at 105°C for 1000

hours, they meet the requirements listed at right.

Capacitance change Within ±20% of initial value

tan

200% or less of initial specified value

Leakage current

Initial specified value or less

Capacitance change Within ±15% of initial value

tan

150% or less of initial specified value

Leakage current

Initial specified value or less

Shelf Life

Safety Performance

The pressure relief vent will operate in normal conditions, with no dangerous conditions such as flames, ignitions or dispersion of pieces of the capacitor and/or case.

rating

test conditions

Capacitance (µF)

Limited DC current

Test voltage

Voltage (V)

330

C < 330

200

330

C < 470

300VDC and 375VDC

470

< 470

330

C < 100

400

100

C < 220

500VDC and 600VDC

220

< 470

330

C < 100

420

100

C < 220

520VDC and 630VDC

220

< 470

Printed with white color letter on dark blue sleeve

Marking

Drawing

Bottom plate

(code BP only)

Polarity bar

Sleeve

Type numbering system (Example : 200V 680

9 10

11 12

13 14

15 16

L A K 2 D 6 8 1 MH L A 5 0

+1MAX.

Bottom Plate

Case length code

With Bottom

Plate

L±

Case dia. code

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (680µF)

φD

Code

Without

code less Bottom Plate

Pressure relief vent

4.0±0.5

0.8

+0.2

-0.1

+0 .1

-0

4.0±0.5

0.1

Rated voltage (200V)

Series name

Type

2-2φ±0.1

(PC board hole dimensions)

2.5

1.5

+0.2

-0.1

(Terminal dimensions)

6.3±1mm length terminal is also available upon request.

Please refer page 195 for schematic of dimensions.

Minimum order quantity : 50pcs.

Dimension table in next page.

CAT.8100R

ALUMINUM ELECTROLYTIC CAPACITORS

Cap.(µF)

series

Dimensions

V (Code)

L (mm)

φD

Code

200V (2D)

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

122

0.70

0.74

0.90

1.05

1.20

1.30

1.50

0.65

0.70

0.50

0.35

0.22

0.30

0.35

0.38

0.40

0.50

0.55

0.60

0.70

0.80

400V (2G)

0.25

420V (W6)

0.35

0.38

0.45

0.50

0.53

0.60

0.70

0.80

0.90

0.40

0.85

1.05

1.20

1.30

1.50

1.70

1.10

1.05

1.20

1.35

1.55

1.70

1.99

2.10

0.50

0.53

0.60

0.70

0.80

0.90

0.98

1.21

0.55

0.35

0.38

0.45

0.64

0.69

0.75

0.70

0.80

0.90

0.96

1.21

1.32

1.45

0.45

0.64

0.69

0.75

0.82

0.90

0.69

0.75

0.82

0.90

1.00

1.10

0.75

0.82

0.90

1.00

1.10

1.20

1.55

1.70

1.99

2.10

2.30

Case size

Rated ripple

Rated Ripple (A rms) at 105°C 120Hz

Frequency coefficient of rated ripple current

Coefficient

Frequency (Hz)

200V

400•420V

0.85

0.88

0.90

120

1.00

1.15

1.10

10k~

1.20

1.15

CAT.8100R

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
