SM14M12C-LF-T7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SM14M12C-LF-T7

SM14M12C-LF-T7: DescriptionTrans Voltage Suppressor Diode, 800W, 12V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14; CategoryDiscrete semiconductor diode; File Size558KB，6 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SM14M12C-LF-T7 Overview

Trans Voltage Suppressor Diode, 800W, 12V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14

SM14M12C-LF-T7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ProTek Devices
Parts packaging code	SOD
package instruction	R-PDSO-G14
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Minimum breakdown voltage	13.3 V
Breakdown voltage nominal value	13.3 V
Maximum clamping voltage	26.6 V
Configuration	COMPLEX
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	800 W
Number of components	10
Number of terminals	14
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	12 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

05035

Only One Name Means ProTek’Tion™

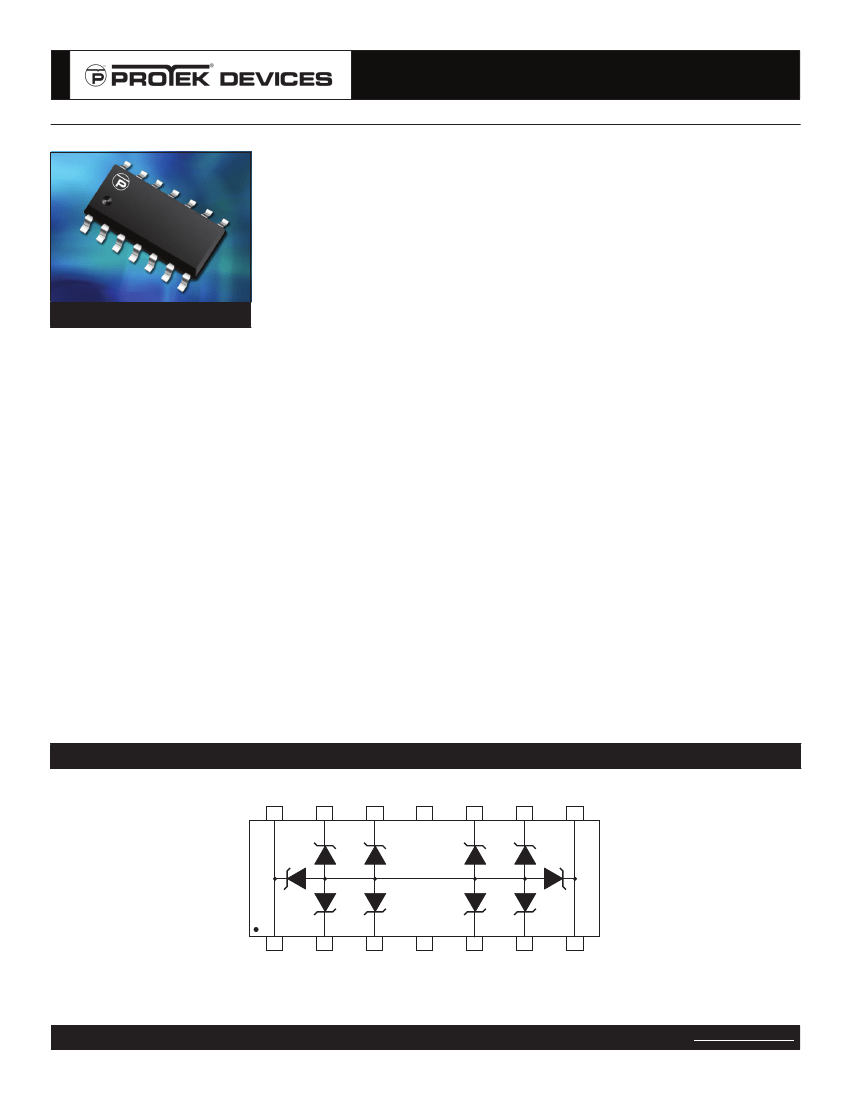

SM14M05C - SM14M24C

800 WATT MULTI-LINE TVS ARRAY

DESCRIPTIoN

The SM14MxxC Series are multi-line transient voltage suppressor arrays that provides board level protection for

standard TTL and MOS bus line applications against the damaging effects of ESD, tertiary lightning and switching

transients.

This series has a peak pulse power rating of 800 Watts for an 8/20µs waveshape. This device series meets the IEC

61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.

So-14 PACkAGE

FEATURES

• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-

Gnd) & Level 3(Line-Line)

• 800 Watts Peak Pulse Power per Line (tp = 8/20µs)

• Bidirectional Configuration

• Designed for I/O Protection

• Monolithic Design

• ESD Protection > 25 kilovolts

• Available in Multiple Voltages Ranging from 5V to 24V

• Protects up to 8 Lines

• RoHS Compliant

• REACH Compliant

APPLICATIoNS

•

Multiple I/O Port Protection

Board Level Interface Connection

RS-232, RS-422 & RS-423

Portable Electronics

MEChANICAL ChARACTERISTICS

•

Molded JEDEC SO-14 Package

Approximate Weight: 0.15 grams

Lead-Free Pure-Tin Plating (Annealed)

Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• 16mm Tape and Reel Per EIA Standard 481

• Flammability Rating UL 94V-0

PIN CoNFIGURATIoN

05035.R11 7/13

Page 1

www.protekdevices.com

SM14M12C-LF-T7 Related Products

	SM14M12C-LF-T7	SM14M15C-LF-T7	SM14M24C-LF-T7	SM14M05C-LF-T7	SM14M15C-LF-T13	SM14M12C-LF-T13	SM14M08C-LF-T7	SM14M08C-LF-T13	SM14M24C-LF-T13
Description	Trans Voltage Suppressor Diode, 800W, 12V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 15V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 24V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 5V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 15V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 12V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 8V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 8V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14	Trans Voltage Suppressor Diode, 800W, 24V V(RWM), Bidirectional, 10 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC, SOP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOD	SOD	SOD	SOD	SOD	SOD	SOD	SOD	SOD
package instruction	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
Contacts	14	14	14	14	14	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	13.3 V	16.7 V	26.7 V	6 V	16.7 V	13.3 V	8.5 V	8.5 V	26.7 V
Breakdown voltage nominal value	13.3 V	16.7 V	26.7 V	6 V	16.7 V	13.3 V	8.5 V	8.5 V	26.7 V
Maximum clamping voltage	26.6 V	33.1 V	42.1 V	17.8 V	33.1 V	26.6 V	20.1 V	20.1 V	42.1 V
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak reverse power dissipation	800 W	800 W	800 W	800 W	800 W	800 W	800 W	800 W	800 W
Number of components	10	10	10	10	10	10	10	10	10
Number of terminals	14	14	14	14	14	14	14	14	14
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270	270	270	270	270	270	270	270	270
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	12 V	15 V	24 V	5 V	15 V	12 V	8 V	8 V	24 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	ProTek Devices	-	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices
