REVISION AE
DO NOT
SCALE FROM
THIS PRINT
FTR-1XX-XX-XX-S-XX-XX
No OF POSITIONS
-02 THRU -40 AD
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO-INCHES)
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 Ni MIN ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
(LEAD STYLE SPEC -01 ONLY)
-SM: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
01
.050 1.27 REF
3 MAX SWAY
(EITHER DIRECTION)
ROW SPECIFICATION
-S: SINGLE (USE HTMS-50-S)
OPTION
-P: PICK & PLACE PAD
(USE PPP-11, SEE FIG 2)
-TR: TAPE & REEL
(4 POS MIN)
OPTION
-XX: -POLARIZING SPECIFICATION
( XX INDICATES POS. TO BE OMITTED)
SEE NOTE 4
(No OF POS x .050 [1.27]
+.002 [.01]
-.010 [.25]
.096 2.44 REF
HTMS-50-S
2 MAX SWAY
(EITHER DIRECTION)
.018 0.46 SQ REF
T-1M6-XX-X-2
.190 4.83 REF
(CONTACT AREA)
2 MAX SWAY
(EITHER DIRECTION)
C
"B"
C
90°
- 2°
(TYP)
.100 2.54 REF
C
+4°
.004 [.10]
FTR-1XX-XX-X-S SHOWN
FIG 1
.05 1.3
(SEE NOTE 8)
.050 1.27 (TYP)
(SEE NOTE 6)
.196 4.98 REF
* REF FOR OAL PIN LENGTH
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM CUT FLASH: .010[.25].
3. MINIMUM PUSHOUT FORCE: 2 LB.
4. MAXIMUM PIN ROTATION IN BODY: 2°.
5. MAXIMUM ALLOWABLE BOW AFTER ASSEMBLY: .005[.13] INCH/INCH
6. SHEAR TAILS TO DIMENSION SHOWN.
7. MAXIMUM BURR ALLOWANCE: .003[.08]
8. MEASURED AT BEND RADIUS.
9. TUBE POSITIONS -05 THRU -50 ONLY FOR THIS LEAD STYLE.
F:\DWG\MISC\MKTG\FTR-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322

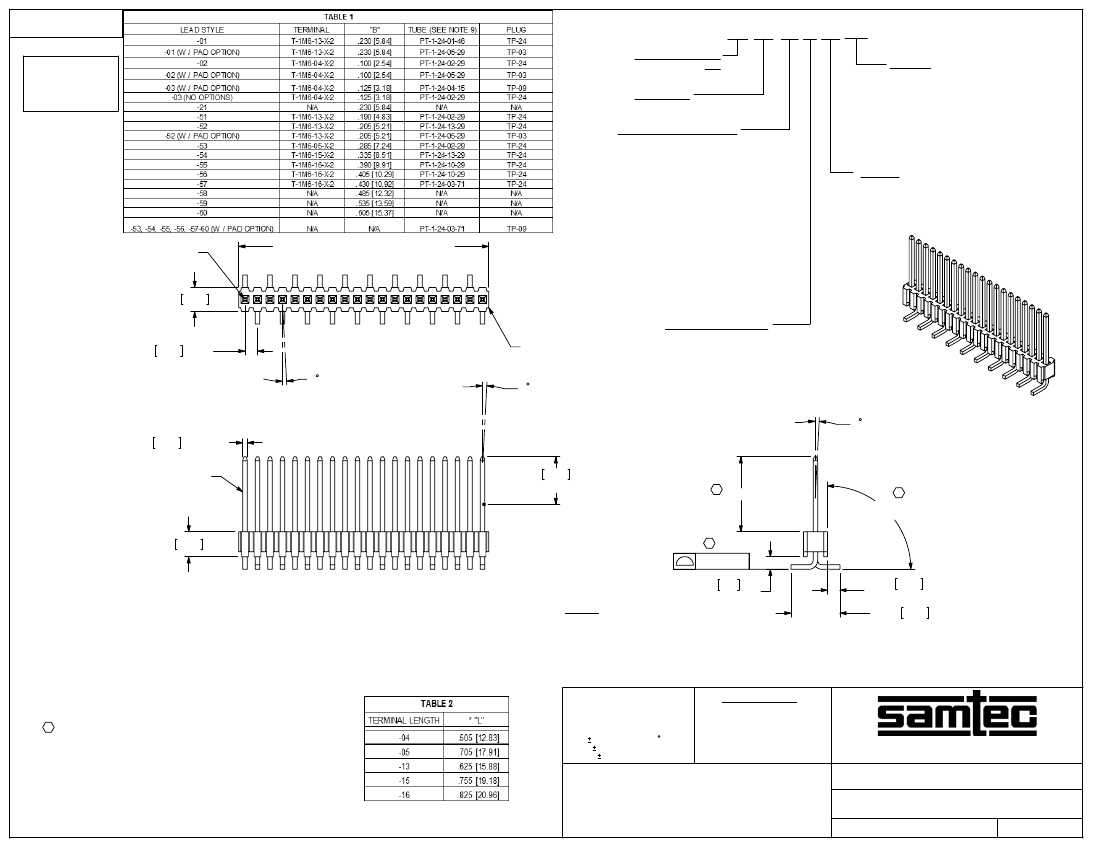

DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LCP, UL 94 VO
COLOR: BLACK
TERMINAL : PHOS BRONZE
HI-TEMP TERMINAL MICRO-STRIP (SINGLE ROW)
FTR-1XX-XX-XX-S-XX-XX
SHEET
1
OF
2
BY:
BRATCHER 7-10-95
REVISION AE
"N" = USE MEASURED DIMENSION
"Q" = {("N" - .400 [10.16]) /2} .020 [.51]
"N"
.400 10.16
REF
"Q"
.050 1.27 REF
.210 5.33 REF
.200 5.08
REF
C
L
FIG 2
-P: PICK AND PLACE PAD
AVAILABLE ON 08 - 40 POSITIONS ONLY
AE
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
HI-TEMP TERMINAL MICRO-STRIP (SINGLE ROW)
FTR-1XX-XX-XX-S-XX-XX
SHEET
2
OF
2
F:\DWG\MISC\MKTG\FTR-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
11/9/2010
BY:
BRATCHER 7-10-95
