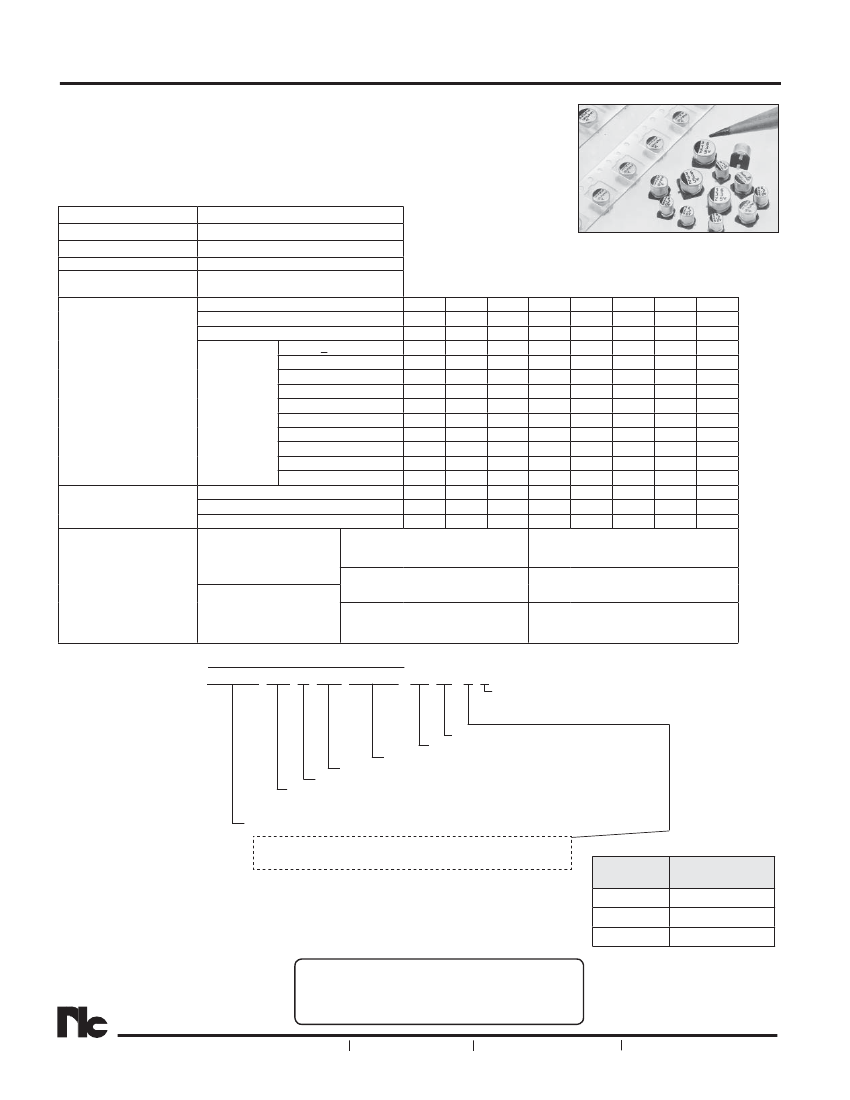

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION
• WIDE TEMPERATURE -55 ~ +105
O
C
• DESIGNED FOR REFLOW SOLDERING
• MEETS THE REQUIREMENTS OF AEC-Q200*
*Contact NIC for supporting test data
CHARACTERISTICS
Rated Voltage Range
Rate Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
6.3 ~ 100Vdc**
1.0 ~ 12,000μF
NACEW Series
New Expanded
Value Range
(Up to 12,000μF)
-55°C ~ +105°C (100V -40°C ~ +105 °C)
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
4 ~ 6.3mm Dia.
C < 1,000μF
C = 1,500μF
C = 2,200μF, 2,700μF
C = 3,300μF, 3,900μF
Max. Tan
δ
@120Hz/20°C
C = 4,700μF
8 & larger
C = 5,600μF
C = 6,800μF
C = 8,200μF
C = 10,000μF
C = 12,000μF
W.V. (Vdc)
Low Temperature Stability
Z-40°C/Z+20°C
Impedance Ratio @ 120Hz
Z-55°C/Z+20°C
4 ~ 6.3mm Dia. & 10x8mm
+105°C 1,000 hours
Load Life Test
8 ~ 16mm Dia.
+105°C 2,000 hours
6.3
8
0.24
0.28
0.28
-
0.32
-
-
0.38
-
0.46
0.50
6.3
3
8
10
13
0.20
0.24
-
0.26
-
0.30
-
0.34
0.38
-
-
10
3
6
16
20
0.16
0.20
0.20
-
0.24
0.26
0.28
-
-
-
-
16
2
4
25
32
0.14
0.16
-
0.18
0.20
-
-
-
-
-
-
25
2
4
35
44
0.12
0.14
0.14
0.16
-
-
-
-
-
-
-
35
2
3
50
63
0.10
0.12
0.12
-
-
-
-
-
-
-
-
50
2
3
63
79
0.12
0.12
-
-
-
-
-
-
-
-
-
63
2
3
100
125
0.10
0.10
-
-
-
-
-
-
-
-
-
100
3
-
Capacitance Change
Tan
δ
Leakage Current
Within ± 25% of initial measured value
Less than 200% of specified max. value
Less than specified max. value
PART NUMBER SYSTEM
NACEW 331 M 35V 10x10.5 TR 13 Y F
RoHS Compliant
Series
13 = 13" (330mm) Reel, 15 = 15" (380mm) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in mF,
fi
rst 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certified production site
Case
Diameter
4 ~ 10mm
φ
12.5mm
16mm
Termination
Material
97% Sn, 3% Bi
99.3% Sn, 0.7% Bi
100% Sn
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Surface Mount Aluminum Electrolytic Capacitors
NACEW Series
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
Cap. W.V. Dissipation Factor
(μF) (Vdc)
(Tan
δ)
NACEW220M6.3V4X5.5TR13F
22
0.24
NACEW330M6.3V5X5.5TR13F
33
0.24
NACEW470M6.3V5X5.5TR13F
47
0.24
NACEW101M6.3V6.3X5.5TR13F
100
0.24
NACEW221M6.3V6.3X6.3TR13F
220
0.24
NACEW331M6.3V6.3X8TR13F
330
0.24
NACEW471M6.3V8X10.5TR13F
470
0.28
NACEW681M6.3V8X10.5TR13F
680
6.3
0.28
NACEW681M6.3V10X8TR13F
680
0.28
NACEW102M6.3V8X10.5TR13F 1000
0.28
NACEW152M6.3V10X10.5TR13F 1500
0.28
NACEW332M6.3V12.5X14TR15F 3300
0.32
NACEW682M6.3V16X17TR15F
6800
0.38
NACEW103M6.3V18X17.5TR15F 10000
0.46
NACEW123M6.3V18X22TR15F 12000
0.50
NACEW220M10V5X5.5TR13F
22
0.20
NACEW330M10V5X5.5TR13F
33
0.20
NACEW470M10V5X5.5TR13F
47
0.20
NACEW151M10V6.3X6.3TR13F
150
0.20
NACEW221M10V6.3X8TR13F
220
0.20
NACEW331M10V8X10.5TR13F
330
0.24
10
NACEW471M10V8X10.5TR13F
470
0.24
NACEW471M10V10X8TR13F
470
0.24
NACEW102M10V10X10.5TR13F 1000
0.24
NACEW222M10V12.5X14TR15F 2200
0.24
NACEW472M10V16X17TR15F
4700
0.24
NACEW682M10V18X17.5TR15F 6800
0.34
NACEW822M10V18X22TR15F
8200
0.38
NACEW100M16V4X5.5TR13F
10
0.16
NACEW220M16V5X5.5TR13F
22
0.16
NACEW330M16V6.3X5.5TR13F
33
0.16
NACEW470M16V6.3X5.5TR13F
47
0.16
NACEW101M16V6.3X5.5TR13F
100
0.16
NACEW151M16V6.3X8TR13F
150
0.16
NACEW221M16V6.3X8TR13F
220
0.16
16
NACEW331M16V8X10.5TR13F
330
0.20
NACEW331M16V10X8TR13F
330
0.20
NACEW471M16V8X10.5TR13F
470
0.20
NACEW681M16V10X10.5TR13F
680
0.20
NACEW152M16V12.5X14TR15F 1500
0.20
NACEW332M16V16X17TR15F
3300
0.20
NACEW472M16V18X17.5TR15F 4700
0.26
NACEW562M16V18X22TR15F
5600
0.28
NACEW4R7M25V4X5.5TR13F
4.7
0.14
NACEW100M25V5X5.5TR13F
10
0.14
NACEW220M25V6.3X5.5TR13F
22
0.14
NACEW330M25V6.3X5.5TR13F
33
0.14
NACEW470M25V6.3X6.3TR13F
47
0.14
NACEW101M25V6.3X8TR13F
100
0.14
NACEW151M25V8X10.5TR13F
150
0.16
0.16
NACEW221M25V8X10.5TR13F
220
25
NACEW221M25V10X8TR13F
220
0.16
NACEW331M25V8X10.5TR13F
330
0.16
NACEW471M25V10X10.5TR13F
470
0.16
NACEW102M25V12.5X14TR15F 1000
0.16
NACEW222M25V16X17TR15F
2200
0.16
NACEW332M25V18X17.5TR15F 3300
0.20
NACEW392M25V18X22TR15F
3900
0.20
For Automotive Equipment see part number system
NIC Part Number
Max. Ripple Current (mA)
+105°C/120Hz
22
27
33
50
67
105
210
210
210
280
310
520
930
1200
1350
25
30
41
62
105
195
210
210
310
510
880
1150
1350
18
27
40
48
60
95
105
195
195
230
310
500
840
1090
1300
13
20
36
44
48
91
140
175
175
220
300
460
805
1040
1280
Maximum ESR (Ω)
+20
O
C/120Hz
18.1
12.1
8.47
3.98
1.81
1.21
0.99
0.68
0.68
0.46
0.31
0.14
0.093
0.076
0.069
15.1
10.1
7.06
2.21
1.51
1.21
0.85
0.85
0.40
0.18
0.11
0.083
0.077
26.5
12.1
8.04
5.65
2.66
1.77
1.21
1.00
1.00
0.71
0.49
0.23
0.12
0.092
0.083
49.4
23.2
10.6
7.04
4.95
2.32
1.77
1.21
1.21
0.80
0.57
0.27
0.14
0.10
0.085
Load Life Hours
@ +105°C
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
1,000
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
1,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
1,000
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
1,000
2,000
2,000
2,000
2,000
2,000
2,000
Represents New Value
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Surface Mount Aluminum Electrolytic Capacitors
NACEW Series
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
NIC Part Number
NACEW4R7M35V4X5.5TR13F
NACEW100M35V5X5.5TR13F
NACEW220M35V6.3X5.5TR13F
NACEW330M35V6.3X6.3TR13F
NACEW470M35V6.3X6.3TR13F
NACEW101M35V6.3X8TR13F
NACEW151M35V8X10.5TR13F
NACEW151M35V10X8TR13F
NACEW221M35V8X10.5TR13F
NACEW331M35V10X10.5TR13F
NACEW471M35V12.5X14TR15F
NACEW681M35V12.5X14TR15F
NACEW102M35V16X17TR15F
NACEW152M35V16X17TR15F
NACEW222M35V18X17.5TR15F
NACEW272M35V18X22TR15F
NACEW1R0M50V4X5.5TR13F
NACEW2R2M50V4X5.5TR13F
NACEW3R3M50V4X5.5TR13F
NACEW4R7M50V5X5.5TR13F
NACEW100M50V6.3X5.5TR13F
NACEW220M50V6.3X6.3TR13F
NACEW330M50V6.3x8TR13F
NACEW470M50V6.3x8TR13F
NACEW101M50V8x10.5TR13F
NACEW221M50V10X10.5TR13F
NACEW102M50V16X17TR15F
NACEW152M50V18X22TR15F
NACEW1R0M63V4X5.5TR13F
NACEW2R2M63V4X5.5TR13F
NACEW3R3M63V4X5.5TR13F
NACEW4R7M63V5X5.5TR13F
NACEW100M63V6.3X5.5TR13F
NACEW220M63V6.3X8TR13F
NACEW330M63V8X10.5TR13F
NACEW470M63V8X10.5TR13F
NACEW101M63V10X10.5TR13F
NACEW221M63V12.5X14TR15F
NACEW471M63V16X17TR15F
NACEW681M63V18X17.5TR15F
NACEW102M63V18X22TR15F
NACEW1R0M100V4X6.3TR13F
NACEW2R2M100V6.3X6.3TR13F
NACEW3R3M100V6.3X6.3TR13F
NACEW4R7M100V6.3X6.3TR13F
NACEW100M100V6.3X8TR13F
NACEW220M100V8X10.5TR13F
NACEW330M100V10x10.5TR13F
NACEW470M100V12.5X14TR15F
NACEW151M100V16X17TR15F
NACEW221M100V18X17.5TR15F
NACEW331M100V18X22TR15F
Cap.
(μF)
4.7
10
22
33
47
100
150
150
220
330
470
680
1000
1500
2200
2700
1.0
2.2
3.3
4.7
10
22
33
47
100
220
1000
1500
1.0
2.2
3.3
4.7
10
22
33
47
100
220
470
680
1000
1.0
2.2
3.3
4.7
10
22
33
47
150
220
330
W.V.
(Vdc)
Dissipation Factor
(Tan
δ)
0.12
0.12
0.12
0.12
0.12
0.12
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.16
0.16
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
Max. Ripple Current (mA)
+105°C/120Hz
14
21
38
42
49
84
155
155
190
300
410
430
700
740
950
1200
7.0
11
13
16
24
32
60
63
140
220
655
1100
7.0
11
14
16
24
49
112
119
196
287
630
750
900
7.0
14
20
25
35
84
133
240
500
650
700
Maximum ESR (Ω)
+20
O
C/120Hz
42.3
19.9
9.05
6.04
4.24
2.32
1.55
1.55
1.06
0.70
0.49
0.34
0.23
0.15
0.12
0.098
166
75.4
50.3
35.3
16.6
7.64
5.03
3.53
1.99
0.91
0.20
0.13
199
90.5
60.3
42.3
19.9
9.04
6.03
4.24
1.99
0.91
0.42
0.29
0.20
166
75.4
50.3
35.3
16.6
7.64
5.03
3.53
1.10
0.75
0.50
Load Life Hours
@ +105°C
1,000
1,000
1,000
1,000
1,000
1,000
2,000
1,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
2,000
2,000
2,000
2,000
2,000
2,000
35
50
63
100V
For Automotive Equipment see part number system
Represents New Value
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
Surface Mount Aluminum Electrolytic Capacitors
NACEW Series
RIPPLE CURRENT FREQUENCY
CORRECTION FACTOR
Frequency (Hz) 100 > f < 1K 1K > f < 10K 10K < 100K
C < 4.7μF
1.00
1.30
1.50
4.7μF < 33μF
1.00
1.20
1.30
33μF < 12,000μF
1.00
1.10
1.20
f > 100K
1.80
1.45
1.30
DIMENSIONS (mm)
Case Size Dφ ±0.5 L max. A ±0.2 B ±0.2 I ±0.2
4x5.5
4.0
5.5
4.3
4.3
2.0
4x6.3
4.0
6.3
4.3
4.3
2.0
5x5.5
5.0
5.5
5.3
5.3
2.1
6.3x5.5
6.3
5.5
6.6
6.6
2.5
6.3x6.3
6.3
6.3
6.6
6.6
2.5
6.3x8
6.3
8.0
6.6
6.6
2.5
8x6.5
8.0
6.5
8.3
8.3
3.4
8x10.5
8.0
10.5
8.3
8.3
2.9
10x8
10.0
8.0
10.3
10.3
3.2
10x10.5
10.0
10.5
10.3
10.3
3.2
12.5x14
12.5
14.0
12.8
12.8
4.5
16x17
16.0
17.0
16.3
16.3
5.0
18x17.5
18.0
17.5
19.0
19.0
6.5
18x22
18.0
22.0
19.0
19.0
6.5
W
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.0
1.0 ~ 1.4
1.0 ~ 1.4
1.0 ~ 1.4
1.8 ~ 2.1
1.7 ~ 2.1
1.7 ~ 2.1
P ±0.2
1.0
1.0
1.4
2.2
2.2
2.2
2.2
3.2
4.6
4.6
4.6
7.0
7.0
7.0
Dφ
W
0.3mm max.
+
I
I
-
L
P
B
A
PEAK REFLOW TEMPERATURE AND DURATION
Voltage
Diameter
φ4
~ 6.3
φ8
φ10,
12.5
φ16,
18
φ4
~ 6.3
φ8
φ10
φ12.5
φ16,
18
Peak Temperature (T)
5 seconds
+250°C
+245°C
+240°C
+235°C
+250°C
+240°C
+240°C
+235°C
+235°C
Time Above +200°C
(t)
70 sec. max
60 sec. max
50 sec. max
50 sec. max
60 sec. max
60 sec. max
50 sec. max
50 sec. max
45 sec. max
Time Above +217°C
(t1)
60 sec. max.
50 sec. max.
40 sec. max.
30 sec. max.
50 sec. max.
40 sec. max.
30 sec. max.
30 sec. max.
20 sec. max.
Time Above +230°C
(t2)
40 sec. max.
30 sec. max.
20 sec. max.
15 sec. max.
40 sec. max.
30 sec. max.
20 sec. max.
20 sec. max.
10 sec. max.
6.3V to 63V
100V
Temperature - Deg. C
RECOMMENDED LAND PATTERN
DIMENSIONS (mm)
Diameter
φ4
φ5
φ6.3
φ8
φ10
φ12.5
φ16
φ18
a
1.0
1.4
1.8
2.8
4.3
4.3
6.6
6.6
a
c
b
b
2.6
3.0
3.6
4.1
4.4
5.8
6.5
7.7
c
1.8
1.8
1.8
2.1
2.5
2.5
5.0
5.0
Peak Temperature (T)
230
200
150
100
50
Time (Seconds)
Preheat - 120 seconds max.
(150°C ~ 180°C)
Time Above 200°C (t)
Time Above 230°C (t2)
Time Above 217°C (t1)
Review & Compare Reflow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Surface Mount Aluminum Electrolytic Capacitors
NACEW Series
CARRIER TAPE
Case Size
4x5.5
4x6.3
5x5.5
6.3x5.5
6.3x6.3
6.3x8
8x6.5
8x10.5
10x8
10x10.5
12.5x14
16x17
18x17.5
18x22
A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2 t max. S ± 0.1
4.7
4.7
12.0
5.5
8.0
5.8
0.6
-
4.7
4.7
12.0
5.5
8.0
6.4
0.6
-
5.7
5.7
12.0
5.5
12.0
5.8
0.6
-
7.0
7.0
16.0
7.5
12.0
5.8
0.6
-
7.0
7.0
16.0
7.5
12.0
6.5
0.6
-
7.0
7.0
16.0
7.5
12.0
8.2
0.6
-
8.7
8.7
16.0
7.5
12.0
6.8
0.6
-
8.7
8.7
24.0
7.5
12.0
11.1
0.6
-
10.7
10.7
24.0
11.5
16.0
8.3
0.6
-
10.7
10.7
24.0
11.5
16.0
11.2
0.6
-
13.2
13.2
32.0
14.2
24.0
14.2
0.6
28.4
17.5
17.5
44.0
20.2
28.0
17.3
0.6
40.4
19.5
19.5
44.0
20.2
32.0
17.8
0.6
40.4
19.5
19.5
44.0
20.2
32.0
22.5
0.6
40.4
TR13 330mm (13") REEL
TR15 380mm (15") REEL
Case Size
4x5.5
4x6.3
5x5.5
6.3x5.5
6.3x6.3
6.3x8
8x6.5
8x10.5
10x8
10x10.5
12.5x14
16x17
18x17.5
18x22
W ±1.0
14.0
14.0
14.0
18.0
18.0
18.0
18.0
26.0
26.0
26.0
34.0
46.0
46.0
46.0
Quantity Per Reel
13" Reel
15" Reel
1,500 pcs
2,000 pcs
1,200 pcs
2,000 pcs
1,000 pcs
1,000 pcs
1,000 pcs
1,000 pcs
800 pcs
1,000 pcs
500 pcs
900 pcs
800 pcs
1,000 pcs
300 pcs
500 pcs
400 pcs
500 pcs
300 pcs
500 pcs
N/A
250 pcs
200 pcs
N/A
N/A
175
N/A
125

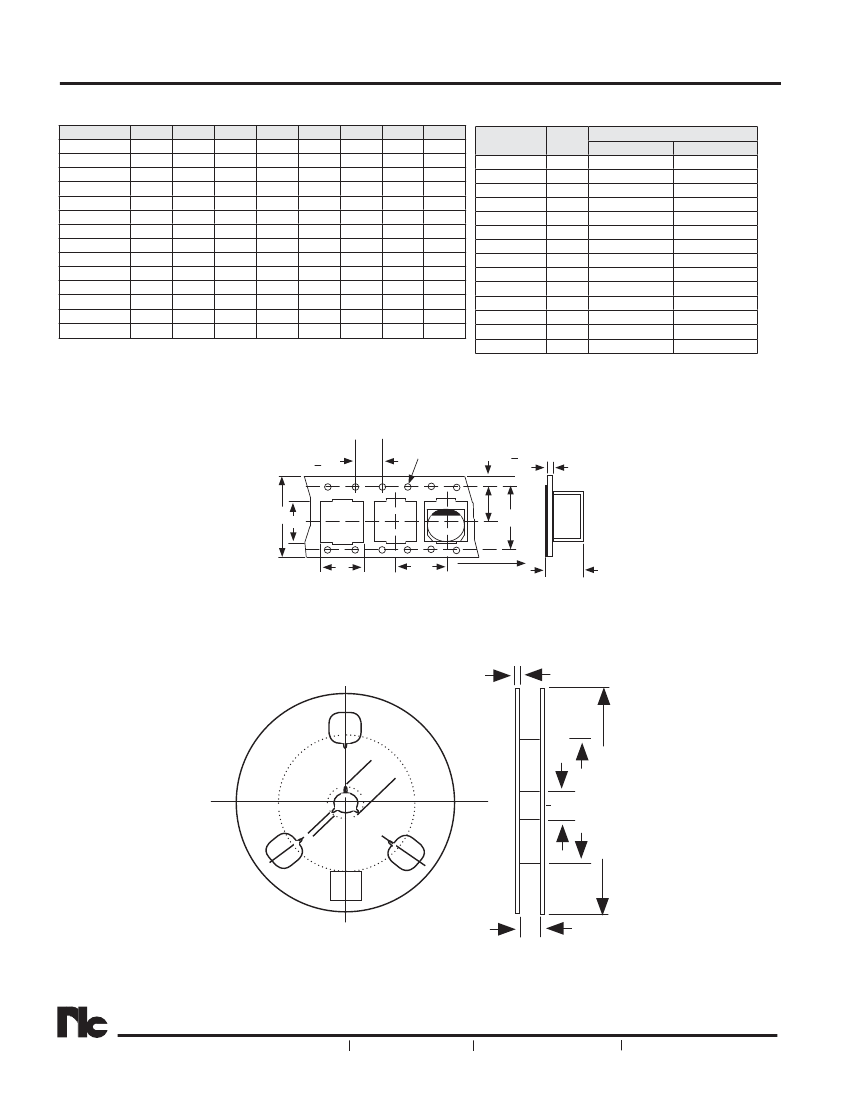

TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
4 + 0.1
1.5φ+0.1/-0
1.75 + 0.15
t
C
B
D
A
P
Feeding
s
T
REEL
3.0
±
0.5
13∅
±0.5
2.
0±
0
.5
W
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
50∅ Min.
2
±0 1
.8
330 or 380mm
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
5
京公网安备 11010802033920号
EEWORLD
