Part Number

Search

BSJ108

Description
TRANSISTOR 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size71KB,4 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

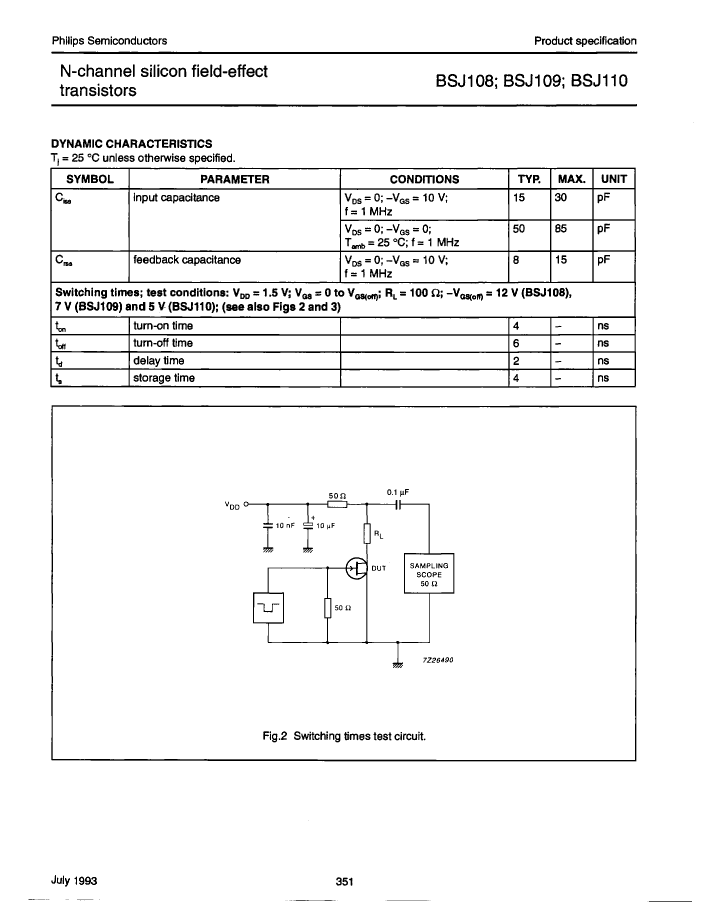

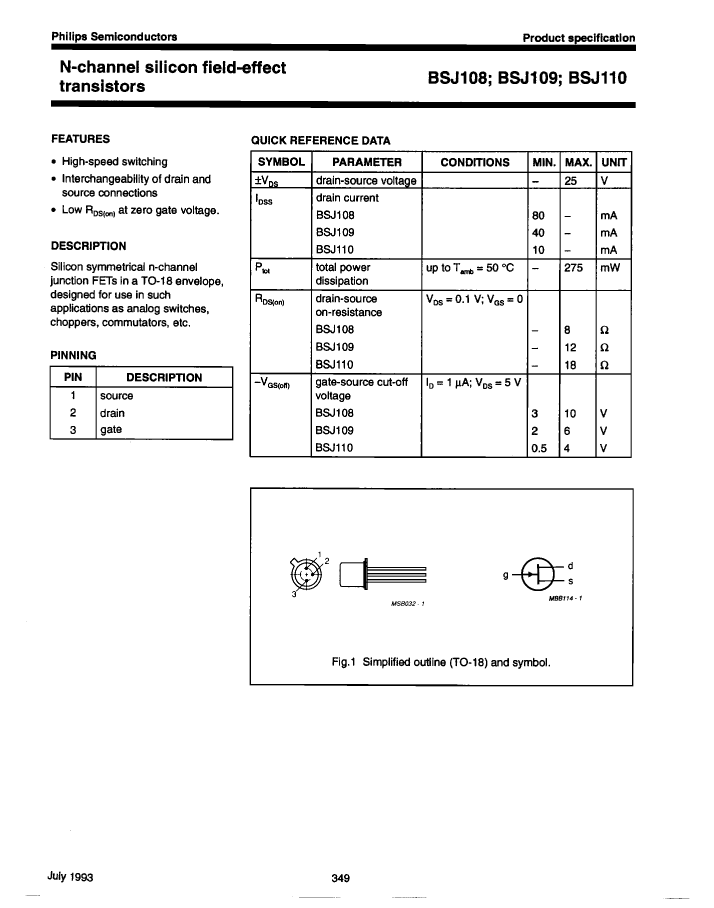

BSJ108 Overview

TRANSISTOR 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal

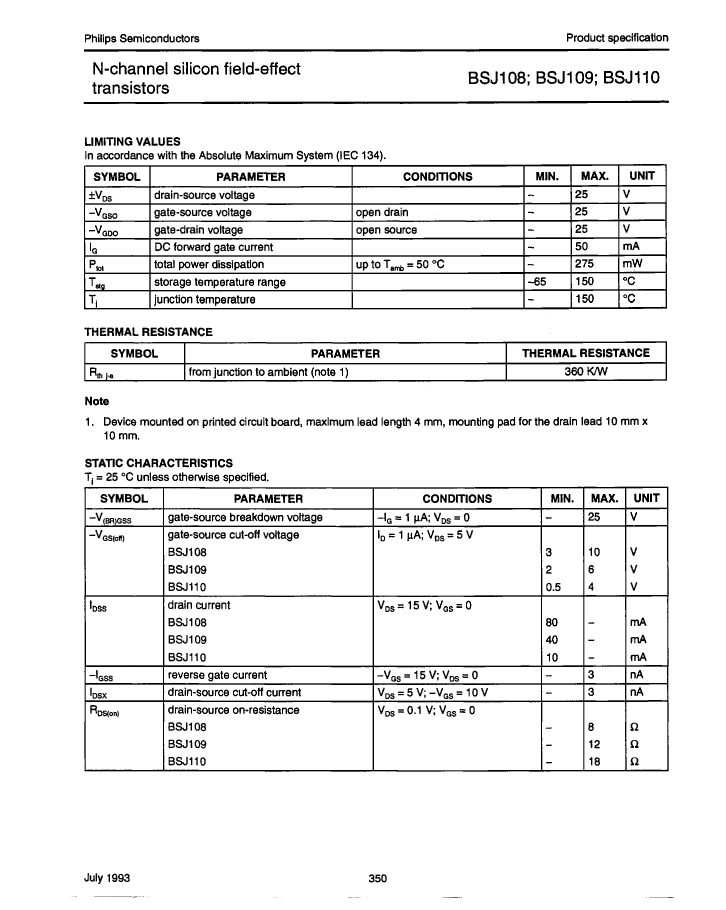

BSJ108 Parametric

Parameter NameAttribute value
MakerNXP
package instructionCYLINDRICAL, O-MBCY-W3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Minimum drain-source breakdown voltage25 V
Maximum drain-source on-resistance8 Ω
FET technologyJUNCTION
Maximum feedback capacitance (Crss)15 pF
JEDEC-95 codeTO-18
JESD-30 codeO-MBCY-W3
Number of components1
Number of terminals3
Operating modeDEPLETION MODE
Maximum operating temperature150 °C
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal formWIRE
Terminal locationBOTTOM
transistor applicationsSWITCHING
Transistor component materialsSILICON

BSJ108 Related Products

BSJ108 BSJ110 BSJ109
Description TRANSISTOR 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal TRANSISTOR 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal TRANSISTOR 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal
Maker NXP NXP NXP
package instruction CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Configuration SINGLE SINGLE SINGLE
Minimum drain-source breakdown voltage 25 V 25 V 25 V
Maximum drain-source on-resistance 8 Ω 18 Ω 12 Ω
FET technology JUNCTION JUNCTION JUNCTION
Maximum feedback capacitance (Crss) 15 pF 15 pF 15 pF
JEDEC-95 code TO-18 TO-18 TO-18
JESD-30 code O-MBCY-W3 O-MBCY-W3 O-MBCY-W3
Number of components 1 1 1
Number of terminals 3 3 3
Operating mode DEPLETION MODE DEPLETION MODE DEPLETION MODE
Maximum operating temperature 150 °C 150 °C 150 °C
Package body material METAL METAL METAL
Package shape ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL
Certification status Not Qualified Not Qualified Not Qualified
surface mount NO NO NO
Terminal form WIRE WIRE WIRE
Terminal location BOTTOM BOTTOM BOTTOM
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
