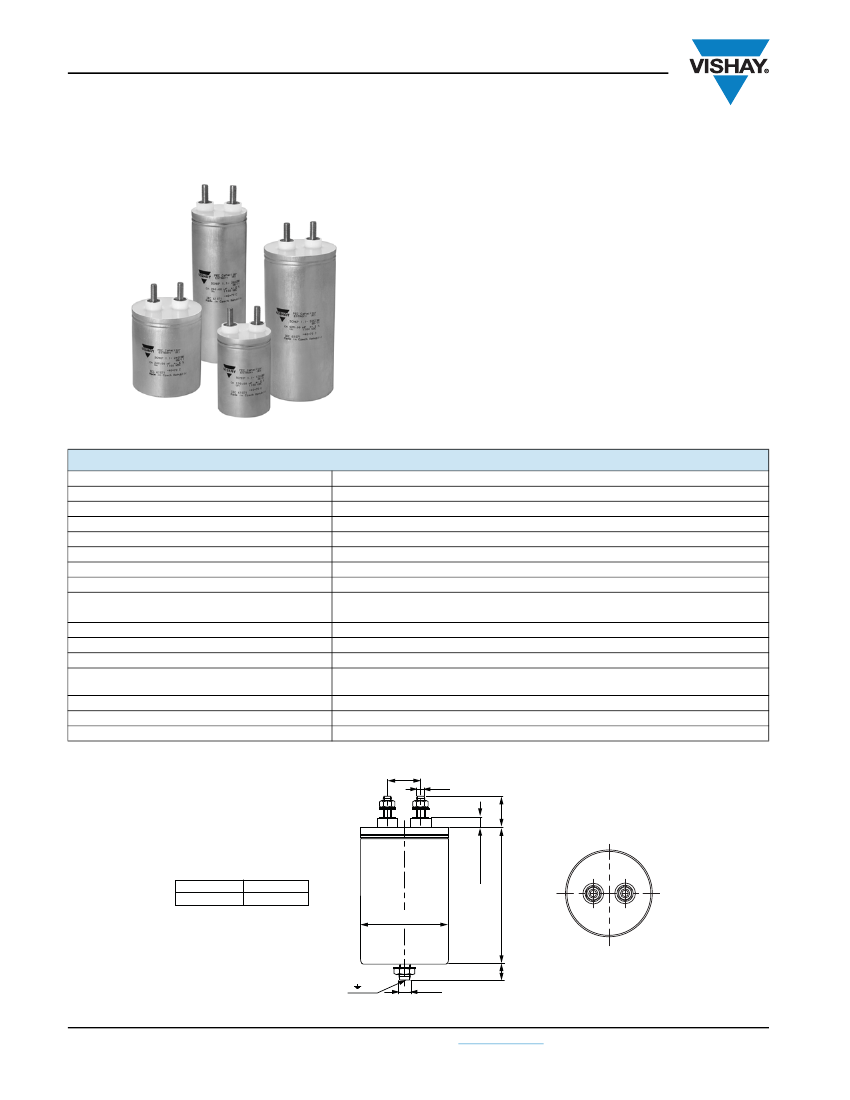

DCMKP
Vishay ESTA
Capacitors for Power Electronics (PEC) - Cylindrical
FEATURES
•
•
•
•
•
•
High impulse current rating up to 10 kA
Low self-inductance of < 100 nH
High reliability and life expectancy
Withstands heavy duty shock and vibration
Non-polar dielectric
Dry, resin filled
APPLICATIONS
• DC linking and DC filtering in industry and traction
converters
• DC linking in low-power drives
• Impulse discharge capacitors for magnetizing and
welding
• Replacement of aluminum electrolytic capacitors (lower
capacitance, higher currents)
QUICK REFERENCE DATA
DESCRIPTION
Rated DC voltage min.
Rated DC voltage max.
Capacitance min.
Capacitance max.
Technology
Dissipation factor (tan
0
)
Capacitance tolerance
Operating temperature (hot spot)
Inductance
Lifetime expectancy
Reliability
Test voltage
Casing material
Filling
Standards
VALUE
880 V
1000 V
30 μF
2235 μF
Metallized polypropylene
< 2 x 10
-4
±5%
min.
- 40 °C
max.
+ 80 °C
< 100 nH
200 000 h at U
NDC
and < 60 °C hotspot
200 FIT
Terminal/terminal = 1.5 x U
NDC
, 10 s
Terminal/case = 2 x U
NDC
+ 1000 V
AC
, 60 s
Aluminum
Resin polyurethane, UL 94 V-0
IEC 61071-1, IEC 61881 and EN 61071-1
DIMENSIONS
in millimeters
A
M8
30 ± 1
D
≤
84.4 mm
D = 116 mm
A = 32 mm
A = 50 mm
D
9.5 ± 0.5
H
15.8
-
1
M12
0
Drawing 1
www.vishay.com
14
For technical questions, contact:
esta@vishay.com
Document Number: 13039
Revision: 15-Feb-11
