LPE504710UH20%A datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LPE504710UH20%A

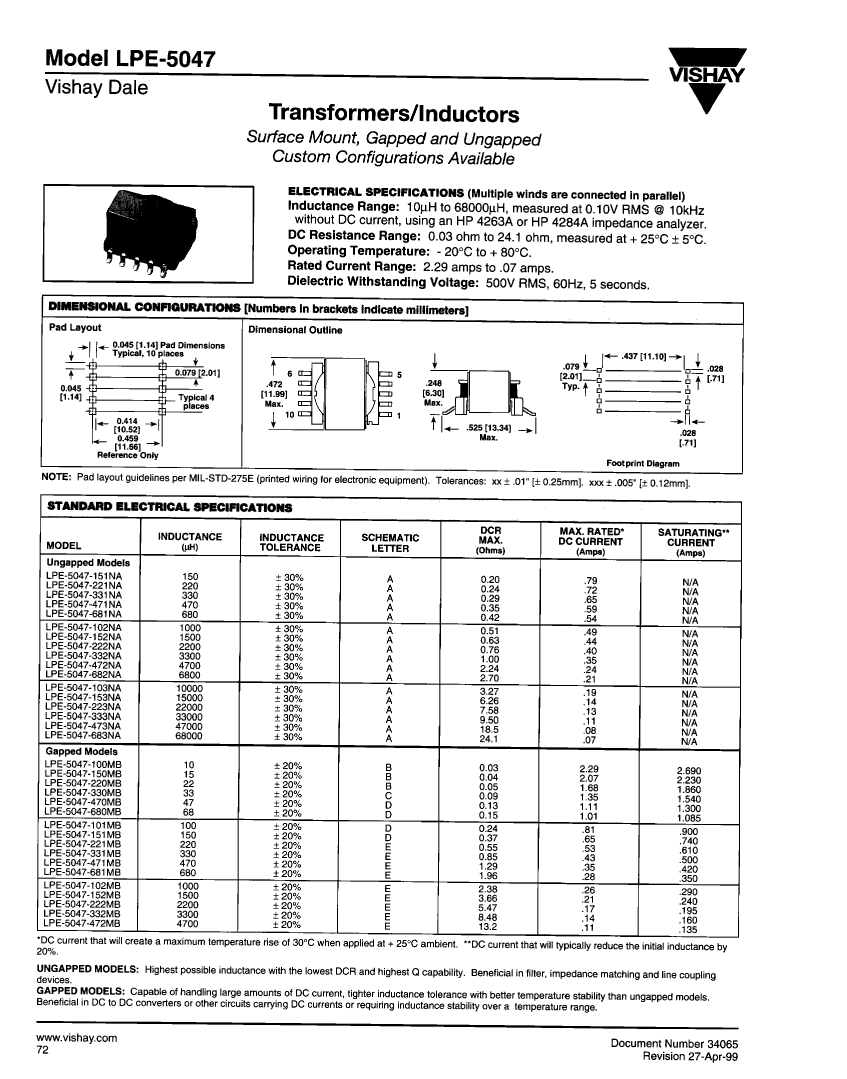

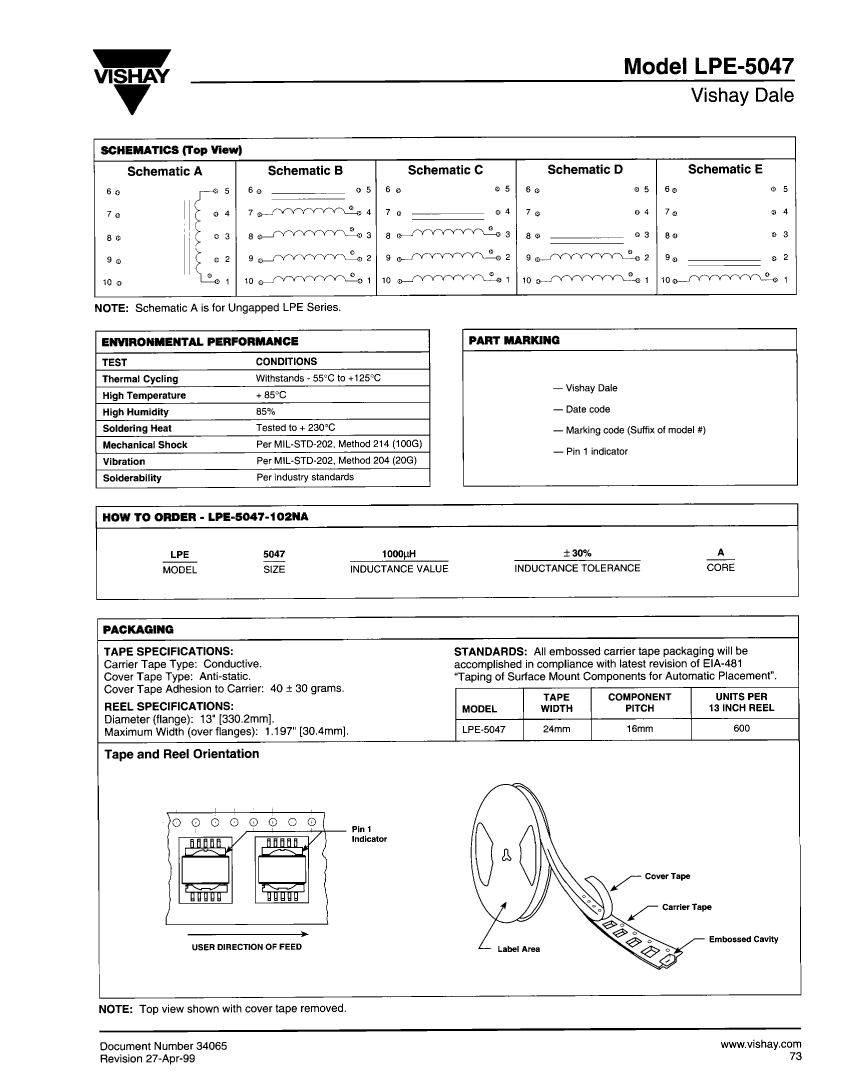

LPE504710UH20%A: DescriptionGeneral Fixed Inductor, 4 ELEMENT, 10 uH, COMMON MODE CHOKE, SMD; CategoryPassive components inductor; File Size97KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

LPE504710UH20%A Overview

General Fixed Inductor, 4 ELEMENT, 10 uH, COMMON MODE CHOKE, SMD

LPE504710UH20%A Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.03 Ω
Nominal inductance(L)	10 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	COMMON MODE CHOKE
JESD-609 code	e2
Number of functions	4
Number of terminals	10
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	2.29 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	TIN COPPER
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.01 MHz
Tolerance	20%

Preview

Download Datasheet

View All

LPE504710UH20%A Related Products

	LPE504710UH20%A	LPE5047150UH20%A	LPE50471000UH20%A	LPE5047680UH20%A	LPE504747UH20%A	LPE504722UH20%A	LPE50471500UH20%A
Description	General Fixed Inductor, 4 ELEMENT, 10 uH, COMMON MODE CHOKE, SMD	General Fixed Inductor, 2 ELEMENT, 150 uH, COMMON MODE CHOKE, SMD	General Fixed Inductor, 1 ELEMENT, 1000 uH, GENERAL PURPOSE INDUCTOR, SMD	General Fixed Inductor, 1 ELEMENT, 680 uH, GENERAL PURPOSE INDUCTOR, SMD	General Fixed Inductor, 2 ELEMENT, 47 uH, COMMON MODE CHOKE, SMD	General Fixed Inductor, 4 ELEMENT, 22 uH, COMMON MODE CHOKE, SMD	General Fixed Inductor, 1 ELEMENT, 1500 uH, GENERAL PURPOSE INDUCTOR, SMD
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.03 Ω	0.37 Ω	2.38 Ω	1.96 Ω	0.13 Ω	0.05 Ω	3.66 Ω
Nominal inductance(L)	10 µH	150 µH	1000 µH	680 µH	47 µH	22 µH	1500 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	COMMON MODE CHOKE	COMMON MODE CHOKE	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	COMMON MODE CHOKE	COMMON MODE CHOKE	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2	e2	e2	e2	e2	e2	e2
Number of functions	4	2	1	1	2	4	1
Number of terminals	10	10	10	10	10	10	10
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum rated current	2.29 A	0.65 A	0.26 A	0.28 A	1.11 A	1.68 A	0.21 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Test frequency	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay
