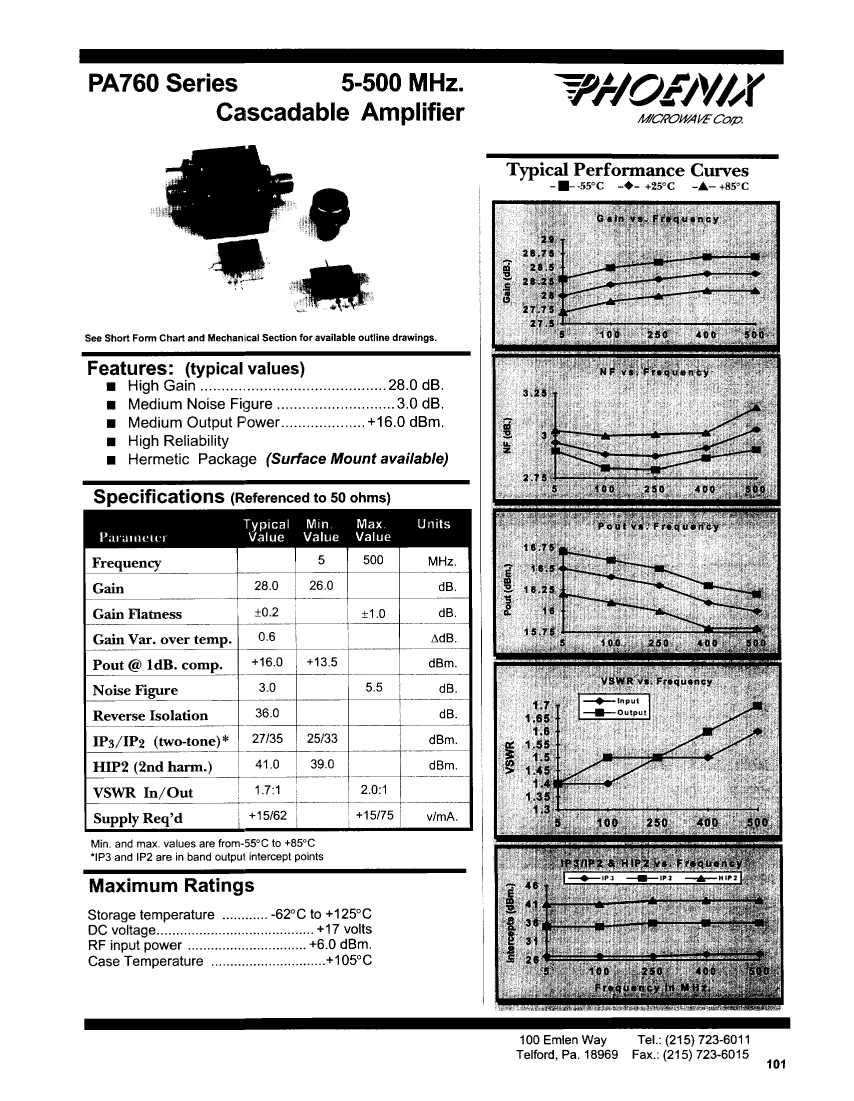

PA760 datasheet, PDF - EEWORLD Datasheet

PA760: DescriptionWide Band Low Power Amplifier, 5MHz Min, 500MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size415KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

PA760 Overview

Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	6 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

	PA760	PA760F	PA760MH	PA760FH	PA760M	PA760C	PA760CS
Description	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max,
Maker	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	6 dBm	6 dBm	6 dBm	6 dBm	6 dBm	6 dBm	6 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
