KM23C32000AG-15 datasheet, PDF

Datasheet> All Categories > storage> storage> KM23C32000AG-15

KM23C32000AG-15: DescriptionMASK ROM, 4MX8, 150ns, CMOS, PDSO44, SOP-44; Categorystorage storage; File Size43KB，1 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM23C32000AG-15 Overview

MASK ROM, 4MX8, 150ns, CMOS, PDSO44, SOP-44

KM23C32000AG-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	SOIC
package instruction	SOP, SOP44,.63
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Spare memory width	8
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.5 mm
memory density	33554432 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	4194304 words
character code	4000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum standby current	0.00005 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	12.6 mm

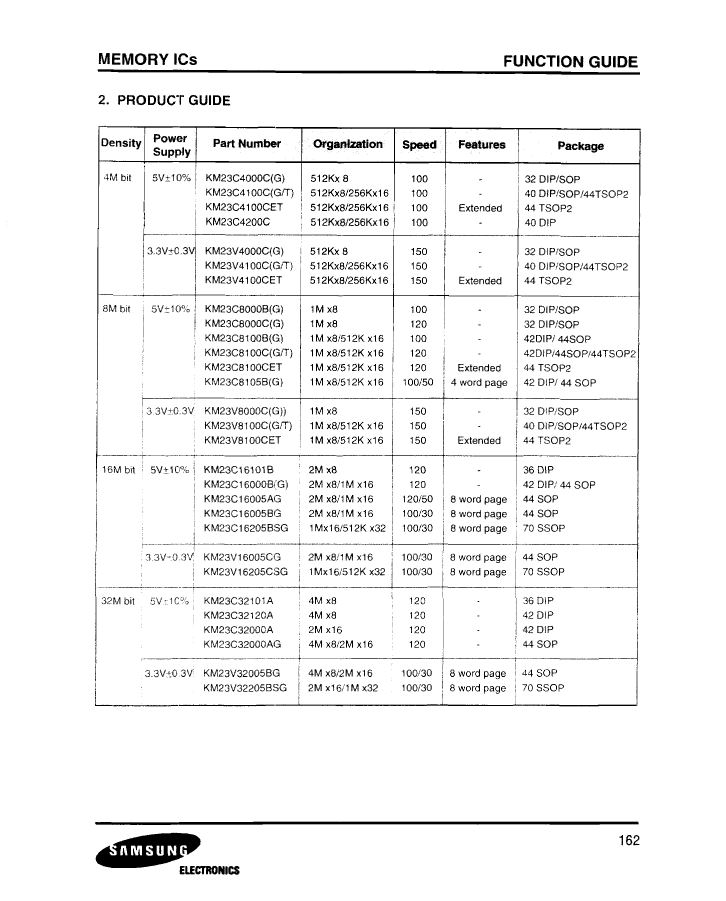

Preview

Download Datasheet

View All

KM23C32000AG-15 Related Products

	KM23C32000AG-15	KM23C32120A-15	KM23C32000A-12	KM23C32000AG-12	KM23C32000A-20	KM23C32120A-20	KM23C32120A-12	KM23C32000AG-20	KM23C32000A-15
Description	MASK ROM, 4MX8, 150ns, CMOS, PDSO44, SOP-44	MASK ROM, 4MX8, 150ns, CMOS, PDIP42, 0.600 INCH, DIP-42	MASK ROM, 2MX16, 120ns, CMOS, PDIP42, 0.600 INCH, DIP-42	MASK ROM, 4MX8, 120ns, CMOS, PDSO44, SOP-44	MASK ROM, 2MX16, 200ns, CMOS, PDIP42, 0.600 INCH, DIP-42	MASK ROM, 4MX8, 200ns, CMOS, PDIP42, 0.600 INCH, DIP-42	MASK ROM, 4MX8, 120ns, CMOS, PDIP42, 0.600 INCH, DIP-42	MASK ROM, 4MX8, 200ns, CMOS, PDSO44, SOP-44	MASK ROM, 2MX16, 150ns, CMOS, PDIP42, 0.600 INCH, DIP-42
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	DIP	SOIC	DIP	DIP	DIP	SOIC	DIP
package instruction	SOP, SOP44,.63	DIP, DIP42,.6	DIP, DIP42,.6	SOP, SOP44,.63	DIP, DIP42,.6	DIP, DIP42,.6	DIP, DIP42,.6	SOP, SOP44,.63	DIP, DIP42,.6
Contacts	44	42	42	44	42	42	42	44	42
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	150 ns	120 ns	120 ns	200 ns	200 ns	120 ns	200 ns	150 ns
JESD-30 code	R-PDSO-G44	R-PDIP-T42	R-PDIP-T42	R-PDSO-G44	R-PDIP-T42	R-PDIP-T42	R-PDIP-T42	R-PDSO-G44	R-PDIP-T42
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	28.5 mm	52.25 mm	52.25 mm	28.5 mm	52.25 mm	52.25 mm	52.25 mm	28.5 mm	52.25 mm
memory density	33554432 bit	33554432 bi	33554432 bi	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	16	8	16	8	8	8	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	44	42	42	44	42	42	42	44	42
word count	4194304 words	4194304 words	2097152 words	4194304 words	2097152 words	4194304 words	4194304 words	4194304 words	2097152 words
character code	4000000	4000000	2000000	4000000	2000000	4000000	4000000	4000000	2000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX8	4MX8	2MX16	4MX8	2MX16	4MX8	4MX8	4MX8	2MX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	DIP	DIP	DIP	SOP	DIP
Encapsulate equivalent code	SOP44,.63	DIP42,.6	DIP42,.6	SOP44,.63	DIP42,.6	DIP42,.6	DIP42,.6	SOP44,.63	DIP42,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	5.08 mm	5.08 mm	3.1 mm	5.08 mm	5.08 mm	5.08 mm	3.1 mm	5.08 mm
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	12.6 mm	15.24 mm	15.24 mm	12.6 mm	15.24 mm	15.24 mm	15.24 mm	12.6 mm	15.24 mm
Maker	SAMSUNG	-	-	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
