NMC0805X7R183J50TRPLP: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.018uF, SURFACE MOUNT, 0805, CHIP; CategoryPassive components capacitor; File Size170KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

NMC0805X7R183J50TRPLP Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.018uF, SURFACE MOUNT, 0805, CHIP

NMC0805X7R183J50TRPLP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.018 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Other Capacitance Values Also Available
dielectric materials	CERAMIC
high	1.3 mm
JESD-609 code	e0
length	2 mm
Manufacturer's serial number	NMC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
series	NMC0805(X7R,50V)
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

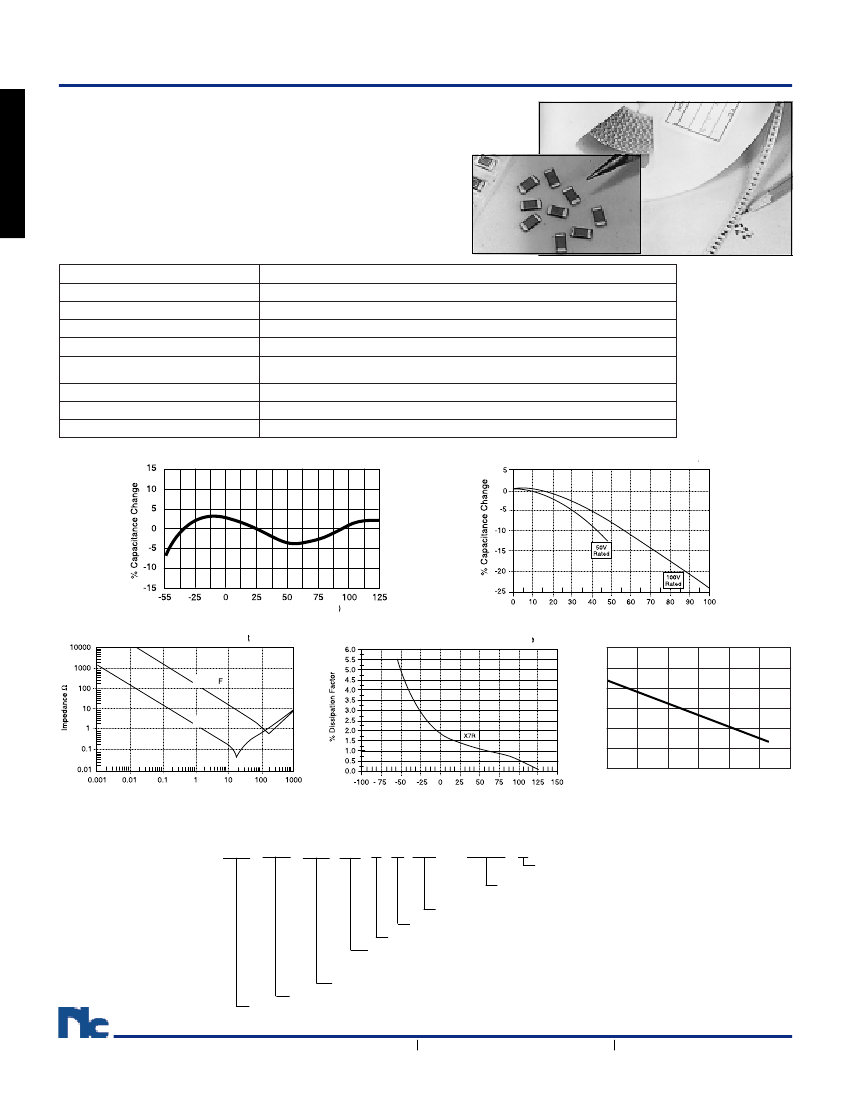

Multilayer Ceramic Chip Capacitors

FEATURES

• CLASS II DIELECTRIC, TEMPERATURE STABLE

• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR

CAPACITANCE CHANGE

• HIGHER CAPACITANCE THAN NPO

• NICKEL BARRIER TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

• EIA MARKING AVAILABLE

SPECIFICATIONS X7R

Capacitance Range

Capacitance Tolerances

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

Insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

Typical X7R Temperature Coefficient

NMC Series X7R

SURFACE MOUNT

47pF to 10

µF

±5%(J), ±10%(K), ±20%(M)

-55

o

C to +125

o

C

±15%

∆

max. over temperature range (with 0 Vdc applied)

16Vdc, 25Vdc, 50Vdc, 100Vdc (see NMC-H Series for Higher Voltages)

2.5% max. (50Vdc, 100Vdc); 3.5% max. (16Vdc, 25Vdc), 5% max. (10Vdc)

@ 1.0Vrms and khz, +25

o

C

100,000 Megohms min. or 1000 ohm/F min. whichever is less @ 25°C

250% of Rated Voltage for 5 ± 1 seconds, 50 milliamps maximum

1khz, 1.0V ±0.2 Vrms

Voltage Coefficient of Capacitance - X7R

Temperature °C

Impedance vs. Frequency - X7R

% Dissipation Factor vs. Temperature

DC Volts Applied

Minimum Insulation Resistance

vs. Temperature

10000

.001uF

Insulation Resistance

(Ω Farads)

1000

0.1uF

100

10

25

100

125

Frequency (Mhz)

Temperature °C

PART NUMBERING SYSTEM

NMC

0805

X7R

102

K 50 TRP or TRPLP

F

Lead Free Terminations

(100% Sn optional)

Tape and Reel (Embossed Plastic

Carrier), TRPLP10 = 10K pcs per reel

TRP = Tape & Reel Paper Carrier, TRP10 = 10K pcs per reel

Voltage (Vdc)

Capacitance Tolerance Code (see chart above)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

®

Series

140

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
