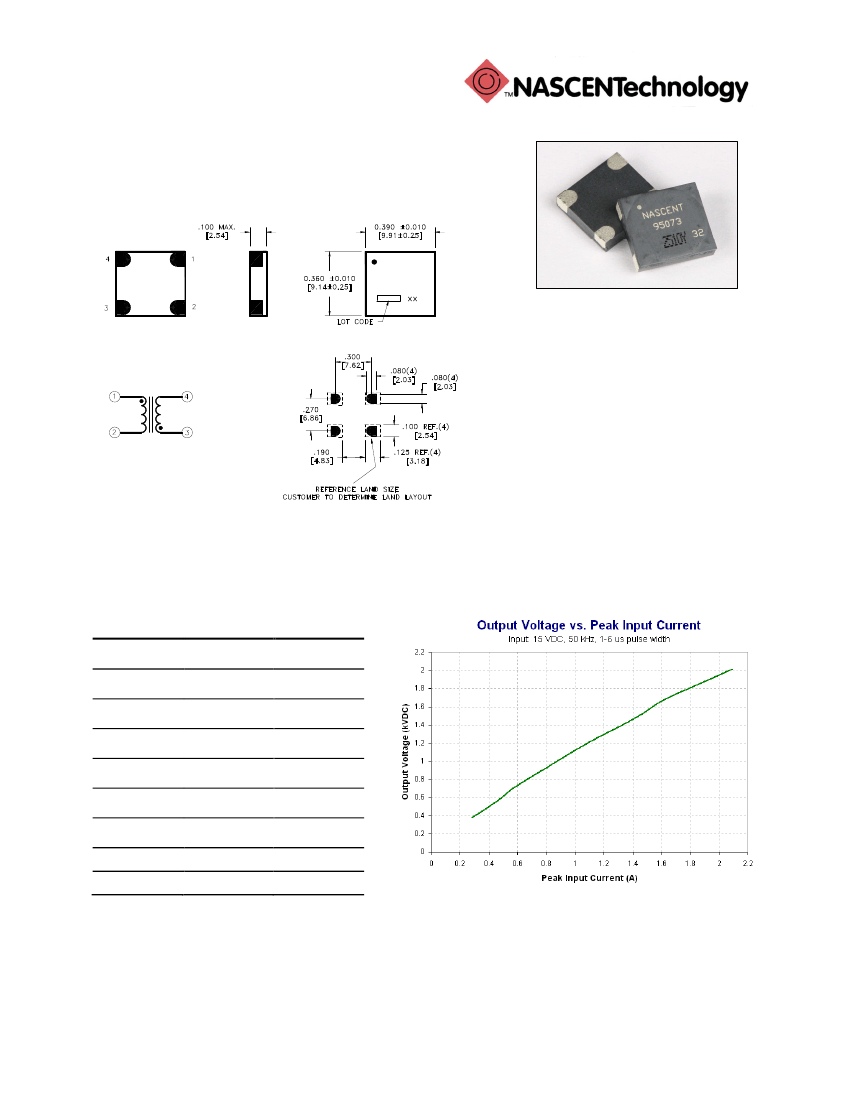

95073-STX Overview

LTCC High Voltage Flyback Transformer

LTCC
High Voltage Flyback Transformer
95073, 95073-STX
NASCENT
95073
Features
Low profile
Rugged package
Self shielding
Pick and place
Customization available
Variants
-STX’s are pre-stressed
NASCENTechnology, Inc. has developed a transformer for high voltage flyback applications using low
temperature co-fired ceramic (LTCC) ferrite. Using a standard flyback circuit, 1500 VDC output is possible
from a 15 VDC input. The monolithic structure affords improved mechanical strength over traditional
transformer technology.
Electrical Parameters
Primary
Inductance
Pulse
Inductance
Leakage
Inductance
Secondary
Inductance
Primary
Resistance
Secondary
Resistance
Dielectric
Rating
Turns ratio
V-us Rating
100 kHz
500 mV
15 VDC
1.5A, ~4.0 us
100 kHz
500 mV
100 kHz
500 mV
75.0 uH
+/- 33%
35.0 uH min.
11 uH typ.
3.7 mH
+/- 33 %
1.45 ohms
+/- 20%
35.0 ohms
+/- 20%
1500 V
1:8
90
60 Hz, 1s
For additional information, contact: Daryl Schofield
Phone: 605-882-8513, Fax: 605-884-2450, E-Mail: dschofield@nascentechnology.com
NASCENTechnology, Inc. 121 Airport Drive, Watertown, SD 57201
www.nascentechnology.com
This product is protected under US Patent #6054914, #6198374 and other international patents.
Specifications subject to change without notice. 03/13
