Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• HIGH TEMPERATURE, EXTEND LIFE (5000 HOURS @ 105°C)
• 4X6.3mm ~ 16X17mm CASE SIZES
NEW
• DESIGNED FOR REFLOW SOLDERING
NAWU Series
CHARACTERISTICS
Rated Voltage Range
Rate Capacitance Range
Oerating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Tan
δ
@120Hz/20°C
6.3 ~ 400Vdc
0.1 ~ 220µF
-40°C ~ +105°C
±20% (M)
Expanded Voltage Range
100V ~ 400V
W.V. (Vdc)
S.V.(Vdc)
Tan
δ
Capacitance Change
6.3
8
0.30
0.01CV or 3µA
whichever is greater
10
16
25
13
20
32
0.24
0.20
0.16
0.03CV +15
35
44
0.14
50
63
0.14
100
125
0.18
160
200
0.2
200
250
0.2
400
450
0.25
Within ± 30% of initial measured value
Less than 300% of specified max. value
Less than specified max. value
Load Life Test @ 105°C
5,000hrs
Tan
δ
Leakage Current
PART NUMBER SYSTEM
NAWU 100 M 16V 4x6.3 J B Y F
RoHS Compliant
Termination finish & Packaging Code
Peak Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in mF, first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certified production site
PEAK REFLOW
TEMPERATURE CODES
Code
L
K
J
H
G
Peak Reflow
Temperature
250°C
245°C
240°C
235°C
230°C
TERMINATION FINISH &
PACKAGING OPTIONS CODES
Code
Finish & Reel Size
B
Sn-Bi Finish & 13" Reel
LB
Sn-Bi Finish & 15" Reel
S
100% Sn Finish & 13" Reel
LS 100% Sn Finish & 15" Reel
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
30
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, PART NUMBERS AND
MAXIMUM RIPPLE CURRENT
Cap.
(μF)
NAWU330M6.3V5X6.3JBF
33
NAWU470M6.3V5X6.3JBF
47
6.3
NAWU101M6.3V6.3X6.3JBF
100
NAWU221M6.3V6.3X8LBF
220
NAWU220M10V5X6.3JBF
22
NAWU330M10V5X6.3JBF
33
10
NAWU470M10V6.3X6.3JBF
47
NAWU101M10V6.3X8LBF
100
NAWU100M16V4X6.3JBF
10
NAWU220M16V5X6.3JBF
22
NAWU330M16V6.3X6.3JBF
16
33
NAWU470M16V6.3X6.3JBF
47
NAWU101M16V6.3X8LBF
100
NAWU100M25V5X6.3JBF
10
NAWU220M25V6.3X6.3JBF
22
25
NAWU330M25V6.3X6.3JBF
33
NAWU470M25V6.3X8LBF
47
NAWU4R7M35V4X6.3JBF
4.7
NAWU100M35V5X6.3JBF
10
35
NAWU220M35V6.3X6.3JBF
22
NAWU330M35V6.3X8LBF
33
NAWUR10M50V4X6.3JBF
0.1
NAWUR22M50V4X6.3JBF
0.22
NAWUR33M50V4X6.3JBF
0.33
NAWUR47M50V4X6.3JBF
0.47
NAWU1R0M50V4X6.3JBF
1.0
50
NAWU2R2M50V4X6.3JBF
2.2
NAWU3R3M50V4X6.3JBF
3.3
NAWU4R7M50V5X6.3JBF
4.7
NAWU100M50V6.3X6.3JBF
10
NAWU220M50V6.3X8LBF
22
NAWU100M100V8X10.8JBF
100
10
NAWU100M160V10X10.8JBF
10
NAWU220M160V12.5X14HBF
22
NAWU330M160V12.5X14HBF
33
160
NAWU470M160V16X17GSF
47
NAWU680M160V16X17GSF
68
NAWU820M160V16X17GSF
82
NAWU100M200V10X10.8JBF
10
NAWU220M200V12.5X14HBF
22
NAWU330M200V12.5X14HBF
200
33
NAWU470M200V16X17GSF
47
NAWU680M200V16X17GSF
68
NAWU2R2M400V8X10.8JBF
2.2
NAWU3R3M400V10X10.8JBF
3.3
NAWU4R7M400V10X10.8JBF
400
4.7
NAWU100M400V12.5X14HBF
10
NAWU220M400V16X17GSF
22
For Automotive Equipment see part number system
Part Number
W.V.
(Vdc)
Dissipaton Factor
(Tan
δ)
0.30
0.30
0.30
0.30
0.24
0.24
0.24
0.24
0.20
0.20
0.20
0.20
0.20
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.18
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.25
0.25
0.25
0.25
0.25
Ripple Current Rating
(mA @ 105°C/120Hz)
35
38
69
101
30
35
50
81
18
30
48
50
81
25
42
50
63
16
27
44
57
1.0
2.6
3.2
4.0
8.0
11
14
19
32
49
55
43
112
137
180
215
235
43
112
137
180
215
25
36
38
57
115
Load Life Hours
@ +105°C
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
NAWU Series
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
31
Surface Mount Aluminum Electrolytic Capacitors
RIPPLE CURRENT
FREQUENCY CORRECTION FACTOR
Frequency Hz
0.1 ~ 1.0μF
2.2 ~ 4.7μF
10 ~ 47μF
100 ~ 220μF
60(50)
0.50
0.65
0.80
0.80
120
1.00
1.00
1.00
1.00
500
1.20
1.20
1.20
1.10
1K
1.30
1.30
1.30
1.15
10K<
1.50
1.50
1.50
1.20
NAWU Series
STANDARD PRODUCTS AND CASE SIZE TABLE D x L (mm)
Cap
Code
(μF)
0.1 R10
0.22 R22
0.33 R33
0.47 R47
1.0 1R0
2.2 2R2
3.3 3R3
4.7 4R7
10
100
22
220
33
330
47
470
68
680
82
820
100 101
220 221
6.3
-
-
-
-
-
-
-
-
-
-
5X6.3
5X6.3
-
-
6.3X6.3
6.3X8
10
-
-
-
-
-
-
-
-
-
5X6.3
5X6.3
6.3X6.3
-
-
6.3X8
-
16
-
-
-
-
-
-
-
-
4X6.3
5X6.3
6.3X6.3
6.3X6.3
-
-
6.3X8
-
25
-
-
-
-
-
-
-
-
5X6.3
5X6.3
6.3X6.3
6.3X8
-
-
-
-
Working Voltage (Vdc)
35
50
-
4X6.3
-
4X6.3
-
4X6.3
-
4X6.3
-
4X6.3
4X6.3
-
-
4X6.3
4X6.3
5X6.3
5X6.3
6.3X6.3
6.3X6.3
6.3X8
6.3X8
-
-
-
-
-
-
-
-
-
-
-
100
-
-
-
-
-
-
-
-
8X10.8
-
-
-
-
-
-
160
-
-
-
-
-
-
-
-
10X10.8
12.5X14
12.5X14
16X17
16X17
16X17
-
-
200
-
-
-
-
-
-
-
-
10X10.8
12.5X14
12.5X14
16X17
16X17
-
-
-
400
-
-
-
-
-
8X10.8
10X10.8
10X10.8
12.5X14
16X17
-
-
-
-
-
-
New Values
DIMENSIONS D x L (mm)
Case Size
4x6.3(6.1)
5x6.3
6.3x6.3
6.3X8
8x10.8
10x10.8
12.5x14
16x17
φD
4.0
5.0
6.3
6.3
8.0
10.0
12.5
16
L max.
6.3
6.3
6.3
8.0
10.8
10.8
14
17
A ± 0.2 B ± 0.2
4.3
4.3
5.3
5.3
6.6
6.6
6.6
6.6
8.3
8.3
10.3
10.3
12.8
12.8
16.3
16.3
I ± 0.2
1.8
2.2
2.5
2.5
2.9
3.2
4.5
5.5
W
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.1
0.8 ~ 1.4
1.0 ~ 1.4
1.8 ~ 2.1
P ± 0.2
1.0
1.3
1.8
2.2
3.2
4.6
4.6
7.0
Dφ
W
0.3mm max.
+
I
I
-
L
P
B
A
RECOMMENDED LAND PATTERN (mm)
Case Dia.
4
5
6.3
8
10
12.5
16
a
1.0
1.4
2.1
2.8
4.3
4.3
6.6
b
2.6
3.0
3.5
4.1
4.4
5.8
6.5
c
1.6
1.6
1.6
2.1
2.5
2.5
5.0
Solder Pads
+
-
c
b
a
b
32
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors

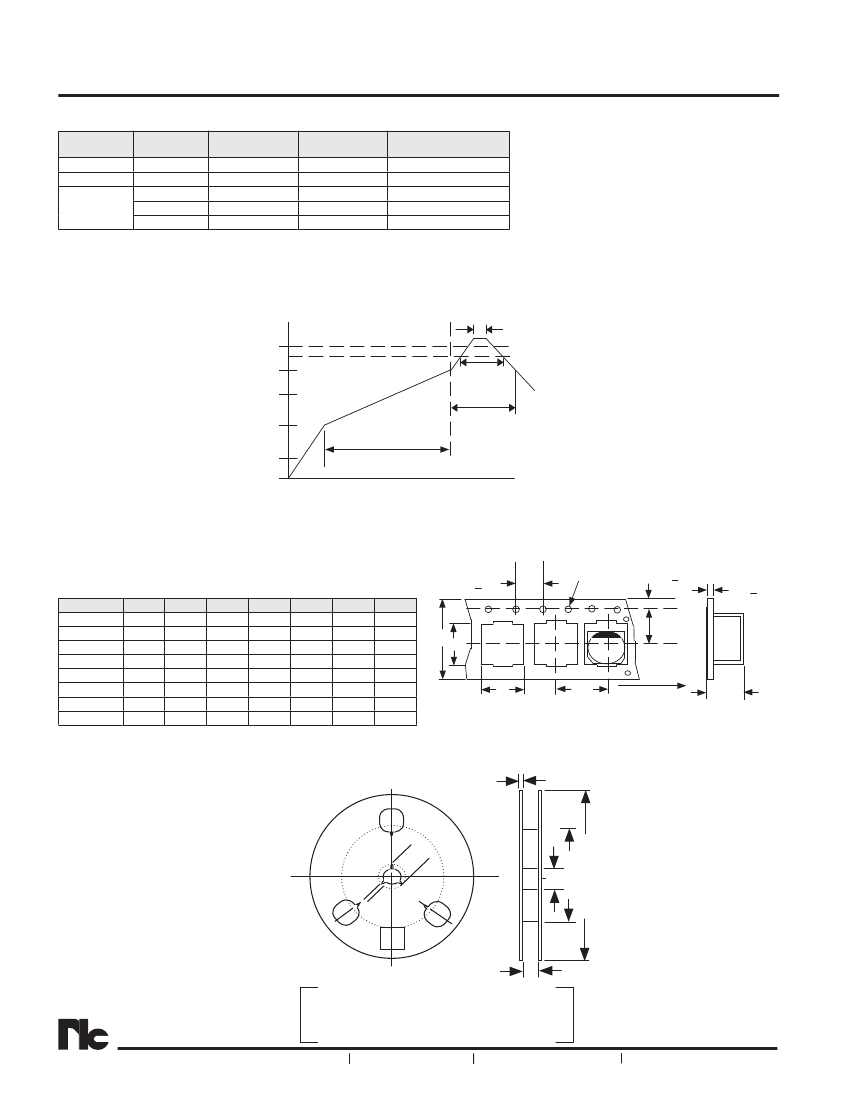

PEAK REFLOW TEMPERATURE AND DURATION
Voltage
6.3 ~ 50V
100V
160 ~ 400V
Diameter
4 ~ 6.3mm
φ
8mm
φ
8 ~ 10mm
φ
12.5mm
φ
16mm
φ
Time above
200°C
70 sec. max.
60 sec. max.
50 sec. max.
45 sec. max.
30 sec. max.
Time above
230°C
40 sec. max.
30 sec. max
20 sec. max.
10 sec. max.
-
Peak Temperature
5 seconds
250°C
240°C
240°C
235°C
230°C
NAWU Series
Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.
Peak Temperature = 240°C for 5 secs
Temperature - Deg. C
230
200
150
100
50
25
Time (Seconds)
Preheat 100°C ~ 200°C
180 sec.
Time Above 220°C
40 secs max.
Time Above 200°C
60 secs max.
CARRIER TAPE DIMENSIONS & REEL QTY
Case Size A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2
4 x 6.3(6.1)
4.7
4.7
12.0
5.5
8.0
6.2
5 x 6.3
5.7
5.7
12.0
5.5
12.0
6.2
6.3 x 6.3
7.0
7.0
16.0
7.5
12.0
6.2
6.3 x 8
7.0
7.0
16.0
7.5
12.0
8.2
8 x 10.8
8.7
8.7
24.0
11.5
16.0
11.1
10 x 10.8
10.7
10.7
24.0
11.5
16.0
11.2
12.5 x 14
13.2
13.2
32.0
14.2
24.0
14.3
16 x 17
17.5
17.5
44.0
20.2
28.0
17.3
Qty
1,200
800
800
500
300
300
200
125
4 + 0.1
1.5φ+0.1/-0
1.75 + 0.15
0.4 + 0.2
D
C
B
A
P
Feeding
T
REEL
3.0
±
0.5
13∅
±0.5
2.
0
W
Review & Compare Reflow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
50∅ Min.
21
330 or 380mm
www.SMTmagnetics.com
33
