87438-1232 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87438-1232

87438-1232: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle,; CategoryThe connector The connector; File Size185KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87438-1232 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle,

87438-1232 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE, SHROUDED
body width	0.175 inch
subject depth	0.226 inch
body length	0.759 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Manufacturer's serial number	87438
Plug contact pitch	0.059 inch
Plug information	87439-1200
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0

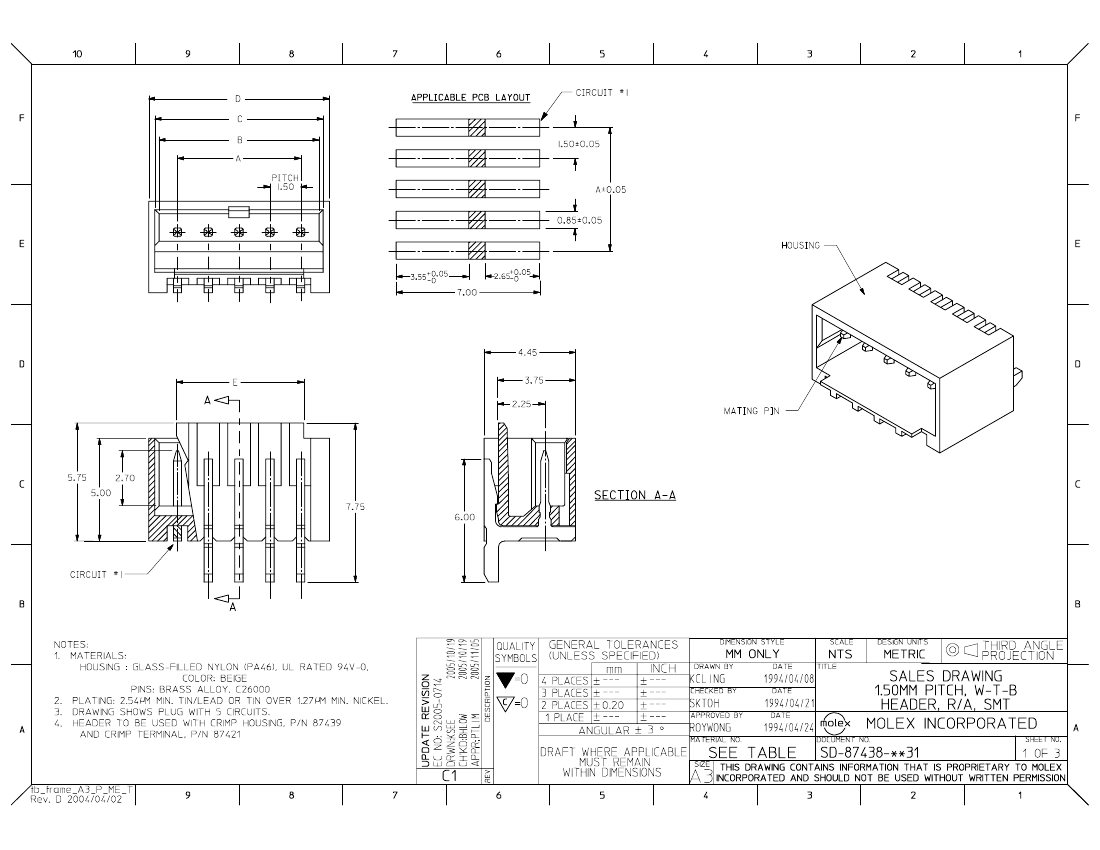

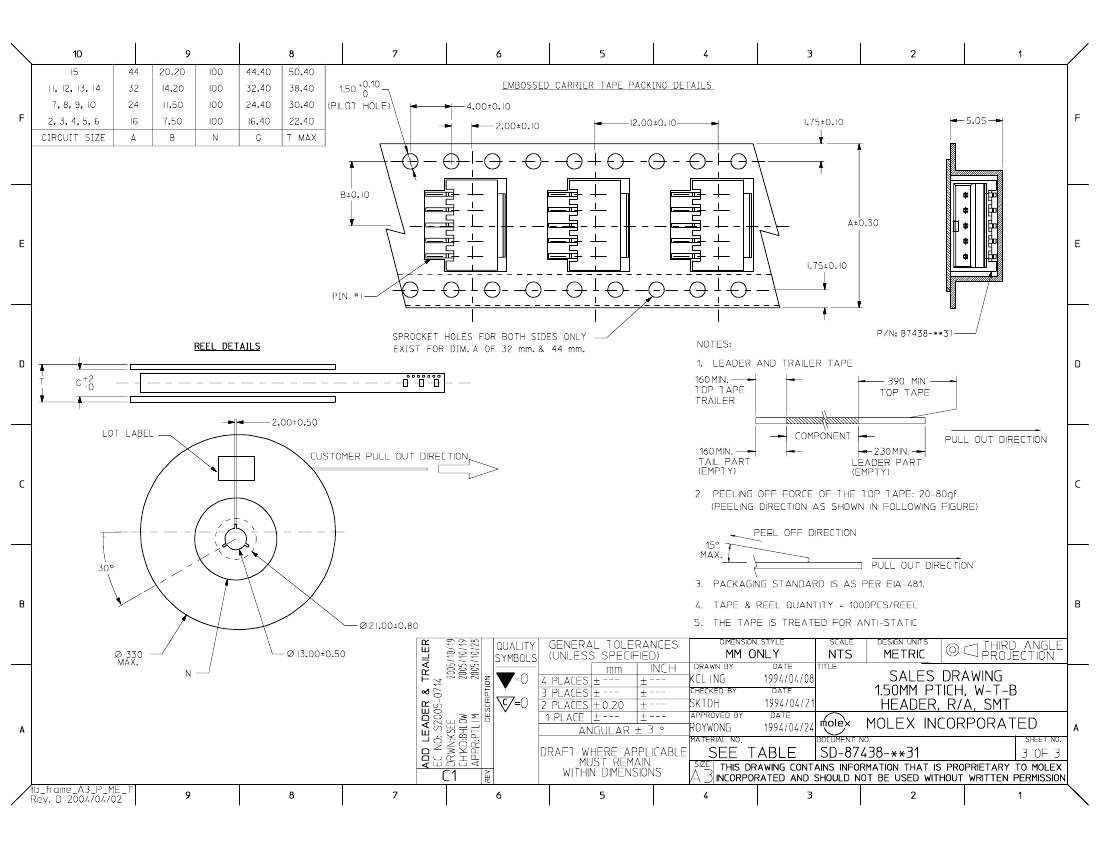

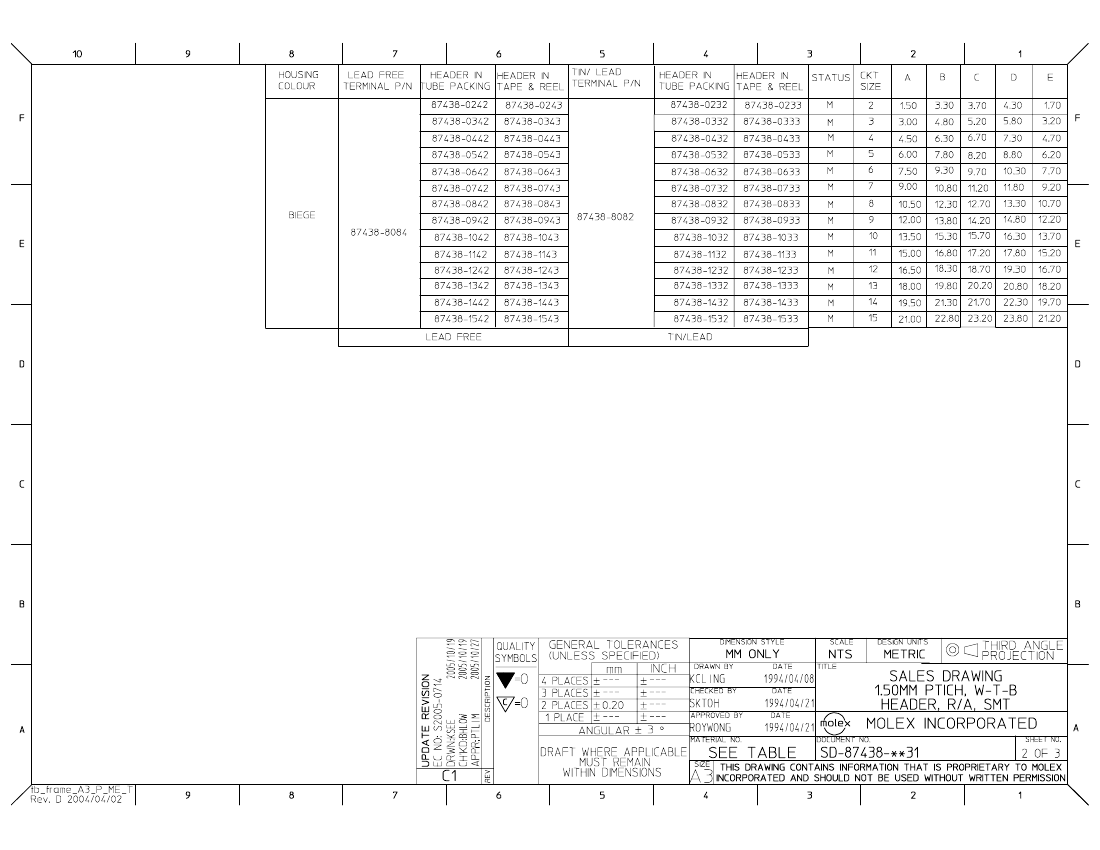

87438-1232 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

87438-1232 Related Products

	87438-1232	87438-1432
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle,	Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle
Is it Rohs certified?	incompatible	incompatible
Maker	Molex	Molex
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
Other features	LOW PROFILE, SHROUDED	LOW PROFILE, SHROUDED
body width	0.175 inch	0.175 inch
subject depth	0.226 inch	0.226 inch
body length	0.759 inch	0.877 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	SN-PB
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V
Durability	10 Cycles	10 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BEIGE	BEIGE
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON
MIL compliance	NO	NO
Manufacturer's serial number	87438	87438
Plug contact pitch	0.059 inch	0.059 inch
Plug information	87439-1200	87439-1400
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1.5 mm	1.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	14
UL Flammability Code	94V-0	94V-0
