HA9P5104-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA9P5104-9

HA9P5104-9: DescriptionQUAD OP-AMP, 3000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO16, PLASTIC, MS-013-AA, SOIC-16; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，14 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound17parts with similar functions to HA9P5104-9

Download Datasheet Parametric Compare View All

HA9P5104-9 Overview

QUAD OP-AMP, 3000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO16, PLASTIC, MS-013-AA, SOIC-16

HA9P5104-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA
Nominal Common Mode Rejection Ratio	95 dB
Maximum input offset voltage	3000 µV
JESD-30 code	R-PDSO-G16
length	10.3 mm
Humidity sensitivity level	1
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Maximum seat height	2.65 mm
Nominal slew rate	3 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	8000 kHz
width	7.5 mm

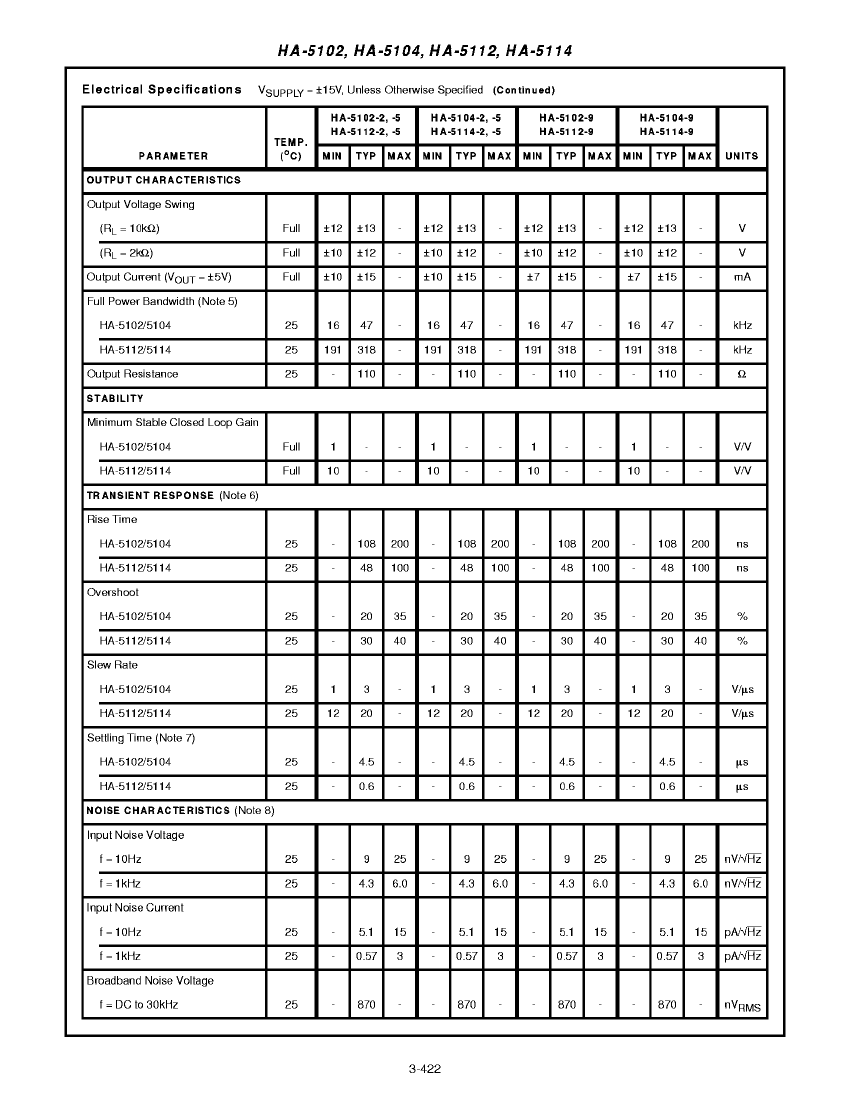

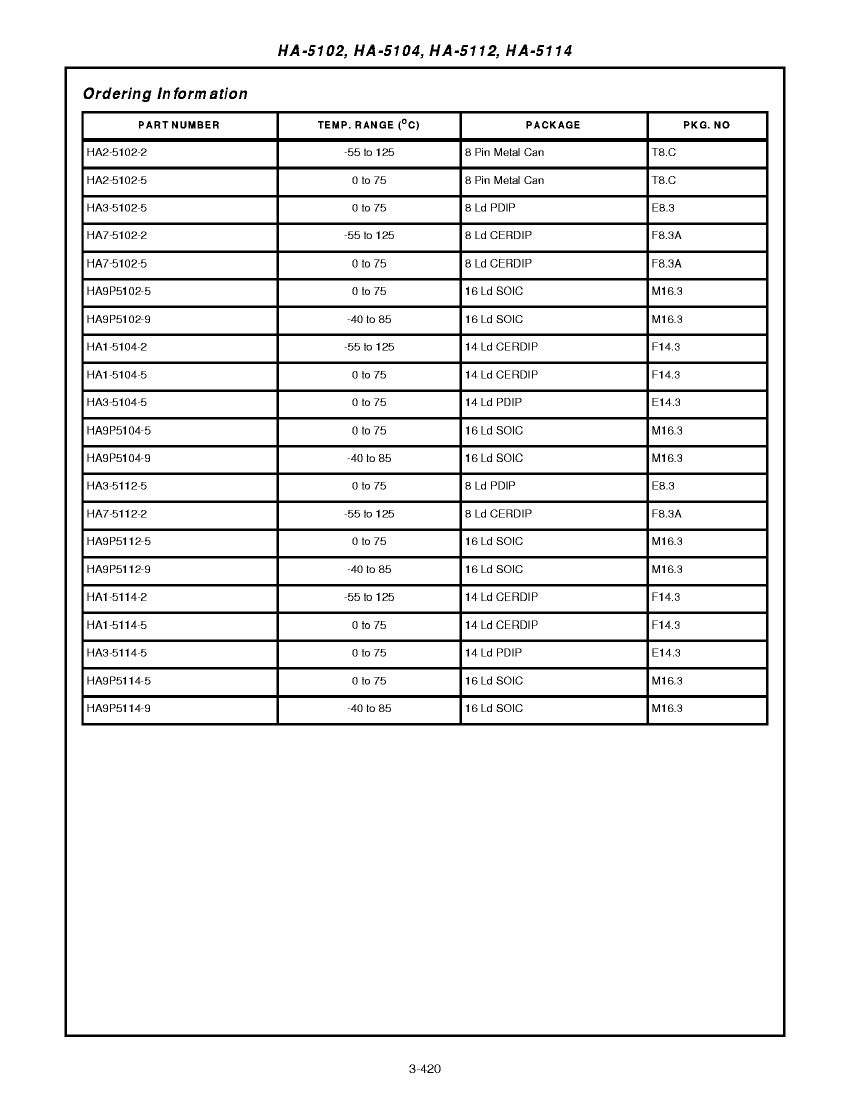

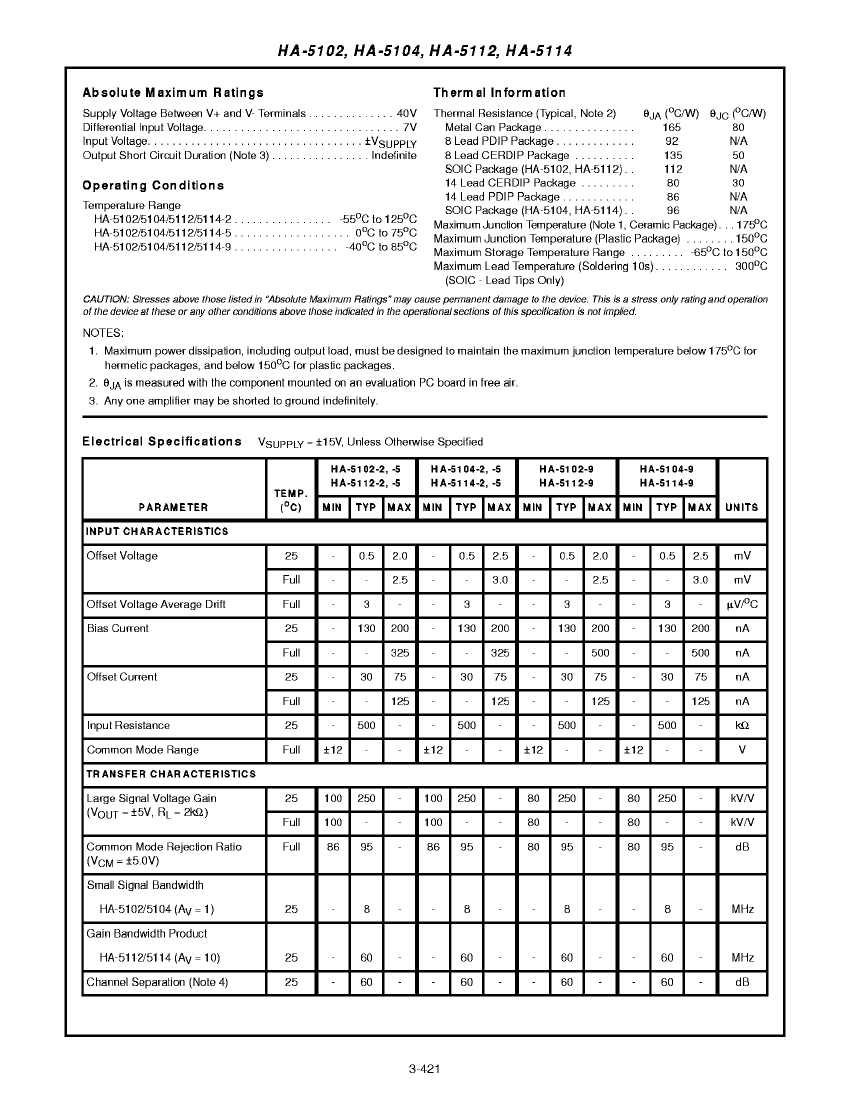

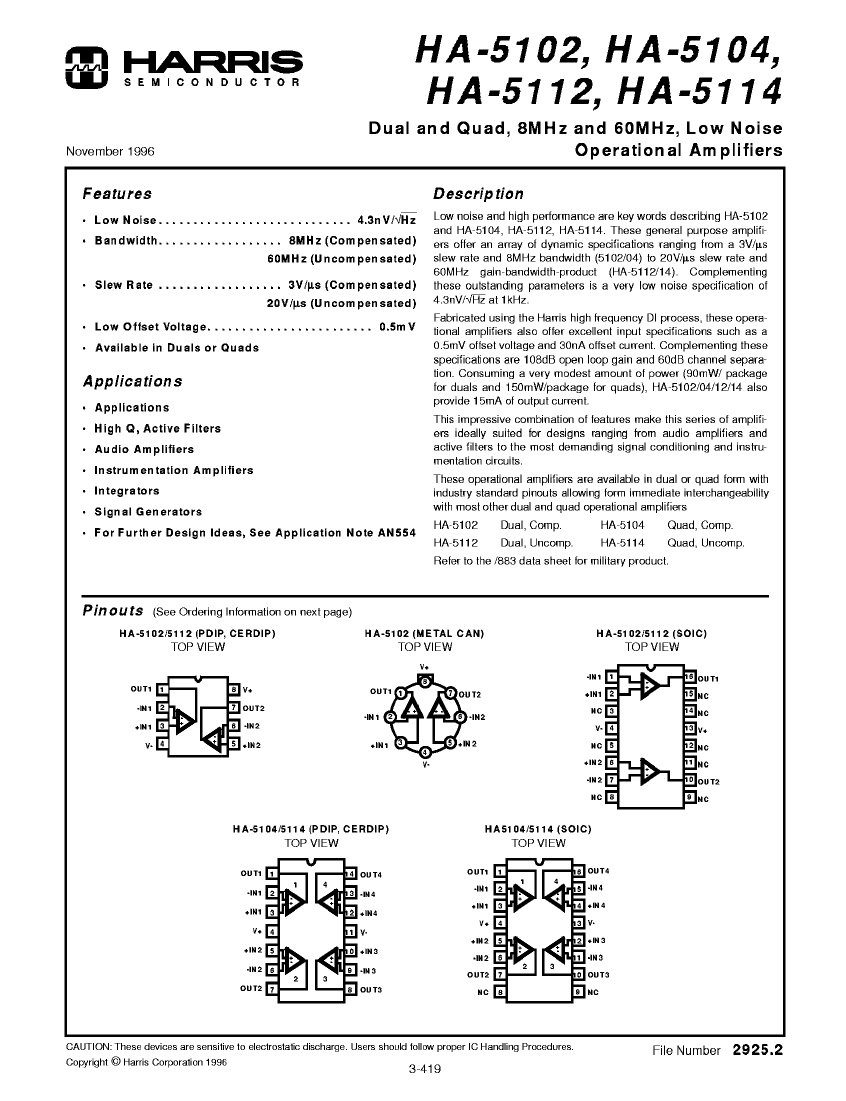

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

HA9P5104-9 Related Products

	HA9P5104-9	HA9P5104-5	HA2-5102-5	HA3-5104-5	HA7-5102-2	HA3-5102-5	HA3-5112-5	HA9P5112-9	HA3-5114-5
Description	QUAD OP-AMP, 3000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO16, PLASTIC, MS-013-AA, SOIC-16	QUAD OP-AMP, 3000uV OFFSET-MAX, 60MHz BAND WIDTH, PDSO16, PACKAGE-16	Operational Amplifier, 2 Func, 2500uV Offset-Max, BIPolar, MBCY8, PACKAGE-8	Operational Amplifier, 4 Func, 3000uV Offset-Max, BIPolar, PDIP14, PLASTIC, MS-001AA, DIP-14	DUAL OP-AMP, 2500uV OFFSET-MAX, 60MHz BAND WIDTH, CDIP8, PACKAGE-8	DUAL OP-AMP, 2500uV OFFSET-MAX, 8MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 2500uV Offset-Max, BIPolar, PDIP8, PACKAGE-8	DUAL OP-AMP, 2500 uV OFFSET-MAX, 60 MHz BAND WIDTH, PDSO16, SOIC-16	Operational Amplifier, 4 Func, 3000uV Offset-Max, BIPolar, PDIP14, PACKAGE-14
Parts packaging code	SOIC	SOIC	BCY	DIP	DIP	DIP	DIP	SOIC	DIP
package instruction	SOP,	SOP,	, CAN8,.2	DIP,	DIP,	PLASTIC, DIP-8	DIP,	SOP,	DIP,
Contacts	16	16	8	14	8	8	8	16	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA	0.325 µA	0.325 µA	0.325 µA	0.325 µA	0.325 µA	0.325 µA	0.5 µA	0.325 µA
Nominal Common Mode Rejection Ratio	95 dB	95 dB	95 dB	95 dB	95 dB	95 dB	95 dB	95 dB	95 dB
Maximum input offset voltage	3000 µV	3000 µV	2500 µV	3000 µV	2500 µV	2500 µV	2500 µV	2500 µV	3000 µV
JESD-30 code	R-PDSO-G16	R-PDSO-G16	O-MBCY-W8	R-PDIP-T14	R-GDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G16	R-PDIP-T14
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	2	4	2	2	2	2	4
Number of terminals	16	16	8	14	8	8	8	16	14
Maximum operating temperature	85 °C	75 °C	75 °C	75 °C	125 °C	75 °C	75 °C	85 °C	75 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Nominal slew rate	3 V/us	3 V/us	3 V/us	3 V/us	3 V/us	3 V/us	20 V/us	20 V/us	20 V/us
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO	NO	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	BOTTOM	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	8000 kHz	60000 kHz	60000 kHz	8000 kHz	60000 kHz	8000 kHz	60000 kHz	60000 kHz	60000 kHz
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	Rochester Electronics	Rochester Electronics	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-	-20 V
encapsulated code	SOP	SOP	-	DIP	DIP	DIP	DIP	SOP	DIP
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	-	20 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
JESD-609 code	-	e0	e0	e0	-	e0	e0	e0	e0
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Base Number Matches	-	1	1	1	1	1	-	-	-
