NRPN382PARN-RC

Description
Board Connector, 76 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal
CategoryThe connector    The connector
File Size462KB，2 Pages
ManufacturerSullins Connector Solutions
Download Datasheet Parametric View All

NRPN382PARN-RC Overview

Board Connector, 76 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal

NRPN382PARN-RC Parametric

Parameter NameAttribute value
MakerSullins Connector Solutions
Reach Compliance Codecompliant
body width0.157 inch
subject depth0.203 inch
body length2.992 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
insulator materialNYLON
Manufacturer's serial numberNRP
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts76

NRPN382PARN-RC Preview

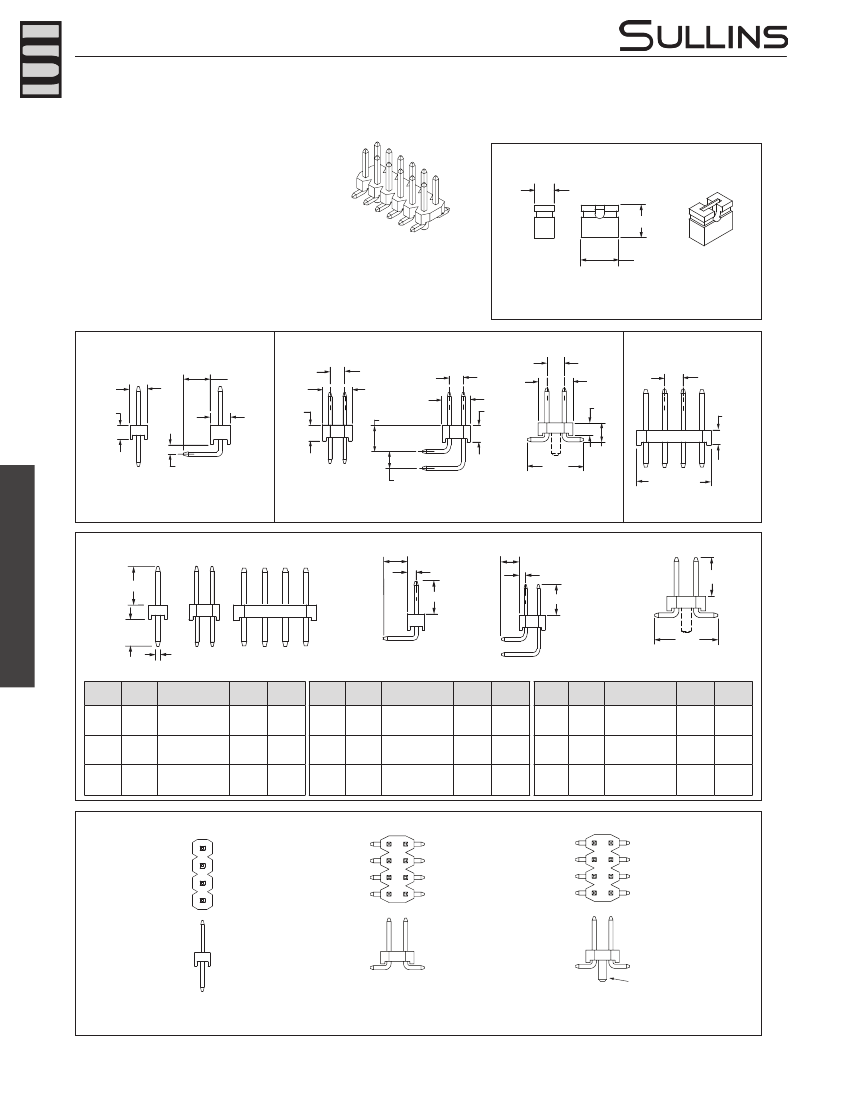

Headers
.079” [2.00 mm] Contact Centers, Male Headers,
Straight/Right Angle/SMT
SPECIFICATIONS
•
•
•
•
•
2 Amps current rating
UL Flammability Rating: 94V-0
Insulator Material: Nylon
Contact Material: Brass
Stacker Options available - Consult Factory
JUMPERS
.079” [2.00]
.138” [3.50]
.157” [4.00]
PART NUMBER:
SPN02SYBN-RC (GOLD FLASH)
STN02SYBN-RC (TIN PLATE)
READOUT
.079”
[2.00]
.079”
[2.00]
.110”
[2.80]
.079”
[2.00]
.079”
[2.00]
.157”
[4.00]
.079”
[2.00]
.079” [2.00]
.157” [4.00]
.118” [3.00]
.079”
[2.00]
.157”
[4.00]
.079”
[2.00]
.079”[2.00]
.059”
[1.50]
.059”
[1.50]
.039”[1.00]
.079”[2.00]
.256”
[6.50]
.087”
[2.20]
.315”[8.00]
SINGLE (1)
DUAL (2)
QUAD (4)
Headers
TERMINATION TYPE
HEAD
TAIL
.039”[1.00]
HEAD
TAIL
.039”[1.00]
HEAD
TAIL
HEAD
TAIL
.020”[0.50] SQ.
STRAIGHT
TAIL
.110”
[2.80]
.110”
[2.80]
.094”
[2.40]
RIGHT ANGLE
P/N
TERMINATION
ROWS
HEAD
CODE
TYPE
.142”
PAR
1
RIGHT ANGLE
[3.60]
PAR
2
RIGHT ANGLE
.142”
[3.60]
TAIL
.110”
[2.80]
.110”
[2.80]
MAM
2
SMT
SMT
P/N
TERMINATION
ROWS
HEAD
CODE
TYPE
TAIL
P/N
TERMINATION
ROWS
HEAD
CODE
TYPE
.142”
PAE
STRAIGHT
1
[3.60]
PAE
RCC
2
4
STRAIGHT
STRAIGHT
.142”
[3.60]
.173”
[4.40]
.142”
[3.60]
.256”
[6.50]
MOUNTING STYLE
Guide Post
Straight or
Right Angle (N)
Dual Row SMT,
Without Guide Posts (S)
Dual Row SMT,
With Guide Posts (P)
100
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Headers
.079” [2.00 mm] Contact Centers, Male Headers,
Straight/Right Angle/SMT
PART NUMBER OPTIONS
INSULATOR MATERIAL
N = Nylon
CONTACTS
R = Brass
CONTACT FINISH - RoHS Compliant
P = Gold Flash Overall
CONTACT CENTERS
N = .079” [2.00 mm]
NUMBER OF POSITIONS
Positions
Termination
Available
2 Thru 40 = MAM, PAE, PAR
3 Thru 30 = RCC
N R P N 40 1 PAE N - RC
RoHS COMPLIANT
Consult Factory For Modifications
MOUNTING STYLE
N = No Mounting
P = Surface Mount with Guide Posts (Dual Row)
S = Surface Mount without Guide Posts (Dual Row)
TERMINATION TYPE
MAM, PAE, PAR, RCC
NUMBER OF ROWS
1 = One row
2 = Two rows
4 = Four rows
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
PART NUMBER
NRPN02 _ _ _ _ _ -RC
NRPN03 _ _ _ _ _ -RC
NRPN04 _ _ _ _ _ -RC
NRPN05 _ _ _ _ _ -RC
NRPN06 _ _ _ _ _ -RC
NRPN07 _ _ _ _ _ -RC
NRPN08 _ _ _ _ _ -RC
NRPN09 _ _ _ _ _ -RC
NRPN10 _ _ _ _ _ -RC
NRPN11 _ _ _ _ _ -RC
NRPN12 _ _ _ _ _ -RC
NRPN13 _ _ _ _ _ -RC
NRPN14 _ _ _ _ _ -RC
NRPN15 _ _ _ _ _ -RC
NRPN16 _ _ _ _ _ -RC
NRPN17 _ _ _ _ _ -RC
NRPN18 _ _ _ _ _ -RC
NRPN19 _ _ _ _ _ -RC
NRPN20 _ _ _ _ _ -RC
NRPN21 _ _ _ _ _ -RC
NRPN22 _ _ _ _ _ -RC
NRPN23 _ _ _ _ _ -RC
NRPN24 _ _ _ _ _ -RC
NRPN25 _ _ _ _ _ -RC
NRPN26 _ _ _ _ _ -RC
NRPN27 _ _ _ _ _ -RC
NRPN28 _ _ _ _ _ -RC
NRPN29 _ _ _ _ _ -RC
NRPN30 _ _ _ _ _ -RC
NRPN31 _ _ _ _ _ -RC
NRPN32 _ _ _ _ _ -RC
NRPN33 _ _ _ _ _ -RC
NRPN34 _ _ _ _ _ -RC
NRPN35 _ _ _ _ _ -RC
NRPN36 _ _ _ _ _ -RC
NRPN37 _ _ _ _ _ -RC
NRPN38 _ _ _ _ _ -RC
NRPN39 _ _ _ _ _ -RC
NRPN40 _ _ _ _ _ -RC
2X .050 [1.27]
A
.079 [2.00],
TYP.
HEAD
TAIL
.020 [0.50] SQUARE POST
FITS Ø.031 [0.80] MINIMUM
B
QUAD READOUT,
STRAIGHT TAIL SHOWN
B
DUAL READOUT,
STRAIGHT TAIL SHOWN
B
SINGLE READOUT,
STRAIGHT TAIL SHOWN
NUMBER OF
CONTACTS
SINGLE/DUAL/
QUAD
02/04
03/06/12
04/08/16
05/10/20
06/12/24
07/14/28
08/16/32
09/18/36
10/20/40
11/22/44
12/24/48
13/26/52
14/28/56
15/30/60
16/32/64
17/34/68
18/36/72
19/38/76
20/40/80
21/42/84
22/44/88
23/46/92
24/48/96
25/50/100
26/52/104
27/54/108
28/56/112
29/58/116
30/60/120
31/62
32/64
33/66
34/68
35/70
36/72
37/74
38/76
39/78
40/80
A
in
0.079
0.157
0.236
0.315
0.394
0.472
0.551
0.630
0.709
0.787
0.866
0.945
1.024
1.102
1.181
1.260
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.362
2.441
2.520
2.598
2.677
2.756
2.835
2.913
2.992
3.071
B
mm
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
58.00
60.00
62.00
64.00
66.00
68.00
70.00
72.00
74.00
76.00
78.00
in
0.157
0.236
0.315
0.394
0.472
0.551
0.630
0.709
0.787
0.866
0.945
1.024
1.102
1.181
1.260
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.362
2.441
2.520
2.598
2.677
2.756
2.835
2.913
2.992
3.071
3.150
mm
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
58.00
60.00
62.00
64.00
66.00
68.00
70.00
72.00
74.00
76.00
78.00
80.00
Headers
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
101
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
