STW206PA

Description
Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount
CategoryMechanical and electronic products    switch
File Size47KB，1 Pages
ManufacturerKnitter-switch
Websitehttp://www.knitter-switch.com/
Download Datasheet Parametric Compare View All

STW206PA Overview

Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount

STW206PA Parametric

Parameter NameAttribute value
MakerKnitter-switch
Reach Compliance Codeunknown
Actuator angle24 deg
Executor completedCHROME
Actuator length0.669 inch
Actuator typeTOGGLE
Other featuresROHS COMPLIANT
body height7.493 mm
Casing diameter0.748 inch
Nozzle length0.472 inch
Casing type15/32-32
center contact materialCOIN SILVER
Contact (AC) maximum rated R load3A@250VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)4 A
Contact (DC) maximum rated R load4A@30VDC
Contact functionON-ON-ON
Contact resistance0.02 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)30 V
Dielectric withstand voltage1500VAC V
Electrical life100000 Cycle(s)
End contact materialCOIN SILVER
Insulation resistance1000000000 Ω
insulator materialDIALLYL PHTHALATE
Manufacturer's serial numberSTW
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
sealEPOXY
SolderabilityHAND
surface mountNO
Switch actionHORIZONTAL
switch functionDPDT
Switch typeTOGGLE SWITCH
Terminal length0.205 inch
Terminal materialCOPPER ALLOY
Termination typeSOLDER LUG

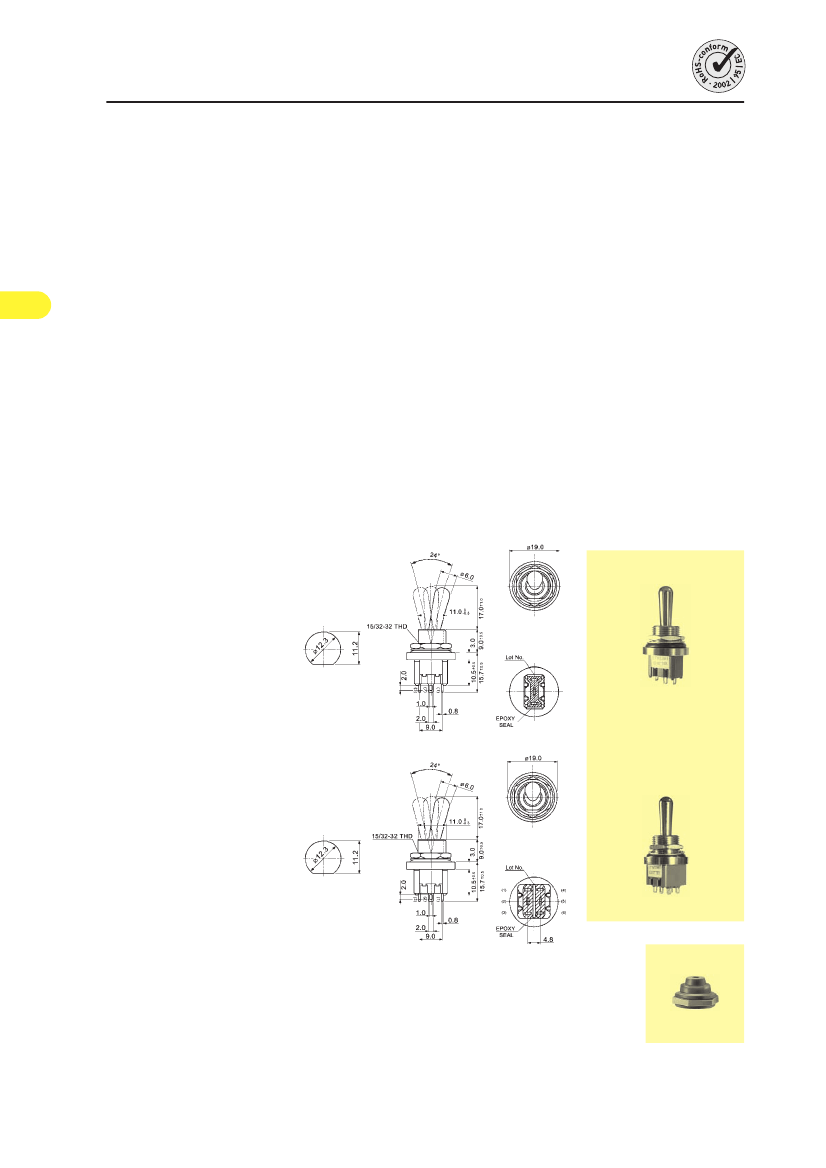

STW206PA Preview

Mustang Toggle Switches
waterproof
Specifications:
Contact rating:
250 V AC, 3 A / 125 V AC, 6 A
30 V DC, 4 A / 12 V DC, 5 A
6 V DC, 6 A
< 20 mΩ
> 1000 MΩ at 500 V DC
1500 V, 50 Hz for the duration of 1 minute
– 20° to + 85° C
minimum 100 000 operations
coin silver (common contact copper alloy, silver-plated)
also available gold-plated version B and G (see page 4)
solder tags, copper alloy silver-plated
IP 67
neoprene O-rings between toggle/bushing and bushing/panel
case: diallyle-phthalate, meets UL 94 V–0, green
lever: chromium-plated, metal parts: nickel-plated
bushing 15/32-32 THD (M 12 x 0,75) locking through flat bush, key 14 mm
hand-soldering – max.: 60 W, 3 sec, 420º C
auto-soldering – max.: 5 sec, 270º C
2
Contact resistance:
Insulation resistance:
Dielectric strength:
Operating temperature:
Mechanical life:
Contacts:
Terminals:
Water proofing:
Sealing:
Material:
Mounting:
Soldering conditions:
Models:
SPDT
STW 106 D
STW 106 E
STW 106 F
STW 106 G
STW 106 H
Switching functions
b
on
on
mom
mom
mom
–
off
–
off
off
on
on
on
mom
on
DPDT
STW 206 N
STW 206 P
STW 206 R
STW 206 S
STW 206 T
STW 206 PA
on
on
mom
mom
mom
on
–
off
–
off
off
on
on
on
on
mom
on
on
Accessories:
Waterproof sealing cap (height 11 mm)
grey
ET 507
22
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

STW206PA Related Products

STW206PA STW206P STW106E STW106H STW206S STW106D STW106G STW206R
Description Toggle Switch, DPDT, On-on-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, DPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, SPDT, On-off-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, SPDT, (on)-off-on, Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, DPDT, (on)-off-(on), Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, SPDT, On-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, SPDT, (on)-off-(on), Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount Toggle Switch, DPDT, (on)-on, Momentary, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount
Maker Knitter-switch Knitter-switch Knitter-switch Knitter-switch Knitter-switch Knitter-switch Knitter-switch Knitter-switch
Reach Compliance Code unknown unknown unknown unknow unknow unknow unknow unknown
Actuator angle 24 deg 24 deg 24 deg 24 deg 24 deg 24 deg 24 deg 24 deg
Executor completed CHROME CHROME CHROME CHROME CHROME CHROME CHROME CHROME
Actuator length 0.669 inch 0.669 inch 0.669 inch 0.669 inch 0.669 inch 0.669 inch 0.669 inch 0.669 inch
Actuator type TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body height 7.493 mm 7.493 mm 7.493 mm 7.493 mm 7.493 mm 7.493 mm 7.493 mm 7.493 mm
Casing diameter 0.748 inch 0.748 inch 0.748 inch 0.748 inch 0.748 inch 0.748 inch 0.748 inch 0.748 inch
Nozzle length 0.472 inch 0.472 inch 0.472 inch 0.472 inch 0.472 inch 0.472 inch 0.472 inch 0.472 inch
Casing type 15/32-32 15/32-32 15/32-32 15/32-32 15/32-32 15/32-32 15/32-32 15/32-32
center contact material COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER
Contact (AC) maximum rated R load 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC
Maximum contact current (AC) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Maximum contact current (DC) 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A
Contact (DC) maximum rated R load 4A@30VDC 4A@30VDC 4A@30VDC 4A@30VDC 4A@30VDC 4A@30VDC 4A@30VDC 4A@30VDC
Contact function ON-ON-ON ON-OFF-ON ON-OFF-ON (ON)-OFF-ON (ON)-OFF-(ON) ON-ON (ON)-OFF-(ON) (ON)-ON
Contact resistance 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ
Maximum contact voltage (AC) 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V
Maximum contact voltage (DC) 30 V 30 V 30 V 30 V 30 V 30 V 30 V 30 V
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Electrical life 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s)
End contact material COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER COIN SILVER
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
insulator material DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE DIALLYL PHTHALATE
Manufacturer's serial number STW STW STW STW STW STW STW STW
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
seal EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY
Solderability HAND HAND HAND HAND HAND HAND HAND HAND
surface mount NO NO NO NO NO NO NO NO
Switch action HORIZONTAL HORIZONTAL HORIZONTAL MOMENTARY MOMENTARY HORIZONTAL MOMENTARY MOMENTARY
switch function DPDT DPDT SPDT SPDT DPDT SPDT SPDT DPDT
Switch type TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH
Terminal length 0.205 inch 0.205 inch 0.205 inch 0.205 inch 0.205 inch 0.205 inch 0.205 inch 0.205 inch
Terminal material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
Termination type SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG
