OCXO-PILOTC3Z,5.120MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OCXO-PILOTC3Z,5.120MHZ

OCXO-PILOTC3Z,5.120MHZ: DescriptionSine Output Oscillator, 5.12MHz Nom; CategoryPassive components oscillator; File Size103KB，5 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

OCXO-PILOTC3Z,5.120MHZ Overview

Sine Output Oscillator, 5.12MHz Nom

OCXO-PILOTC3Z,5.120MHZ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Ageing	0.05 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.02%
Frequency Stability - Voltage	0.001 ppm
input power	1.02 W
Manufacturer's serial number	OCXO-PILOT
Installation features	THROUGH HOLE MOUNT
offset frequency	1 kHz
Nominal operating frequency	5.12 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.225 V
Oven power supply voltage	12V
phase noise	-155 dBc/Hz
physical size	50.8mm x 50.8mm x 25.4mm
Nominal supply voltage	12 V
surface mount	NO
Preheating power	7.2 W
Maximum warm-up time	8.5 Minute

Preview

Download Datasheet

View All

OCXO-PILOT

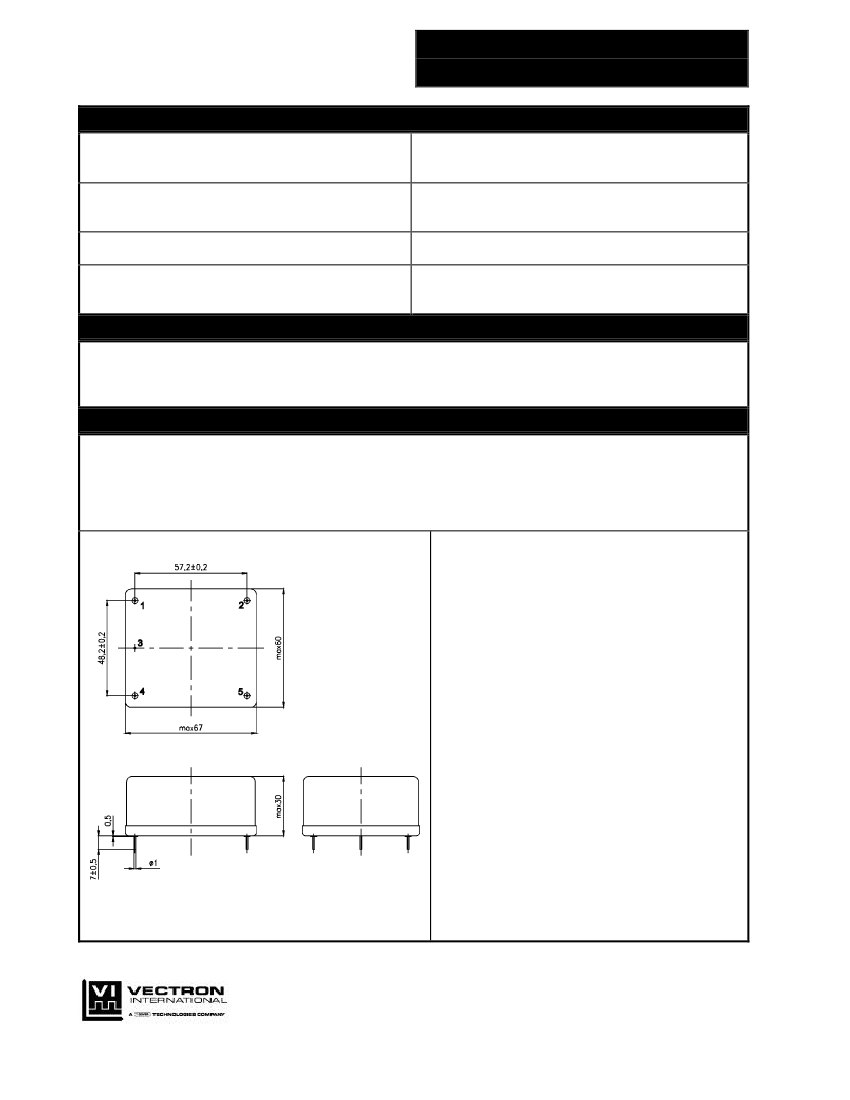

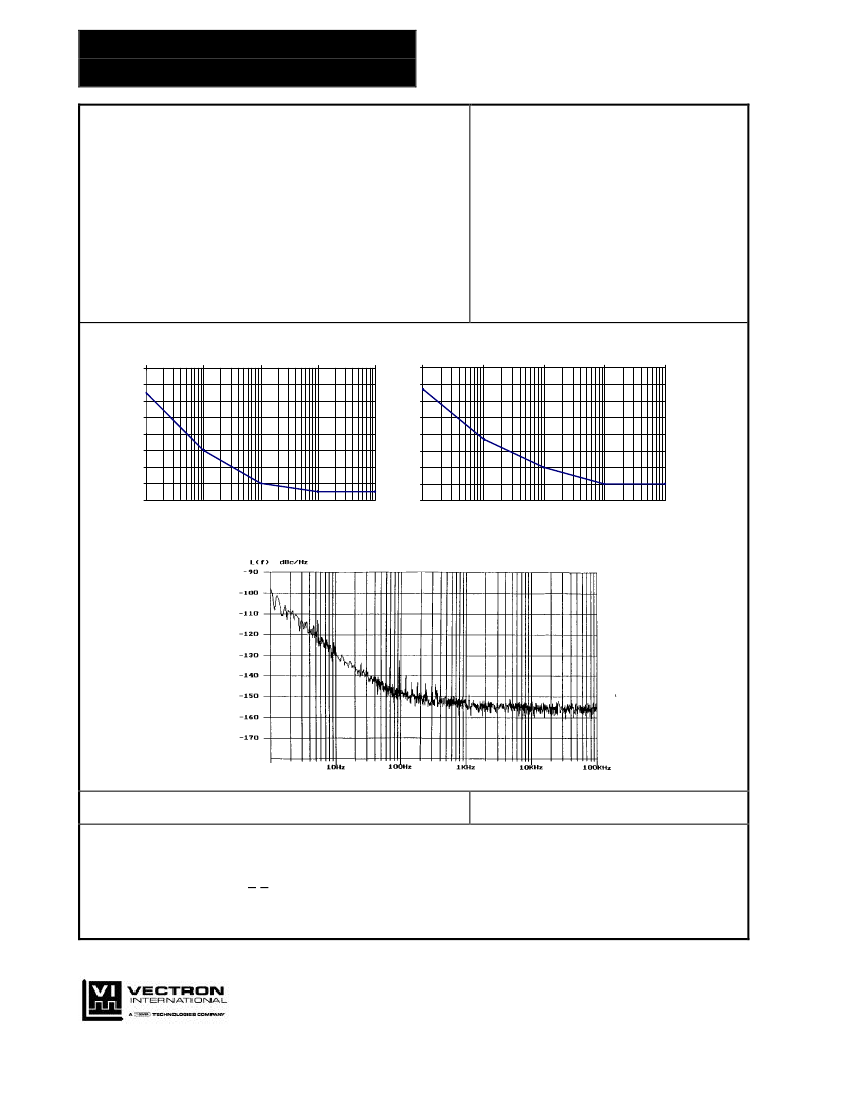

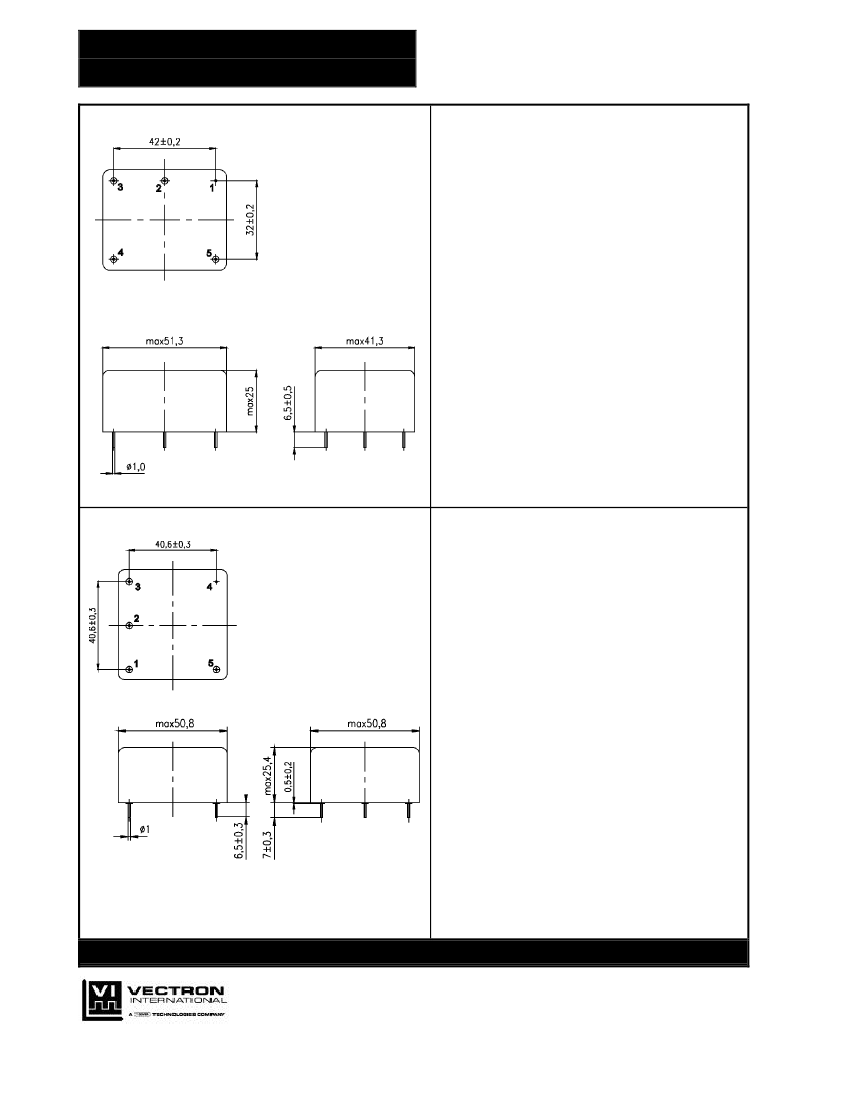

1. Specification

Frequency range:

Standard frequencies ( 1 ) :

4.096 MHz ... 16.384 MHz

4.096; 4.9152; 5.0; 5.115; 5.120; 5.184;

6.4; 8.192; 9.8304; 10.0; 10.23; 10.24;

10.368 MHz

12.0; 12.8; 13.0; 14.4; 16.384 MHz

Standard frequencies ( 2 ), multiplied frequencies :

Type:

Frequency stability

in the temperature range - 20°C to + 70°C:

< + 2.5x10

-8

( 1 )

< + 5x10

-8

( 2 )

< + 1x10

-7

( 3 )

< + 2x10

-9

< + 2x10

< + 3x10 per day

-7

< + 1x10 per year

-9

< + 5x10

-9

( 1 )

< + 1x10

-8

( 2 )

< + 2x10

-8

( 3 )

< + 1x10

-9

< + 1x10

< + 5x10 per day

-8

< + 5x10 per year

-10

vs. supply voltage changes UB

5 %:

vs. load changes 50 Ohm

10 %:

Long term stability after 30 days of operation:

Short term stability:

Frequency control range with ext. trimmer 20 kOhm

or external voltage 1 ... 5 V:

Supply voltage U

Current consumption at steady state

@ - 20°C:

@ + 25°C:

Peak Current consumption during warm-up:

Warm-up time

within < + 1x10

-7

within < + 5x10

-8

< + 1x10

-11

( typ. 5x10

-12

)

> + 4x10

-7

> + 3x10

-7

12 V

10 %

< 40 mA

< 30 mA

< 400 mA

< 110 mA

< 85 mA

< 600 mA

< 7min.@ -20°C

< 5min.@ +25°C

< 8.5min.@ -20°C

< 7.0min.@ +25°C

Temperature ranges

Operating:

Storage:

Output voltage :

level:

-20°C ... + 70°C

-55°C ... + 85°C

Sinewave

> 225 mV into 50 Ohm load

USA:

Vectron International • 166 Glover Avenue, Norwalk, CT 06856 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON

EUROPE:

In Denmark, Finland, Ireland, Italy, Israel, Norway, Spain, UK: Tel: 44(0) 1703 766 288 • Fax: 44 (0) 1703 766 822

In Austria, Belgium, France, Germany, Luxembourg, Netherlands, Sweden, Switzerland: Tel: 49 (0) 72 63 648 0 • Fax: 49(0) 72 63 619 6

ASIA:

In China, Taiwan, Japan: Tel: 1-603-598-0075 • In Korea, Singapore, Australia, India: Tel: 1-203-853-4433 • Fax: 1-203-849-1423

Vectron International reserves the right to make changes to the product(s) and/or information contained herein without notice.

No liability is assumed as a result of their use or application.

No rights under any patent accompany the sale of any such product(s) or information.

www.vectron.com
