101.6mm (4.0 INCH) 5x7 DOT MATRIX DIS-
PLAY
Part Number: TA40-11SURKWA
Hyper Red
Features
4.0 inch matrix height.
Dot size 10mm.
Low current operation.
High contrast and light output.
Stackable horizontally.
Easy mounting on p.c. boards or sockets.
Multicolor available.
Mechanically rugged.
Standard : gray face, white dot.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.

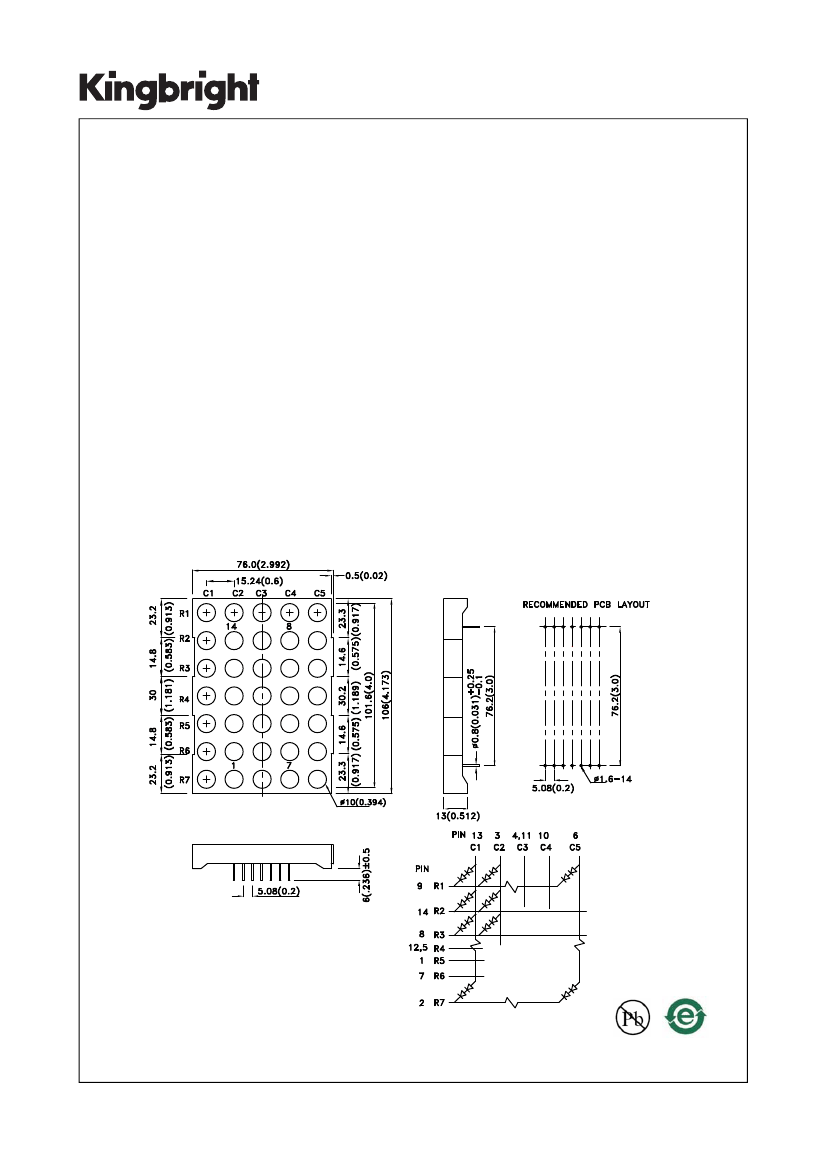

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2928
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 1 OF 6
ERP: 1332001443
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
88000
TA40-11SURKWA
Hyper Red (AlGaInP)
White Diffused
*31000
Notes:
1. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
240000
Column Anode
*70000
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance (Per Chip)
Forward Voltage (Per Dot)
Reverse Current (Per Chip)
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
645
630
28
35
3.9
5.0
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=10V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation (Per Dot)
DC Forward Current (Per Dot)
Peak Forward Current [1] (Per Dot)
Reverse Voltage (Per Chip)
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hyper Red
150
30
185
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAK2928
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 2 OF 6
ERP: 1332001443

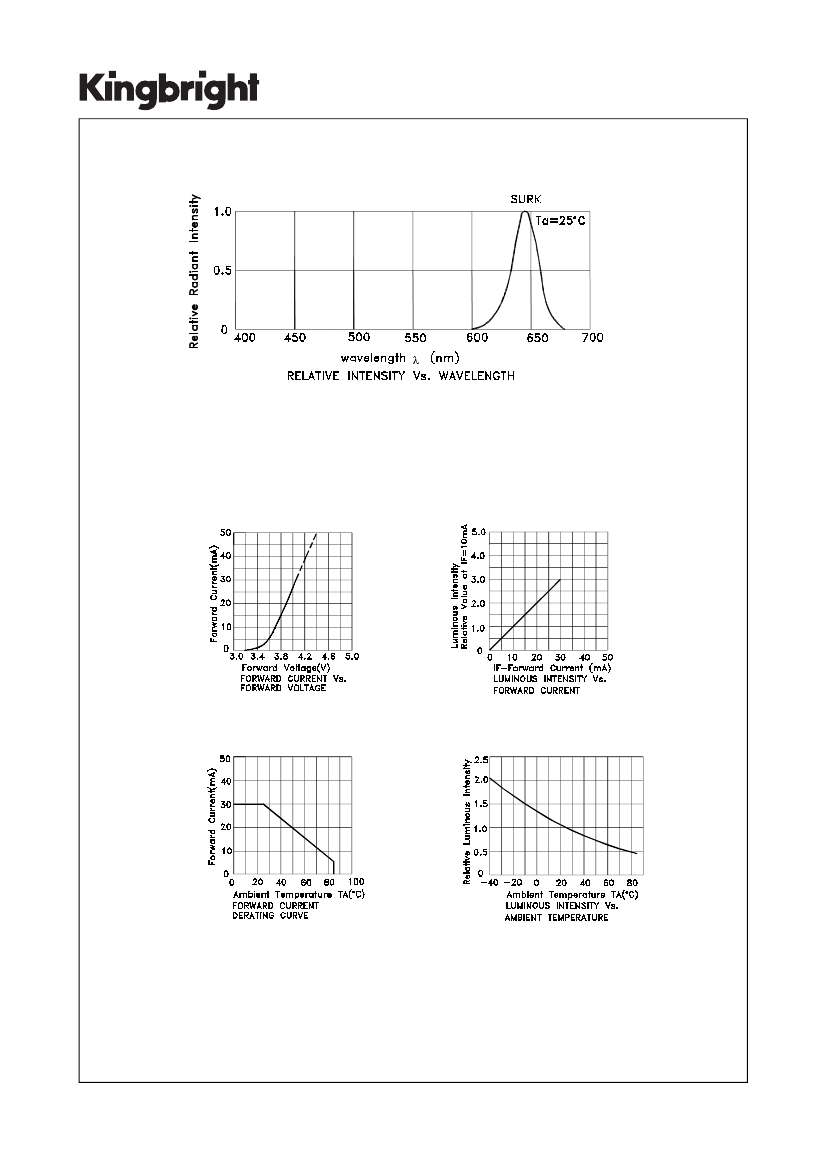

Hyper Red
TA40-11SURKWA
SPEC NO: DSAK2928
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 3 OF 6
ERP: 1332001443

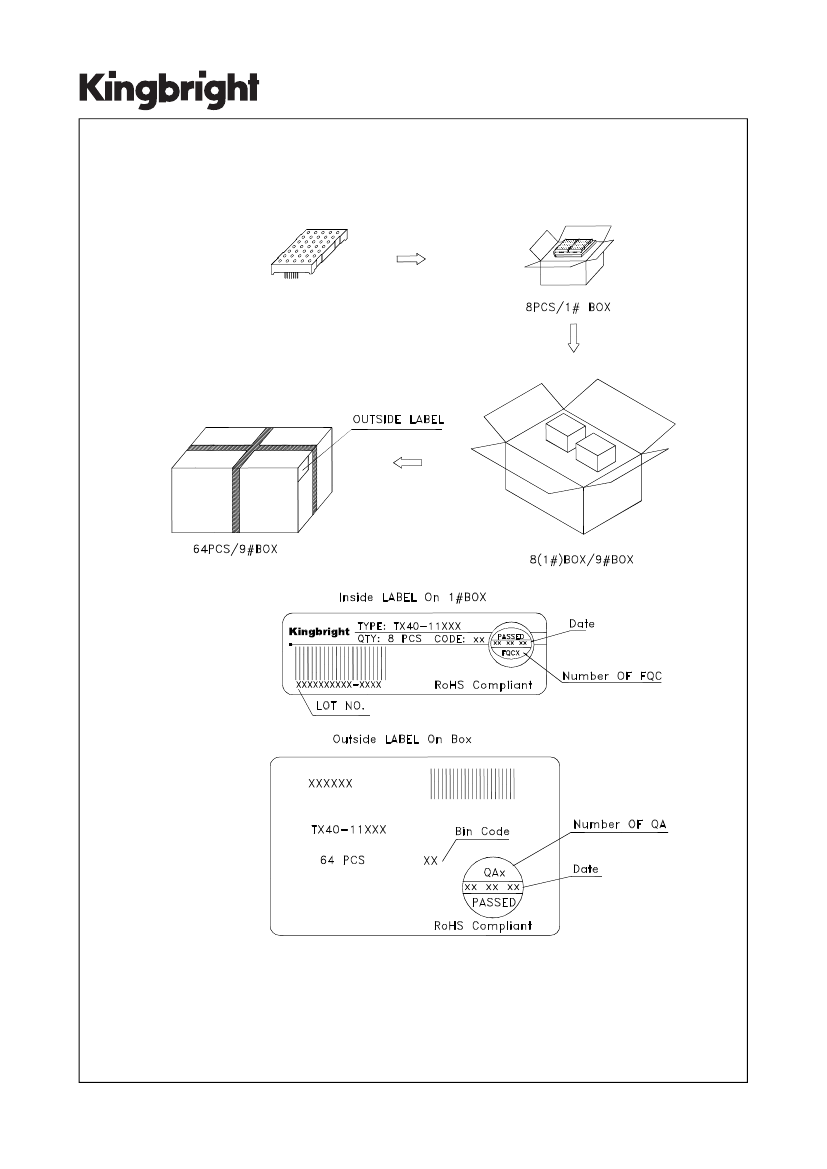

PACKING & LABEL SPECIFICATIONS
TA40-11SURKWA
SPEC NO: DSAK2928
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 4 OF 6
ERP: 1332001443

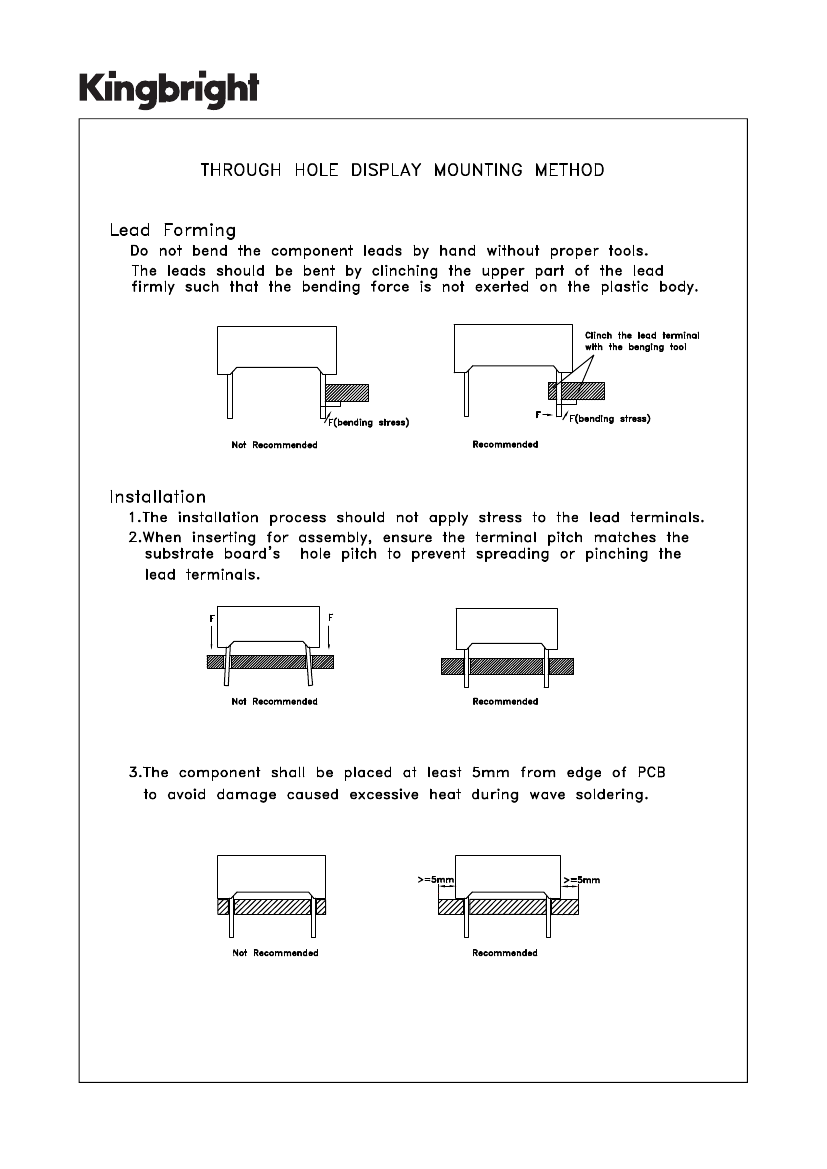

SPEC NO: DSAK2928
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 5 OF 6
ERP: 1332001443
