EDZVFHTE619.1B

Description
Zener Diode,
CategoryDiscrete semiconductor    diode
File Size2MB，9 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Download Datasheet Parametric View All

EDZVFHTE619.1B Overview

Zener Diode,

EDZVFHTE619.1B Parametric

Parameter NameAttribute value
MakerROHM Semiconductor
package instructionR-PDSO-F2
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-F2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
polarityUNIDIRECTIONAL
Maximum power dissipation0.15 W
GuidelineAEC-Q101
Nominal reference voltage9.1 V
surface mountYES
technologyZENER
Terminal formFLAT
Terminal locationDUAL
Maximum voltage tolerance2.1%
Working test current5 mA

EDZVFHTE619.1B Preview

EDZVFH9.1B
　
Zener Diode (AEC-Q101 qualified)
●
Outline
Data sheet
EMD2 SOD523 SC-79
P
D
　
150
　
mW
　
●
Feature
　
　
　
　
　
　
　
　　　　　
●
Inner Circuit
　
　
　
　
　
　
　
　
　
　　
High reliability
Small mold type
●
Application
●
Packaging Specification
Packing
Reel Size(mm)
T
aping Width(mm)
Basic Ordering Unit(pcs)
T
aping Code
Marking
Voltage regulation
●
Structure
Silicon Epitaxial Planar
●
Absolute Maximum Rating (T
a
= 25
℃
)
Embossed T
ape
180
8
8000
TE61
L2
Parameter
Power dissipation
Junction temperature
Storage temperature
Symbol
P
D
T
j
T
stg
Limits
150
150
-55
½
150
　
Unit
mW
℃
℃
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/6
　
2015/06/22_Rev.001
EDZVFH Series
P/N
EDZVFH 2.0B
EDZVFH 2.2B
EDZVFH 2.4B
EDZVFH 2.7B
EDZVFH 3.0B
EDZVFH 3.3B
EDZVFH 3.6B
EDZVFH 3.9B
EDZVFH 4.3B
EDZVFH 4.7B
EDZVFH 5.1B
EDZVFH 5.6B
EDZVFH 6.2B
EDZVFH 6.8B
EDZVFH 7.5B
EDZVFH 8.2B
EDZVFH 9.1B
EDZVFH 10B
EDZVFH 11B
EDZVFH 12B
EDZVFH 13B
EDZVFH 15B
EDZVFH 16B
EDZVFH 18B
EDZVFH 20B
EDZVFH 22B
EDZVFH 24B
EDZVFH 27B
EDZVFH 30B
EDZVFH 33B
EDZVFH 36B
　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　　　　　　
Data sheet
　 　 　 　 　 　
　　　　　　　　　　　　　
●
Electrical Characteristic (T
a
= 25ºC)
Zener Voltage:V
Z
(V)
Symbol
Dynamic Impedance:Z
Z
(Ω) Zener Impedance:Z
ZK
(Ω) Reverse Current:I
R
(μA)
MIN.
2.020
2.220
2.430
2.690
3.010
3.320
3.600
3.890
4.170
4.550
4.980
5.490
6.060
6.650
7.280
8.020
8.850
9.770
10.76
11.74
12.91
14.34
15.85
17.56
19.52
21.54
23.72
26.19
29.19
32.15
35.07
MAX.
2.200
2.410
2.630
2.910
3.220
3.530
3.845
4.160
4.430
4.750
5.200
5.730
6.330
6.930
7.600
8.360
9.230
10.21
11.22
12.24
13.49
14.98
16.51
18.35
20.39
22.47
24.78
27.53
30.69
33.79
36.87
I
z
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
MAX.
100
100
100
110
120
120
100
100
100
100
80
60
60
40
30
30
30
30
30
30
37
42
50
65
85
100
120
150
200
250
300
I
z
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
MAX.
1000
1000
1000
1000
1000
1000
1000
1000
1000
800
500
200
100
60
60
60
60
60
60
80
80
80
80
80
100
100
120
150
200
250
300
I
z
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
MAX.
120
120
120
100
50.0
20.0
10.0
5.0
5.0
2.0
2.0
1.0
1.0
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
V
Z
test time is 40ms
　 　 　 　 　 　 　 　 　 　
　
●
Marking
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
P/N
EDZVFH 2.0B
EDZVFH 2.2B
EDZVFH 2.4B
EDZVFH 2.7B
EDZVFH 3.0B
EDZVFH 3.3B
EDZVFH 3.6B
EDZVFH 3.9B
EDZVFH 4.3B
EDZVFH 4.7B
EDZVFH 5.1B
EDZVFH 5.6B
EDZVFH 6.2B
EDZVFH 6.8B
EDZVFH 7.5B
EDZVFH 8.2B
Marking
02
12
22
32
42
52
62
72
82
92
A2
C2
E2
F2
H2
J2
P/N
EDZVFH 9.1B
EDZVFH 10B
EDZVFH 11B
EDZVFH 12B
EDZVFH 13B
EDZVFH 15B
EDZVFH 16B
EDZVFH 18B
EDZVFH 20B
EDZVFH 22B
EDZVFH 24B
EDZVFH 27B
EDZVFH 30B
EDZVFH 33B
EDZVFH 36B
　
Marking
L2
05
15
25
35
45
55
65
75
85
95
A5
C5
E5
F5
　
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/6
　
　
　　　
　
　 　 　
2015/06/22_Rev.001
EDZVFH Series
●

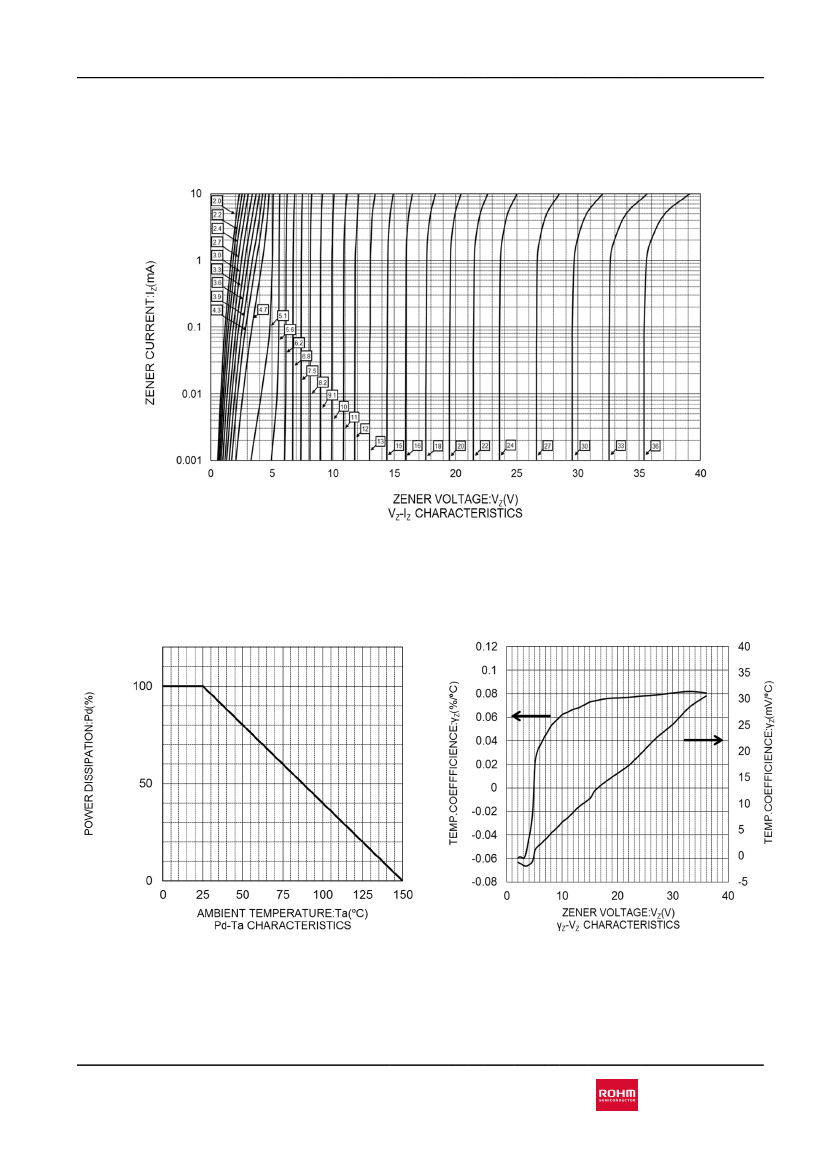

Electrical Characteristic Curves
　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　　　　　　
Data sheet
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　
www.rohm.com
　
　
　 　 　
　 　 　 　
© 2015 ROHM Co., Ltd. All rights reserved.
3/6
2015/06/22_Rev.001

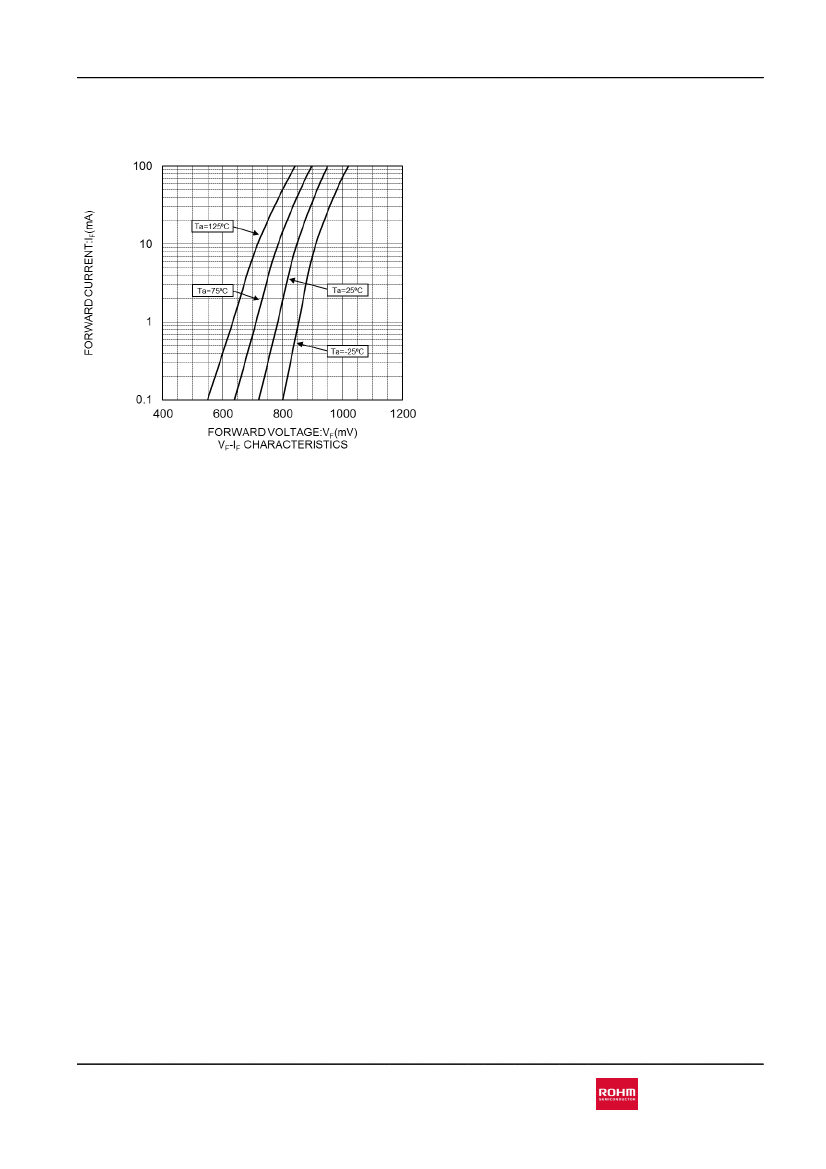

EDZVFH9.1B
●
Electrical Characteristic Curves
　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　　　　　　
Data sheet
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/6
2015/06/22_Rev.001

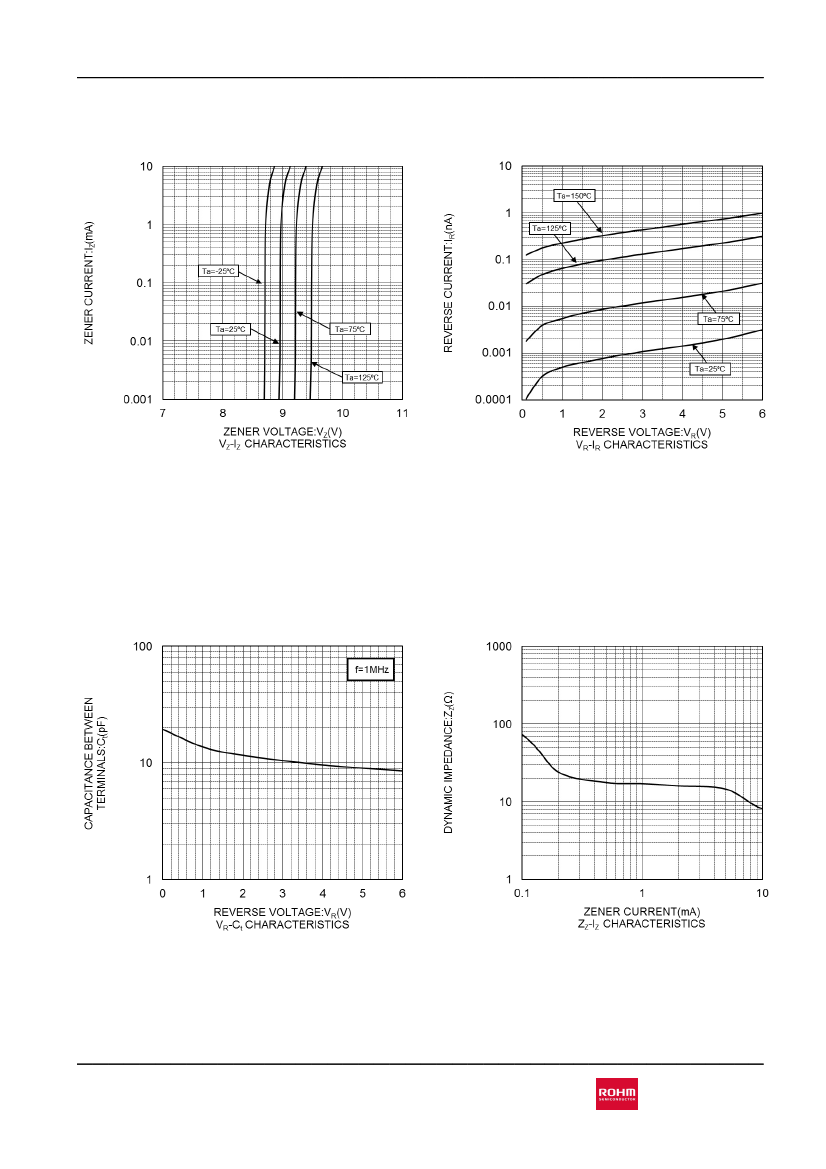

EDZVFH9.1B
●
Electrical Characteristic Curves
　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　　　　　　
Data sheet
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　
www.rohm.com
　
　
　 　 　
　 　 　 　
© 2015 ROHM Co., Ltd. All rights reserved.
5/6
2015/06/22_Rev.001
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
